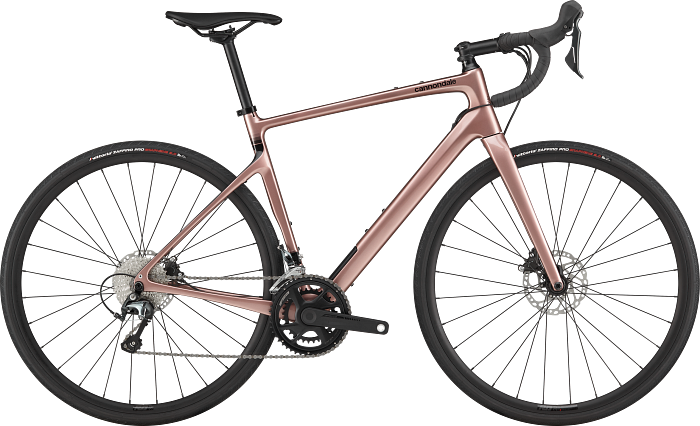

Synapse Carbon 4

Name: Synapse Carbon 4
Brand: Cannondale
SKU: C12402U2048
Price: 15990
Availability: OutOfStock

Color:

Size What's my size?

Check Local Bike Shops

We've got you covered.

Limited Lifetime Warranty

Every Cannondale bicycle comes with a limited lifetime warranty on the frame, and a one year warranty on all Cannondale components.

See complete warranty policy details. Some components have additional warranty coverage provided by the component manufacturer.

Bicycle warranty claims are handled through your Authorized Cannondale Retailer. To place a warranty claim on Cannondale gear or accessories, contact Cannondale Rider Services at 800-245-3872.

Worldwide Dealer Network

Looking to shop local? Try our Dealer Locator.

It's the easiest way to browse shops near you that carry Cannondale bikes. All the shops featured on our website are independent, authorized Cannondale retailers, so you can support local businesses while still finding the best bike—talk about a win-win.

sizing dialogue entered

Tell us how tall you are, we'll help you find the right size.

Long arms? Short Legs? Just not sure? Call us!

Some models run larger than others. Customer Service can help you identify a size more specific to your body type. Call 1-800-245-3872.

Zip Code

Overview

Road Reimagined

Roll smooth, roll fast, roll confident. Wherever the road takes you, roll with Synapse – our most comfortable, all-around, up-for-anything, pure road machine.

Where it thrives

The open road, up & down hills, rough pavement

What it's built for

Comfort, handling, going long

Highlights

Lightweight Synapse Carbon Frameset / SmartSense compatible
Shimano Tiagra 10-speed group with FSA cranks
Shimano Tiagra hydraulic disc brakes

Road Reimagined

So Smooth

With Synapse, comfort is built in. Discreet flex zones in the rear triangle, seat tube and seatpost absorb road chatter and bumps without adding weight or isolating you from the ride experience.

So Fast

Lightweight carbon construction. Subtle aerodynamic shaping of the frame and fork. Size-specific design for perfectly tuned stiffness. It all adds up to a machine that loves to fly.

So Capable

With a comfortably balanced riding position, confidence-inspiring handling, room for 35mm wide tires for cushion and grip, and plenty of gear/bottle mounts, Synapse is ready to rock on any road, anywhere.

Features

Wide Ranging Capabilities

Clearance for 35mm tires lets you venture beyond the perfectly paved with comfort and grip - or ride through the wet season with full fenders.

Specially Smooth

Comfort and control you feel, not see. Everything you need for a bump-absorbing smooth ride is engineered into the frame shape and carbon layup - giving you a light, sleek ride that's unlike anything else.

Tuned for the Rider

Our Proportional Response size-specific construction creates optimal frame stiffness and compliance for each frame size, so that every rider experiences Synapse's glorious ride feel.

Mount Up

Mounts and eyelets galore means you can equip Synapse for whatever the day has in store, including full fender compatibility. Even rain can't keep Synapse down.

SmartSense Ready

Make every ride better with enhanced visibility and awareness. The SmartSense-ready frame means it's easy to upgrade to our system of intelligent running lights and rear-facing radar.

Specs

Details

Platform
Synapse Carbon
Model Name
Synapse Carbon 4
Model Code
C12402U

Frameset

Frame
Synapse Carbon, SmartSense enabled, Proportional Response size-specific design, BSA threaded BB, flat mount brake, 12x142mm thru-axle, thru-tube internal cable routing with Switch Plate, removable fender bridge, hidden rack/fender mounts
Fork
Synapse Carbon, integrated crown race, Proportional Response size-specific design, 12x100mm thru-axle, thru-tube internal routing, hidden fender mounts
Headset
Synapse Sealed Bearing, integrated, 1-1/4"-1-1/8"

Drivetrain

Rear Derailleur
Shimano Tiagra GS
Front Derailleur
Shimano Tiagra, braze-on
Shifters
Shimano Tiagra hydraulic disc, 10-speed
Chain
Shimano HG54, 10-speed
Crank
FSA Omega Alloy, 50/34 with FSA MegaExo BB
Rear Cogs
Shimano Tiagra, 11-34, 10-speed
Bottom Bracket
Shimano BSA

Brakes

Brakes
Shimano Tiagra hydraulic disc, 160/160mm RT64 rotors
Brake Levers
Shimano Tiagra hydraulic

Wheels

Rims
RD 3.1, 28h, 21mm inner width
Spokes
Stainless Steel, 14g
Tire Size
30
Wheel Size
700c
Hubs
(F) Formula CL-712, 12x100mm centerlock / (R) Formula RXC-400, 12x142mm centerlock
Tires
Vittoria Zaffiro Pro Reflective, 700x30c
Front Tire
Vittoria Zaffiro Pro Reflective, 700x30c
Rear Tire
Vittoria Zaffiro Pro Reflective, 700x30c

Components

Handlebar
Cannondale 3, 6061 Alloy, Compact
Stem
Cannondale 3, 6061 Alloy, 31.8, 7°
Grips
Fabric Knurl Bar Tape
Saddle
Fizik Aliante Delta, S-alloy rails
Seatpost
Cannondale 3, 6061 Alloy, 27.2x350mm (48-56), 400mm (58-61)

Extra

Extra 1
Trainer Compatible Thru-Axle

Weight: 9.5 kg / 20.9 lbs (56cm) - Bike and frame weights may vary in final production.
Please note that, based on component availability and other factors, specifications are subject to change without notice.
