Bosch Performance Line Speed
The ultimate urban drive unit. Incredibly compact and light, it offers 75 Nm of torque and seamless assistance all the way up to 28 mph - all backed by Bosch's renowned quality and service.
Close
Tell us how tall you are, we'll help you find the right size.
Long arms? Short Legs? Just not sure? Call us!
Some models run larger than others. Customer Service can help you identify a size more specific to your body type. Call 1-800-245-3872.
Traffic slayer.
A stylish, rugged urban e-bike, built to turn rush hour into “what-a-rush!” hour.
Where it thrives
In town, leisurely rides, on crowded streets
What it's built for
Speed, visibility, handling
Highlights
- Premium SmartForm C1 Alloy frame and carbon fiber fork, dual-battery-ready
- Shimano Deore 10-speed drivetrain with hydraulic disc brakes
- Bosch Performance Line Speed 250W drive-unit (28mph) / 500Wh battery / Range: up to 50mi
Technology
SmartForm C1 Alloy
Our premium alloy construction. C1 uses every technique in our arsenal to create frames that are incredibly light, stiff and durable, with a ride-feel that could only come from Cannondale.
Si Motor Mount
Proprietary Cannondale motor mount positions the Bosch drive unit low and forward in the frame, keeping the Center of Gravity low and the chainstays short for uncommonly agile handling.
Dual Battery Compatible
For double the range and double the adventure, the standard Canvas NEO frame comes pre-wired and ready for the installation of a second battery kit.
Carbon Fiber Fork
Canvas Neo features a light, stiff and durable full carbon fiber fork for precise handling without the weight.
Remixte
Also available with a Remixte unisex frame, featuring a lowered top tube for easier step-through and greater comfort.
Graphic Reflectivity
Be seen. Highly reflective accents on the frame and fork increase visibility in low-light conditions.
Specs
Details
-
Platform
-
Model NameCanvas Neo 1
-
Model CodeC64150M SMU
Frameset
-
FrameSmartForm C1 Alloy, Dual Battery ready, removable downtube battery, SAVE, tapered headtube, internal cable routing, Ai offset drivetrain, 148x12mm thru-axle, post mount disc, integrated speed sensor, KickFlip hidden kickstand mount, motor protection, lock mount
- Dual Battery ready
- Removable downtube battery
- SAVE
- Tapered headtube
- Internal cable routing
- Ai offset drivetrain
- 148x12mm thru-axle
- Post mount disc
- KickFlip hidden kickstand mount
-
ForkBallisTec Carbon, 1-1/8" to 1.5" tapered steerer, OutFront 55mm offset, post mount disc, 15x110mm thru-axle, hidden cable routing
-
HeadsetIntegrated, 1-1/8 to 1.5", sealed angular contact bearings (Integrated steer stop size small only)
E-System
-
Drive UnitBosch Performance Line Speed 250W (28mph)
-
BatteryBosch PowerTube 500Wh
-
ChargerBosch 4a
-
DisplayBosch Purion
Drivetrain
-
Rear DerailleurShimano Deore GS
-
ShiftersShimano Deore, 10-speed
-
ChainShimano HG54, 10-speed
-
CrankBosch Gen4 w/ custom Ai offset, 46T
-
Rear CogsShimano HG500, 11-42, 10-speed
Brakes
-
BrakesShimano Deore M6000 hydro disc, 203/180mm RT30 rotors
-
Brake LeversShimano Deore M6000 hydro disc
Wheels
-
Front HubShimano MT400 15x110
-
Rear HubShimano MT400 12x148
-
RimsWTB STX i29 TCS, 32h, tubeless ready
-
SpokesDT Swiss Champion
-
Tire Size2.35
-
Wheel Size29
-
TiresSchwalbe G-One Speed Performance, 29 x 2.35", RaceGuard, tubeless ready
Components
-
HandlebarCannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 740mm
-
StemCannondale 3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 0-degree
-
GripsCannondale Locking Grips
-
SaddleCannondale Ergo Urban
-
Seatpost6061 Alloy, 31.6 x 350mm
Please note that, based on component availability and other factors, specifications are subject to change without notice.

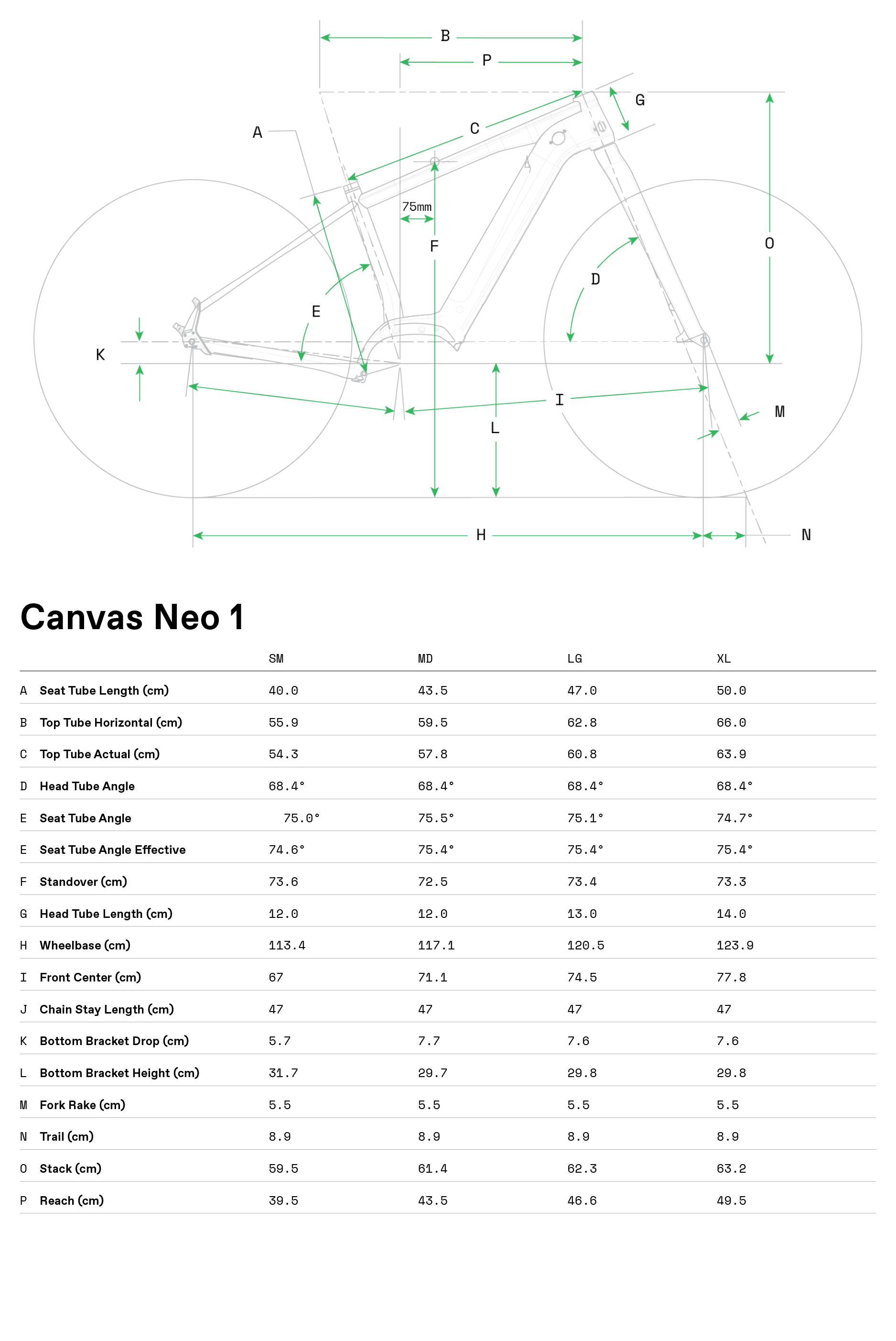

Geometry
