Premium Framesets
Progressive frame design blends the latest Trail-ready geometry with dropped seatstays for improved ride quality and a leaner look.
Level Up.
A mountain bike built to raise your game and ignite a passion for the trail. Designed for the mountains and ready for anything.
Де використовувати
Low-impact trails, gravel roads, leisurely ride
Про що це
Handling, durability
Варто відзначити
- Premium SmartForm C2 Alloy frame / RockShox Judy Silver TK 120mm fork
- Shimano Deore 11-speed shifting / Shimano MT200 hydraulic disc brakes
- TranzX dropper seatpost
Confident Handling
New-school handling and mountain-ready components result in a modern, confidence-inspiring experience at a level where you might otherwise be expecting compromises. This is what fun looks like.
Perfectly Framed
Be it your first time off-road or further afield on to your next ride, SE’s new SmartForm aluminum frames come assembled with choice components making these bikes the complete, trail-ready package.
Spec’d for More
A longer travel 120mm fork, wider 760m bars and a short stem sets the tone for this bike – combined with more aggressive 2.5” / 2.3” tires, the SE handles the biggest trails.
Technology
SmartForm C2 Alloy
Aluminum construction that’s a cut above. High-performance tube shapes, extensive weight-saving butting, and seamless double-pass welds deliver a ride unlike anything in its class.
Tapered Headtube
The standard for top-end mountain bikes. Light and stiff, it's designed for the the 1-1/2" to 1-1/8" tapered steerer tubes found on the best suspension forks.
SAVE Micro-Suspension
Delivers a smoother, more controlled ride thanks to strategically engineered flex zones built into the frame's rear triangle.
Boost Spacing
Enabled by Boost spacing, Trail's short chainstays position the rear wheel optimally for climbing traction and agile handling.
Confident Control
A slacker-than-average 66.5° head angle results in even more stable handling, giving you extra confidence when the trails point downhill.
Right-Sized Wheels
All Trail SE sizes come with 29" wheels to deliver the best blend of fit, fast and fun for every rider.
StraightShot Internal Cable Routing
For an integrated look and easy maintenance, the shift and dropper post cables route cleanly through the StraightShot window in the down tube, while the rear brake line is secured outside the frame.
KickFlip Compatible
Ready to accept a sleek, hidden mount makes it easy to add a kickstand for around-town convenience.
Специфікації
Details
-
Platform
-

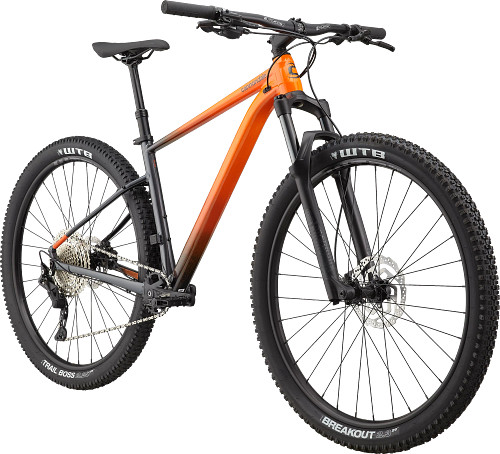

Model NameTrail SE 3
-
Model CodeC26301M
Frameset
-
FrameSmartform C2 Alloy, SAVE dropped seatstays, tapered headtube, post mount disc, StraightShot internal cable routing, dropper post compatible BSA 73, 12mm thru axle, Boost 148
-
ForkRockShox Judy Silver TK, 120mm, Solo Air, 15x110 thru-axle, 51mm offset
-
HeadsetIntegrated Sealed Bearing, Tapered
Drivetrain
-
Rear DerailleurShimano Deore M5100
-
ShiftersShimano Deore M5100, 11-speed
-
ChainKMC X11, 11-speed
-
CrankFSA Alpha Drive, 30T
-
Rear CogsShimano Deore M5100, 11-51, 11-speed
-
Bottom BracketSealed cartridge bearing, square taper
Brakes
-
BrakesTektro M275 hydraulic disc, 180/160mm rotors
-
Brake LeversTektro hydraulic disc
Wheels
-
Front HubShimano MT400, 15x110mm thru-axle
-
Rear HubShimano MT400, 12x148mm thru-axle
-
Brake TypeDisc
-
RimsWTB STX i25 TCS, 32h, tubeless ready
-
SpokesStainless Steel, 14g
-
Tire Size2.3
-
Wheel Size29
-
Tires(F) WTB Breakout, 29x2.3" / (R) WTB Trail Boss, 29x2.25"
-
Front TireWTB Breakout 29x2.3"
-
Rear TireWTB Trail Boss 29x2.25"
Components
-
HandlebarFSA Alloy Riser, 15mm rise, 760mm
-
StemCannondale, 6061 Alloy, 31.8, 7°
-
GripsCannondale Locking Grips
-
SaddleCannondale Ergo XC
-
SeatpostTranzX Dropper, 31.6, Internal Routing, 100mm (S), 120mm (M-XL)
Зверніть увагу, що з огляду на наявність компонентів та інші фактори, специфікації можуть змінюватись без сповіщення
Геометрія
Trail comes in two flavors.
How are they different?
Trail SE vs. SL
Trail SL is lighter, racier, and built for the quickness while Trail SE is more robust and equipped for the big time.
