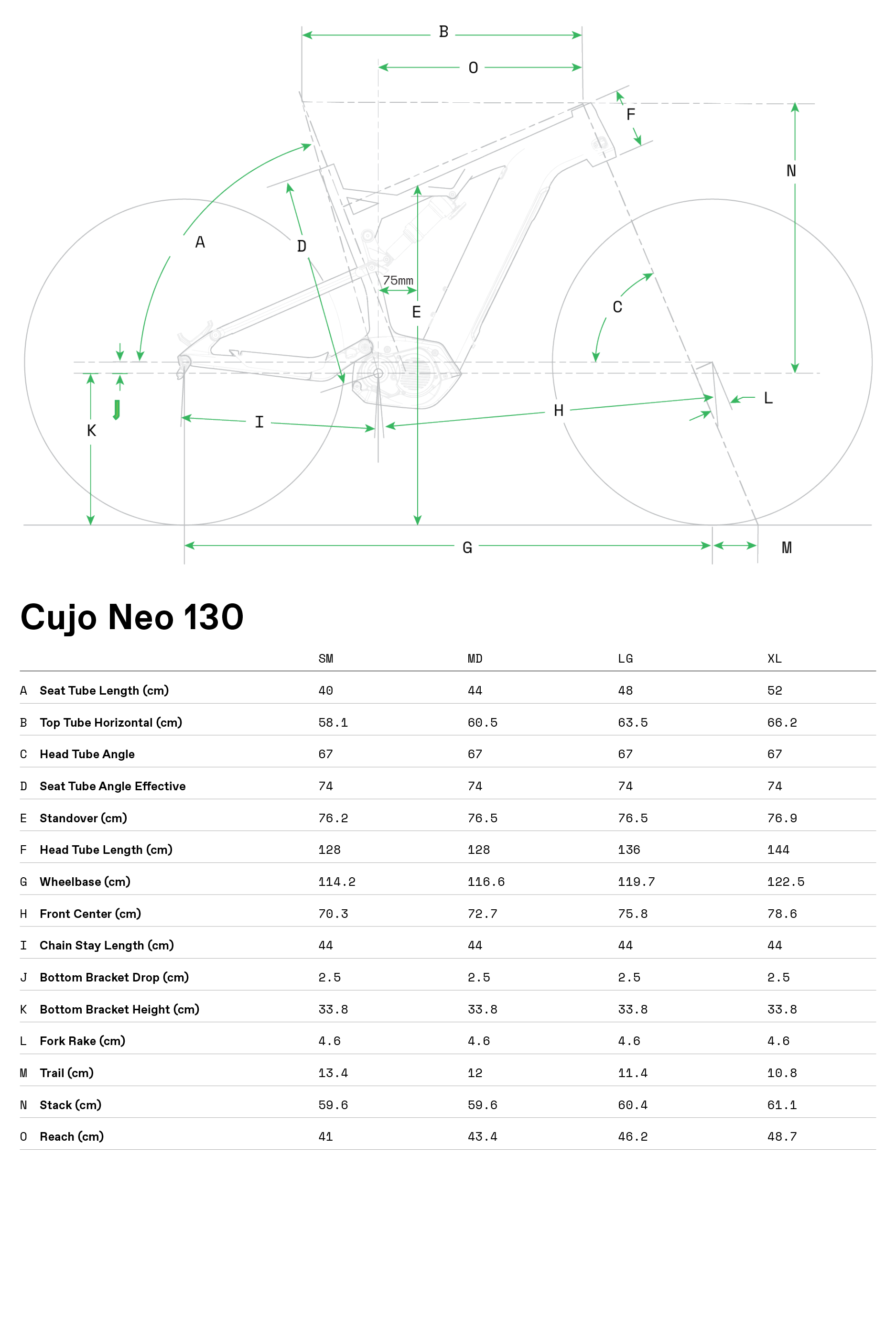

Geometry

Choose a size or tell us how tall you are in the sizing section and we’ll give you all the measurements associated with your height here.

Close

Retailers

    Platform: Cujo Neo 130

    Power forward.

    A full-suspension e-bike with the power, traction and travel to make anything possible, and everything fun.

    Highlights

    • Light, durable SmartForm C2 Alloy frame / SR Suntour XCM 34 fork / RockShox Deluxe R rear shock, 130mm travel
    • Shimano Deore 10-speed drivetrain with hydraulic disc brakes
    • Shimano STEPS E8000 250W drive-unit / 504Wh battery

    Where it thrives

    Out in the elements, Up and down hills

    What it's built for

    Traction, efficiency

    Drivetrain

    • Chain
      Shimano HG54, 10-speed
    • Crank
      Shimano FC-E8000, 165mm, X-Sync, 34t
    • Rear Cogs
      Shimano HG500, 11-42, 10-speed
    • Rear Derailleur
      Shimano Deore GS
    • Shifters
      Shimano Deore, 10-speed

    Frameset

    • Fork
      SR Suntour XCM34, 130mm, Coil, 15X110mm thru-axle
    • Frame
      130mm travel, SmartForm C2 Alloy, removable downtube battery, tapered headtube, 148x12mm thru-axle, alloy skid plate
      • 130mm travel
      • Removable downtube battery
      • Tapered headtube
      • 148x12mm thru-axle
      • Alloy skid plate
    • Headset
      Integrated Sealed Bearing, Tapered
    • Rear Shock
      RockShox Deluxe R, DebonAir

    Wheels

    • Front Hub
      Shimano MT400 15x110
    • Rear Hub
      Shimano MT400 12x148
    • Rims
      WTB STX i29 TCS, 32h, tubeless ready
    • Spokes
      DT Swiss Champion
    • Tire Size
      2.8
    • Tires
      WTB Ranger Comp, 27.5 x 2.8", DNA Compound
    • Wheel Size
      27.5+

    Brakes

    • Brake Levers
      Shimano MT200 hydro disc
    • Brakes
      Shimano MT200 hydro disc, 180/180 RT30 rotors

    Components

    • Grips
      Cannondale Locking Grips
    • Handlebar
      Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
    • Saddle
      Fabric Scoop Shallow Sport, steel rails
    • Seatpost
      Cannondale 3, 6061 Alloy, 31.6 x 350mm
    • Stem
      Cannondale 3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 0°

    E-System

    • E-System Battery
      Shimano STEPS BT-E8020, 504Wh
    • E-System Charger
      Shimano STEPS EC-E6000
    • E-System Display
      Shimano EW-EN100 Junction Box for bluetooth connection

    Measurements

    • Size: SM
      5'2" 157
      5'5" 165
    • Size: MD
      5'6" 167
      5'9" 175
    • Size: LG
      5'8" 172
      6'0" 182
    • Size: XL
      6'1" 185
      6'5" 195
