Suspension Like No Other
High main pivot gives it a bump-swallowing rearward axle path. The Guidler pulley kills the pedal kickback of high pivot systems. The 4-bar linkage keeps braking smooth, traction high and pedaling crisp.
sizing dialogue entered
Close
We are sorry we don't have height data for this bike available, please contact customer service for more assistance.
Long arms? Short Legs? Just not sure? Call us!
Some models run larger than others. Customer Service can help you identify a size more specific to your body type. Call 1-800-245-3872.
See you at the bottom
Even though Jekyll boasts a unique combo of go-fast tech that’s never been seen before, it's not a bike that talks. It’s a bike that goes.
Where it thrives
Steep, fast, rowdy mountains
What it's built for
Enduro racing, bike park sessions, high-speed mobbing
Highlights
- Fox Float Factory 38, 170mm / Float Factory X2 Shock
- SRAM GX Eagle 12-speed drivetrain / Code RSC hydraulic disc brakes
- HollowGram SAVE carbon riser bar / DownLow dropper post
Descend into Greatness
It’s a hell of a climber but come on. Jekyll was born for the downs. Every part of it crafted for the sweet embrace of speed, every element designed to help you wring a bit more of velocity’s nectar from those steep, chunky, high pucker lines you love.
Best. Suspension. Ever.
4-bar meets high pivot meets idler pulley meets size-specific kinematics. For real. If you’re not up for suspension buzzword bingo, just know that it grips, floats, and pedals like nothing else. It’s always up for getting down.
The Gravity Cavity
The shock tucks cleanly into the twin spar downtube, keeping the bike's center of gravity as low as possible. Wicked stability, instant line changes and one-of-a-kind looks.
Built for You
Well, not you specifically. But someone just like you. With our Proportional Response design, everything - from the suspension layout to the geometry, even the length of the chainstays - is completely customized by size, for performance built just for you.
PLAY VIDEO
Features
Guidler
Idler pulley + chainguide = Guidler. Clever, right? Idler eliminates feedback from the high pivot swingarm, keeping your pedal stroke smooth, even when the terrain isn't. The guide, well, it guides.
Suspension Built for You
A rider's center of gravity drives how the suspension performs, yet most bikes use the exact same layout for all sizes. Proportional Response Suspension alters the design by size for truly next-level performance.
Proportional Response Geometry
Long, slack and low – and fully size-specific. As the front of the bike gets longer with each size, the chain stay length increases proportionally, keeping the rider centered between the wheels for true “made for you” handling.
Guardhouse
Downtube protector keeps your frame safe from roost and strikes, while letting water and debris pass through.
The Ai Advantage
Our Ai Offset Drivetrain delivers more tire and mud clearance in the swingarm, and more even spoke angles for a stiffer, stronger rear wheel.
Specs
Details
-
Platform
-
Model NameJekyll 1
-
Model CodeC21102U
Frameset
-
Frame165mm travel, Carbon, Proportional Response Tuned, Guidler idler pulley/chainguide, BSA 73, ISCG05, tapered head tube, Ai Offset
-
ForkFox Float Factory 38, 170mm, 15x110mm thru-axle, tapered steerer, 44mm offset
-
HeadsetIntegrated Sealed Bearing, Tapered
-
Rear ShockFox Float Factory X2, 205x65 Metric Trunnion, Air, Adjustable High Speed/Low Speed Compression, High Speed/Low Speed Rebound
Drivetrain
-
Rear DerailleurSRAM GX Lunar Eagle
-
ShiftersSRAM GX Eagle, 12-speed
-
ChainSRAM NX Eagle, 12-speed
-
CrankSRAM X1 Eagle B148 CL55, 30T
-
Rear CogsSRAM XG-1275, GX Eagle, 10-52, 12-speed
-
Bottom BracketSRAM DUB BSA MTB73
Brakes
-
BrakesSRAM Code RSC hydraulic disc, 220/200mm CenterLine rotors
-
Brake LeversSRAM Code RSC hydraulic disc
Wheels
-
RimsWTB KOM Trail i30 TCS, 32h, tubeless ready
-
SpokesDT Swiss Factory J -Bend
-
Tire Size2.5
-
Wheel Size29
-
Hubs(F) Formula, 15x110mm thru-axle / (R) SRAM MTH 700, 12x148mm, XD Driver
-
Tires(F) Maxxis Assegai, 29x2.5", 3C compound, EXO+ puncture protection, tubeless ready, (R) Maxxis Minion DHR II, 29x2.4", EXO+, tubeless ready
-
Front TireMaxxis Assegai, 29x2.5", 3C compound, EXO+ puncture protection, tubeless ready
-
Rear TireMaxxis Minion DHR II, 29x2.4", EXO+, tubeless ready
Components
-
HandlebarCannondale 1 Riser, Carbon, 30mm rise, 8° sweep, 5° rise, 780mm
-
StemFSA Grid 35, 35mm
-
GripsCannondale TrailShroom
-
SaddleFabric Scoop Shallow Elite, hollow cro-mo rails
-
SeatpostCannondale DownLow Dropper w/ Matchmaker lever, 31.6, 125mm (S), 150mm (M-XL)
Extra
-
Extra 1Jekyll Custom Fender
Please note that, based on component availability and other factors, specifications are subject to change without notice.

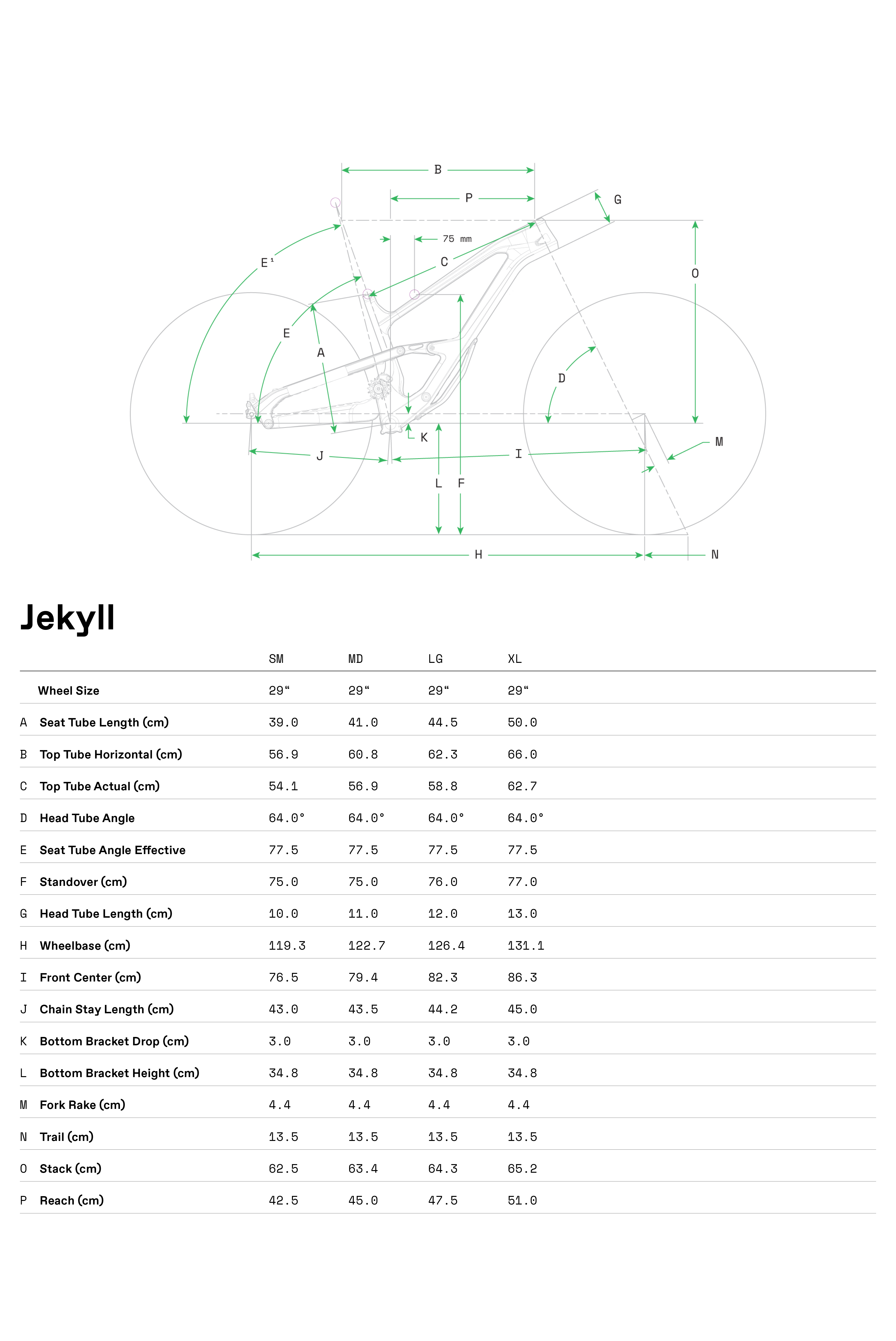

Geometry
