New

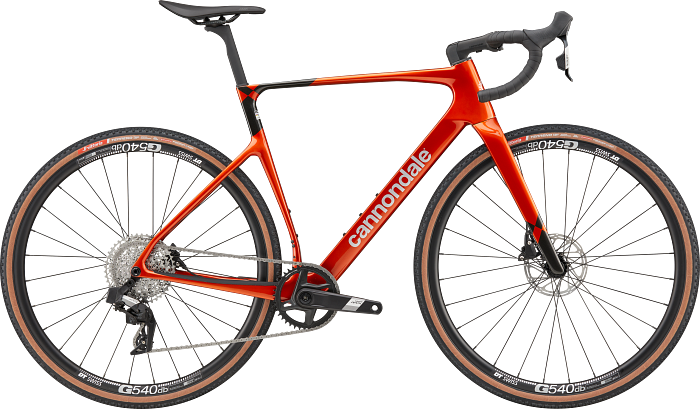

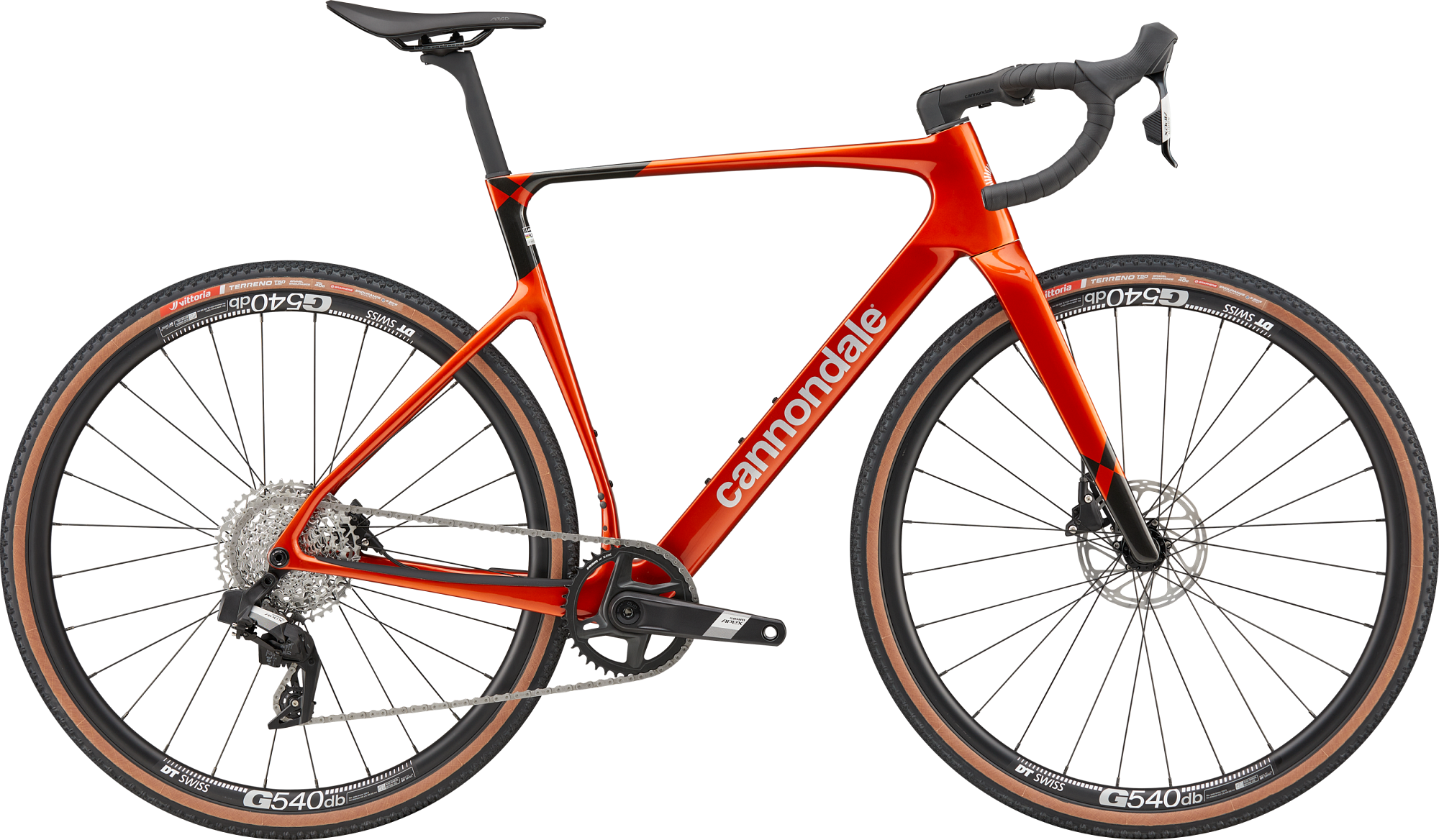

SuperX 4 AXS

Name: SuperX 4 AXS
Brand: Cannondale
SKU: C1706GU1061
Price: 5799 CAD
Availability: OutOfStock

Train, race, repeat. SuperX 4 AXS offers serious gravel racing chops at a more approachable price. It shares the same carbon frame as the mo... Read More

Color:

Size What's my size?

Buy online, pick up in your local bike shop.
FREE assembly & FREE shipping for a limited time*. !*Free shipping on all frames, bikes, and e-bikes for a limited time – now through October 1st.

Choose a Size

We've got you covered.

Limited Lifetime Warranty

Every Cannondale bicycle comes with a limited lifetime warranty on the frame, and a one year warranty on all Cannondale components.

See complete warranty policy details. Some components have additional warranty coverage provided by the component manufacturer.

Bicycle warranty claims are handled through your Authorized Cannondale Retailer. To place a warranty claim on Cannondale gear or accessories, contact Cannondale Rider Services at 800-245-3872.

Worldwide Dealer Network

Looking to shop local? Try our Dealer Locator.

It's the easiest way to browse shops near you that carry Cannondale bikes. All the shops featured on our website are independent, authorized Cannondale retailers, so you can support local businesses while still finding the best bike—talk about a win-win.

sizing dialogue entered

Tell us how tall you are, we'll help you find the right size.

Long arms? Short Legs? Just not sure? Call us!

Some models run larger than others. Customer Service can help you identify a size more specific to your body type. Call 1-800-245-3872.

Zip Code

Overview

All In to Go All Out

A pure gravel race machine focused on one thing: taking the lead and staying there. Ok, two things…

Model Description

Train, race, repeat. SuperX 4 AXS offers serious gravel racing chops at a more approachable price. It shares the same carbon frame as the more expensive models, and features a suite of high value, high performance components guaranteed to raise your game without killing your wallet. SRAM's proven Apex AXS XLPR 12-speed gravel group cracks off precise wireless shifts. Apex brakes deliver precise power and control. DT Swiss G540 gravel rims balance light weight with rugged durability. Everything you need to excel at high-speed gravel exploits.

What it's for

Elite gravel racing, KOM hunting, Going like hell

Highlights

Super light, low-drag, SuperX carbon frameset, backed by our Lifetime Warranty
Wireless electronic shifting from SRAM's workhorse Apex AXS XPLR 12-speed gravel group
SRAM Apex hydraulic disc brakes deliver powerful, consistent braking
Light and durable DT Swiss G540 gravel rims, wrapped in 40c Vittoria Terreno T50 tubeless ready tires
Lightweight Cannondale C1 Aero 27 Carbon seatpost

FIRST LOOK | SuperX

PLAY FILM

All In to Go All Out

Fast & Light

Our KOM-winning road tech meets Unbound-winning engineering. SuperX is super aero and light to stay ahead of the pack in this rapidly -evolving era of high-speed, elbow-to-elbow gravel racing. With gravel race speeds averaging well over 35 km/h, SuperX brings a whole lotta free speed over any distance.

Gravel Glider, Not Grinder

SuperX’s sophisticated carbon construction smooths out the rough, floating above the gravel to keep you cranking. Specially constructed flex zones in the seat tube, rear triangle, and top tube work as a system with the D-shaped seatpost to absorb shock and vibration, keeping your mind and body fresher longer.

Handle It

Take the faster line. Pass on the inside. Lay off the brakes and let 'er fly. With its race-proven geometry, OutFront steering design, and finely calibrated frame stiffness, the SuperX’s handling blends stability and precision in a way that takes the drama out of clutch moments, letting you hold your line while staying on the gas.

Built to Take It. Tuned for You.

SuperX’s Proportional Response carbon construction is tailor made for gravel racing and for you. Fully customized by size, precisely oriented layers of different types and moduli of carbon fibers deliver an ideal balance of weight, stiffness and durability for every rider. All backed by our lifetime guarantee. 

Get ‘Crossed Up

Is cyclocross your thing? SuperX has you covered. Throw on some 33c tires and hit it. With its straight-line speed, planted handling, and massive mud clearance, SuperX loves to battle it out between the tape. Oh, and the flat top tube is pretty nice on the shoulders too.

Features

Rolling Fatties

Courses vary, terrain varies, weather varies. The SuperX fits tires up to 48mm for the frame and 51mm for the fork, with at least 4mm clearance on each side, ready for whatever tire the day demands.

D-Lightful

The D-shaped design of SuperX’s seatpost enhances aerodynamics and boosts vertical compliance, reducing muscle fatigue so you stay fresh and fast for the final sprint.

OutFront Geometry

OutFront pairs a slack head angle with a longer-than-normal 55mm fork offset, increasing stability and control on the steep and loose – while maintaining the snappy handling you need for quick line changes and last-second corrections.

Delta Steerer

The Delta Steerer design is great for gravel racing. It allows for clean cable integration from the cockpit into the frame, and a reduced frontal area for increased aero efficiency. 

The Cover up

A slick cover hides SuperX’s top tube bag mount. It's there when you want it, invisible when you don’t.

Specs

Details

Platform
SuperX
Model Name
SuperX 4 AXS
Model Code
C1706GU

Frameset

Frame
SuperX Carbon, Proportional Response construction, internal cable routing, 12x142mm thru-axle, UDH, BSA 68mm threaded BB, flat mount disc, integrated seatpost binder
Fork
SuperX Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/2" Delta steerer, 55mm offset
Headset
Integrated, 1-1/8" - 1.5"

Drivetrain

Rear Derailleur
SRAM Apex AXS XPLR, 12-speed
Shifters
SRAM Apex AXS, 12-speed
Chain
SRAM Apex, 12-speed
Crank
SRAM Apex 1 Wide, 40T: 165mm (46cm), 170mm (51cm), 172.5 (54-56cm), 175mm (58-61cm)
Rear Cogs
SRAM Apex XPLR PG-1231, 11-44, 12-speed
Bottom Bracket
SRAM DUB BSA Road 68 Wide

Brakes

Brakes
SRAM Apex hydraulic disc, Centerline 160/160mm centerlock rotors
Brake Levers
SRAM Apex AXS hydraulic disc

Wheels

Rims
DT Swiss G540, 24mm inner width, 28h, tubeless ready
Spokes
DT Swiss Champion
Tire Size
40
Wheel Size
700c
Hubs
(F) DT Swiss 370, 12x100mm centerlock / (R) DT Swiss 370 LN Ratchet System, 12x142mm centerlock
Tires
Vittoria Terreno T50, 700x40c, tubeless ready

Components

Handlebar
Vision Trimax Aero Alloy: 400mm (46-51cm), 420mm (54-61cm)
Stem
Cannondale C1 Conceal, Alloy, 31.8, -6°: 90mm (46-51m), 100mm (54-56cm), 110mm (58-61cm)
Grips
Cannondale Bar Tape, 3.5mm
Saddle
Fizik Vento Argo X5, S-Alloy rails, 140mm
Seatpost
Cannondale C1 Aero 27 Carbon, SmartSense compatible, 0mm offset (46cm), 15mm offset (51-61cm)

Extra

Extra 1
Tubeless valves, SRAM AXS charger

Please note that, based on component availability and other factors, specifications are subject to change without notice.
