New Bosch Smart System
The fully networked Bosch drive system can be controlled and customized via their eBike Flow app, and is regularly updated 'over the air' for a totally connected and personalized ride experience.
sizing dialogue entered
Close
Tell us how tall you are, we'll help you find the right size.
Long arms? Short Legs? Just not sure? Contact your local dealer!
Some models run larger than others. Customer Service can help you identify a size more specific to your body type. Call 1-800-245-3872.
Movement That Moves You.
An ebike that elevates the art of getting around. Function meets pleasure. Comfort meets capability. Speed meets style. From point A to point B, or to no point in particular – it's your best way there.
Where it thrives
Around town and beyond
What it's built for
Comfort and Ease
Highlights
- Low Step-Thru SmartForm C1 Alloy frame/ ultra-smooth 50mm travel HeadShok fork
- Garmin rear-facing radar / Gates carbon belt drive / Enviolo Continously Variable Transmission
- Bosch Smart System - Performance Line CX 250W drive-unit / 750Wh battery / Kiox 300 display & remote / Range: up to 175km
Award Winner
Movement That Moves You
Bosch 750Wh Battery
Bosch's largest and most powerful e-bike battery. No range anxiety!
25 km/h Assist
This e-bike drive system provides pedal assist up to a maximum speed of 25km/h. Above that, it’s all you.
Range up to 175 Km
With up to 175 Km of range on a single charge, you’ve got the power to go anywhere and do anything. Have fun. Ride longer.
Smart Power, Big Range
This e-bike is powered by Bosch’s new Smart System, featuring a huge 750Wh battery, Performance Line CX motor, LED remote and Kiox 300 display. Effortless acceleration, compelling versatility, and a range of up to 175km on a single charge.
Roll Smoothly
When it comes to urban suspension forks, our sleek new HeadShok stands alone. It's a fully rigid structure that telescopes on friction-free needle bearings for a level of smoothness and steering precision that other forks just can't match.
Ride aware
Awareness is power. We collaborated with Garmin to create an integrated radar system that alerts you to vehicles approaching from behind, so you can concentrate on enjoying the road ahead.
Clean, quiet and easy
This might be the ultimate urban drivetrain. The Gates belt system is low-maintenance, silent and clean, and the Enviolo continuously variable transmission lets you change gear ratios instantly and smoothly, whether you’re pedaling, freewheeling, or stopped at a light.
Movement That Moves You
Features
Two frame options
Available as either a convenient low step-thru design or with the classic look of a top tube. Either way, our expert aluminum craftsmanship delivers a robust, beautiful, and confidence-inspiring ride.
Be seen
To make you more visible in all light conditions, Mavaro features an ultra-bright headlight from Lezyne, plus running lights beautifully integrated into the frame and on the rear rack.
Convenient battery removal
Charge the battery on the bike, or easily remove it for charging indoors through the removable cover under the downtube.

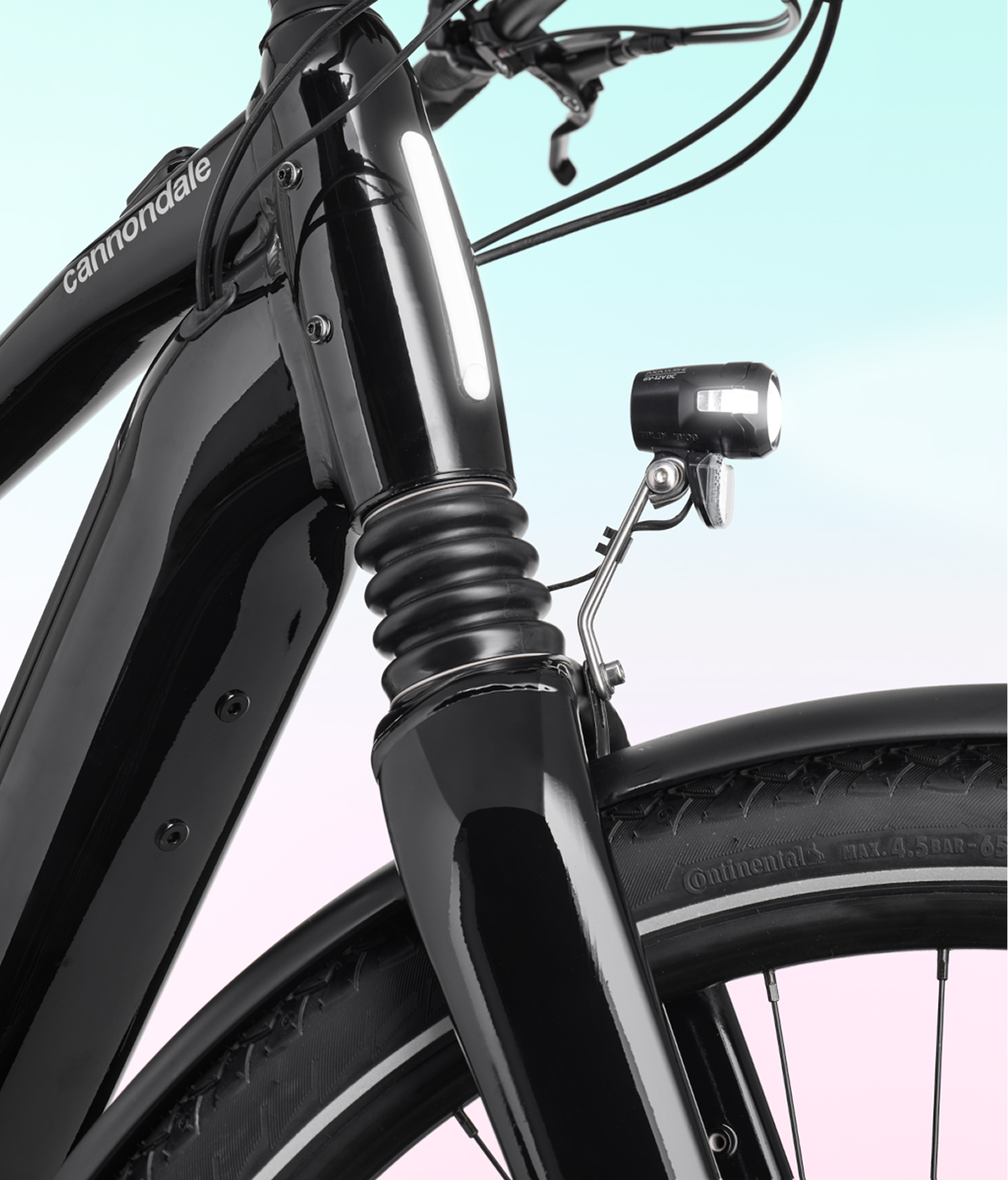

HeadShok suspension
The unique HeadShok fork uses precision needle bearings for its movement, instead of the plastic bushings found on all other forks. No wear, no sticking, just ultimate smoothness and control.
Intellimount stem
Lets you mount your phone easily and securely on the stem with an SP-Connect adapter
Rear facing radar
Detects vehicles up to 140 meters behind, displays their relative position and speed, and warns of those approaching too fast or too close, so you can focus on the road ahead.
Right-sized wheels
For the best blend of speed, comfort, capability and fit, the larger sizes of Mavaro run on 29" wheels, while the smallest size uses 27.5" wheels.
Specs
Details
-
Platform
-
Model NameMavaro 1 Low StepThru
-
Model CodeC64112U
Frameset
-
FrameSmartForm C1 Alloy, low step-thru, removable 750Wh downtube battery, integrated front running light, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection
-
ForkCannondale HeadShok, 50mm travel, Quad Cage needle bearing internals, coil spring, twin chamber semi open-bath oil damping, post mount disc, 110x15mm thru-axle
-
HeadsetIntegrated Sealed Bearing, Tapered, internal cable routing
E-System
-
Drive UnitBosch Performance Line CX 250W
-
BatteryBosch PowerTube, 750Wh
-
ChargerBosch 4A
-
DisplayBosch Kiox 300 w/ LED remote
Drivetrain
-
Rear DerailleurEnviolo Continuously Variable Transmission internal gear hub
-
ShiftersEnviolo Trekking stepless controller, twist style
-
ChainGates CDX high performance carbon drive belt
-
CrankGates Bosch E-bike, w/ 46T sprocket
-
Rear CogsGates CDX, 22T
Brakes
-
BrakesMagura MT C 2-piston hydraulic disc, MDR-C rotors, 203mm/203mm
-
Brake LeversMagura MT C hydraulic disc
Wheels
-
Front HubShimano MT400, 15x110mm thru-axle
-
Rear HubEnviolo Trekking, continuously variable transmission, wide range internal hub
-
RimsWTB STX i30 TCS, 32h, tubeless ready
-
SpokesStainless Steel, 14g
-
Tire Size2.1
-
Wheel Size27.5/29
-
TiresSchwalbe Big Ben Plus, 28x2.2" 55-622 (LG/XL), Continental Contact Plus City 27.5x2.2" 55-584 (SM/LG)
-
Front TireContinental Contact Cruiser, 29x2.2" 55-622 (L/XL), Urban Contact 27.5x2.2" 55-584 (S/M)
-
Rear TireContinental Contact Cruiser, 29x2.2" 55-622 (L/XL), Urban Contact 27.5x2.2" 55-584 (S/M)
Components
-
HandlebarCannondale Low-Rise Urban, butted 6061 Alloy, 31.8mm, 25mm rise, 35° sweep, 680mm
-
StemCannondale Urban Intellimount, adjustable, internal cable routing, SP-Connect compatible phone mount
-
GripsCannondale Ergo Fitness Dual Density, Lock-on
-
SaddleSelle Royal Essenza
-
SeatpostParallelogram Suspension Seatpost, 31.6, 300mm (SM/MD), 400mm (LG/XL)
Extra
-
Extra 1Garmin Varia Rear-facing radar, Integrated headtube running light, Cannondale Urban rear rack (25kg, Racktime compatible), Curana Apollo fenders, Cannondale E-bike lights by Lezyne (Foresite E350 headlight, Hindsite E25 taillight), kickstand, Abus 4650X frame lock (key-matched with battery lock)
Please note that, based on component availability and other factors, specifications are subject to change without notice.
