Mountain Heart, City Smart
Moterra EQ merges mountain-bred braun with urban utility—powered by Bosch, styled by Cannondale, it's the ultimate ride for wherever ambition takes you.
Model Description

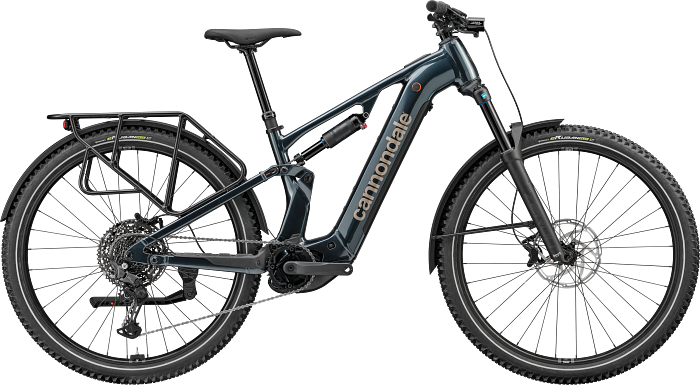

Trail meets town with the Moterra EQ. Outfitted with racks, fenders, and lights, this SmartForm C1 Alloy-framed eMTB handles both errands and off-road escapes with ease. A Bosch CX motor and 800Wh battery provide ample power and more than enough range, while the 150/130mm travel Suntour suspension smooths out the ride. Shimano CUES U6000 shifting and Tektro Gemini SL 4-piston brakes add confidence, and Schwalbe Johnny Watts tires bring grip for every surface, on road or off. Utility meets capability in one stylish, comfortable, package.
What it's for
Comfortably rugged commuting, mixed surface touring, trail riding fun
Highlights
- A premium SmartForm C1 Alloy frame – 130mm travel, Proportional Response size-specific suspension tuned for specifically for urban and mixed terrain riding
- Bosch's most powerful system – Performance CX motor and 800Wh battery. Incredibly natural power delivery and huge range
- Fully equipped with powerful Lezyne lights, aluminum fenders, kickstand, and 15kg capacity rear rack
- Smooth-riding SR Suntour Zeron 36-X Boost 150mm fork and SR Suntour Edge Evo R air shock
- Precise, reliable shifting from Shimano’s CUES U6000 LinkGlide 11-speed drivetrain
- Strong, controllable braking from Tektro Gemini SL 4-piston hydraulic disc brakes with 203mm rotors
Specs
Details
-
Platform
-
Model NameMoterra EQ
-
Model CodeC65155U
Frameset
-
FrameMoterra, SmartForm C1 Alloy, 29" wheels, 130mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube, 40mm two-bolt kickstand compatible, integrated Moterra rear rack
-
ForkSR Suntour Zeron 36-X Boost, 150mmm, EQ Air, compression & rebound adjust, 15x110mm thru-axle, tapered steerer, 44mm offset
-
HeadsetAcros ICR, 1.5" to 1.8", sealed bearings
-
Rear ShockSR Suntour Edge Evo R, Air, adjustable rebound, 230x52.5mm
E-System
-
Drive UnitBosch Performance Line CX
-
BatteryBosch PowerTube, 800Wh
-
ChargerBosch 4A
-
DisplayBosch Purion 200
Drivetrain
-
Rear DerailleurShimano CUES U6000, LinkGlide
-
ShiftersShimano CUES U6000, 11-speed, LinkGlide
-
ChainShimano LG500, LinkGlide, 11-speed
-
CrankFSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
-
Rear CogsShimano CUES LG400, LinkGlide, 11-50, 11-speed
Brakes
-
BrakesTektro Gemini SL 4-piston hydraulic disc, 203mm rotors, 2.3mm thickness
-
Brake LeversTektro Gemini SL hydraulic disc
Wheels
-
RimsWTB ST i30 TCS, 30mm inner width, 32h, tubeless compatible
-
SpokesDT Swiss Champion 2.0
-
Tire Size2.35
-
Wheel Size29
-
Hubs(F) Shimano TC500, 15x110mm thru-axle / (R) Shimano TC500, 12x148mm thru-axle, centerlock
-
TiresContinental eRuban Plus, 29x2.3", Black, Tube Type, Reflex
Components
-
HandlebarCannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm
-
StemCannondale 1, 6061 Alloy, 35.0, 40mm, 0°
-
GripsCannondale TaperRidge
-
SaddleWTB Silverado Medium
-
SeatpostCannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)
Extra
-
Extra 1Lezyne Classic HB E1000+ STVZO front light w/ high beam remote, Lexyne SuperBright rear light, adjustable kickstand, integrated rear rack (15kg), Hebie Alumee fenders, Bosch PowerMore range extender compatible
Please note that, based on component availability and other factors, specifications are subject to change without notice.
