Cannondale: Tesoro Neo X | E-Touring | Electric

Tesoro Neo X 1

+Compare
Tesoro Neo X 1
Find a bike shop
Find other local bike shops to check for availability

Platform: Tesoro Neo X

Go wild.

This on-road/off-road e-bike is a fully loaded trekking machine. Get out of the rat-race and into the wilderness.

Highlights

  • Premium SmartForm C1 Alloy frame, dual-battery-ready
  • SR Suntour Raidon 34 fork, 100mm travel / Shimano SLX 12-speed drivetrain
  • Bosch Performance Line CX 250W drive-unit / 500Wh battery / Kiox color display / Range: up to 100km

Where it thrives

Gravel roads, the open road

What it's built for

Speed, efficiency, comfort

Tecnologia

Drivetrain

  • Chain
    KMC X12, 12-speed
  • Crank
    Bosch Gen4 w/ custom Ai offset, 38T
  • Pedals
    Cannondale Fitness
  • Rear Cogs
    Shimano SLX, 10-51, 12-speed
  • Rear Derailleur
    Shimano SLX, SGS Shadow Plus
  • Shifters
    Shimano SLX, 12-speed

Frameset

  • Fork
    SR Suntour Raidon 34, 100mm, 15x110, 46mm offset
  • Frame
    SmartForm C1 Alloy, Dual Battery ready, removable downtube battery, SAVE, tapered headtube, internal cable routing, Ai offset drivetrain, 148x12mm thru-axle, post mount disc, integrated speed sensor, KickFlip hidden kickstand mount, motor protection, lock mount
    • Dual Battery ready
    • Removable downtube battery
    • SAVE
    • Tapered headtube
    • Internal cable routing
    • Ai offset drivetrain
    • 148x12mm thru-axle
    • Post mount disc
    • KickFlip hidden kickstand mount
  • Headset
    Integrated Sealed Bearing, Tapered

Wheels

  • Front Hub
    Shimano MT400 15x110
  • Mozzi
    (F) Shimano MT400 15x110 / (R) Shimano MT510, 12x148
  • Rear Hub
    Shimano MT510, 12x148
  • Rims
    WTB STX i29 TCS, 32h, tubeless ready
  • Spokes
    DT Swiss Champion
  • Dimensioni pneumatico
    2.25
  • Pneumatici
    Schwalbe G-One Allround Performance, 29 x 2.25", RaceGuard, tubeless ready
  • Wheel Size
    29

Brakes

  • Brake Levers
    Shimano MT200 hydro disc
  • Brakes
    Shimano MT200 hydro disc, 180/180mm RT30 rotors

Components

  • Grips
    Cannondale Ergo Performance, Lock-On
  • Handlebar
    Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 740mm
  • Saddle
    Cannondale Ergo Touring
  • Seatpost
    Suspension Seatpost S/M 350mm, L/XL 400mm
  • Stem
    Cannondale Adjustable , A-headset, 31.8mm

E-System

  • E-System Battery
    Bosch PowerTube 500Wh
  • E-System Charger
    Bosch 4a

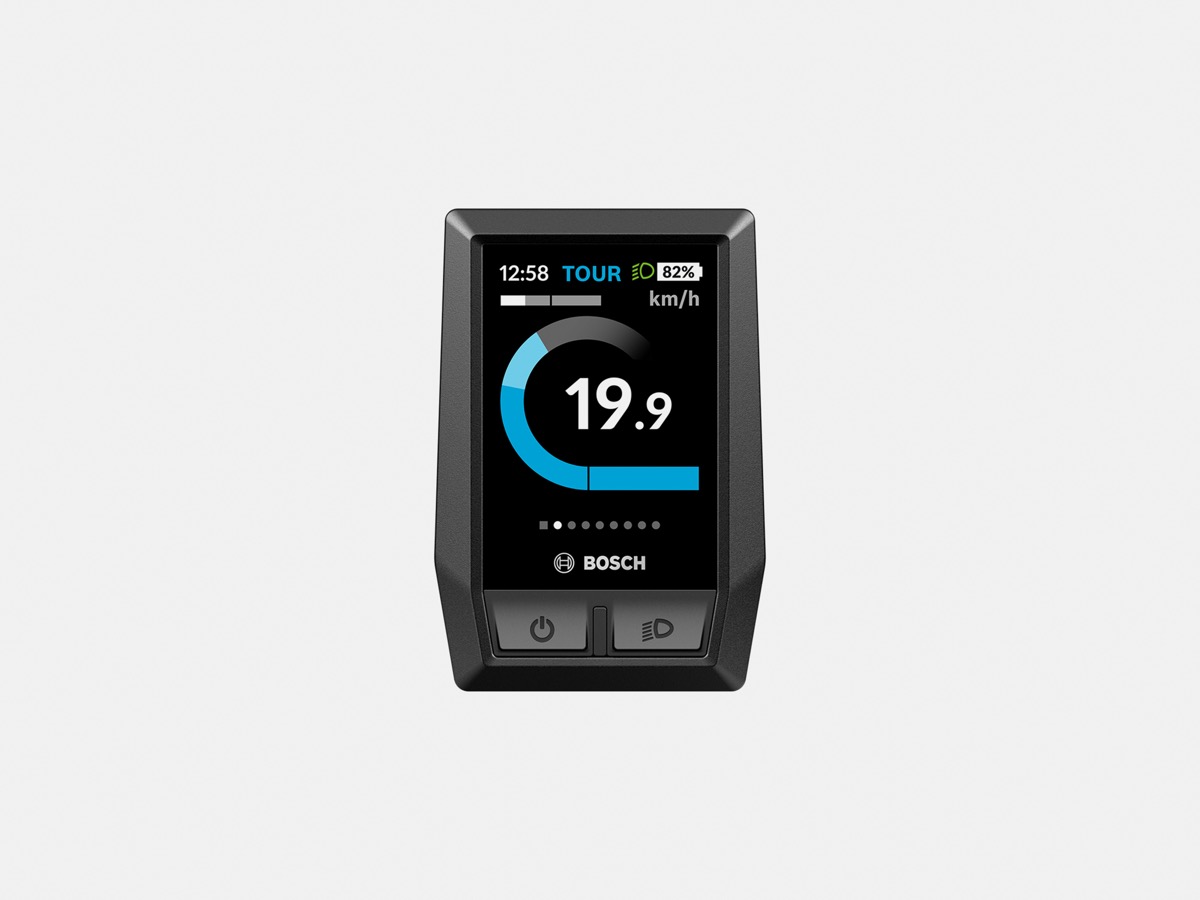

  • E-System Display
    Bosch Kiox

Measurements

  • Size: LG
    5'7" 170
    6'0" 182
  • Size: MD
    5'4" 162
    5'8" 172
  • Size: SM
    5'1" 154
    5'4" 162
  • Size: XL
    6'0" 182
    6'5" 195
  SM MD LG XL
A Lunghezza reggisella 38 96cm 43.5 110cm 48.5 123cm 53.5 135cm
B Top Tube Length 58 147cm 61.7 156cm 64.0 162cm 66.5 168cm
D Angolo di sterzo 68° 68° 68° 68° 68° 68° 68° 68°
Angolo effettivo reggisella 73.5° 73.5° 73.5° 73.5° 73.5° 73.5° 73.5° 73.5°
F Standover 74.6 189cm 77.5 196cm 81.3 206cm 84.7 215cm
G Lunghezza tubo di sterzo 12.8 32cm 12.8 32cm 13.6 34cm 14.4 36cm
H Interasse 115.5 293cm 119.2 302cm 121.6 308cm 124.2 315cm
I Centro anteriore 68.2 173cm 71.9 182cm 81.3 206cm 84.7 215cm
J Lunghezza foderi bassi 47.9 121cm 47.9 121cm 47.9 121cm 47.9 121cm
K Differenza altezza movimento centrale - perno 5.7 14cm 5.7 14cm 5.7 14cm 5.7 14cm
L Estimated BB Height 31.5 80cm 31.5 80cm 31.5 80cm 31.5 80cm
M Distanza asse ruota anteriore - forcella 5.1 12cm 5.1 12cm 5.1 12cm 5.1 12cm
N Trail 9.2 23cm 9.2 23cm 9.2 23cm 9.2 23cm
O Lunghezza tubo verticale (Stack) 62.9 159cm 62.9 159cm 63.7 161cm 64.4 163cm
P Lunghezza tubo orizzontale (Reach) 39.3 99cm 43.0 109cm 45.1 114cm 47.4 120cm
