Piattaforma: Tesoro Neo X
Punti salienti
- Light, durable SmartForm C2 Alloy low-step frame w/ 100mm travel fork
- Shimano 9-speed drivetrain with hydraulic disc brakes
- Bosch Performance Line 250W drive-unit / 500Wh battery / Range: up to 140km
Where it thrives
Gravel roads, the open road
What it's built for
Speed, efficiency, comfort


Off-Road Ready
Tesoro Neo X lives to be pointed off pavement. For bikepacking, backroad trekking or rugged transport, its MTB-inspired frame & fork and big 29” wheels let you get in deeper and go further.




Loaded for Adventure
Secure, rattle-free fenders and a full rear rack, bright front and rear lights, and even a kickstand mean you’re ready to tackle any adventure.


Technology
Powered by Bosch
The Bosch Performance Line Cruise with 500Wh PowerTube battery is perfect for urban and adventure riding. With 65Nm of torque it’s powerful, silent and light.

SmartForm C2 Alloy
Aluminium construction that's a cut above. High-performance tube shapes, extensive weight saving butting, and seamless double-pass welds deliver a ride unlike anything in its class.

Graphic Reflectivity
Be seen. Highly reflective accents on the frame and fork increase visibility in low-light conditions.

Si Motor Mount
Proprietary Cannondale motor mount positions the Bosch drive unit low and forward in the frame, keeping the Center of Gravity low and the chainstays short for uncommonly agile handling.

The Ai Advantage
Our Ai Offset Drivetrain opens up the rear triangle for more tire clearance, while keeping the chainstays short for nimble agility. A stiffer, stronger rear wheel is just icing on the cake.

Drivetrain
-
ChainShimano HG93, 9-speed
-
CrankFSA Bosch E-Bike, 38T
-
Rear CogsShimano HG200 11-36T, 9-speed
-
Rear DerailleurShimano Alivio
-
ShiftersShimano Acera, 9-speed
Frameset
-
ForkSR Suntour XCM ATB, 100mm, Coil, 46mm offset
-
FrameRemixte Step-Thru, SmartForm C2 Alloy, removable downtube battery, SAVE, tapered headtube, internal cable routing, 148x12mm thru-axle, post mount disc, motor protection, lock mount
-
HeadsetIntegrated Sealed Bearing, Tapered
Ruote
-
Front HubShimano TX55, QR
-
Rear HubShimano MT400 12x148mm thru-axle
-
RimsWTB STX i30 TCS, 32h, tubeless ready
-
SpokesDT Swiss Champion
-
Dimensioni pneumatico2.25
-
PneumaticiSchwalbe G-One Allround Performance, 29 x 2.25", RaceGuard, tubeless ready
-
Wheel Size29
Brakes
-
Brake LeversShimano MT200 hydraulic disc
-
BrakesShimano MT200 hydraulic disc, 180/180mm RT10 rotors
Components
-
GripsCannondale Ergo Fitness Dual Density, Lock-on
-
HandlebarCannondale 3, 6061 double-butted, 20mm rise, 9° back, 720mm
-
SaddleCannondale Ergo Touring
-
SeatpostCannondale 4, 6061 Alloy, 31.6
-
StemCannondale Adjustable, A-headset, 31.8mm
E-System
-
E-System BatteryBosch PowerTube 500Wh
-
E-System ChargerBosch 4A
-
E-System DisplayBosch Purion
Extra
-
Extra 1Herrmans H-Black MR4 front light, H-Trace Micro rear light, Tubus Wingee fender, Tubus rear rack (25kg max capacity)

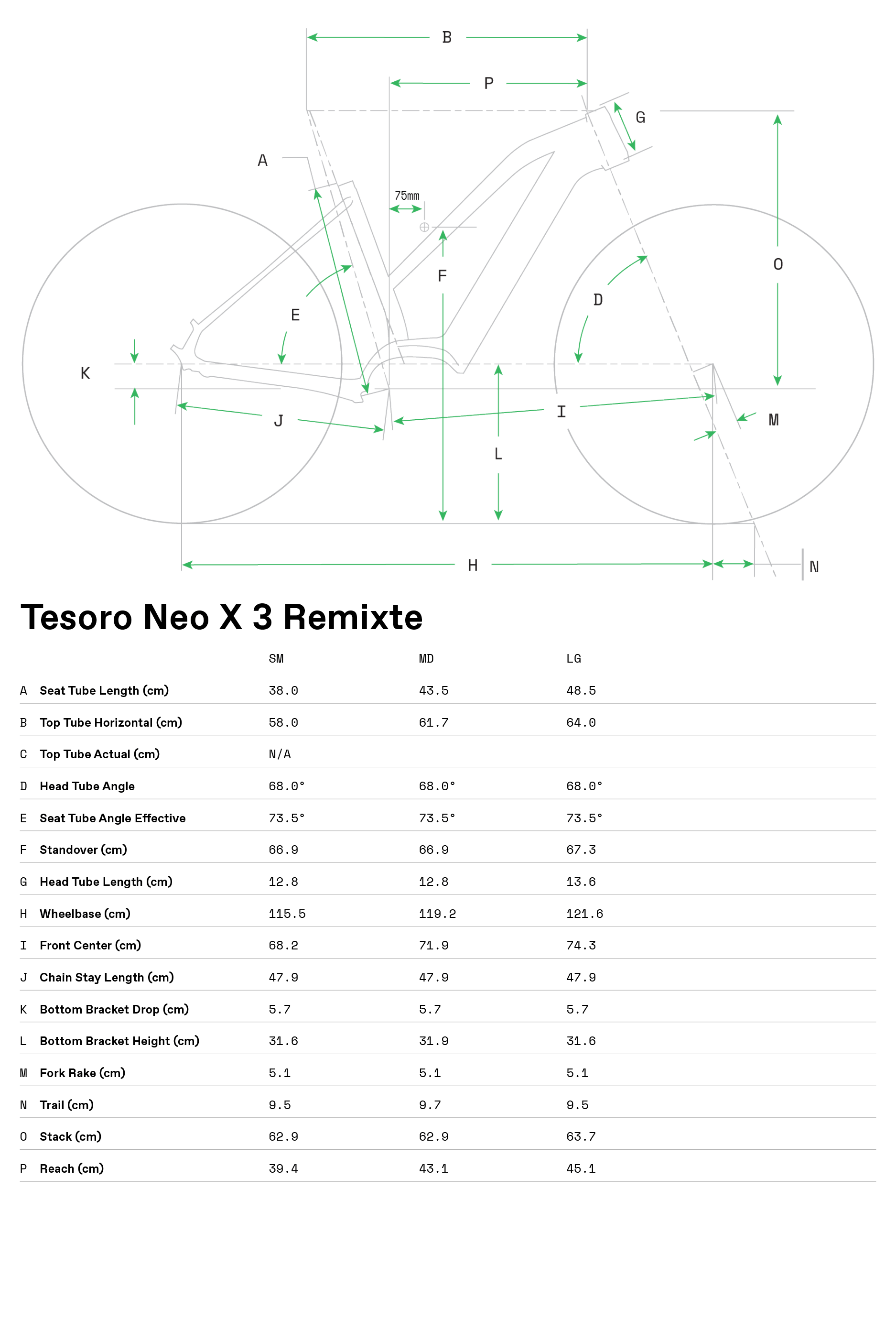

Misure
