    Platform: Moterra Neo

    Boundless.

    An e-mountain bike with infinite capability. The shackles are off, go ride the unrideable. Again and again.

    Highlights

    • Carbon frame / Fox Float Factory 36 fork and DPX2 EVOL shock, 160mm travel
    • Bosch Peformance CX drive unit / 625Wh battery
    • SRAM X01/GX Eagle 12-speed drivetrain - Magura MT7 hydraulic discs

    Where it thrives

    Challenging trails, up and down hills, out in the elements

    What it's built for

    Traction, speed, handling

    Boundless.

    Impressively precise. Uncommonly agile. With its low center of gravity, modern geometry and short chainstays, Moterra's handling is in a class of its own.

    Power & style

    More Info

    Bosch's powerful new Performance CX drive unit and a long-lasting PowerTube battery integrate cleanly into Moterra's burly carbon frame. The power and range to ride anything — in a beautiful package.

    Proportional Response

    More Info

    Riders come in all sizes. Proportional Response is the only design that addresses this fact, tailoring the suspension layout by size so that every rider gets optimal traction, suppleness and control.

    MOTERRA SE WITH 180MM ROCKSHOX BOXXER FORK

    Learn more

    Technology

    Moterra Neo: Anything's Possible

    PLAY FILM

    Drivetrain

    • Chain
      SRAM NX Eagle, 12-speed
    • Crank
      Bosch Gen4 w/ custom Ai offset, 34T
    • Rear Cogs
      SRAM PG-1230, NX Eagle, 11-50, 12-speed
    • Rear Derailleur
      SRAM X01 Eagle
    • Shifters
      SRAM GX Eagle, 12-speed

    Frameset

    • Fork
      Fox Float Factory 36, 160mm, FIT Grip2 Damper, 15x110, tapered steerer, 51mm offset
    • Frame
      160mm travel, Carbon Front Triangle, SmartForm C1 Alloy Swingarm, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, Ai offset drivetrain, internal cable routing, 148x12mm thru-axle, post mount brake, tapered headtube
      • 160mm travel
      • Proportional Response Tuned Suspension
      • Removable downtube battery
      • Alloy skid plate
      • Ai offset drivetrain
      • Internal cable routing
      • 148x12mm thru-axle
      • Post mount brake
      • Tapered headtube
    • Headset
      Integrated Sealed Bearing, Tapered
    • Rear Shock
      Fox Float Factory DPX2 EVOL, 3-Pos adj.

    Wheels

    • Front Hub
      (F) Formula 15x110
    • Front Tire
      (F) Maxxis Minion DHF, 27.5/29 x 2.6", 3C compound, EXO+, tubeless ready
    • Rear Hub
      (R) SRAM 746, 12x148
    • Rear Tire
      (R) Maxxis Minion DHR II, 27.5/29 x 2.6", 3C compound, EXO+, tubeless ready
    • Rims
      Stan's NoTubes Flow MK3, 32h, tubeless ready
    • Spokes
      DT Swiss Champion
    • Tire Size
      2.6
    • Tires
      (F) Maxxis Minion DHF, 27.5/29 x 2.6", 3C compound, EXO+, tubeless ready(R) Maxxis Minion DHR II, 27.5/29 x 2.6", 3C compound, EXO+, tubeless ready
    • Wheel Size
      29

    Brakes

    • Brake Levers
      Magura MT7 Trail HC hydro disc
    • Brakes
      Magura MT7 4-piston hydro disc, 220/203mm Spider rotors

    Components

    • Grips
      Fabric Funguy Locking Grips
    • Handlebar
      Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
    • Saddle
      Fabric Scoop Shallow Elite, cro-mo rails
    • Seatpost
      Cannondale DownLow Dropper, internal routing, 31.6, 100mm (S), 125mm (M), 150mm (L/XL)
    • Stem
      Cannondale 1, 3D Forged 6061 Alloy, 1-1/8", 31.8, 7°

    E-System

    • E-System Battery
      Bosch PowerTube, 625Wh
    • E-System Charger
      Bosch 4a
    • E-System Display
      Bosch Purion

    Measurements

    • Size: SM
      5'2" 157
      5'5" 165
    • Size: MD
      5'6" 167
      5'9" 175
    • Size: LG
      5'8" 172
      6'0" 182
    • Size: XL
      6'1" 185
      6'5" 195
    Moterra Neo Carbon
    Close

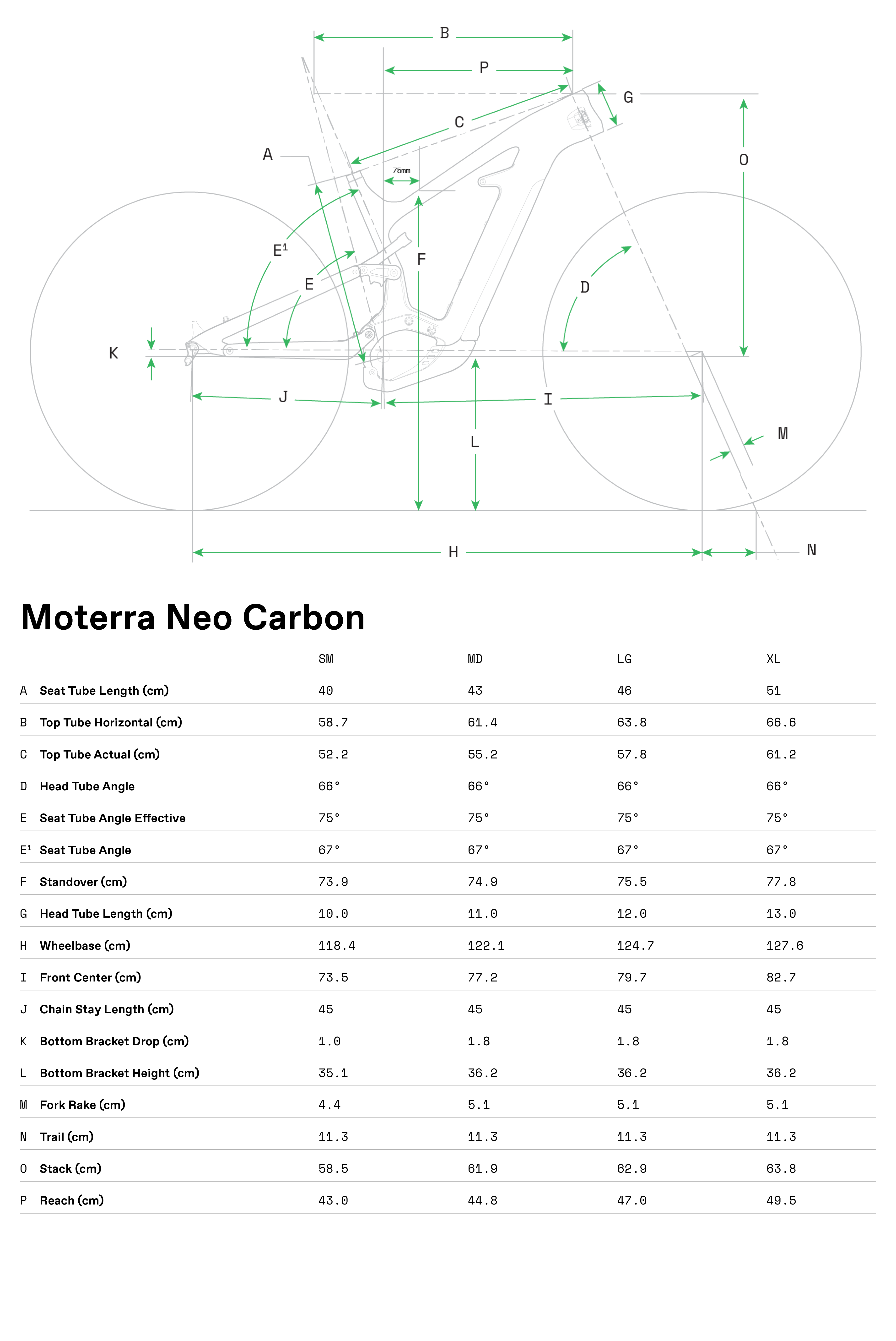

    Geometry
