Moterra EQ

      What's my size?
      Check Local Bike Shops
      Close

      Tell us how tall you are, we'll help you find the right size.

        Long arms? Short Legs? Just not sure? Call us!

        Some models run larger than others. Customer Service can help you identify a size more specific to your body type. Call 1-800-245-3872.
        Close

          Breaking Boundaries

          Float through the city. Fly through the woods. The new Moterra EQ can do it all. It’s where boundless off-road capability meets serious everyday utility.

          Where it thrives

          On trails and through town

          What it's built for

          Touring, commuting, trail riding fun

          Highlights

          • Proportional Response Tuned SmartForm Alloy frame, 130mm rear travel / RockShox 35 Silver R fork, 150mm travel
          • Bosch SmartSystem - 750Wh battery & Performance CX motor
          • Shimano XT/Deore 12-speed drivetrain / Lights, rack, fenders, kickstand

          Practical or fun? Work or adventure? We say - why choose? With Moterra EQ, you get the best of both worlds. Born from our renowned Moterra e-mountain bikes and equipped with everything you need for full-function urban mobility, this e-bike is a smooth-riding commuter and fun-loving trail bike, all wrapped into one. With this rugged urban e-SUV, there are no limits.

          Mountain-born, City-bred

          It’s a modern daily driver, but make no mistake. Beneath its urbane surface lies a fast and furious e-mountain bike. With its 150mm travel RockShox fork, rugged components and powerful 4-piston disc brakes, it’s ready to hit the trails at a moment’s notice.

          So smooth

          More Info

          Glide over potholes, tram tracks, roots and rocks with confidence, comfort and control. In the city or on the trails, the buttery smooth front and rear suspension, and big grippy tires, make bumps just disappear.

          Bosch Power

          More Info

          Venture further, explore more, and go longer between charges. With the most powerful drive unit and biggest battery from the most trusted name in e-bike technology, nothing is out of reach.

          Fully Equipped

          More Info

          Everything you need for your adventures in the city and beyond. An integrated rear rack to carry your loads, full coverage fenders to keep you dry, bright lights to see and be seen, a kickstand, and even a seat that lowers with the push of a lever.

          Features

          Specs

          Details

          • Platform
          • Model Name
            Moterra EQ
          • Model Code
            C65311U

          Frameset

          • Frame
            Moterra, SmartForm C1 Alloy, 130mm travel, Proportional Response Tuned Suspension, removable downtube battery, injected molded skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, tapered headtube, 18mm two-bolt kickstand mount, integrated rear rack
          • Fork
            RockShox 35 Silver R, 150mm, Coil, 15x110mm thru-axle, tapered steerer, 44mm offset, rack and fender compatible
          • Headset
            Integrated Sealed Bearing, 1-1/8" - 1.5
          • Rear Shock
            RockShox Deluxe Select, DebonAir

          E-System

          • Drive Unit
            Bosch Performance Line CX
          • Battery
            Bosch PowerTube, 750Wh
          • Charger
            Bosch 4A
          • Display
            Bosch Kiox 300 w/ LED remote

          Drivetrain

          • Rear Derailleur
            Shimano XT
          • Shifters
            Shimano Deore M6100, 12-speed
          • Chain
            Shimano Deore 6100, 12-speed
          • Crank
            FSA Bosch E-bike w/ custom Ai offset, 160mm, 34T
          • Rear Cogs
            Shimano Deore M6100, 10-51, 12-speed

          Brakes

          • Brakes
            Shimano MT420 4-piston hydraulic disc, 203/203mm RT66/64 rotors
          • Brake Levers
            Shimano MT400 hydraulic disc

          Wheels

          • Rims
            WTB ST i30 TCS, 32h, tubeless ready
          • Spokes
            Stainless Steel, 14g
          • Tire Size
            2.3
          • Wheel Size
            29
          • Hubs
            (F) Formula 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle
          • Tires
            Continental eRuban, 29x2.3"

          Components

          • Handlebar
            Cannondale 3 Riser, Alloy, 25mm rise, 8° sweep, 5° rise, 780mm
          • Stem
            Cannondale 2, 6061 Alloy, 35mm, 0°
          • Grips
            Fabric FunGuy
          • Saddle
            Fabric Scoop Shallow Sport, steel rails
          • Seatpost
            Cannondale DownLow Dropper, internal routing, 31.6, 150mm (Cannondale 3, 6061 Alloy, 31.6x350mm on size Small for clearance)

          Extra

          • Extra 1
            Cannondale E-bike lights by Lezyne - Foresite E350 headlight, Hindsite E25 taillight - kickstand, alloy full coverage fenders, removable Moterra Rack, 15kg max.

          Please note that, based on component availability and other factors, specifications are subject to change without notice.

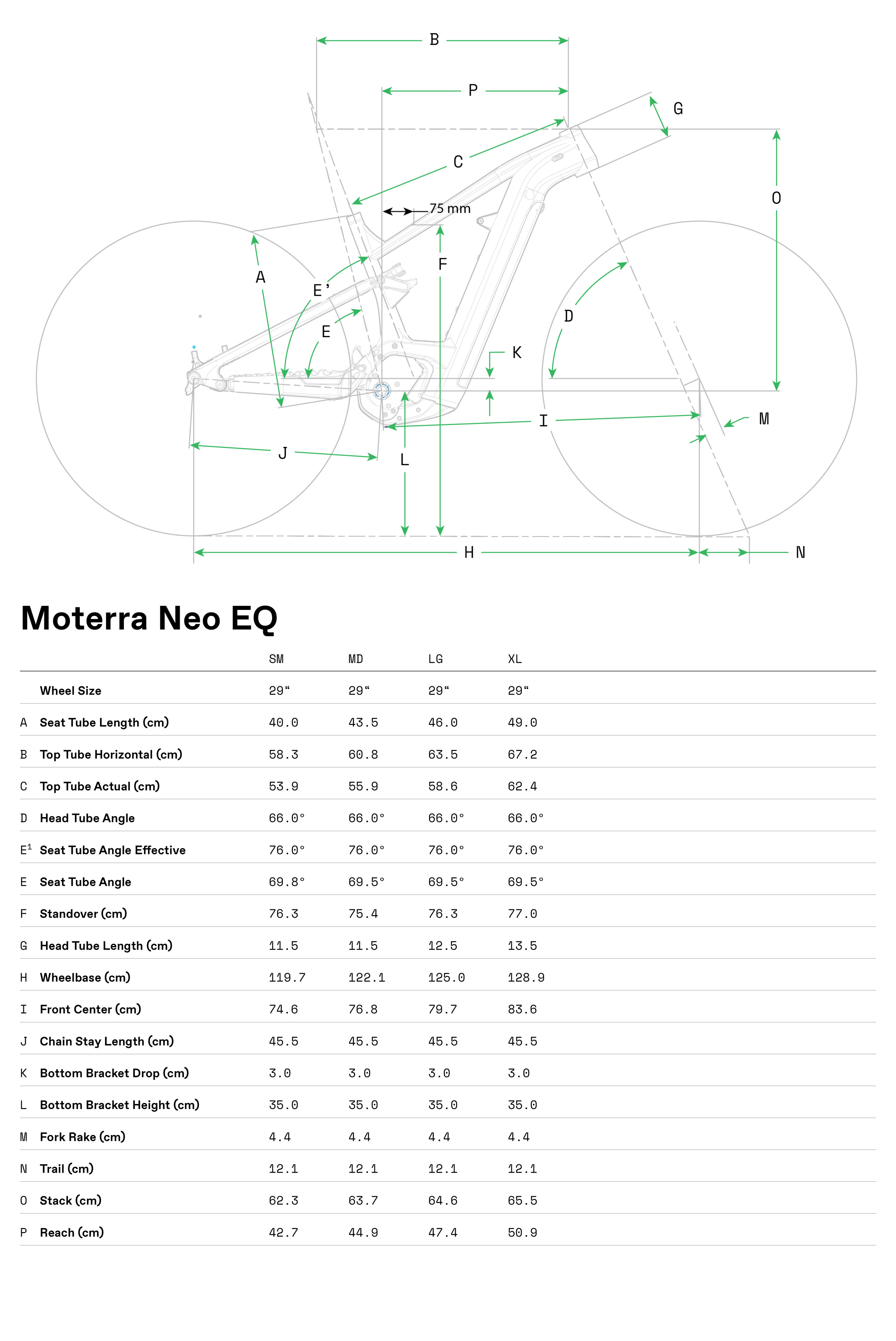

          Geometry
