    Platform: Trail Neo

    Level Up

    An e-mountain bike that will raise your game and ignite a passion for the trail.

    Highlights

    • Lightweight SmartForm C1 Alloy frame, dual battery ready / RockShox Judy Gold 100mm fork
    • Shimano Deore 10-speed shifting / MT400 hydro disc brakes
    • Bosch Performance Line CX drive unit / 625Wh battery / Range: up to 124km

    Where it thrives

    Low-impact trails, up and down hills

    What it's built for

    Speed, efficiency, handling

    Perfectly Framed

    Light and lively, stiff and snappy on everything from serious singletrack to city streets, Trail’s progressive frame and cleanly integrated Bosch drive unit showcase our unmatched aluminum expertise.

    Confident Handling
    Short chainstays for agility and traction, a slack head angle for solid stability, and a battery and drive unit positioned as low and centrally as possible create a surprisingly nimble, yet steady feel.

    Ready for Anything

    True mountain bike specs distinguish Trail Neo: powerful hydraulic brakes, wide handlebars and short stems. But it’s versatile too, with pre-wired light cables and clever mounts for racks and fenders.

    Technology

    Drivetrain

    • Chain
      Shimano HG54, 10-Speed
    • Crank
      FSA Bosch E-Bike w/ custom Ai offset, 34T
    • Rear Cogs
      Shimano Deore, 11-42, 10-Speed
    • Rear Derailleur
      Shimano Deore M4100
    • Shifters
      Shimano Deore M4100, 10-speed

    Frameset

    • Fork
      RockShox Judy Gold, 100mm, 51mm offset, 110x15
    • Frame
      SmartForm C1 Alloy, Dual Battery ready, removable downtube battery, SAVE, tapered headtube, internal cable routing, Ai offset drivetrain, 148x12mm thru-axle, post mount disc, KickFlip hidden kickstand mount, skid plate, rack/fender mounts
    • Headset
      Integrated Sealed Bearing, Tapered

    Wheels

    • Front Hub
      Shimano MT400, 15x110mm thru-axle
    • Front Tire
      Maxxis Ardent 29x2.40 Wire 60TPI Exo
    • Rear Hub
      Shimano MT400, 12x148mm thru-axle
    • Rear Tire
      Maxxis Ardent 29x2.40 Wire 60TPI Exo
    • Rims
      WTB STX i30 TCS, 32h tubeless ready
    • Spokes
      DT Swiss Champion
    • Tire Size
      2.6
    • Tires
      Maxxis Rekon, 29 x 2.6", Wire 60TPI Exo
    • Wheel Size
      29

    Brakes

    • Brake Levers
      Shimano MT400 hydraulic disc
    • Brakes
      Shimano MT400 hydraulic disc, 180mm RT30 rotors

    Components

    • Grips
      Fabric Funguy
    • Handlebar
      Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
    • Saddle
      Cannondale Ergo XC
    • Seatpost
      Cannondale 4, 6061 Alloy, 31.6 x 350mm
    • Stem
      Cannondale 3, 6061 Alloy, 31.8, 0°

    E-System

    • E-System Battery
      Bosch PowerTube 625Wh
    • E-System Charger
      Bosch 2A
    • E-System Display
      Bosch Purion

    Extra

    • Extra 1
      Preinstalled light cables

    Measurements

    • Size: SM
      5'4" 162
      5'8" 172
    • Size: MD
      5'7" 170
      6'0" 182
    • Size: LG
      6'0" 182
      6'3" 190
    • Size: XL
      6'4" 193
      6'8" 203
    Close

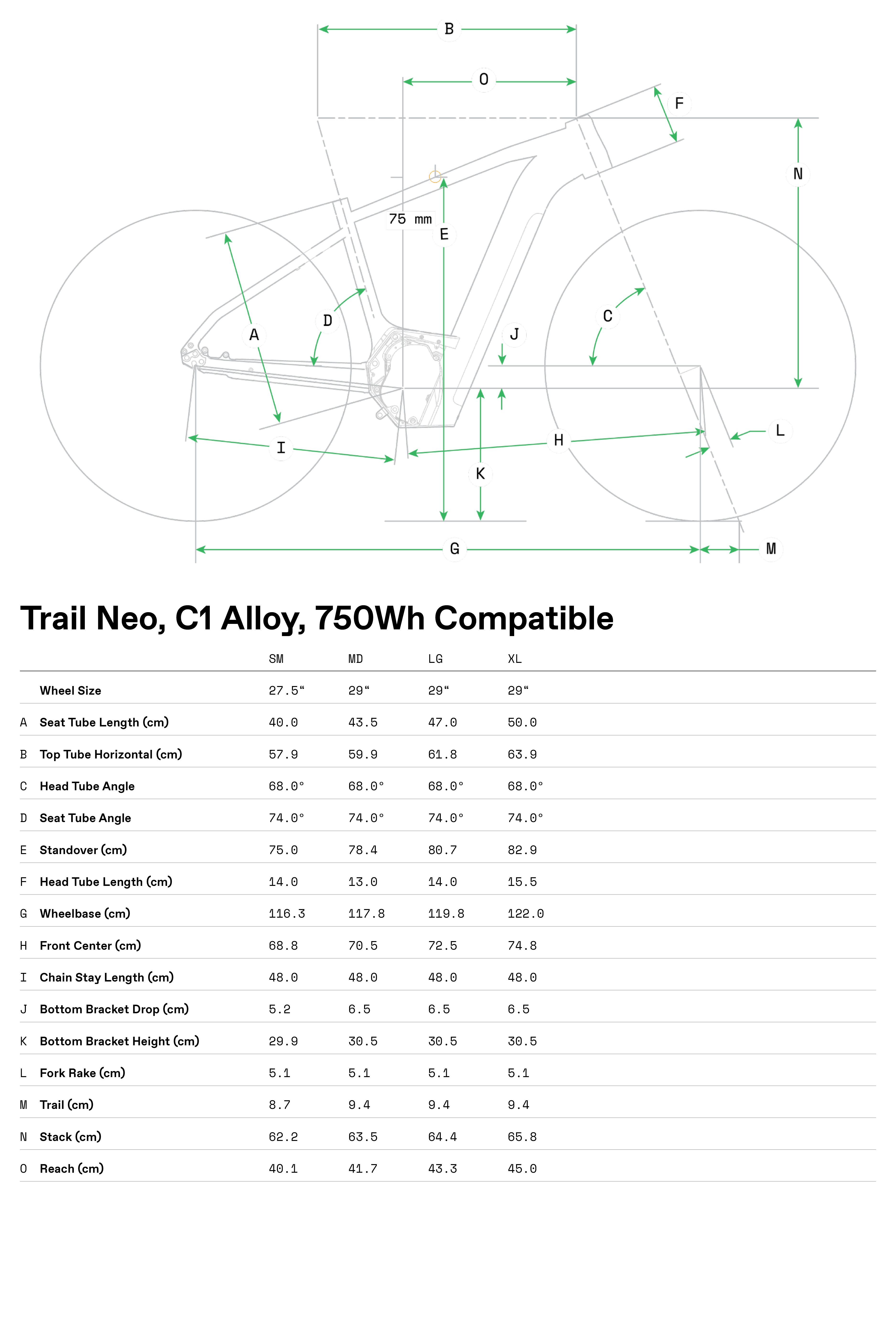

    Geometry
