Platform: Trail Neo
Highlights
- Lightweight SmartForm C1 Alloy frame, dual battery ready / SR Suntour XCM 34 Boost 100mm fork
- Shimano Deore 10-speed drivetrain / hydraulic disc brakes
- Bosch Performance Line CX drive unit / 500Wh battery / Range: up to 114km
Where it thrives
Low-impact trails, up and down hills
What it's built for
Speed, efficiency, handling


Perfectly Framed
Light and lively, stiff and snappy on everything from serious singletrack to city streets, Trail’s progressive frame and cleanly integrated Bosch drive unit showcase our unmatched aluminum expertise.




Ready for Anything
True mountain bike specs distinguish Trail Neo: powerful hydraulic brakes, wide handlebars and short stems. But it’s versatile too, with pre-wired light cables and clever mounts for racks and fenders.
Technology
Powered by Bosch
The Performance Line CX drive unit and powerful 500Wh PowerTube battery give you the power and range to tackle any terrain. Increased torque of 85Nm and extended boost for effortless speed and endless fun.

SmartForm C1 Alloy
Our premium alloy construction. C1 uses every technique in our arsenal to create frames that are incredibly light, stiff and durable, with a ride-feel that could only come from Cannondale.

Right-Sized Wheels
The smaller sizes of Trail Neo roll on 27.5" wheels, while the larger sizes come with 29" wheels to deliver the best blend of fit, fast and fun for every rider.

Dual Battery Compatibility
No more range anxiety. The Trail Neo frame comes pre-wired and ready for the installation of a second battery for longer rides and bigger adventures.

The Ai Advantage
Our Ai Offset Drivetrain opens up the rear triangle for more tire clearance, while keeping the chainstays short for nimble agility. A stiffer, stronger rear wheel is just icing on the cake.

KickFlip Mount
Sleek, hidden mount makes it easy to add a kickstand for around-town convenience.

Drivetrain
-
ChainShimano HG54, 10-Speed
-
CrankFSA Bosch E-Bike w/ custom Ai offset, 34T
-
Rear CogsShimano Deore, 11-42, 10-Speed
-
Rear DerailleurShimano Deore M4100
-
ShiftersShimano Deore M4100, 10-speed
Frameset
-
ForkSR Suntour XCM 34 Boost, 100mm, Coil, 46mm offset
-
FrameSmartForm C1 Alloy, Dual Battery ready, removable downtube battery, SAVE, tapered headtube, internal cable routing, Ai offset drivetrain, 148x12mm thru-axle, post mount disc, KickFlip hidden kickstand mount, skid plate, rack/fender mounts
-
HeadsetIntegrated Sealed Bearing, Tapered
Wheels
-
Front HubShimano MT400, 15x110mm thru-axle
-
Front TireMaxxis Ardent 27.5/29x2.40 Wire 60TPI Exo
-
Rear HubShimano MT400, 12x148mm thru-axle
-
Rear TireMaxxis Ardent 27.5/29x2.40 Wire 60TPI Exo
-
RimsWTB STX i25 TCS, 32h, tubeless ready
-
SpokesDT Swiss Champion
-
Tire Size2.4
-
TiresMaxxis Ardent, 27.5/29 x 2.4", Wire 60TPI Exo
-
Wheel Size29
Brakes
-
Brake LeversShimano MT200 hydraulic disc
-
BrakesShimano MT200 hydraulic disc, 180mm RT10 rotors
Components
-
GripsFabric Funguy
-
HandlebarCannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
-
SaddleCannondale Ergo XC
-
SeatpostCannondale 4, 6061 Alloy, 31.6 x 350mm
-
StemCannondale 3, 6061 Alloy, 31.8, 0°
E-System
-
E-System BatteryBosch Powertube 500Wh
-
E-System ChargerBosch 2A
-
E-System DisplayBosch Purion
Extra
-
Extra 1Preinstalled light cables

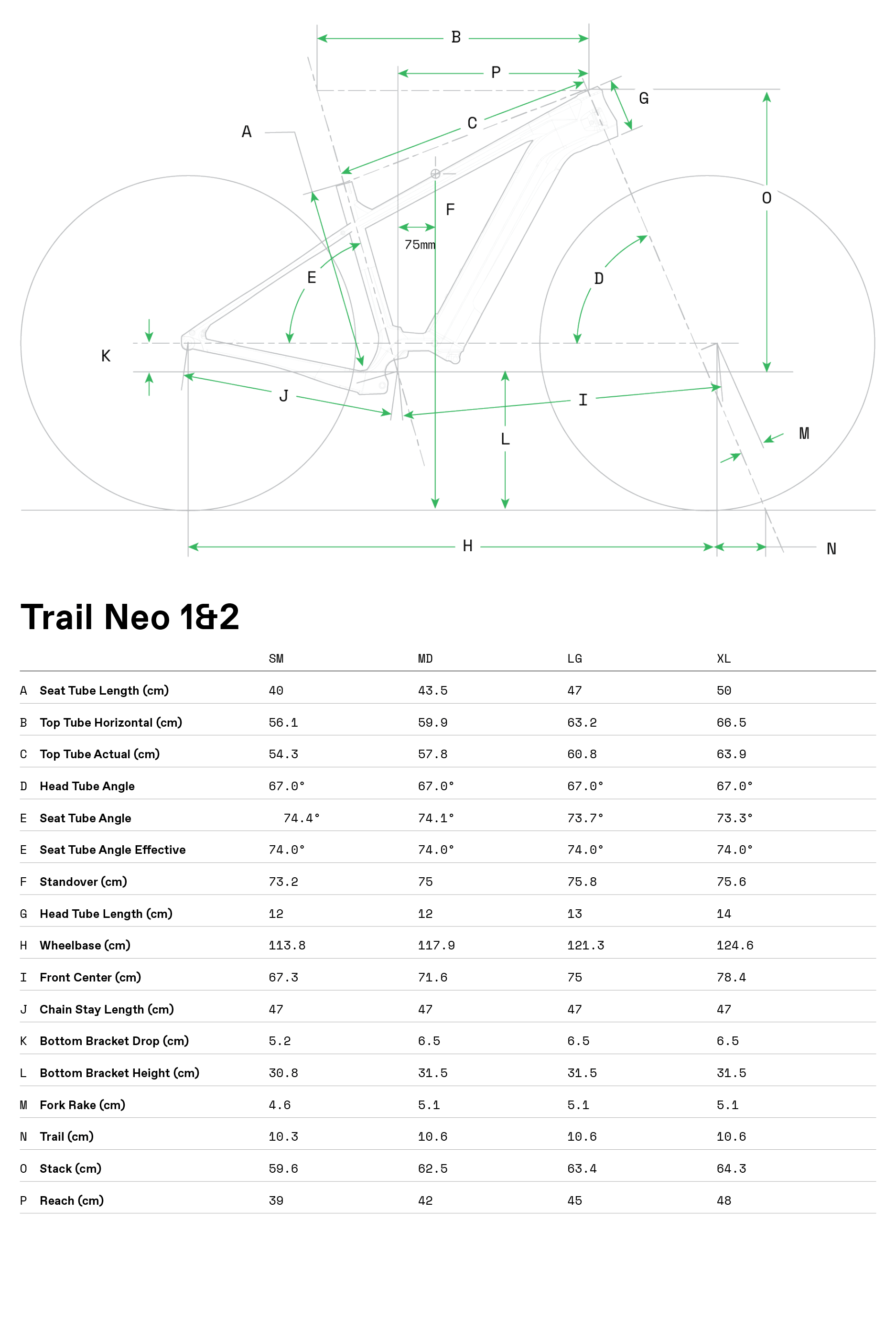

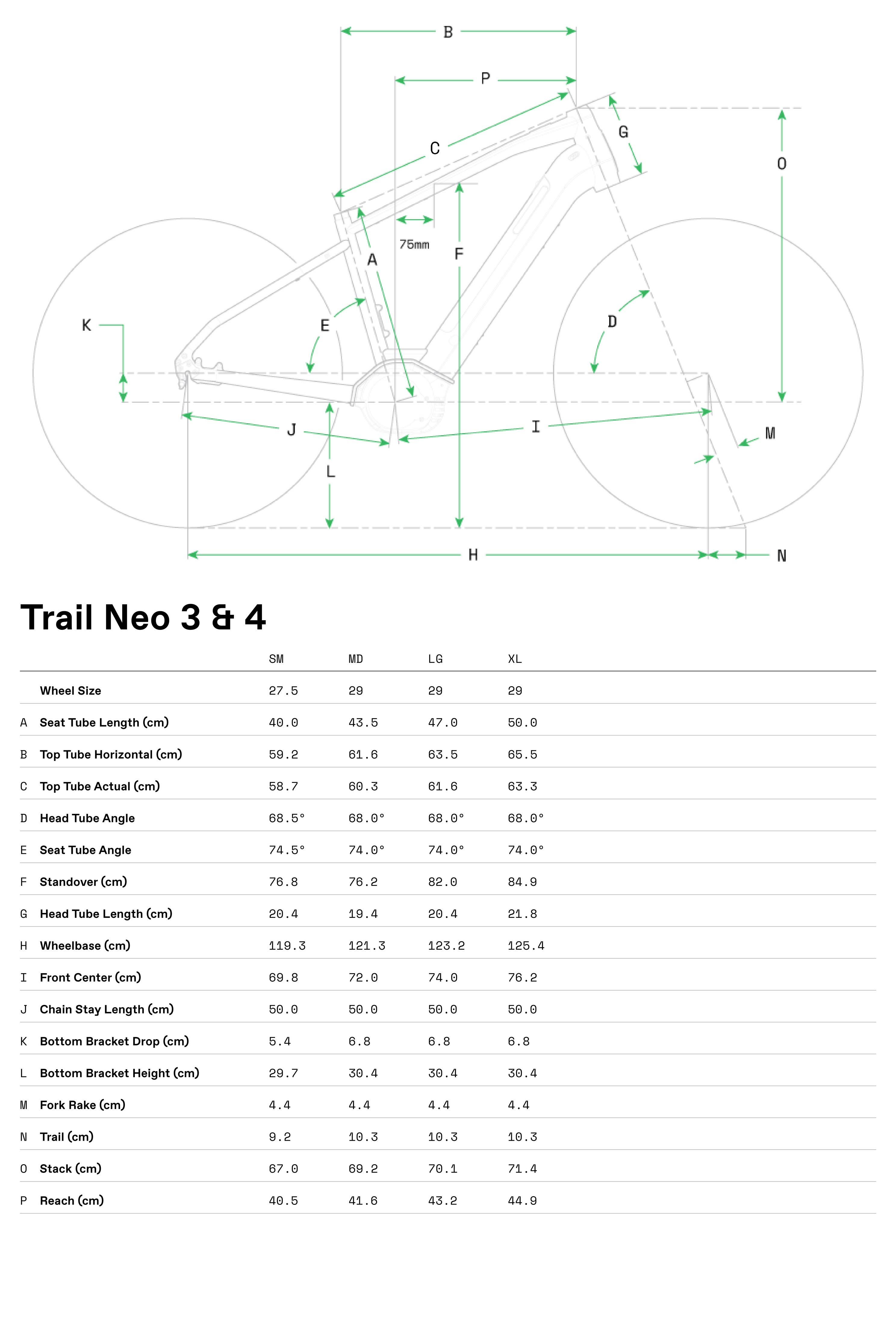

Measurements
- Size: SM (27.5")
- Size: MD (29")
- Size: LG (29")
- Size: XL (29")
