Powered by Bosch
Super light, compact and quiet, the new Performance CX is Bosch's most powerful drive unit. With 75 Nm max torque and natural-feeling support up to 340%, it is the most advanced MTB drive system available.
Close
Tell us how tall you are, we'll help you find the right size.
Long arms? Short Legs? Just not sure? Call us!
Some models run larger than others. Customer Service can help you identify a size more specific to your body type. Call 1-800-245-3872.
Level Up
An e-mountain bike that will raise your game and ignite a passion for the trail.
Where it thrives
Low-impact trails, up and down hills
What it's built for
Speed, efficiency, handling
Highlights
- Premium SmartForm C1 Alloy frame w/ 100 mm travel fork / Low-step Ride-Easy geometry
- Shimano Deore, 10-Speed with hydraulic disc brakes
- Bosch Performance Line CX 250W drive unit / 500Wh Battery / Purion display / Range: up to 78Km (48mi)
Technology
The Ai Advantage
Our Ai Offset Drivetrain opens up the rear triangle for more tire clearance, while keeping the chainstays short for nimble agility. A stiffer, stronger rear wheel is just icing on the cake.
SmartForm C1 Alloy
Our premium alloy construction. C1 uses every technique in our arsenal to create frames that are incredibly light, stiff and durable, with a ride-feel that could only come from Cannondale.
Si Motor Mount
Proprietary Cannondale motor mount positions the Bosch drive unit low and forward in the frame, keeping the Center of Gravity low and the chainstays short for uncommonly agile handling.
Protection
To protect the motor and battery from damage, Trail Neo features a sealed battery cover and a burly, trials-style skid plate.
KickFlip Mount
Sleek, hidden mount makes it easy to add a kickstand for around-town convenience.
Specs
Details
-
Platform
-
Model NameTrail Neo 3 Remixte
-
Model CodeC61301U
Frameset
-
FrameSmartForm C1 Alloy, Low-step Ride-Easy geometry, removable downtube battery, SAVE, tapered headtube, internal cable routing, Ai offset drivetrain, 148x12mm thru-axle, post mount disc, KickFlip hidden kickstand mount, skid plate, rack/fender mounts
-
ForkSR Suntour XCM 34 Boost, 100mm, Coil, 46mm offset
-
HeadsetIntegrated Sealed Bearing, Tapered
E-System
-
Drive UnitBosch Performance Line CX
-
BatteryBosch PowerTube, 500Wh
-
ChargerBosch 2A
-
DisplayBosch Purion
Drivetrain
-
Rear DerailleurShimano Deore M4100
-
ShiftersShimano Deore M4100, 10-speed
-
ChainShimano HG54, 10-Speed
-
CrankFSA Bosch E-Bike w/ custom Ai offset, 34T
-
Rear CogsShimano Deore, 11-42, 10-speed
Brakes
-
BrakesShimano MT200 hydraulic disc, 180/180mm RT10 rotors
-
Brake LeversShimano MT200 hydraulic disc
Wheels
-
Front HubShimano MT400, 15x110mm thru-axle
-
Rear HubShimano MT400, 12x148mm thru-axle
-
RimsWTB STX i25 TCS, 32h, tubeless ready
-
SpokesDT Swiss Champion
-
Tire Size2.4
-
Wheel Size29
-
TiresMaxxis Ardent, 29x2.4", Wire 60TPI Exo
-
Front TireMaxxis, Ardent 27.5/29x2.40 Wire 60TPI Exo
-
Rear TireMaxxis Ardent 27.5/29x2.40 Wire 60TPI Exo
Components
-
HandlebarCannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
-
StemCannondale 3, 6061 Alloy, 31.8, 0°
-
GripsFabric Funguy
-
SaddleCannondale Ergo XC
-
SeatpostCannondale 4, 6061 Alloy, 31.6x350mm
Please note that, based on component availability and other factors, specifications are subject to change without notice.

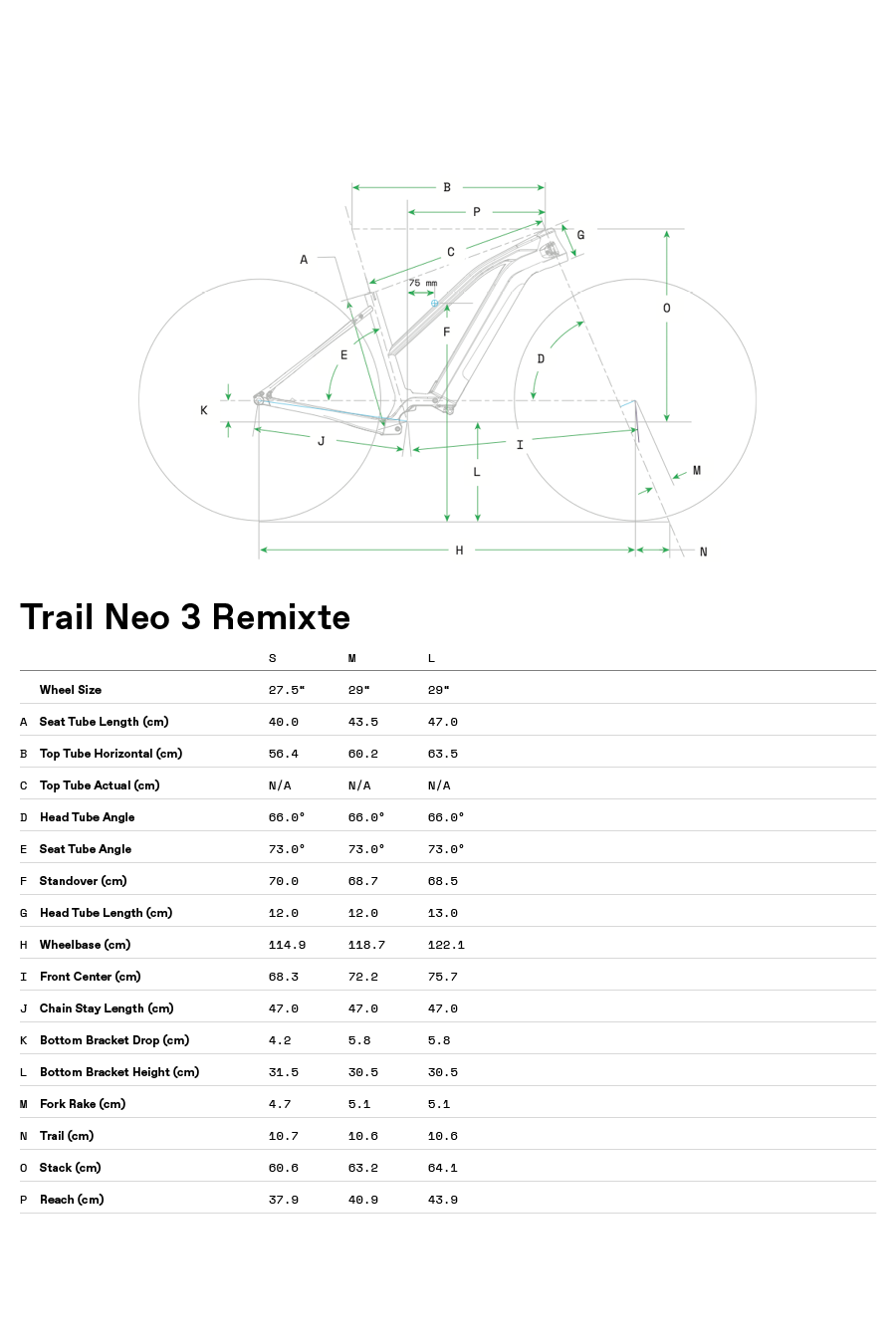

Geometry
