Platform: Tesoro Neo X
Highlights
- Premium SmartForm C1 Alloy low-step frame, dual-battery-ready / Suntour Raidon 34 100mm travel fork
- Shimano Deore 12-speed drivetrain / Shimano MT200 hydro disc brakes
- Bosch Performance Line CX 250W drive-unit / 625Wh battery / Kiox color display / Range: up to 105mi (170km)
Where it thrives
Gravel roads, the open road
What it's built for
Speed, efficiency, comfort
Off-Road Ready
Tesoro Neo X lives to be pointed off pavement. For bikepacking, backroad trekking or rugged transport, its MTB-inspired frame & fork and big 29” wheels let you get in deeper and go further.
Urban Steady
Potholes? Gravel? Tram tracks? No worries. All the features that make Tesoro Neo X so capable off-road translate into a supremely comfortable, confident experience on-road.
Loaded for Adventure
Secure, rattle-free fenders and a full rear rack, bright front and rear lights, and even a kickstand mean you’re ready to tackle any adventure.
Power and Range
Durable, reliable Bosch drive unit and battery give you the speed you need, with the juice to go the distance.
Technology
Powered by Bosch
The Performance Line Speed and long-lasting 625Wh PowerTube battery make up Bosch's most powerful e-bike system. Support up to 28 mph and increased torque of 85Nm for effortless speed and endless fun.
SmartForm C1 Alloy
Our premium alloy construction. C1 uses every technique in our arsenal to create frames that are incredibly light, stiff and durable, with a ride-feel that could only come from Cannondale.
Connected
An integrated wheel sensor helps track your activity (like speed, distance and calories burned), registers your bike, reminds you of needed service and more, all through the free Cannondale App.
Graphic Reflectivity
Be seen. Highly reflective accents on the frame and fork increase visibility in low-light conditions.
Si Motor Mount
Proprietary Cannondale motor mount positions the Bosch drive unit low and forward in the frame, keeping the Center of Gravity low and the chainstays short for uncommonly agile handling.
The Ai Advantage
Our Ai Offset Drivetrain opens up the rear triangle for more tire clearance, while keeping the chainstays short for nimble agility. A stiffer, stronger rear wheel is just icing on the cake.
Drivetrain
-
ChainKMC X12, 12-speed
-
CrankFSA Bosch E-Bike w/ custom Ai offset, 46T
-
Rear CogsShimano Deore M6100, 10-51, 12-speed
-
Rear DerailleurShimano Deore M6100
-
ShiftersShimano Deore M6100, 12-speed
Frameset
-
ForkSR Suntour Raidon 34 Boost, 100mm, 15x110mm thru-axle, 46mm offset
-
FrameRemixte Step-Thru, SmartForm C1 Alloy, removable downtube battery, SAVE, tapered headtube, internal cable routing, Ai offset drivetrain, 148x12mm thru-axle, post mount disc, integrated speed sensor, KickFlip hidden kickstand mount, motor protection, rack/fendor mount, lock mount
-
HeadsetIntegrated Sealed Bearing, Tapered
Wheels
-
Front HubShimano MT400, 15x110mm thru-axle
-
Rear HubShimano MT510 12x148mm thru-axle
-
RimsWTB STX i30 TCS, 32h, tubeless ready
-
SpokesStainless Steel, 14g
-
Tire Size2.25
-
TiresSchwalbe G-One Allround Performance, 29 x 2.25", RaceGuard, tubeless ready
-
Wheel Size29
Brakes
-
Brake LeversShimano MT200 hydraulic disc
-
BrakesShimano MT200 hydraulic disc, 180/180mm RT30 rotors
Components
-
GripsCannondale Ergo Fitness Dual Density, Lock-on
-
HandlebarCannondale 3, 6061 double-butted, 20mm rise, 9° back, 720mm
-
SaddleCannondale Ergo Touring
-
SeatpostSuspension Seatpost, 31.6
-
StemCannondale Adjustable, A-headset, 31.8mm
E-System
-
E-System BatteryBosch PowerTube 625Wh
-
E-System ChargerBosch 4A
-
E-System DisplayBosch Kiox
Extra
-
Extra 1Herrmans H-Black MR4 front light, H-Trace Micro rear light, Tubus Wingee fender, Tubus rear rack (25kg max capacity)

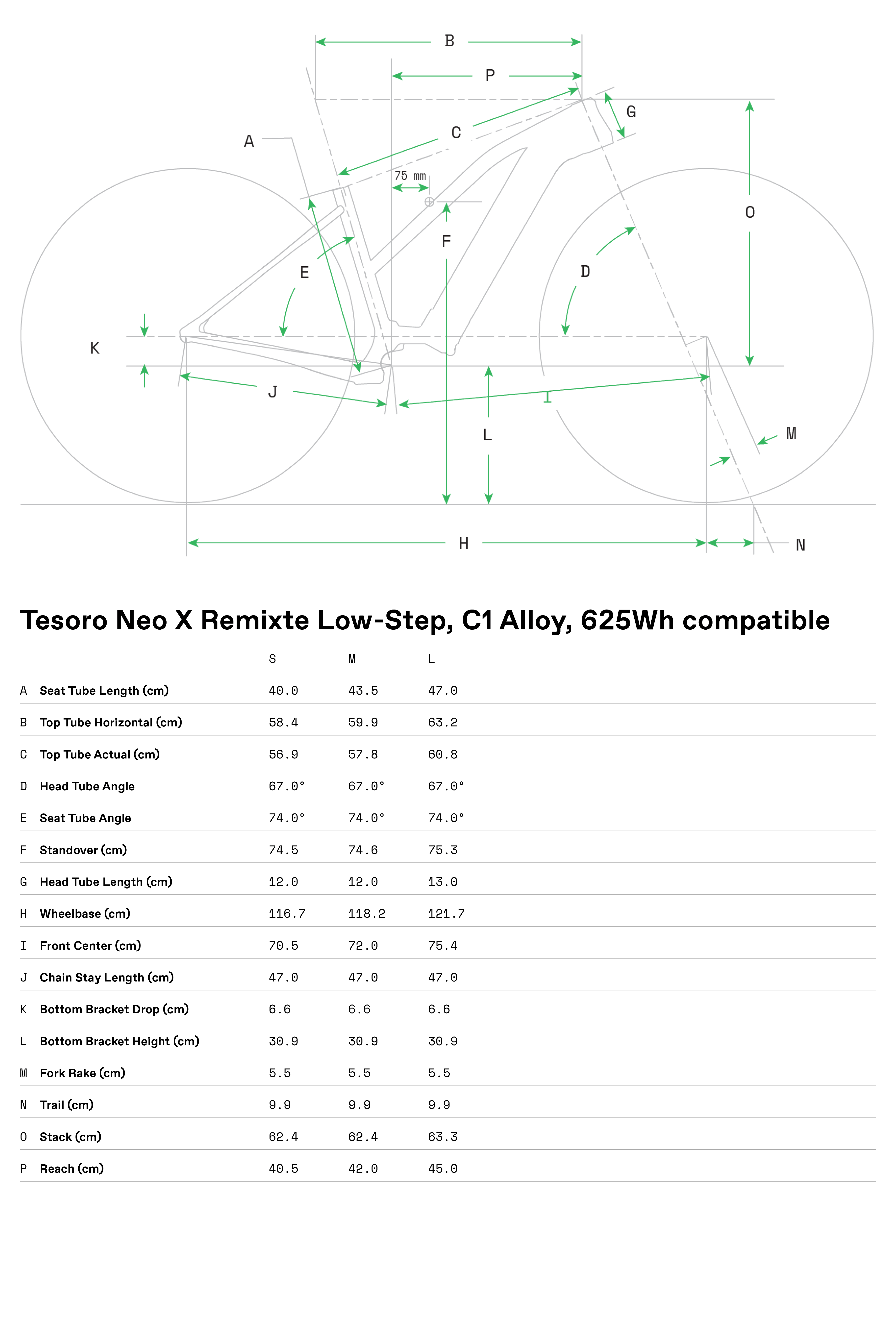

Measurements
