Platform: Tesoro Neo X
Highlights
- Premium SmartForm C1 Alloy frame, dual-battery-ready
- SR Suntour XCM 34 fork, 100mm travel / Shimano Deore, 10-speed
- Bosch Performance Line Speed 250W drive-unit (28mph) / 500Wh battery / Range: up to 55mi
Where it thrives
Gravel roads, the open road
What it's built for
Speed, efficiency, comfort
Technology
Powered by Bosch
The new Performance Line CX is Bosch's most powerful drive unit. Incredibly compact and light, it offers seamless assistance and effortless speed, all backed by Bosch's renowned quality and service.

Dual Battery compatibility
For double the range and double the adventure, the standard Tesoro NEO X frame comes pre-wired and ready for the installation of a second battery kit.

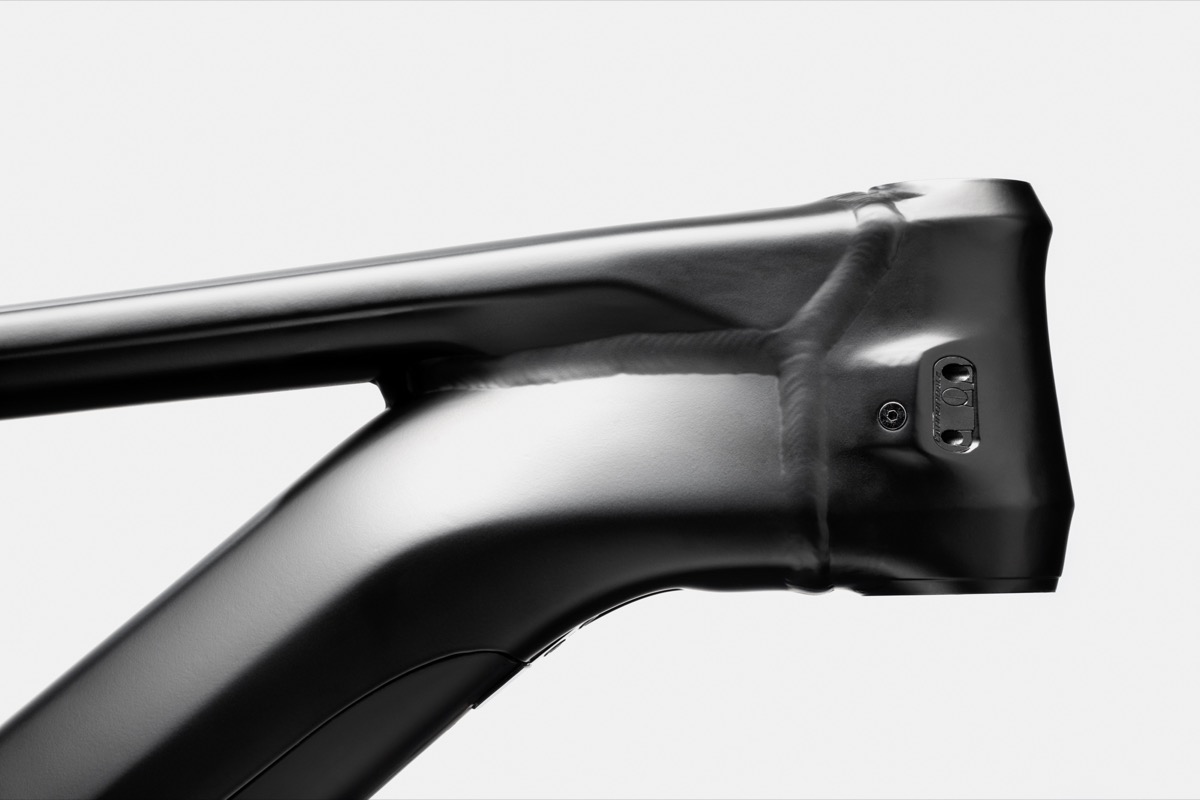

SmartForm C1 Alloy
Our premium alloy construction. C1 uses every technique in our arsenal to create frames that are incredibly light, stiff and durable, with a ride-feel that could only come from Cannondale.

Graphic Reflectivity
Be seen. Highly reflective accents on the frame and fork increase visibility in low-light conditions.

Si Motor Mount
Proprietary Cannondale motor mount positions the Bosch drive unit low and forward in the frame, keeping the Center of Gravity low and the chainstays short for uncommonly agile handling.

The Ai Advantage
Our Ai Offset Drivetrain opens up the rear triangle for more tire clearance, while keeping the chainstays short for nimble agility. A stiffer, stronger rear wheel is just icing on the cake.

Connected
An integrated wheel sensor helps track your activity (like speed, distance and calories burned), registers your bike, reminds you of needed service and more, all through the free Cannondale App.

Remixte
Also available with a Remixte unisex frame, featuring a lowered top tube for easier step-through and greater comfort.

Connectivity
-
Wheel SensorCannondale Wheel Sensor
Drivetrain
-
ChainShimano HG54, 10-speed
-
CrankBosch Gen4 w/ custom Ai offset, 46T
-
Rear CogsShimano HG500, 11-42, 10-speed
-
Rear DerailleurShimano Deore GS
-
ShiftersShimano Deore, 10-speed
Frameset
-
ForkSR Suntour XCM 34 Boost, 100mm, Coil, 46mm offset
-
FrameSmartForm C1 Alloy, Dual Battery ready, removable downtube battery, SAVE, tapered headtube, internal cable routing, Ai offset drivetrain, 148x12mm thru-axle, post mount disc, integrated speed sensor, KickFlip hidden kickstand mount, motor protection, lock mount
- Dual Battery ready
- Removable downtube battery
- SAVE
- Tapered headtube
- Internal cable routing
- Ai offset drivetrain
- 148x12mm thru-axle
- Post mount disc
- KickFlip hidden kickstand mount
-
HeadsetIntegrated Sealed Bearing, Tapered
Wheels
-
Front HubShimano MT400 15x110
-
Rear HubShimano MT400 12x148
-
RimsWTB STX i29 TCS, 32h, tubeless ready
-
SpokesDT Swiss Champion
-
Tire Size2.25
-
TiresSchwalbe G-One Allround Performance, 29 x 2.25", RaceGuard, tubeless ready
-
Wheel Size29
Brakes
-
Brake LeversShimano Deore M6000 hydro disc
-
BrakesShimano Deore M6000 hydro disc, 203/180mm RT30 rotors
Components
-
GripsCannondale Ergo Performance, Lock-On
-
HandlebarCannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 740mm
-
SaddleCannondale Ergo Touring
-
SeatpostSuspension Seatpost S/M 350mm, L/XL 400mm
-
StemCannondale Adjustable , A-headset, 31.8mm
E-System
-
E-System BatteryBosch PowerTube 500Wh
-
E-System ChargerBosch 4a
-
E-System DisplayBosch Purion

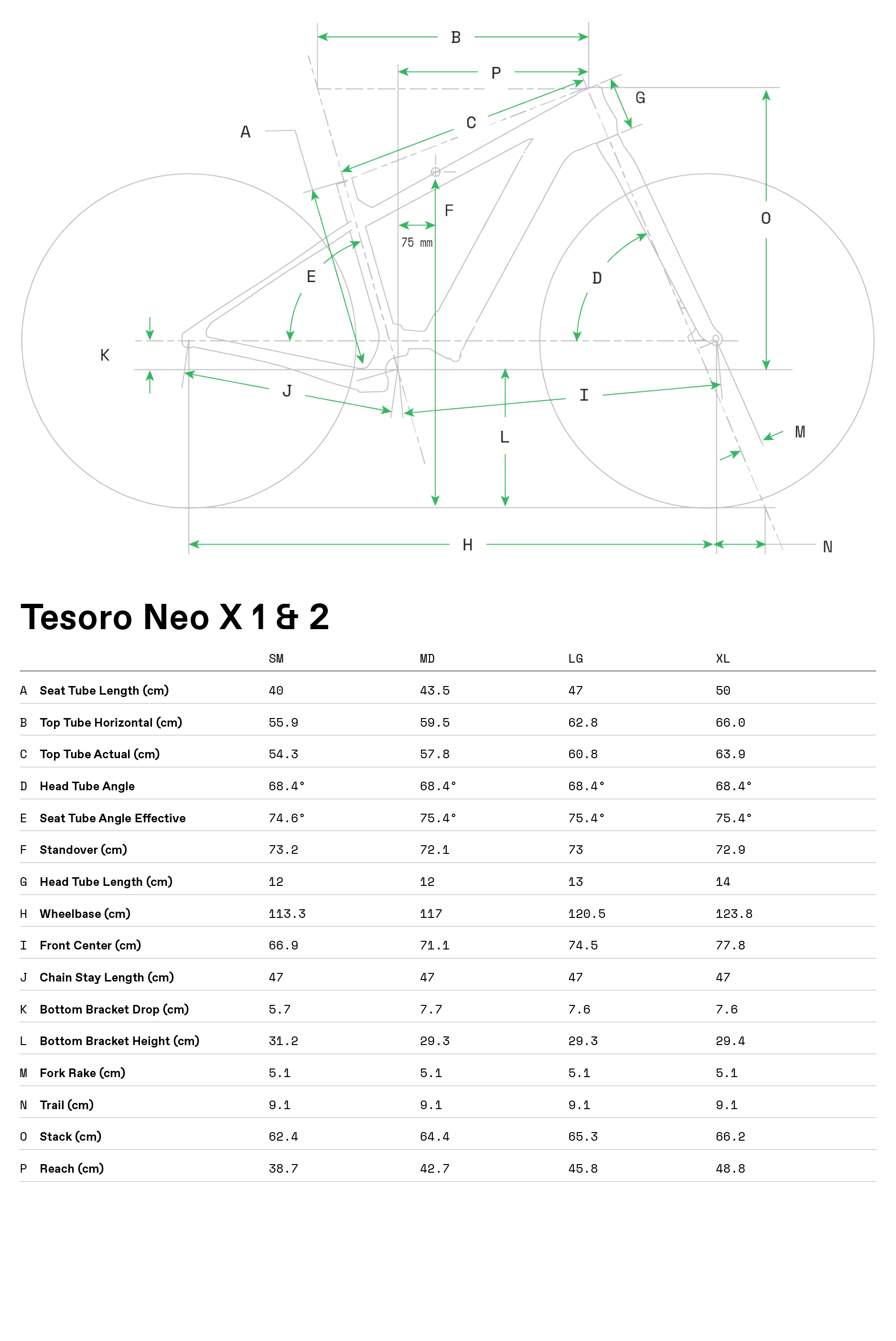

Measurements
- Size: SM
- Size: MD
- Size: LG
- Size: XL
