          Movement That Moves You

          An e-bike that elevates the art of getting around. Function meets pleasure. Comfort meets capability. Speed meets style. From point A to point B, or to no point in particular – it's your best way there.

          Model Description

          This comfortable, capable e-bike is crafted to make moving through the city fast, easy, and fun. Featuring our light and durable SmartForm C2 Alloy frame construction, it’s powered by Bosch’s proven Active Line Plus motor and a 500Wh battery, which provide solid power, ample range, and reasonable weight. A Gates carbon belt drive and Shimano’s Nexus 5-speed internal gear hub deliver smooth, clean and quiet shifting. Everything you need for errands, commutes, and joyrides.

          What it's for

          Commuting through the city, running errands, feeling good.

          Highlights

          • SmartForm C2 Alloy frame is lightweight, yet durable, with integrated headtube reflector.
          • Smooth and quiet Bosch Active Line Plus Drive Unit with up to 50Nm of torque and 250% max support.
          • 500Wh Bosch PowerTube Battery for a great balance of range and weight.
          • Full color, ergonomic Purion 200 display. All your information and controls at thumb’s reach.
          • Durable, reliable, smooth-shifting Shimano Nexus 5-speed internal hub makes it easy to always be in the right gear.
          • Gates carbon belt drive delivers a clean, quiet, trouble-free drivetrain.

          Movement That Moves You

          Power

          Bosch's new Smart System Active Line Plus drive unit and 500Wh battery provide effortless power.

          Speed

          This e-bike drive system provides pedal assist up to a maximum speed of 25km/h. Above that, it’s all you.

          Range

          Up to 110km of assisted range mean you can go to – and come back from – just about anywhere.

          Premium Electric Experience
          Mavaro 4 is powered by the new Bosch Active Line Plus drive unit, packing a 500Wh battery, boosting your power up to 340%, with a colourful and compact Purion 200 display on the handlebar. Effortless acceleration, compelling versatility, and a range of up to 110km on a single charge.
          Roll Smoothly
          With its smooth 63mm travel fork, alloy fenders, high-capacity rear rack (Racktime ready), bright front and rear lights, comfort handlebars and low gearing – the new Mavaro 4 is your perfect commuting partner.
          Clean, Quiet and Easy
          The combination of the Gates belt system with a Shimano internal gear hub makes an ideal urban drivetrain. No dirty chains, no noisy derailleurs; just smooth, simple, reliable shifting always.

          Features

          Two Frame Options

          Available as either a convenient low step-thru design or with the classic look of a top tube. Either way, our expert aluminum craftsmanship delivers a robust, beautiful, and confidence-inspiring ride.

          Bosch Active Line Plus Motor

          Bosch’s new Active Line Plus drive unit delivers silent, natural-feeling power. With up to 50Nm of torque, it can boost your power by up to 340%. Effortless acceleration and compelling versatility.

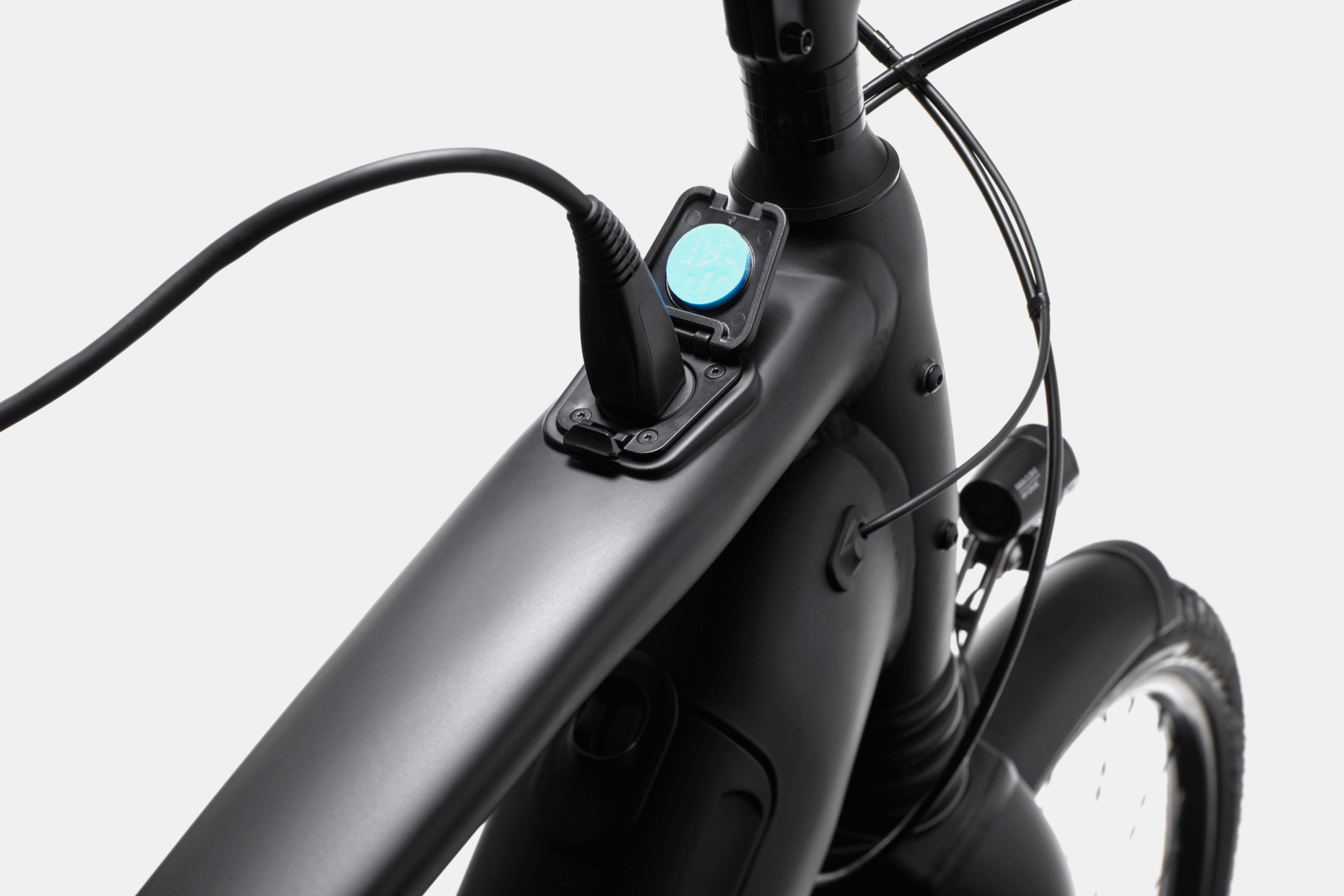

          Convenient Charging

          Mavaro 4's charge port is high on the frame - easy to find and easy to reach with a charge cable. Or, if you want to take the battery off and charge it inside, it pops out of the frame, and back in, with an easy click.

          Specs

          Details

          • Platform
            Mavaro Neo
          • Model Name
            Mavaro 4
          • Model Code
            C68253U

          Frameset

          • Frame
            SmartForm C2 Alloy, removable 500Wh downtube battery, integrated headtube reflector, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection
          • Fork
            SR Suntour Mobie A32, 63mm travel, coil with preload adjuster, lockout, crown light mount, 44mm offset
          • Headset
            Semi-Integrated, Tapered; 1-1/8"-1-1/2"

          E-System

          • Drive Unit
            Bosch Active Line Plus, Smart System, 25 km/h
          • Battery
            Bosch PowerTube, 500Wh
          • Charger
            Bosch 2A
          • Display
            Bosch Purion 200

          Drivetrain

          • Rear Derailleur
            Shimano Nexus 5, internal gear hub
          • Shifters
            Shimano Nexus 5-speed, twist style
          • Chain
            Gates CDX Carbon Belt
          • Crank
            FSA for Bosch
          • Rear Cogs
            Gates CDC 26T

          Brakes

          • Brakes
            Shimano MT400 hydraulic disc, 180/180mm RT30 rotors
          • Brake Levers
            Shimano MT400 hydraulic disc

          Wheels

          • Rims
            Alloy, double wall, 32 hole, 25mm internal width, disc-specific
          • Spokes
            Stainless Steel, 14g
          • Tire Size
            2.2
          • Wheel Size
            27.5"/29"
          • Hubs
            (F) Shimano MT400B, 110x15mm thru-axle / (R) Shimano Nexus 5, 5-speed internal gear hub
          • Tires
            Continental eContact Plus w/ reflective sidewalls 27.5x2.20" 55-584 (SM), 29x2.20" 55-622 (MD-XL)

          Components

          • Handlebar
            Cannondale Low-Rise Urban, butted 6061 Alloy, 31.8mm, 25mm rise, 35° sweep, 680mm
          • Stem
            Cannondale 3, Alloy, 31.8mm clamp
          • Grips
            Cannondale Ergo Fitness Dual Density, Lock-on
          • Saddle
            Fizik Essenza Moderate M
          • Seatpost
            Cannondale 3, 6061 Alloy, 31.6

          Extra

          • Extra 1
            Axa Compactline 35E front light, Axa Blueline rear light, Abus framelock (key-matched with battery lock), Tubus rear rack (25kg, Racktime compatible), full-coverage fenders

          Please note that, based on component availability and other factors, specifications are subject to change without notice.
