Trail 4

+Compare
Trail 4
Find other local bike shops to check for availability

Platform: Trail

Get after it.

A mountain bike designed to raise your game and ignite a passion for the trail.

Highlights

  • Premium SmartForm C2 Alloy frame
  • RockShox XC30 TK 100mm fork w/ lockout
  • Wide-range Shimano Deore 10-speed drivetrain w/ hydraulic disc brakes

Where it thrives

Low-impact trails, gravel roads, leisurely ride

What it's built for

Handling, durability

Technology

Drivetrain

  • Bottom Bracket
    Sealed Cartridge
  • Chain
    KMC X10, 10-speed
  • Crank
    FSA Alpha Drive, 30T
  • Rear Cogs
    Sunrace, 11-42, 10-speed
  • Rear Derailleur
    Shimano Deore GS
  • Shifters
    Shimano Deore, 10-speed

Frameset

  • Fork
    RockShox XC30 TK 29"/27.5", 100mm, rebound, 1-1/8", Coil, 42mm offset (27.5") 51mm offset (29")
  • Frame
    SmartForm C2 Alloy, SAVE, Boost spacing, tapered 1-1/8" to 1.5" headtube, flat mount brake, StraightShot internal cable routing, BSA-73
    • SAVE
    • Boost spacing

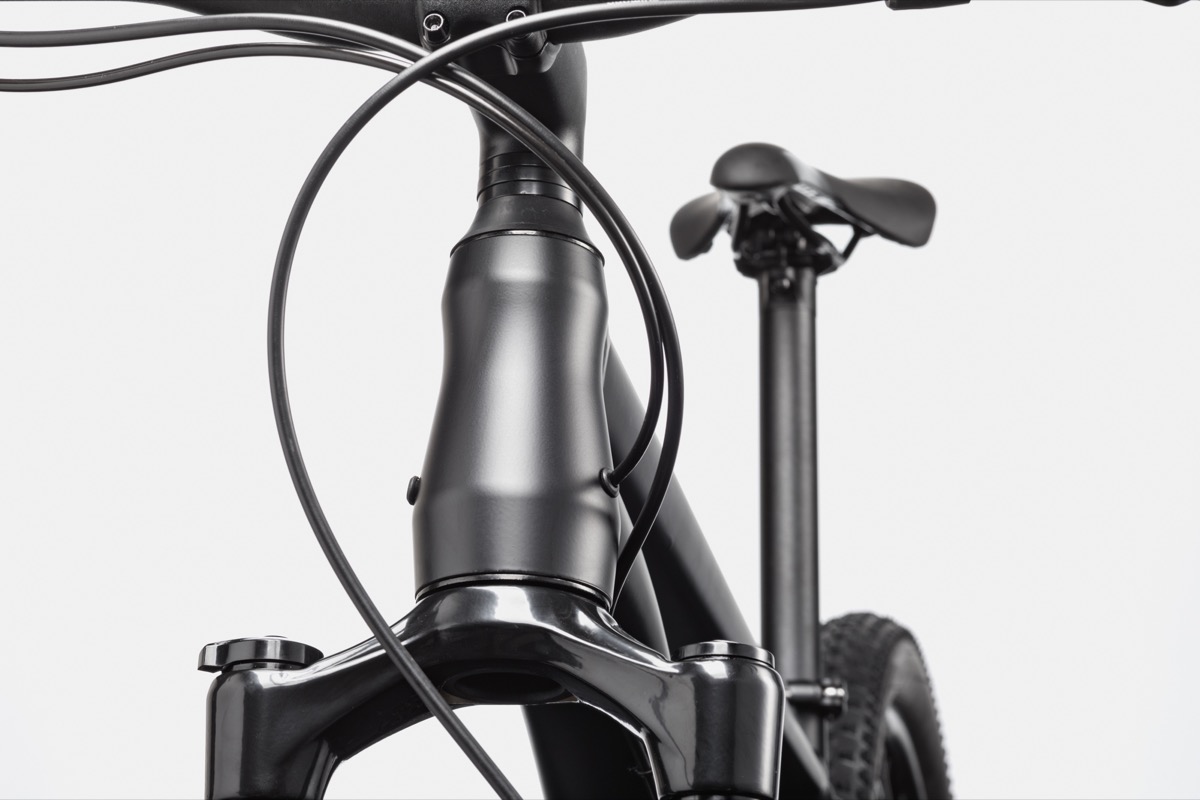

    • Tapered 1-1/8" to 1.5" headtube
    • Flat mount brake
    • StraightShot internal cable routing
    • BSA-73

Wheels

  • Rear Hub
    Shimano MT200, Boost 141, QR
  • Rims
    WTB STX i23 TCS, 32h, tubeless ready
  • Spokes
    Stainless Steel, 14g
  • Tire Size
    2.25
  • Tires
    WTB Ranger Comp, 27.5/29 x 2.25", DNA Compound
  • Wheel Size
    29

Brakes

  • Brake Levers
    Shimano MT200 hydro disc
  • Brakes
    Shimano MT200 hydro disc, 180/160mm RT10 rotors

Components

  • Grips
    Cannondale Dual-Density
  • Handlebar
    Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 760mm
  • Saddle
    Cannondale Stage 3
  • Seatpost
    Cannondale 3, 6061 Alloy, 31.6 x 350/400mm
  • Stem
    6061 Alloy, 31.8, 6°

Weight: 14.3 kg / 31.5 lbs - Bike and frame weights may vary in final production.

Measurements

  • Size: XS (27.5")
    4'6" 137
    5'2" 157
  • Size: SM (27.5")
    5'1" 154
    5'4" 162
  • Size: MD (29")
    5'4" 162
    5'8" 172
  • Size: LG (29")
    5'7" 170
    6'0" 182
  • Size: XL (29")
    6'0" 182
    6'5" 195
  • Size: 2XL (29")
    6'4" 193
    6'8" 203
Close

Geometry

Size:

Sizing

Tell us how tall you are, we'll help you find the right size.

Long Arms? Short Legs? Just not sure? Call Us!

Customer Service can help you identify a size more specific to your body type.

(123)456-7890
