Topstone Carbon 3 L 650b

      What's my size?
      Check Local Bike Shops
      sizing dialogue entered Close

      Tell us how tall you are, we'll help you find the right size.

        Long arms? Short Legs? Just not sure? Call us!

        Some models run larger than others. Customer Service can help you identify a size more specific to your body type. Call 1-800-245-3872.
        Close

          Nothing is impassable

          The best gravel bike for anything from dirt roads to singletrack trails. With the grip and comfort of the Kingpin suspension, nothing is off-limits.

          Where it thrives

          Gravel and Dirt Roads, Rough Pavement, Trails

          What it's built for

          Gravel riding, back road exploring, bike packing and off-road adventures

          Highlights

          • Lightweight Topstone Carbon frameset with Kingpin suspension / SmartSense Light equipped
          • Aggressive 650x47 "Road Plus" wheels & tires
          • Shimano GRX 800/600 11-speed shifting

          Nothing is Impassable

          Kingpin Suspension
          Delivering a smooth ride without the added weight and complexity of a shock and links, Kingpin is our answer for the most demanding gravel riders. Whether you need more comfort to go long, more traction to push beyond or more give to take on the tech - Kingpin is the maintenance-free, lightweight answer to your prayers.

          Get to Know Kingpin Suspension

          PLAY FILM
          Ride Brilliantly
          On every ride, SmartSense has your back. SmartSense’s system of intelligent lights (and optional rear-facing radar) increases your visibility out on the open road and makes it easy to ride smart.

          Features

          Load Up. Roll Out.
          With plentiful gear and waterbottle mounts on the frame and fork, Topstone Carbon is ready to load up and go long.
          Corner like a Boss
          Rail through the rough and come out smiling. Led by our OutFront steering geometry, the Topstone Carbon offers up handling that's serenely stable in the chop, and light & nimble everywhere else.

          Topstone Carbon Explained

          PLAY FILM

          Specs

          Details

          • Platform
          • Model Name
            Topstone Carbon 3 L 650b
          • Model Code
            C15352U

          Frameset

          • Frame
            Topstone Carbon, Kingpin suspension system, SmartSense equipped, Proportional Response construction, 12x142mm thru-axle, 27.2 dropper post ready, BSA 68mm threaded BB, DirectLine internal cable routing, removable fender bridge, multiple gear/bottle mounts
          • Fork
            Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, triple bottle/gear mounts, fender mounts
          • Headset
            Integrated, 1-1/8" - 1.5"

          Drivetrain

          • Rear Derailleur
            Shimano GRX 810, Shadow RD+
          • Front Derailleur
            Shimano GRX 810, braze-on
          • Shifters
            Shimano GRX 600, 11-speed
          • Chain
            Shimano HG601, 11-speed
          • Crank
            FSA Gossamer Pro Modular AGX+, 46/30
          • Rear Cogs
            Shimano HG700, 11-34, 11-speed
          • Bottom Bracket
            FSA Mega EXO

          Brakes

          • Brakes
            Shimano GRX 400 hydraulic disc, 160/160mm RT64 rotors
          • Brake Levers
            Shimano GRX 600 hydraulic disc

          Wheels

          • Rims
            WTB ST i25 TCS, 650b, 28h, tubeless ready
          • Spokes
            Stainless Steel, 14g
          • Tire Size
            47
          • Wheel Size
            650b
          • Hubs
            (F) Formula cartridge bearing, 12x100mm centerlock / (R) Formula cartridge bearing, 12x142mm centerlock
          • Tires
            WTB Sendero TCS Light, 650bx47mm (47-584), tubeless ready
          • Front Tire
            WTB Sendero TCS Light, 650x47c, tubeless ready
          • Rear Tire
            WTB Sendero TCS Light, 650x47c, tubeless ready

          Components

          • Handlebar
            Cannondale 3, butted 6061 Alloy, 16 deg flare drop
          • Stem
            Cannondale 3, 6061 Alloy, 31.8, 7°
          • Grips
            Fizik Solocush Soft, 3mm
          • Saddle
            Fizik Aliante Delta, S-alloy rails
          • Seatpost
            Cannondale 3 SmartSense, 6061 Alloy, 27.2x350mm

          Connectivity

          • Wheel Sensor
            Cannondale Wheel Sensor

          Extra

          • Extra 1
            SmartSense with Lights

          Please note that, based on component availability and other factors, specifications are subject to change without notice.

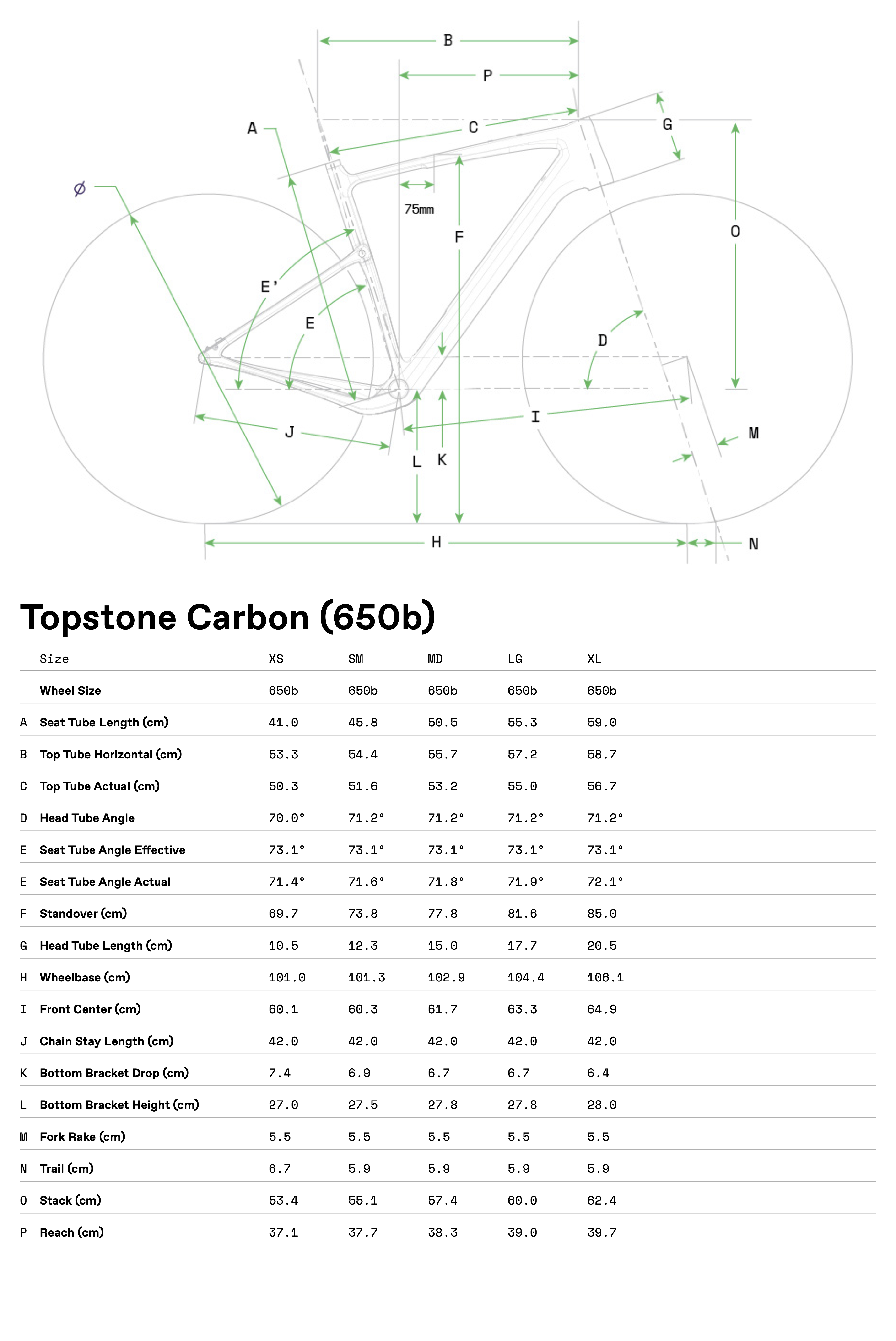

          Geometry
