SuperSix EVO Carbon Disc 105 Detail Image

SuperSix EVO Carbon Disc 105

Name: SuperSix EVO Carbon Disc 105
Brand: Cannondale
Availability: False

Size

What's my size?

Check Local Bike Shops

Tell us how tall you are, we'll help you find the right size.

Long arms? Short Legs? Just not sure? Call us!

Some models run larger than others. Customer Service can help you identify a size more specific to your body type. Call 1-800-245-3872.

Zip Code

Fast, just got faster.

A pure road bike. Light, smooth and ultra fast. The evolution of the classic race machine.

Where it thrives

In competition, the open road, up and down hills

What it's built for

Speed, agility, handling

Highlights

Lightweight low-drag BallisTec carbon frameset
Shimano 105 hydro disc group / Cannondale 1 crank
Fulcrum Racing 900 DB wheelset

Fast, just got faster.

30 watts. That's how much power the drag-reducing tube shapes and integrated design of the new SuperSix EVO saves over the prior version at 30 mph (48.3 km/h).

Feel the light

More Info

The lightest disc brake road frameset we've ever made. The new SuperSix EVO is ready to throw down when the grade goes up.

Swift & sure

More Info

Racy geometry and stiffness for explosive speed. Better micro-suspension and big tire clearance for surprising smoothness. It all adds up to precise handling and a ride-feel that’s out of sight.

Take flight on the fastest lightweight road bike there is.

Learn more

Technology

Speed Shapes

The frame features highly truncated airfoil tube shapes that offer the same weight, and equal or better stiffness than round tubes, but reduce drag by up to 30%.

Hidden Cable Routing

Unique design routes brake lines through an opening in the front of the headtube for minimal drag and headache-free serviceability.

Smooth Operator

SuperSix EVO has always been known for its elegantly smooth ride quality, and the new one is even smoother. The new SAVE rear stays, integrated binder and 27 KNØT seat post increase compliance by 18%.

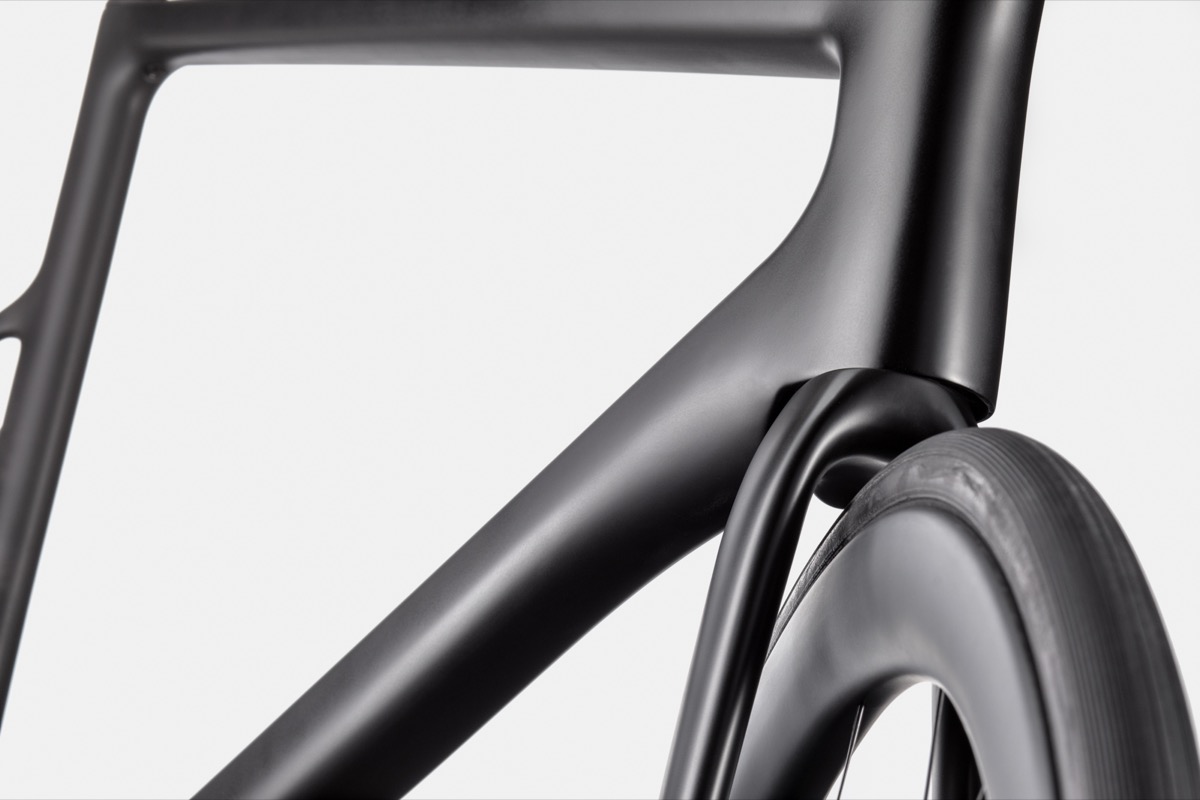

Clearly Capable

The new frame design has clearance for some seriously big rubber. 30mm tires fit with ease, for new levels of comfort and capability on any kind of road.

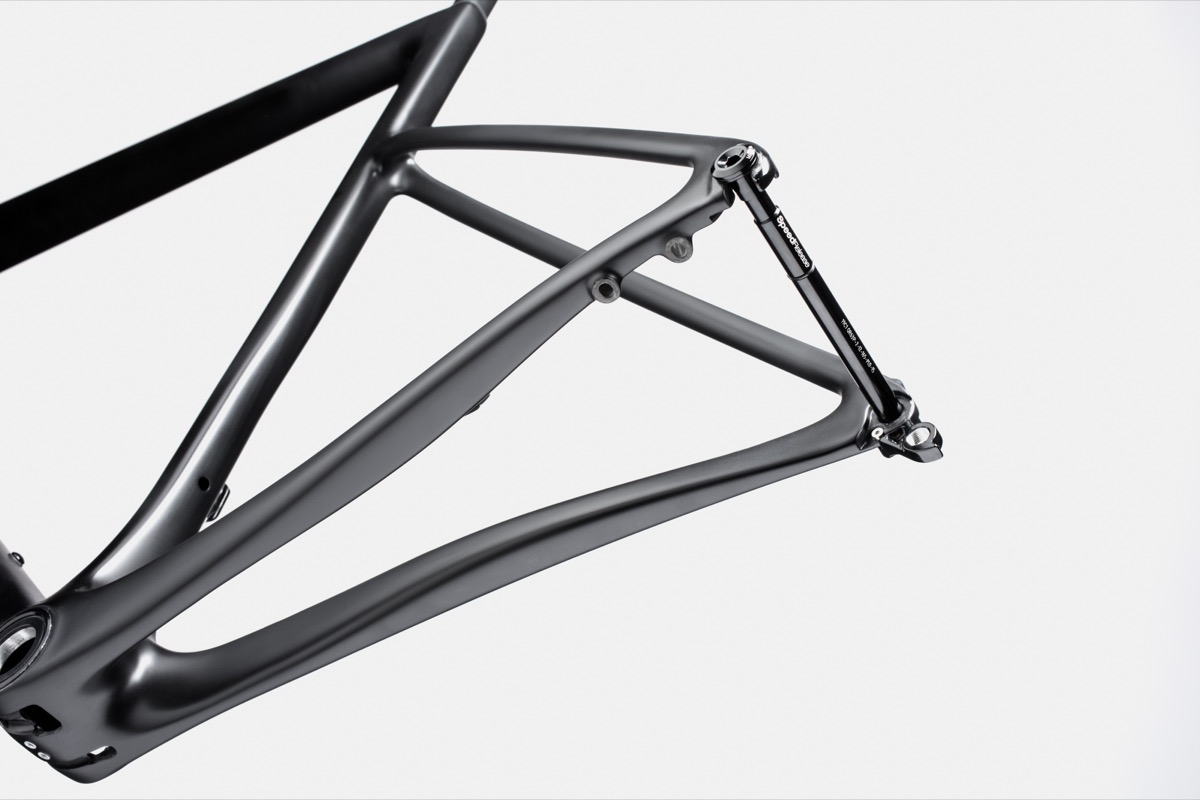

Speed Release Equipped

The Speed Release thru-axles allow faster, easier wheel changes and are compatible with most standard thru-axle wheelsets.

BallisTec Carbon

Cannondale's proprietary high-strength, high-stiffness carbon construction. An advanced matrix of intermediate modulus fibers creates a frame that's light, durable and lively.

Specs

Drivetrain

Bottom Bracket
Cannondale Alloy PressFit30
Chain
Shimano HG601, 11-speed
Crank
Cannondale 1, BB30a, FSA rings, 52/36
Front Derailleur
Shimano 105, braze-on
Rear Cogs
Shimano 105, 11-30, 11-speed
Rear Derailleur
Shimano 105 GS
Shifters
Shimano 105 hydro disc, 2x11

Frameset

Fork
BallisTec Carbon, SAVE, integrated crown race, 12x100mm Speed Release thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" steerer and 55mm offset (44-54cm), 1/8" to 1-3/8” steerer and 45mm offset (56-62cm)
Frame
All-New, BallisTec Carbon, integrated cable routing w/ Switchplate, 142x12 Speed Release thru-axle, SAVE, PF30a, flat mount disc, integrated seat binder
- Integrated cable routing w/ Switchplate
- 142x12 Speed Release thru-axle
- SAVE
- PF30a
- Flat mount disc
- Integrated seat binder
Headset
SuperSix, 1-1/4" lower bearing, 25mm top cap

Wheels

Front Hub
Fulcrum Racing 900 DB, 12x100
Rear Hub
Fulcrum Racing 900 DB, 12x142
Rims
Fulcrum Racing 900 DB
Spokes
Fulcrum, Stainless steel
Tire Size
25
Tires
Vittoria Zaffiro Pro Slick, 700 x 25c
Wheel Size
700c

Brakes

Brake Levers
Shimano 105 hydro disc
Brakes
Shimano 105 hydro disc, 160/160mm RT54 rotors

Components

Grips
Cannondale Grip Bar Tape w/Gel, 3.5mm
Handlebar
Cannondale 3, 6061 alloy, Compact
Saddle
Prologo Nago RS STN
Seatpost
All-New HollowGram 27 KNØT, Alloy, 2 bolt clamp, 330mm
Stem
Cannondale 3, 6061 alloy, 7-degree

Weight: 8.5 kg / 18.7 lbs - Bike and frame weights may vary in final production.
Please note that, based on component availability and other factors, specifications are subject to change without notice.
