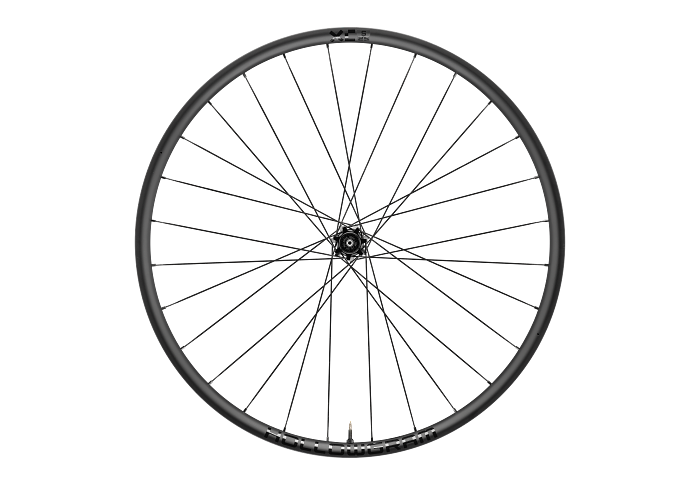

XC-S 25 Front Wheel

Color:

    Size

      Check Local Bike Shops
      Search

        Overview

        From Trailhead to Podium

        A perfect upgrade to any cross-country machine, the XC-25 wheelset will let you dig in, push harder, and get more out of your ride.

        Highlights

        • A 25mm internal width carbon rim enables better traction and planted cornering
        • Grand Forza double-butted spokes keep it light while staying strong and reliable
        • Built with our custom straight pull HollowGram hub shell and ultra-reliable DT Swiss 350 rear internals for performance and ease of service
        • At 1570g a pair the XC-S 25 is light without compromising strength
        • Lefty Ocho, 2.0, Supermax & Boost compatible

        From Trailhead to Podium

        Grip & Go
        The XC-25s keep you confident on any terrain, thanks to a 25mm internal rim width that enables better traction, planted cornering, and greater strength and stiffness than narrower, flimsier wheels. Tough rim construction also boosts durability compared to your average carbon XC wheel.

        Specs

        Details

        • Platform
          XC-S 25
        • Model Name
          XC-S 25 Front Wheel
        • Model Code
          HP8442U

        Wheels

        • Front Hub
          HollowGram Mountain 110x15mm / Lefty 60, sealed bearing, 6-bolt, 24h, straight pull
        • Rim Depth
          22mm
        • Rim Outer Width
          33mm
        • Rim Inner Width
          25mm
        • Rim Type
          Carbon clincher, hooked, tubeless ready
        • Nipple Type
          Sapim Secure Lock, brass
        • Effective Rim Diameter
          596mm
        • Maximum Spoke Tension
          100-130 kgf
        • Max Tire Pressure
          45 psi
        • Brake Type
          Disc
        • Rider Weight Limit
          111kg/245lbs
        • Spoke Count
          28h
        • Spoke Length (NDS-DS)
          304mm / 304mm
        • Spoke Type
          DT Swiss Competition Race - 2-cross
        • Wheel Size
          29"

        Extra

        • Extra 1
          Tubeless tape, tubeless valves

        Weight: 1570g (pair) - Bike and frame weights may vary in final production.
        Please note that, based on component availability and other factors, specifications are subject to change without notice.
