- Carbon frame / RockShox 35 Gold RL fork and Deluxe Select R shock, 160mm travel
- Bosch Peformance CX drive unit / 500Wh battery
- SRAM SX Eagle 12-speed drivetrain / Guide RE brakes
Challenging trails, up and down hills, out in the elements
Para o que é construído
Traction, speed, handling
Power & style
Bosch's powerful new Performance CX drive unit and a long-lasting PowerTube battery integrate cleanly into Moterra's burly carbon frame. The power and range to ride anything — in a beautiful package.

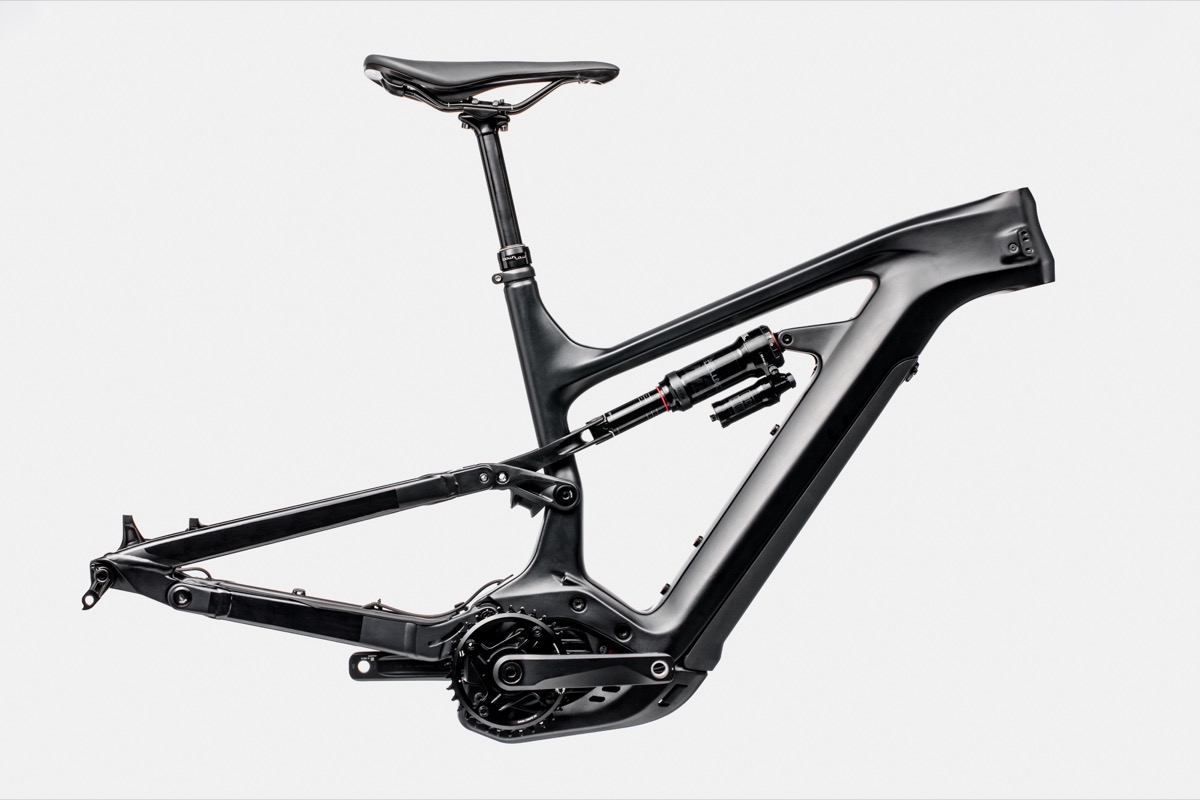

Riders come in all sizes. Proportional Response is the only design that addresses this fact, tailoring the suspension layout by size so that every rider gets optimal traction, suppleness and control.
The Ai Advantage

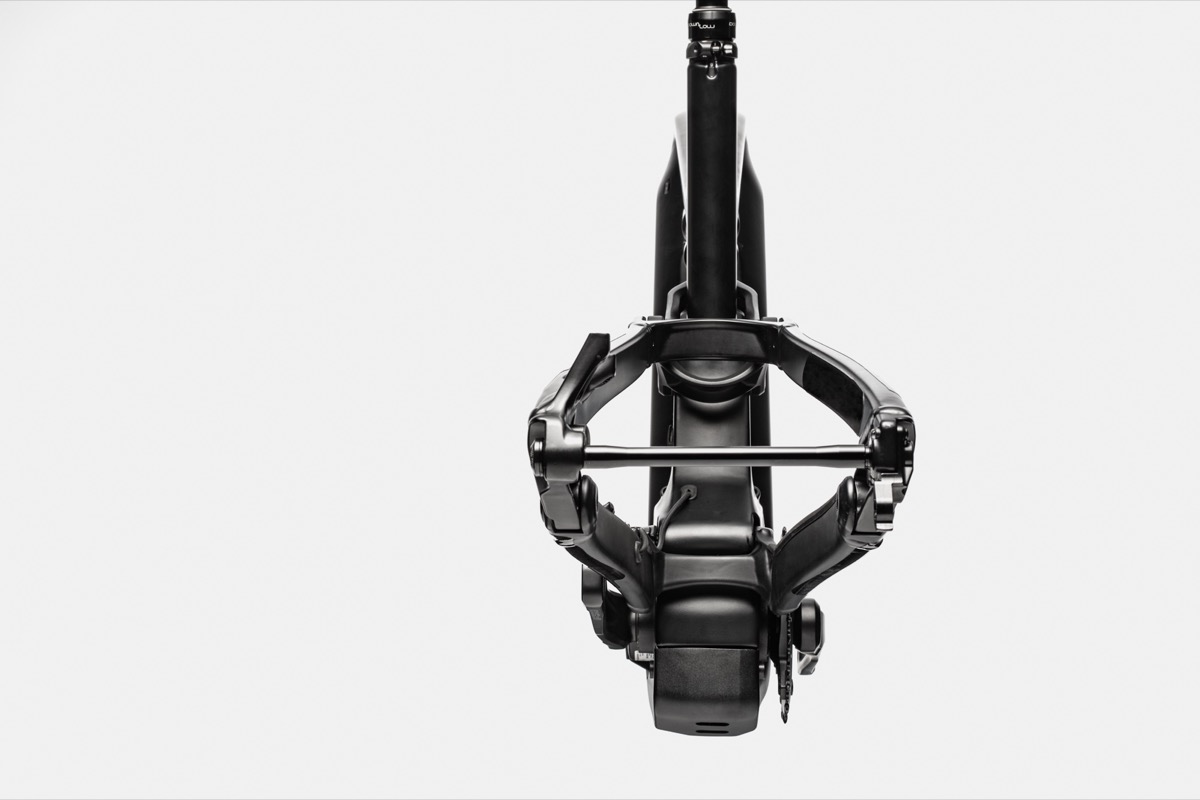

Our Ai Offset Drivetrain opens up the rear triangle for more tire clearance, while keeping the chainstays short for nimble agility. A stiffer, stronger rear wheel is just icing on the cake.
Utilizing size-specific Center-of-Gravity data, the suspension linkage is tailored by size so that every rider experiences optimized suspension performance while braking, climbing and descending.
Built Light. Built Tough.

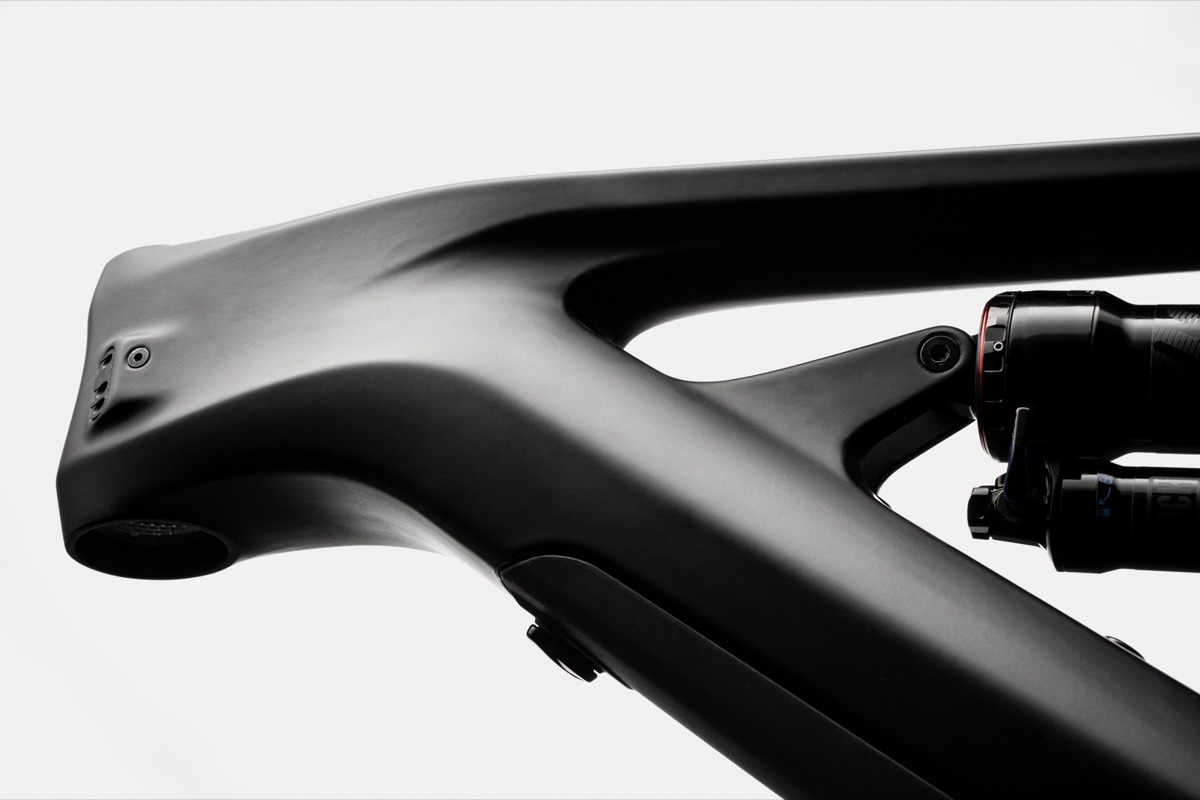

A BallisTec Carbon frame keeps the mass to a minimum. But since our engineers prioritized durability over gram-counting, confidence is built in (so is a lifetime warranty).
Si Motor Mount

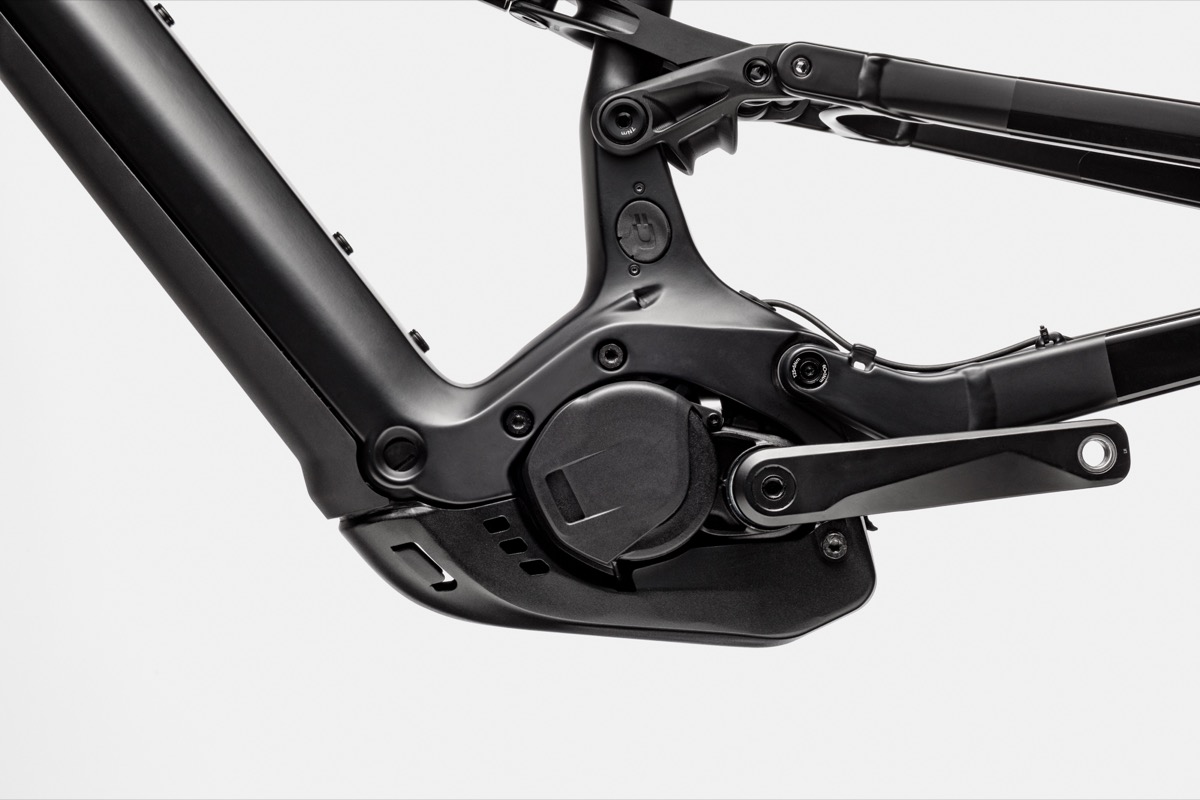

Proprietary Cannondale motor mount positions the Bosch drive unit low and forward in the frame, keeping the Center of Gravity low and the chainstays short for uncommonly agile handling.

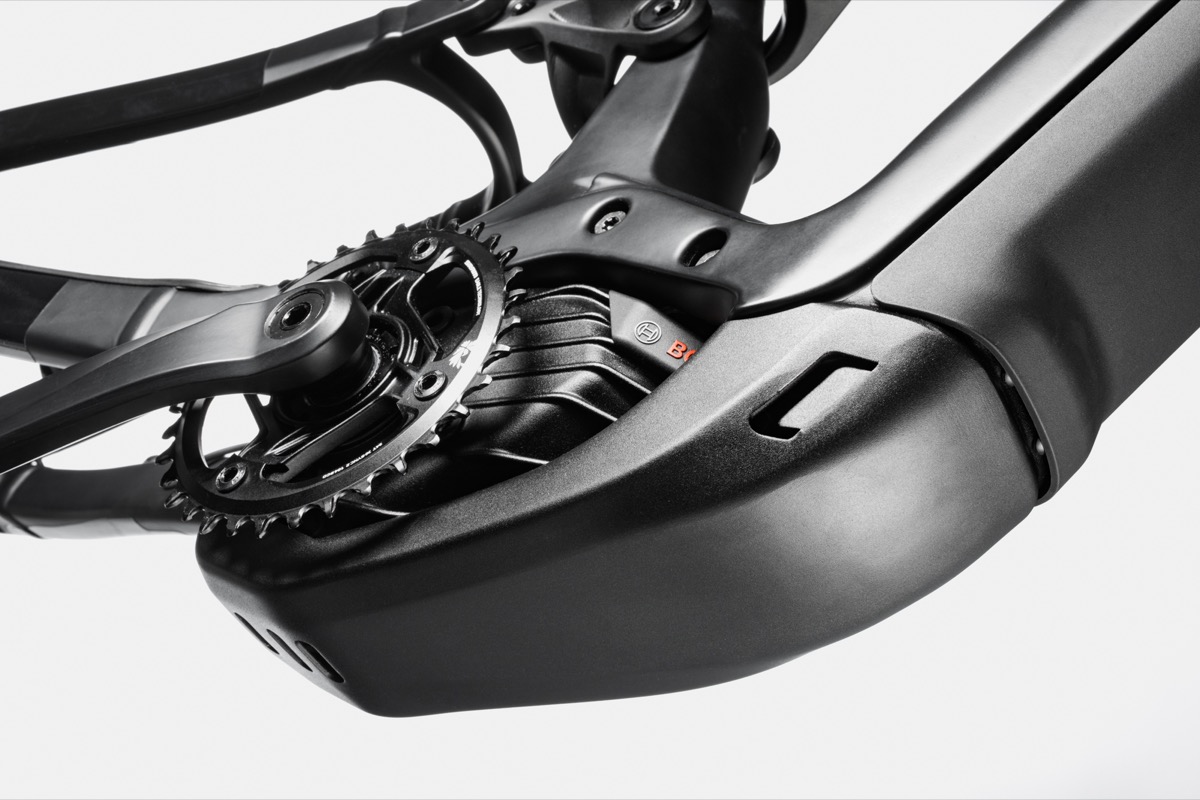

To protect the motor and battery from damage, Moterra features a sealed battery cover and a burly, trials-style skid plate.

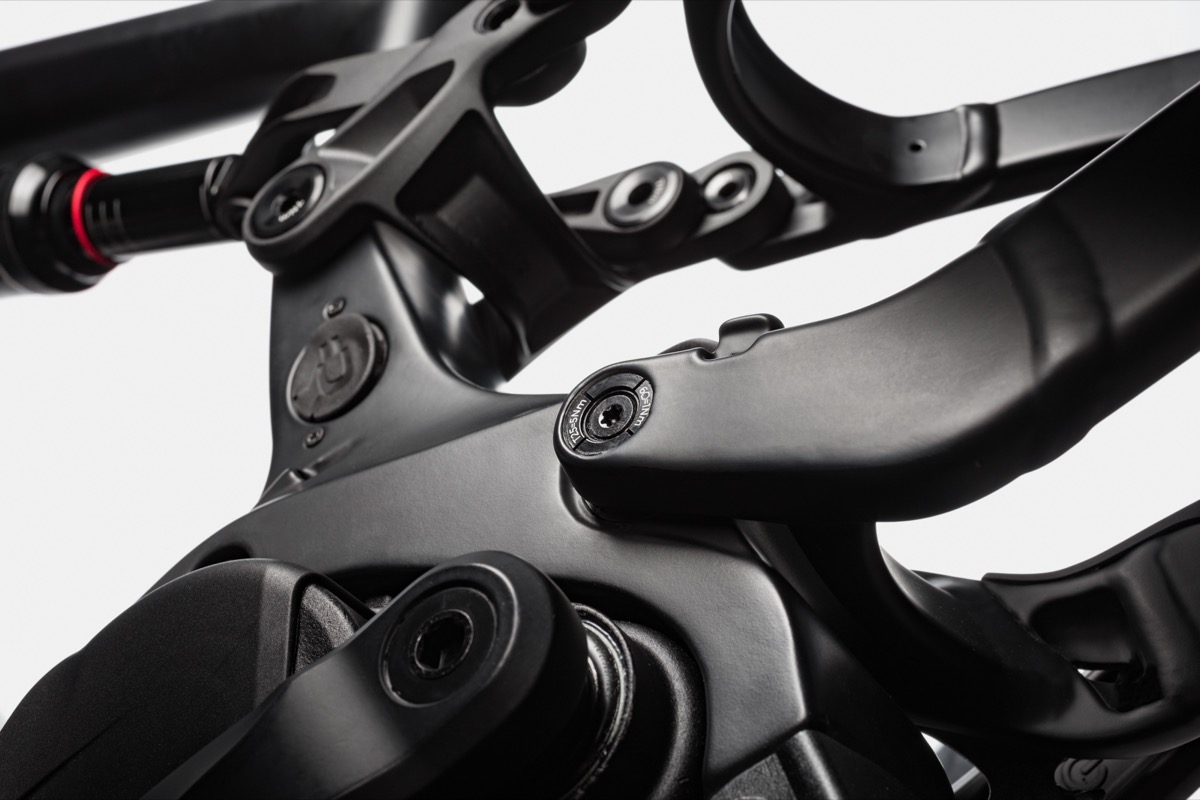

Thru-axle pivot system creates a rock-solid connection between both sides of the swingarm for instantaneous response. No twist, no flex and no special tools required.

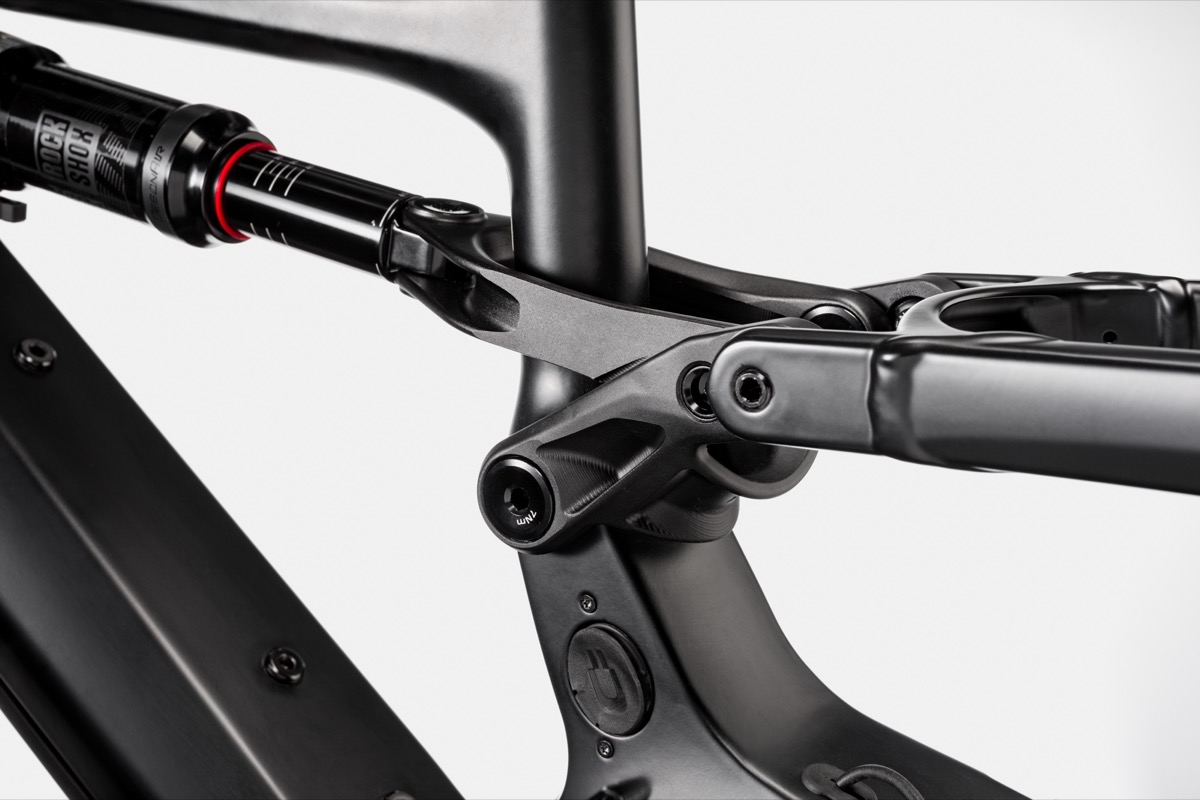

A key part of the Proportional Response suspension design. Each size frame gets its own custom shock links and pivot locations for that "made for you" suspension feel.

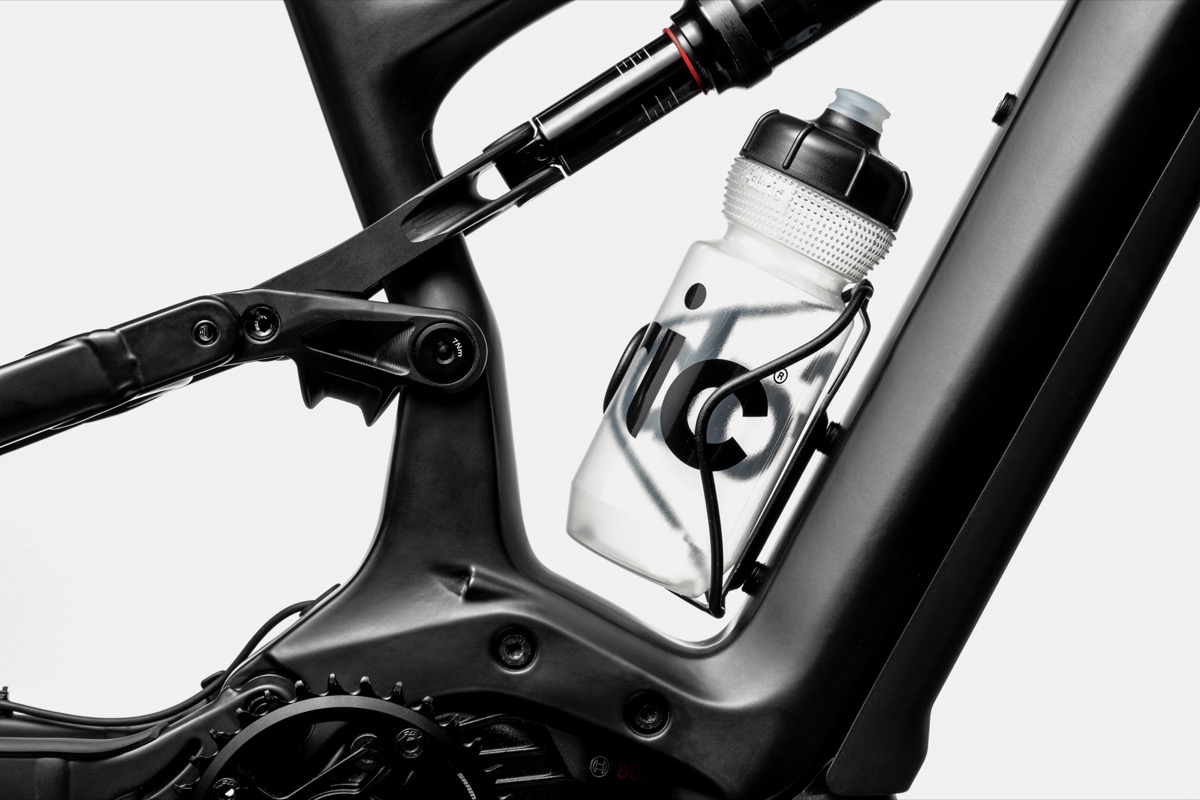

A place for a real water bottle, right in the front triangle. How about that?
ChainSRAM SX Eagle, 12-speed
CrankBosch Gen4 w/ custom Ai offset, 34T
Rear CogsSRAM PG-1210, SX Eagle, 11-50, 12-speed
Rear DerailleurSRAM SX Eagle
ShiftersSRAM SX Eagle, 12-speed
ForkRockShox 35 Gold RL, 160mm, DebonAir, 15x110, tapered steerer, 51mm offset
Frame160mm travel, Carbon Front Triangle, SmartForm C1 Alloy Swingarm, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, Ai offset drivetrain, internal cable routing, 148x12mm thru-axle, post mount brake, tapered headtube
- 160mm travel
- Proportional Response Tuned Suspension
- Removable downtube battery
- Alloy skid plate
- Ai offset drivetrain
- Internal cable routing
- 148x12mm thru-axle
- Post mount brake
- Tapered headtube
HeadsetIntegrated Sealed Bearing, Tapered
Rear ShockRockShox Deluxe Select R, DebonAir
Front Hub(F) Formula 15x110
Front Tire(F) Maxxis Minion DHF, 27.5/29 x 2.6", 3C compound, EXO+, tubeless ready
Rear Hub(R) Formula DC-1248, 12x148
Rear Tire(R) Maxxis Minion DHR II, 27.5/29 x 2.6", 3C compound, EXO+, tubeless ready
RimsWTB ST i29 TCS, 32h, tubeless ready
SpokesDT Swiss Champion
Tires(F) Maxxis Minion DHF, 27.5/29 x 2.6", 3C compound, EXO+, tubeless ready(R) Maxxis Minion DHR II, 27.5/29 x 2.6", 3C compound, EXO+, tubeless ready
Brake LeversSRAM Guide RE hydro disc
BrakesSRAM Guide RE hydro disc, 4-piston, 220/200mm Centerline rotors
GripsCannondale Locking Grips
HandlebarCannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
SaddleFabric Scoop Shallow Sport, steel rails
SeatpostTranzX dropper, internal routing, 31.6, 80mm (XS), 100mm (S), 120mm (M), 130mm (L-XL)
StemCannondale 3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 0-degree
E-System BatteryBosch PowerTube 500Wh
E-System ChargerBosch 4a
E-System DisplayBosch Purion
Drive UnitBosch Performance Line CX 250W

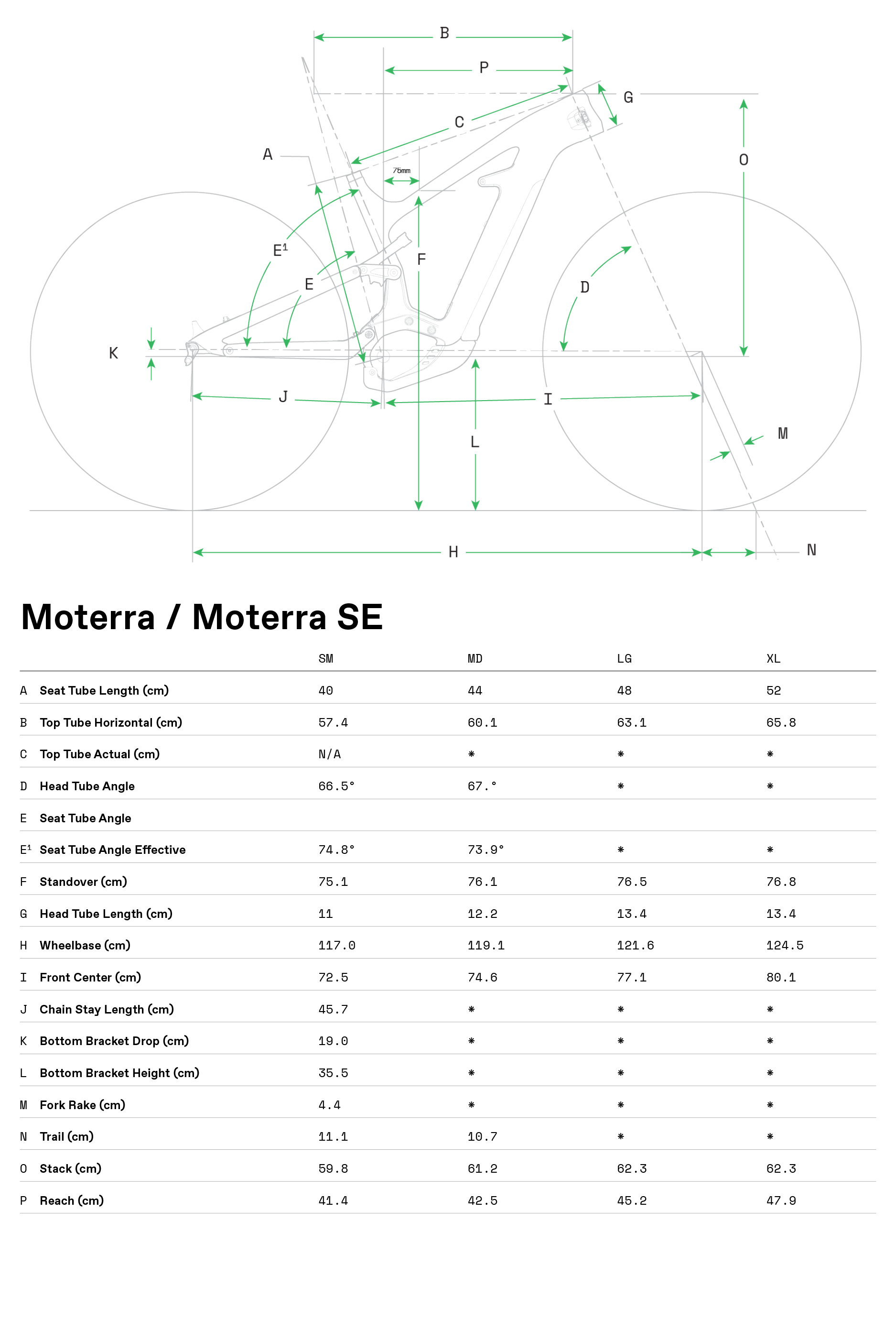

5'6" 167 5'9" 175
