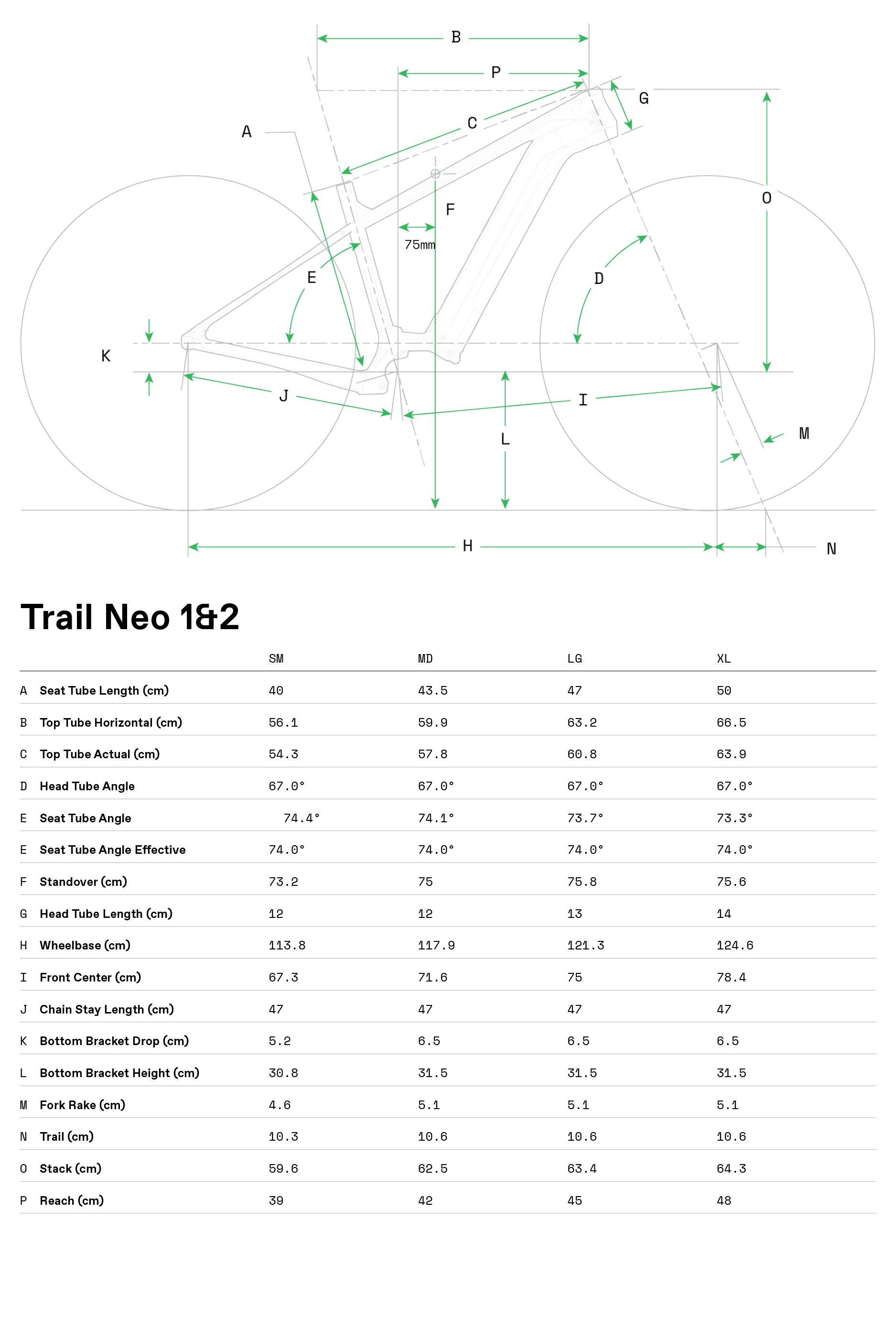

Geometry

Choose a size or tell us how tall you are in the sizing section and we’ll give you all the measurements associated with your height here.

Close

Retailers

    Plattform: Trail Neo

    Level up.

    An e-mountain bike that will raise your game and ignite a passion for the trail.

    Highlights

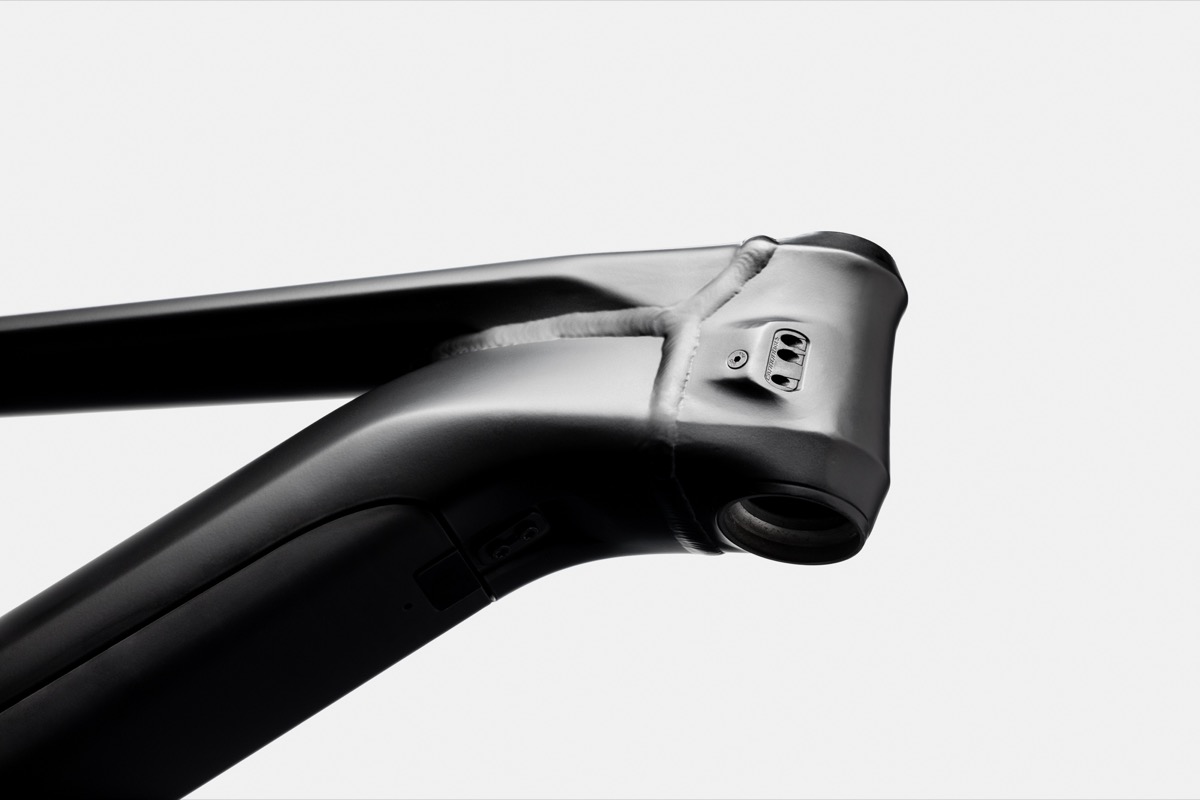

    • Premium SmartForm C1 Alloy frame, dual-battery-ready
    • RockShox Judy Silver TK fork, 100mm travel / Shimano Deore 10-speed drivetrain

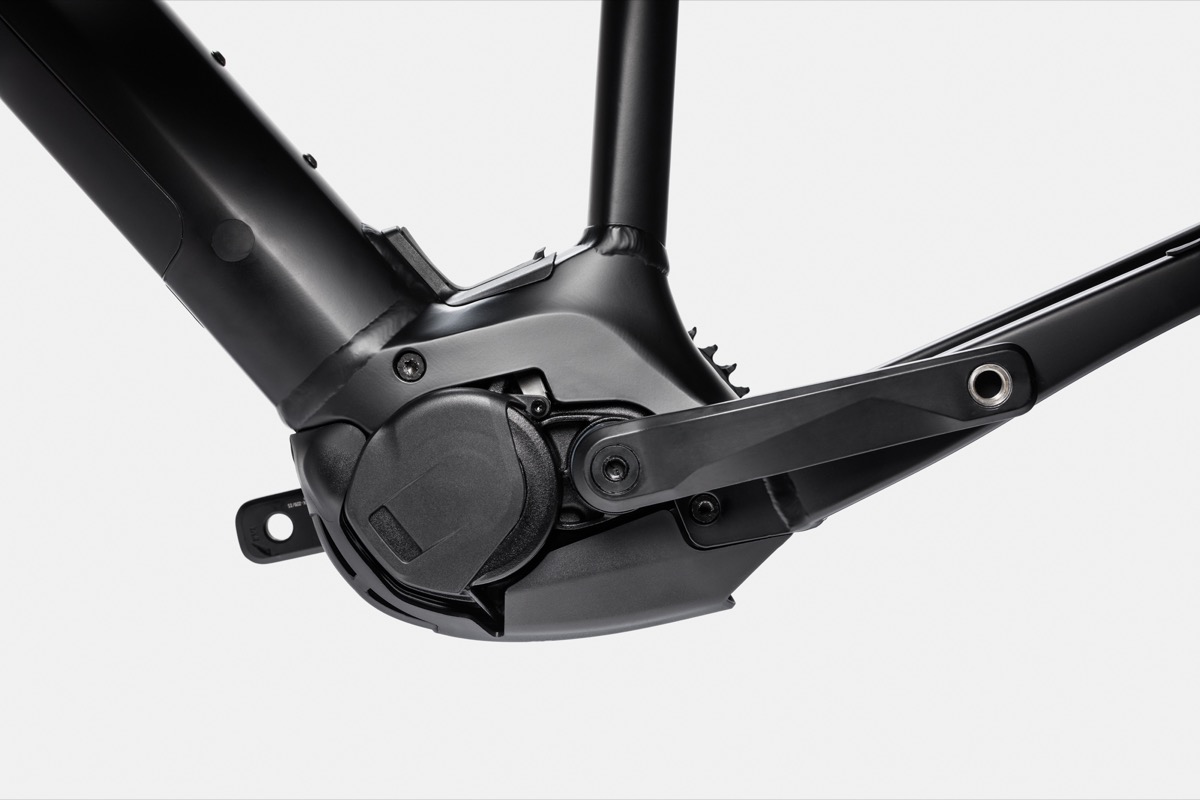

    • Bosch Performance Line CX 250W drive-unit / 500Wh battery / Range: up to 72km/45mi

    Wo Erfolg entsteht

    Low-impact trails, out in the elements, up and down hills

    Wofür es gebaut wurde

    Speed, efficiency, handling

    Technologie

    Antrieb

    • Chain
      Shimano HG54, 10-speed
    • Crank
      Bosch Gen4 w/ custom Ai offset, 34T
    • Rear Cogs
      Shimano HG500, 11-42, 10-speed
    • Rear Derailleur
      Shimano Deore GS
    • Shifters
      Shimano Deore, 10-speed

    Rahmenset

    • Fork
      RockShox Judy Silver TK, 100mm, Solo Air, 15x110, 51mm offset
    • Frame
      SmartForm C1 Alloy, Dual Battery ready, removable downtube battery, SAVE, tapered headtube, internal cable routing, Ai offset drivetrain, 148x12mm thru-axle, flat mount disc, KickFlip hidden kickstand mount, skid plate, rack/fender mounts
      • Dual Battery ready
      • Removable downtube battery
      • SAVE
      • Tapered headtube
      • Internal cable routing
      • Ai offset drivetrain
      • 148x12mm thru-axle
      • Flat mount disc
      • KickFlip hidden kickstand mount
      • Alloy skid plate
      • Rack/fender mounts
    • Headset
      Integrated Sealed Bearing, Tapered

    Laufräder

    • Vorderradnabe
      Shimano MT400 15x110
    • Hinterradnabe
      Shimano MT400 12x148
    • Rims
      WTB STX i25 TCS, 32h, tubeless ready
    • Spokes
      DT Swiss Champion
    • Reifengröße
      2.25"
    • Reifen
      Schwalbe Smart Sam, 27.5/29 x 2.25", ADDIX compound, tubeless ready
    • Radgröße
      27.5 (S) 29 (M-X)

    Brakes

    • Brake Levers
      Shimano MT400 hydro disc
    • Brakes
      Shimano MT400 hydro disc, 180/180mm RT30 rotors

    Komponenten

    • Grips
      Fabric Funguy Locking Grips
    • Handlebar
      Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
    • Saddle
      Cannondale Ergo XC
    • Seatpost
      Cannondale 4, 6061 Alloy, 31.6 x 350mm
    • Stem
      Cannondale 3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 0-degree

    E-System

    • E-System Batterie
      Bosch PowerTube 500Wh
    • E-System Ladegerät
      Bosch 4a
    • E-System Display
      Bosch Purion

    Maße

    • Größe: SM
      5'4" 162
      5'8" 172
    • Größe: MD
      5'7" 170
      6'0" 182
    • Größe: LG
      6'0" 182
      6'3" 190
    • Größe: XL
      6'4" 193
      6'8" 203
