Platform: Treadwell Neo
Highlights
- Light, powerful ebikemotion rear-hub drive system / Range: up to 75km/47mi
- Integrated connectivity with Cannondale App / rear light
- Comfort saddle / suspension seatpost / upright handlebar
Where it thrives
In town, leisurely rides, on crowded streets
What it's built for
Agility, efficiency, comfort
More fun days.
It's light, comfy and playful. It's easy to get on and off, and even easier to ride. With its lightweight, powerful drive system Treadwell Neo keeps the effort low and the fun level high.
Invisible assist
More Info
With its strong 250w rear hub motor and hidden 250Wh battery, the Mahle ebikemotion electric assist system gives you the power to do more. It's just like riding a bike, only easier.

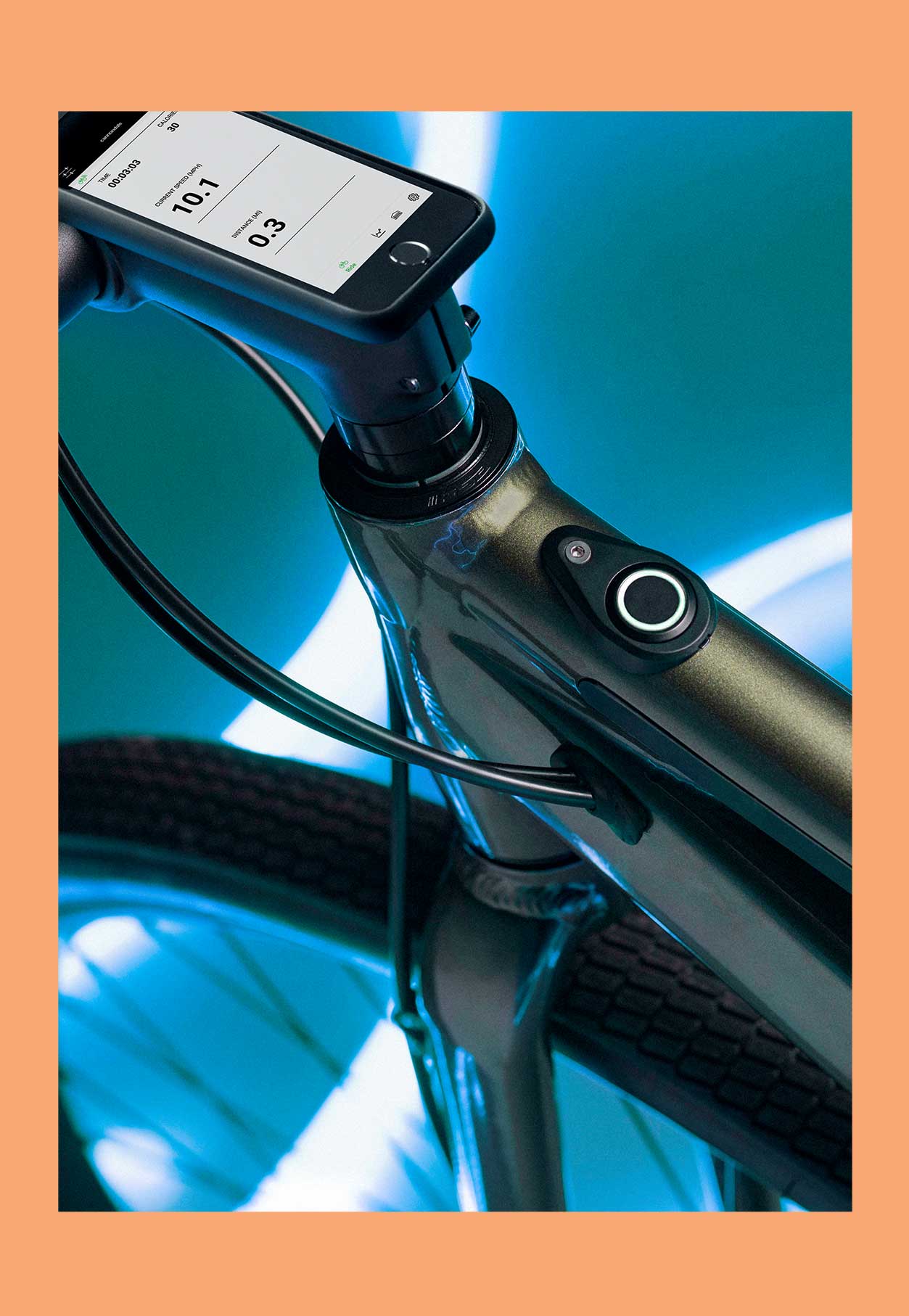

Connected
More Info
An integrated wheel sensor helps track your activity (like speed, distance and calories burned), registers your bike, reminds you of needed service and more, all through the free Cannondale App.
Features

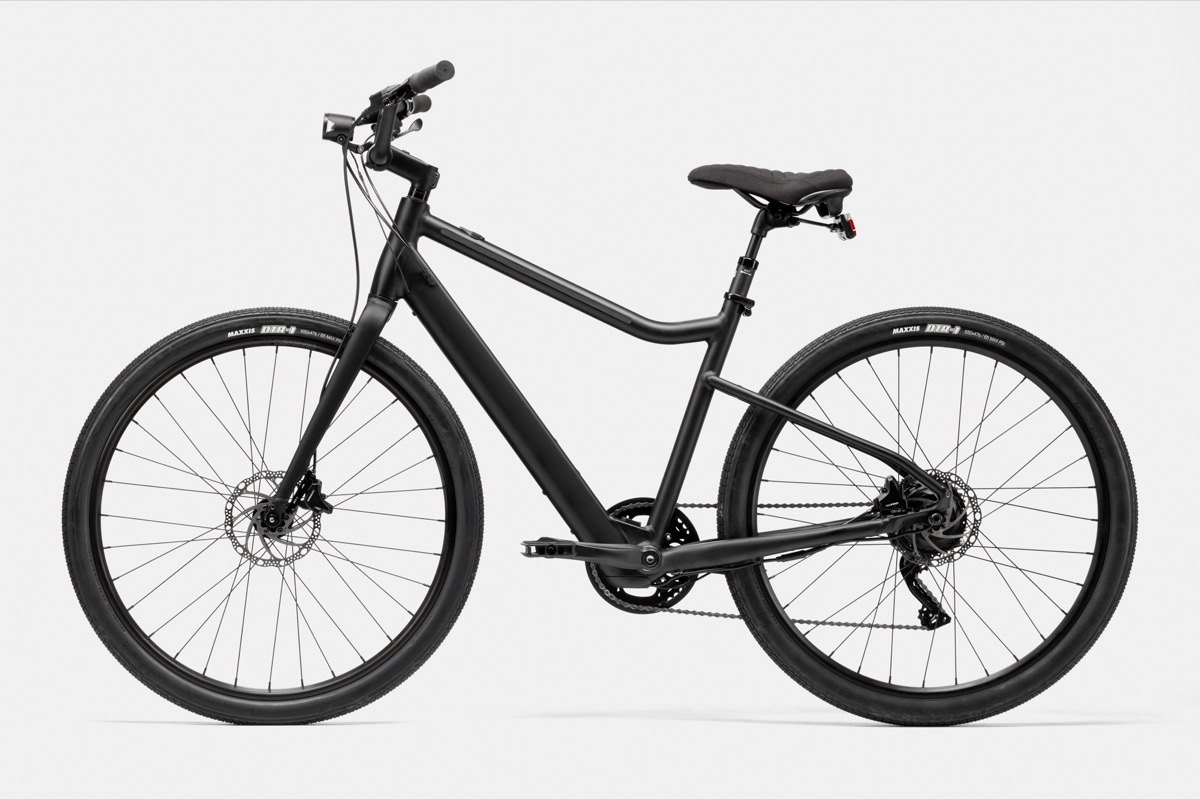

Easy-Ride Geometry
Easy to get on and off, with an easy reach to the bars, and a seat position that makes it easy to put a foot down when stopped. Not too upright and cruiser-y, or too forward and sporty. It’s just right.

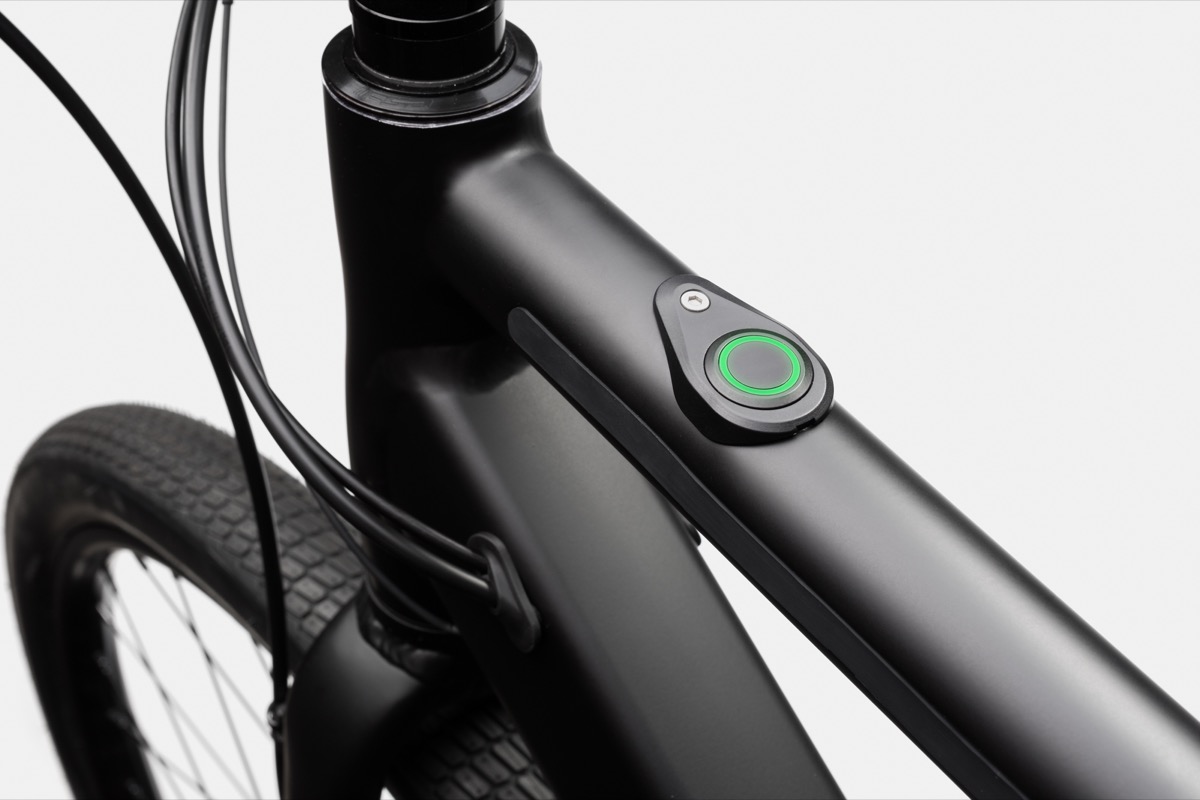

Intuitive Controller
Turn it on, select your assist level and see your battery charge, all with a simple color-coded button
Two Frame Options
The Treadwell Neo comes in two frame styles – a low standover, easy-to-throw-a-leg-over Standard model, and the Remixte, an even easier-to-throw-a-leg-through, unisex step-thru design.
International Connectivity
-
Wheel SensorCannondale Wheel Sensor
Drivetrain
-
Bottom BracketCartridge Sealed
-
ChainKMC E9T, 9-speed
-
CrankProwheel, 42T
-
PedalsCannondale Comfort
-
Rear CogsSunrace, 11-36, 9-speed
-
Rear DerailleurShimano Altus
-
ShiftersShimano Altus, 9-speed
Frameset
-
ForkAll-New, SmartForm C3 Alloy blades, 1-1/8" steerer, OutFront offset, flat mount disc, mid-blade rack/fender mounts
-
FrameAll-New, SmartForm C3 Alloy, low standover Ride-Easy geometry, internal downtube battery, hidden cable routing, Urban Armor frame bumpers, flat mount disc, rack/fender mounts, kickstand mount
- Low standover Ride-Easy geometry
- Internal downtube battery
- Hidden cable routing
- Urban Armor frame bumpers
- Flat mount disc
- Rack/fender mounts
- Kickstand mount
-
HeadsetFSA, Alloy, 1-1/8" Ahead, semi-integrated
Wheels
-
Front HubSealed Alloy Disc, 12x100
-
Hubs(F) Sealed Alloy Disc, 12x100 / (R) MAHLE ebikemotion X35 250W
-
Rear HubMAHLE ebikemotion X35 250W
-
RimsShining, 32 hole
-
SpokesStainless Steel, 14g
-
Tire Size47
-
TiresMaxxis DTR-1, 650b x 47c
-
Wheel Size650b
Brakes
-
Brake LeversTektro hydro disc
-
BrakesTektro HD-R280 hydraulic disc, 160/140mm rotors
Components
-
GripsCannondale Comfort
-

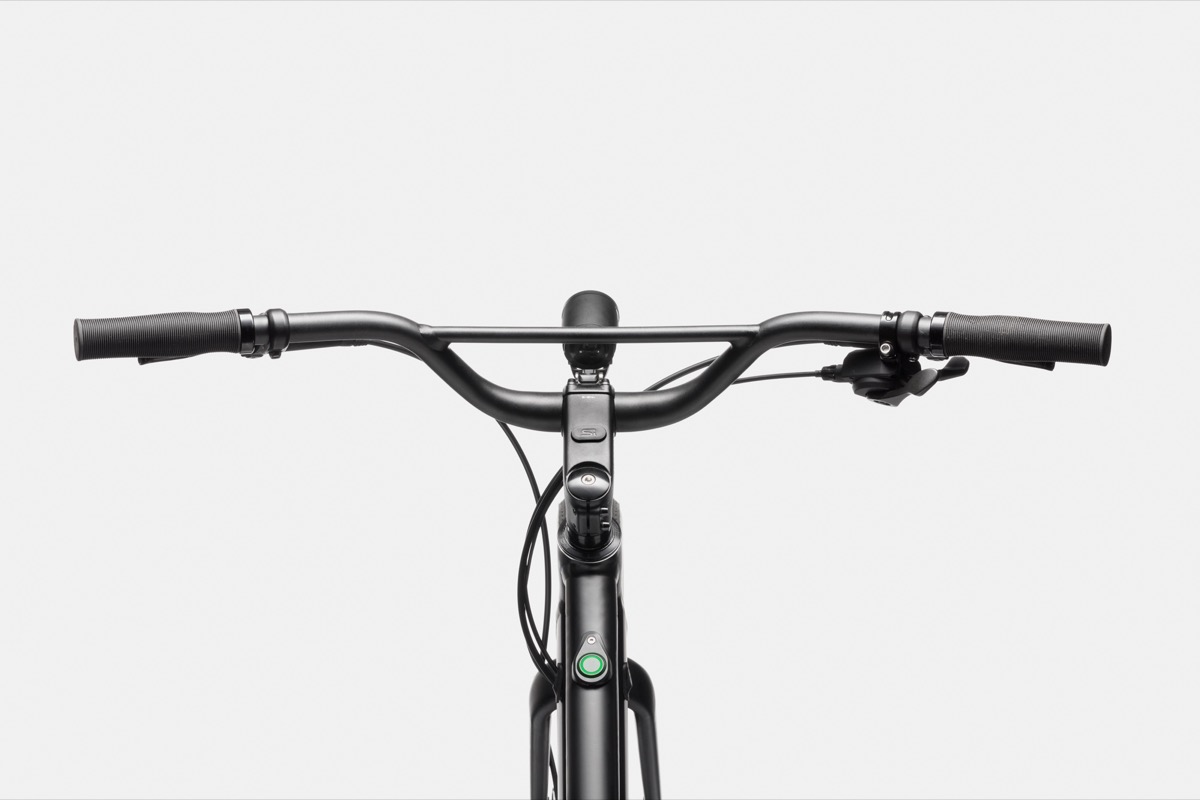

HandlebarCannondale Cruise Control riser, 6061 alloy, 31.8mm clamp, 15 degree backsweep, 740mm width
-
SaddleCannondale Treadwell, 170mm, steel rails
-
SeatpostPromax Suspension Seatpost, 31.6, 40mm
-
StemCannondale 3 with Intellimount, alloy, 31.8mm clamp
E-System
-
E-System BatteryMAHLE ebikemotion X35 250Wh
-
E-System ChargerMAHLE ebikemotion X35
-
E-System DisplayMAHLE ebikemotion iWoc ONE

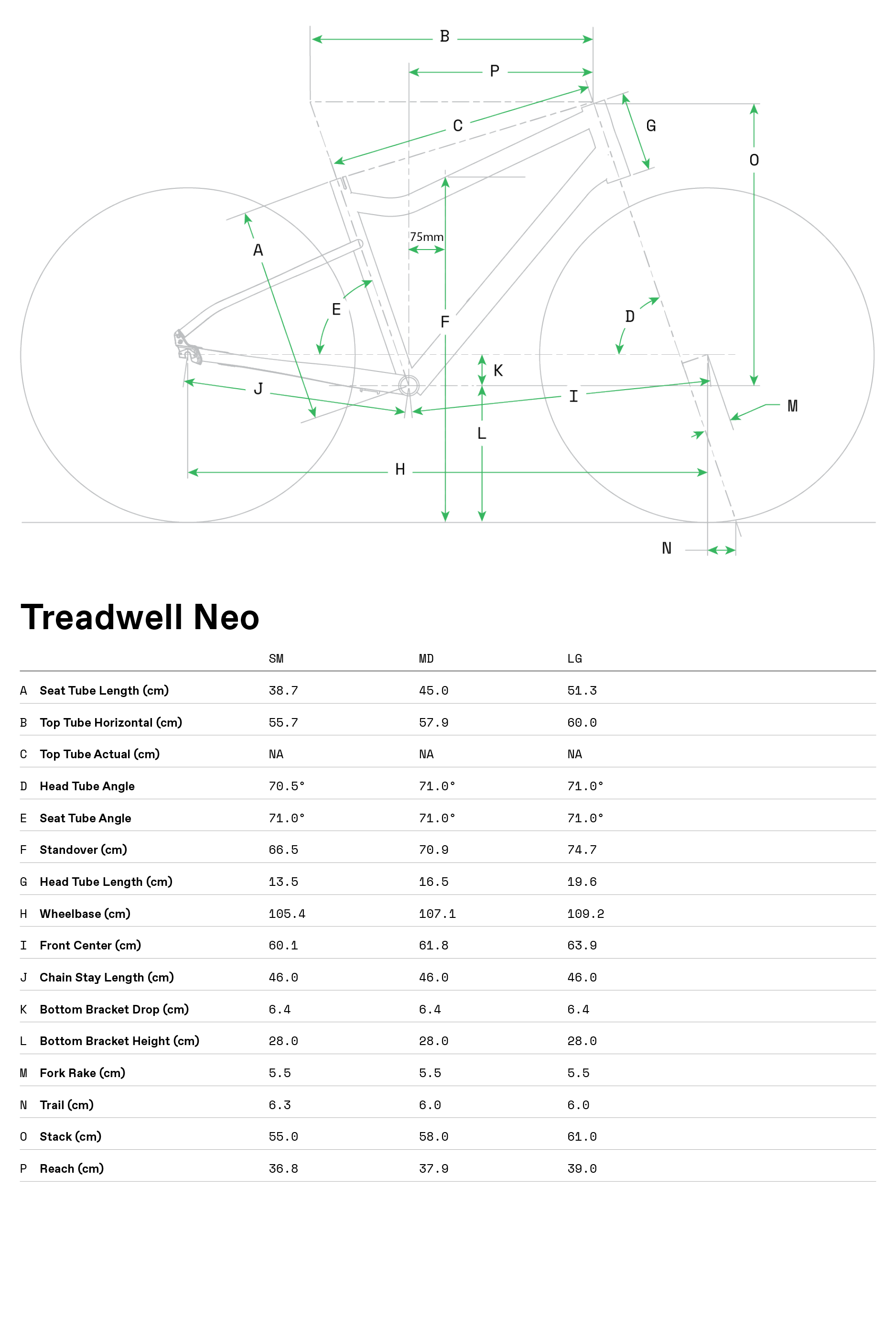

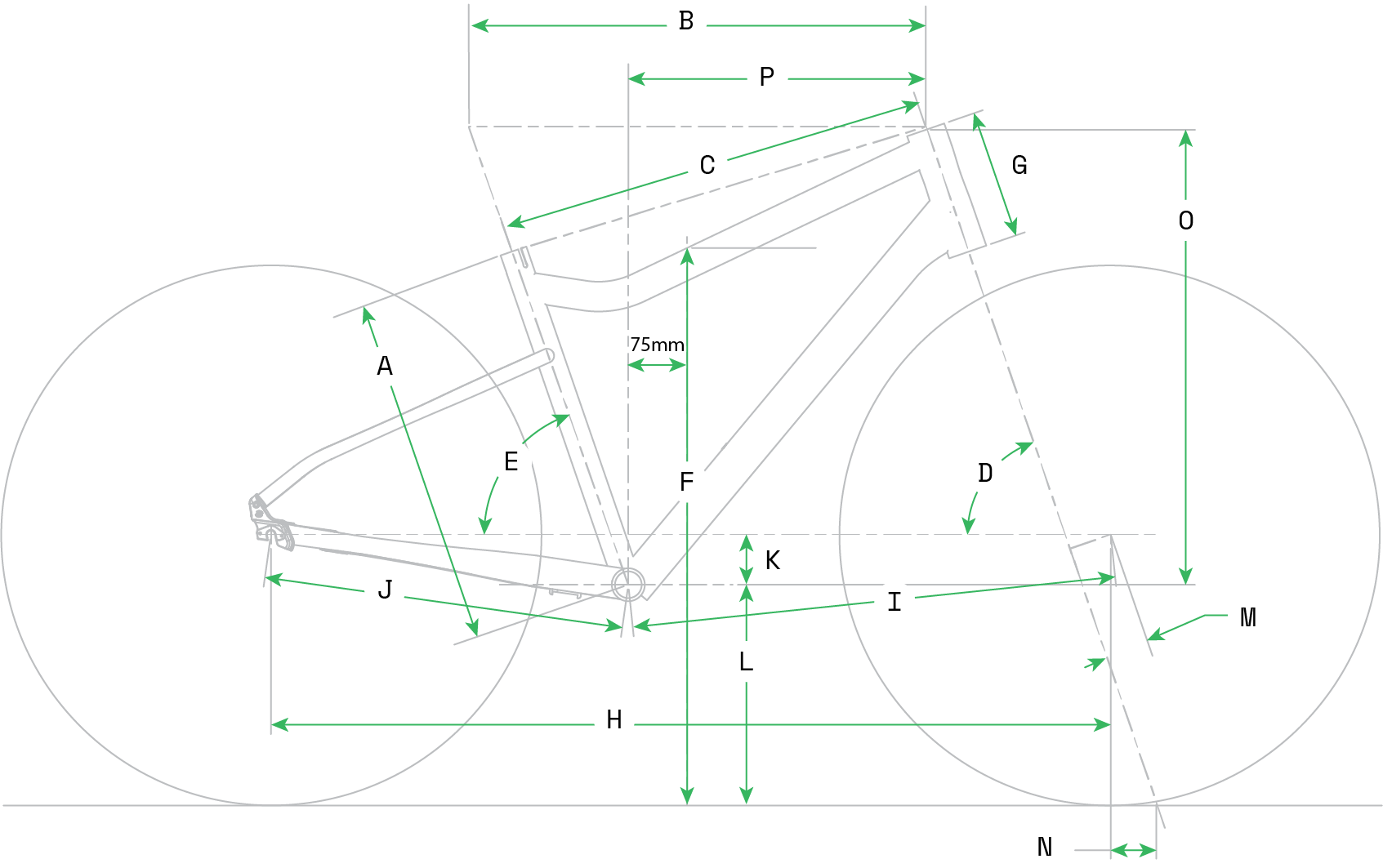

Measurements
- Size: SM
- Size: MD
- Size: LG
| SM | MD | LG | |
|---|---|---|---|
| A Seat Tube Length | 38.7 98cm | 45.0 114cm | 51.3 130cm |
| B Top Tube Length | 55.7 141cm | 57.9 147cm | 60.0 152cm |
| C Top Tube Actual | NA 0cm | NA 0cm | NA 0cm |
| D Head Tube Angle | 70.5° 70.5° | 71.0° 71.0° | 71.0° 71.0° |
| E1 Seat Tube Angle Effective | 71.0° 71.0° | 71.0° 71.0° | 71.0° 71.0° |
| F Standover | 66.5 168cm | 70.9 180cm | 74.7 189cm |
| G Head Tube Length | 13.5 34cm | 16.5 41cm | 19.6 49cm |
| H Wheelbase | 105.4 267cm | 107.1 272cm | 109.2 277cm |
| I Front Center | 60.1 152cm | 61.8 156cm | 63.9 162cm |
| J Chain Stay Length | 46.0 116cm | 46.0 116cm | 46.0 116cm |
| K Bottom Bracket Drop | 6.4 16cm | 6.4 16cm | 6.4 16cm |
| L Estimated BB Height | 28.0 71cm | 28.0 71cm | 28.0 71cm |
| M Fork Rake | 5.5 13cm | 5.5 13cm | 5.5 13cm |
| N Trail | 6.3 16cm | 6.0 15cm | 6.0 15cm |
| O Stack | 55.0 139cm | 58.0 147cm | 61.0 154cm |
| P Reach | 36.8 93cm | 37.9 96cm | 39.0 99cm |
