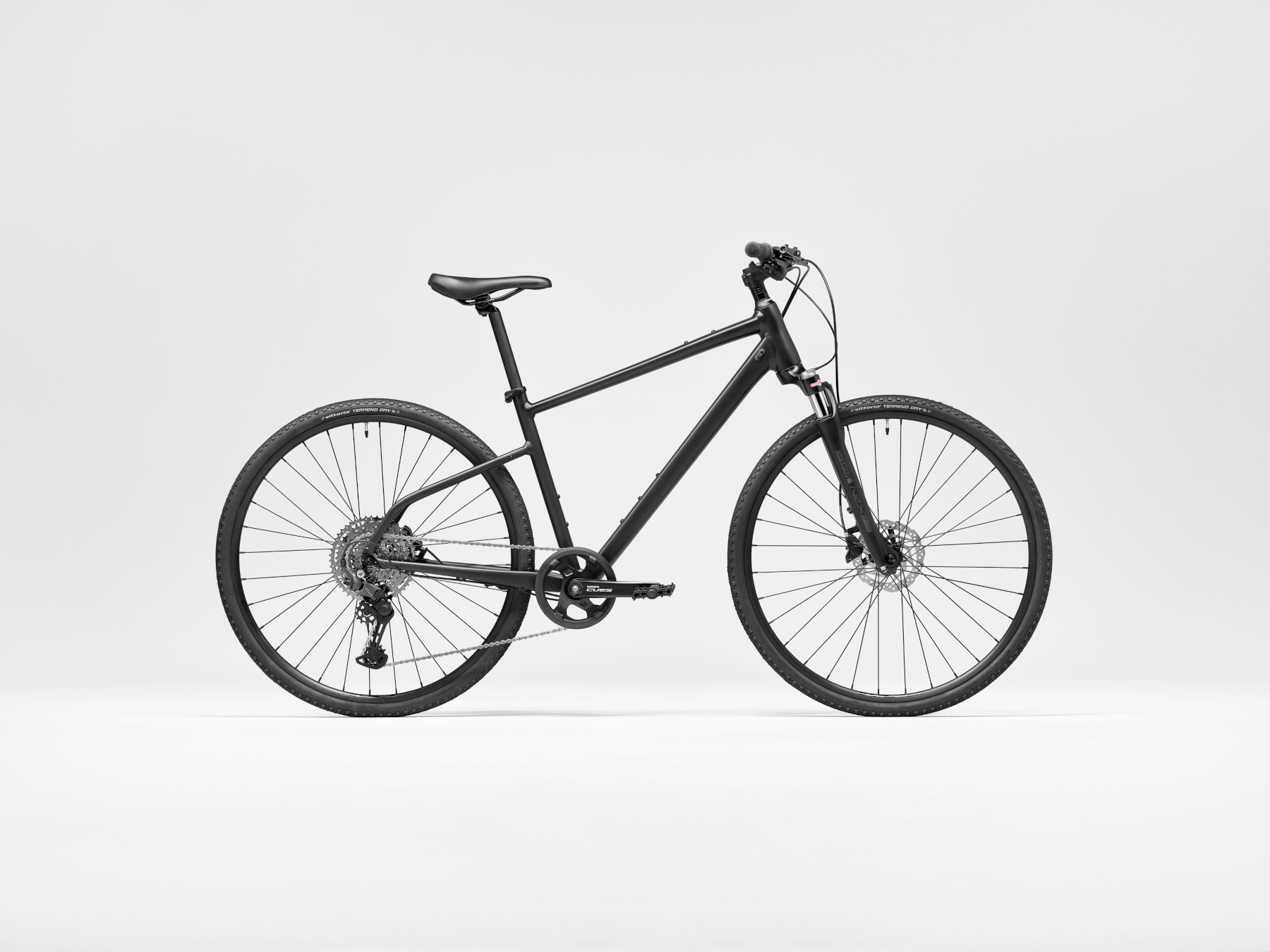

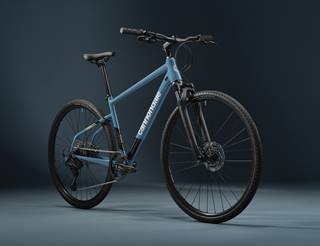

    Platform: Quick CX

    All Ways, All Days.

    An urban-adventure bike for cities and town pathways, open countryside and everything else. Expand your horizons on one bike to do it all.

    Highlights

    • Light and durable SmartForm C3 Alloy frame / Suspension fork, 63mm travel, remote lockout
    • SRAM SX Eagle 12-speed drivetrain / Shimano MT400 hydro disc brakes

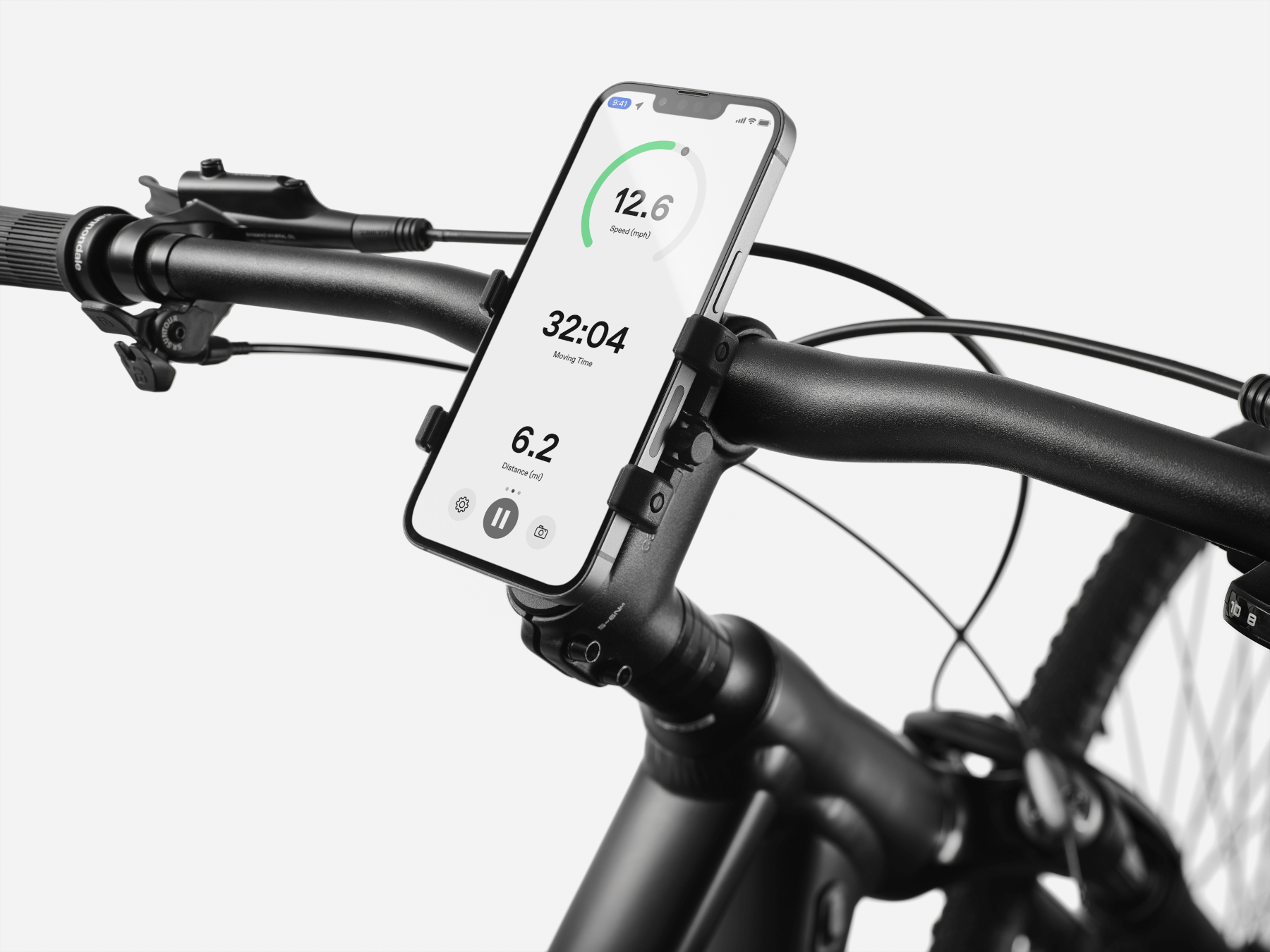

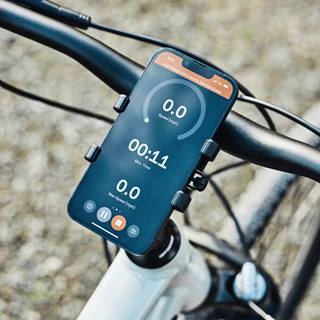

    • Vittoria 700x40c multi-surface tires / Integrated connectivity with Cannondale App

    Where it thrives

    In town, Leisurely rides, On crowded streets

    What it's built for

    Visibility, Agility, Comfort

    Technology

    Connectivity

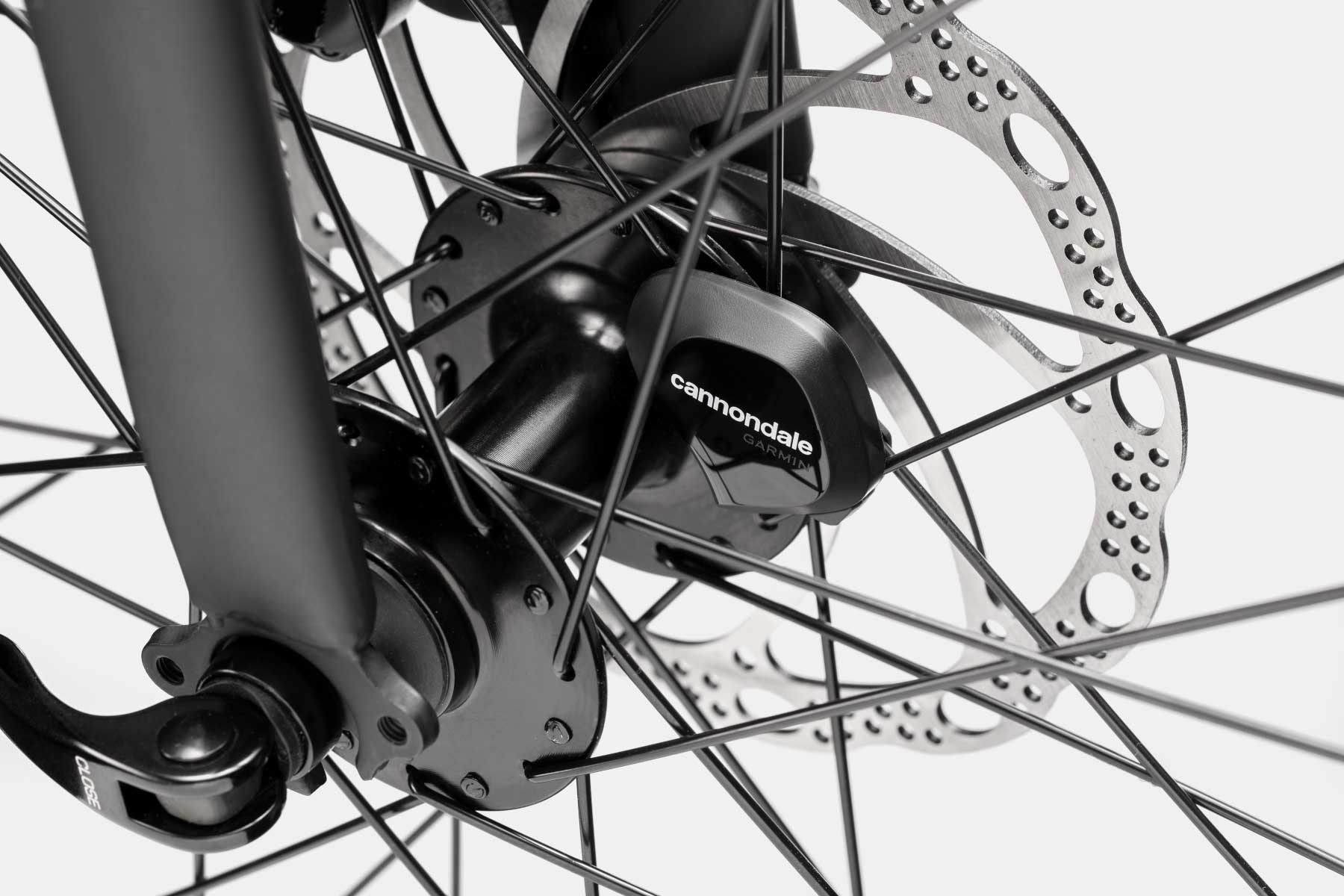

    • Wheel Sensor
      Cannondale Wheel Sensor

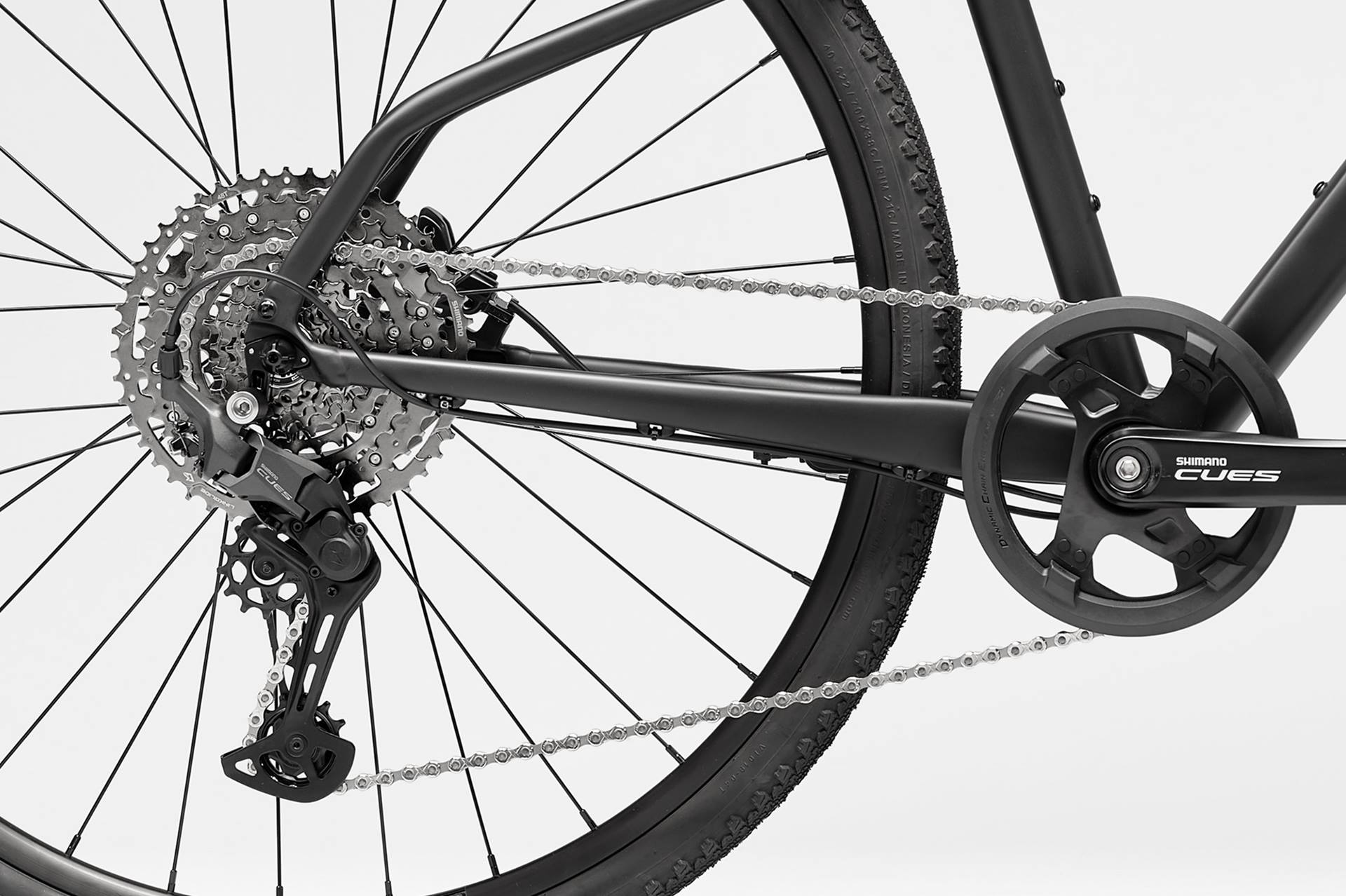

    Drivetrain

    • Bottom Bracket
      Truvativ Power Spline
    • Chain
      SRAM SX Eagle, 12-speed
    • Crank
      SRAM SX Eagle Power Spline, 38T
    • Rear Cogs
      SRAM SX Eagle, 11-50, 12-speed
    • Rear Derailleur
      SX Eagle
    • Shifters
      SRAM SX Eagle, 12-speed

    Frameset

    • Fork
      Suntour NEX-E25, 63mm, tapered alloy steerer, coil, remote lockout, custom crown

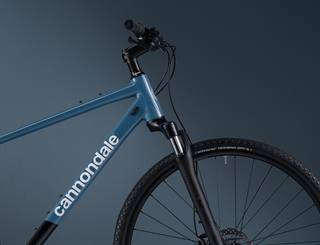

    • Frame

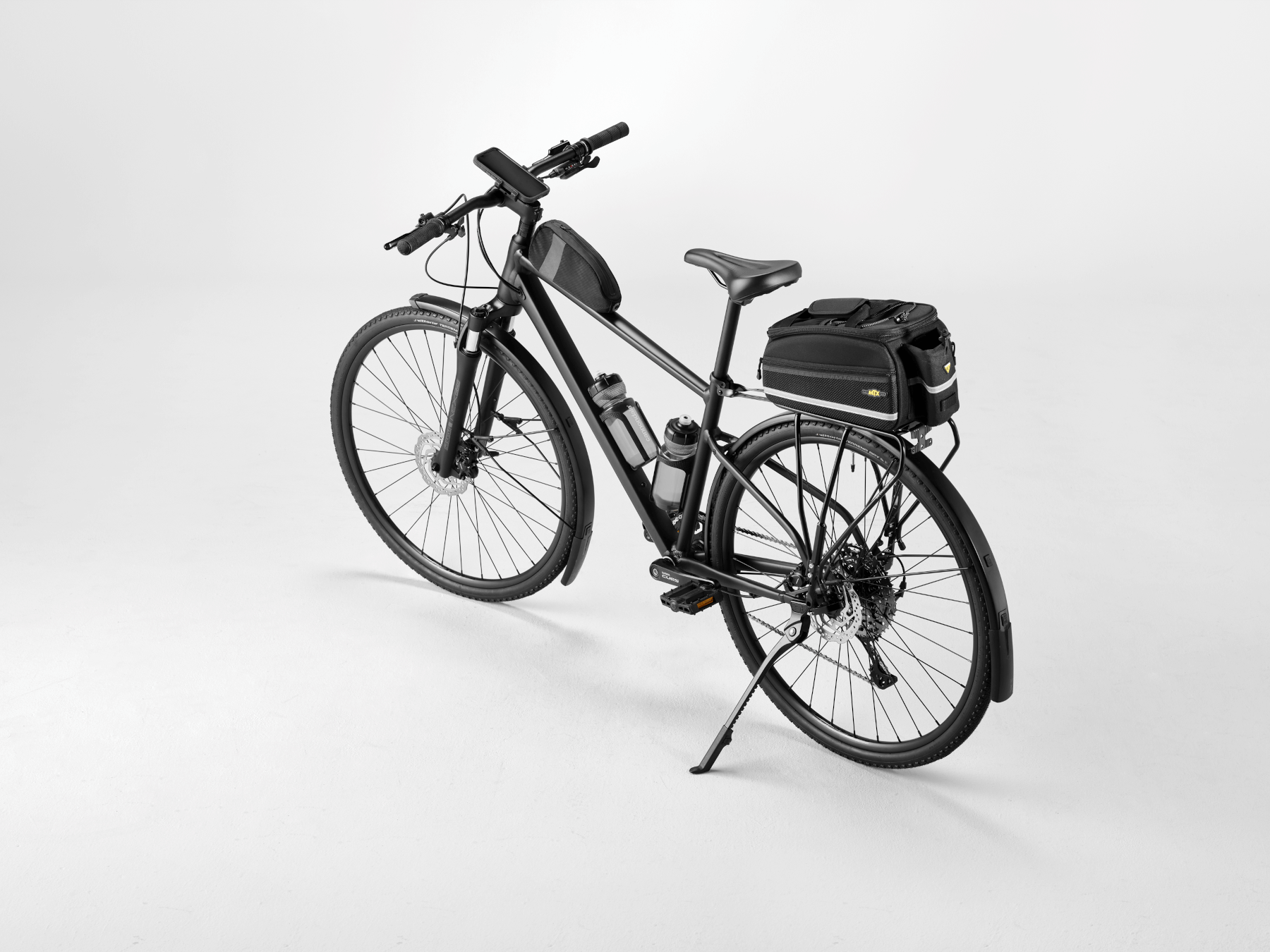

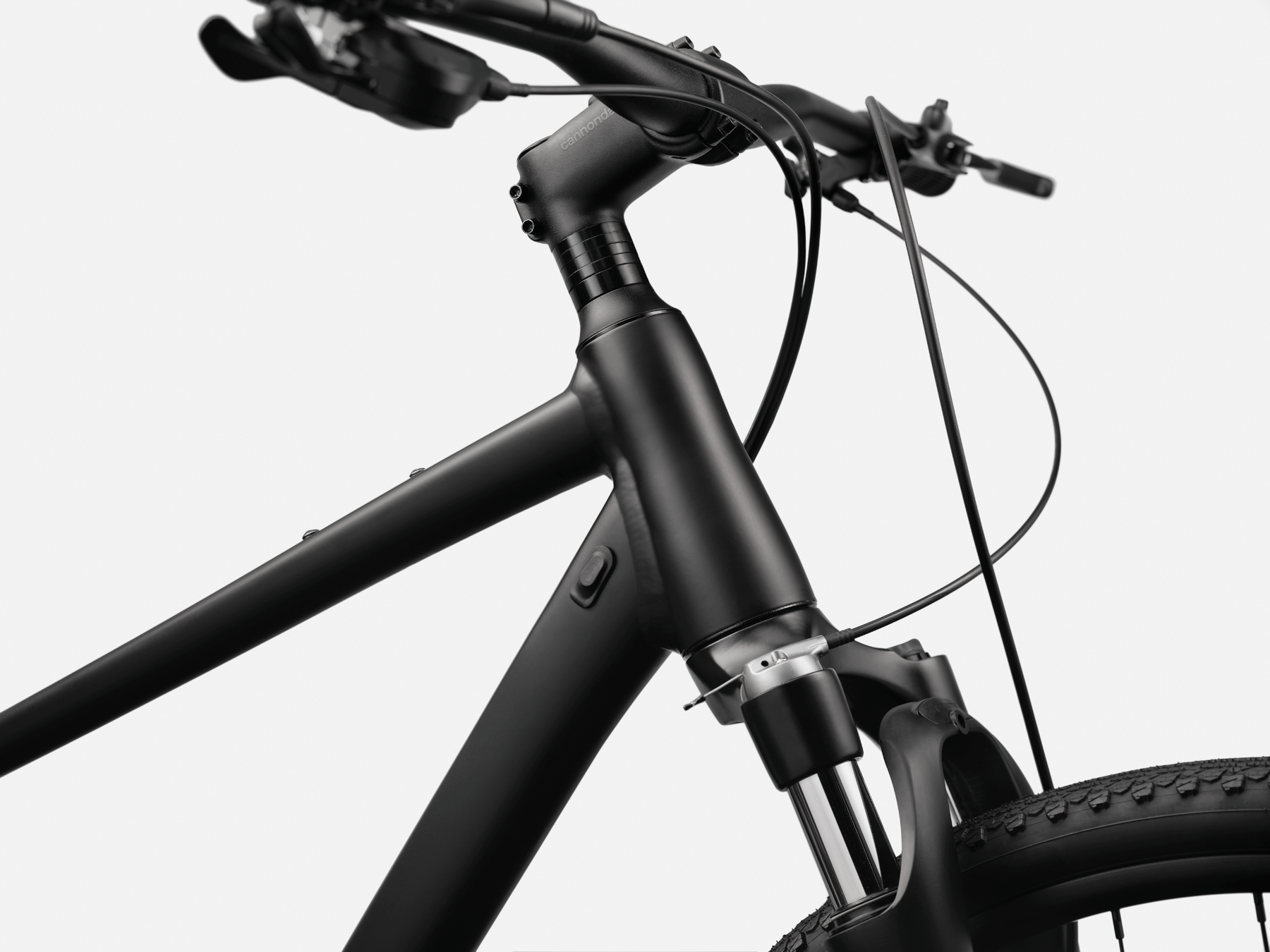

      All-New, SmartForm C3 Alloy, SAVE, tapered head tube, Straightshot hidden cable routing, flat mount disc, rack/fender mounts, 360° reflectivity
    • Headset
      Semi Integrated, Tapered

    Wheels

    • Front Hub
      Shimano M4050, QR
    • Rear Hub
      Shimano M4050, QR
    • Rims
      RD 3.0, double wall w/eyelet, 32h
    • Spokes
      Stainless Steel, 14g
    • Tire Size
      40
    • Tires
      Vittoria Terreno Dry, 700 x 40, reflective strip
    • Wheel Size
      700c

    Brakes

    • Brake Levers
      Tektro hydraulic disc
    • Brakes
      Tektro M275 hydraulic disc, 160/160mm rotors

    Components

    • Grips
      Fabric FunGuy
    • Handlebar

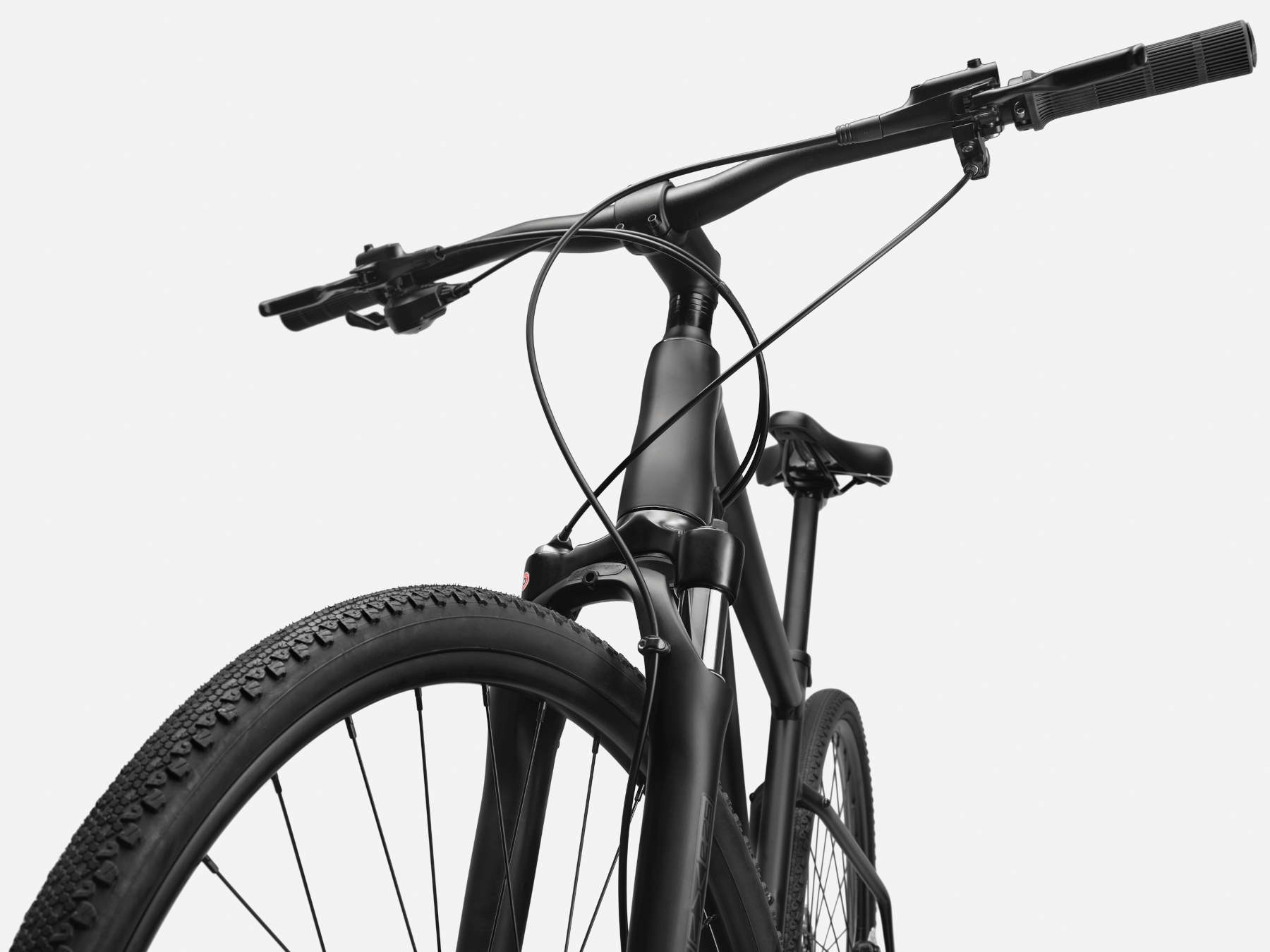

      Cannondale 3, 6061 double-butted, 20mm rise, 9° back, 700mm
    • Saddle
      Cannondale Fitness Ergo Double Density
    • Seatpost
      Cannondale 3 6061 Alloy, 27.2 x 350mm
    • Stem
      Cannondale 3 with Intellimount, alloy, 31.8mm clamp

    Measurements

    • Size: SM
      5'2" 157
      5'7" 170
    • Size: MD
      5'5" 165
      5'10" 177
    • Size: LG
      5'9" 175
      6'2" 187
    • Size: XL
      6'0" 182
      6'5" 195
    • Size: 2XL
      6'4" 193
      6'9" 205
