The Art of Alchemy
Cannondale’s premium SmartForm alloy frameset offers a cocktail of robust resilience and playful trail performance. Strong, sleek, ready to send it—because polished doesn’t have to mean precious.
Moterra 4
Note: An additional $15 E-bike Battery Recycling fee will be added to each electric bike order. Learn more
Along with 20+ other leading bike companies, Cannondale is proud to be a part of the e-bike battery recycling program organized by PeopleForBikes and administrated by the not-for-profit Call2Recycle. Your payment of $15 goes to an industry-wide fund that ensures batteries from Cannondale e-bikes are recycled at end of life and do not end up in landfills. Learn more at Call2Recycle.
Coming Soon
Available in Shops and Online August
sizing dialogue entered
Close
Tell us how tall you are, we'll help you find the right size.
Long arms? Short Legs? Just not sure? Call us!
Some models run larger than others. Customer Service can help you identify a size more specific to your body type. Call 1-800-245-3872.
More Juice, No Excuse
The Moterra packs massive power, range, and silky suspension, handling rugged terrain like a luxury off-roader. Built to go further—faster.

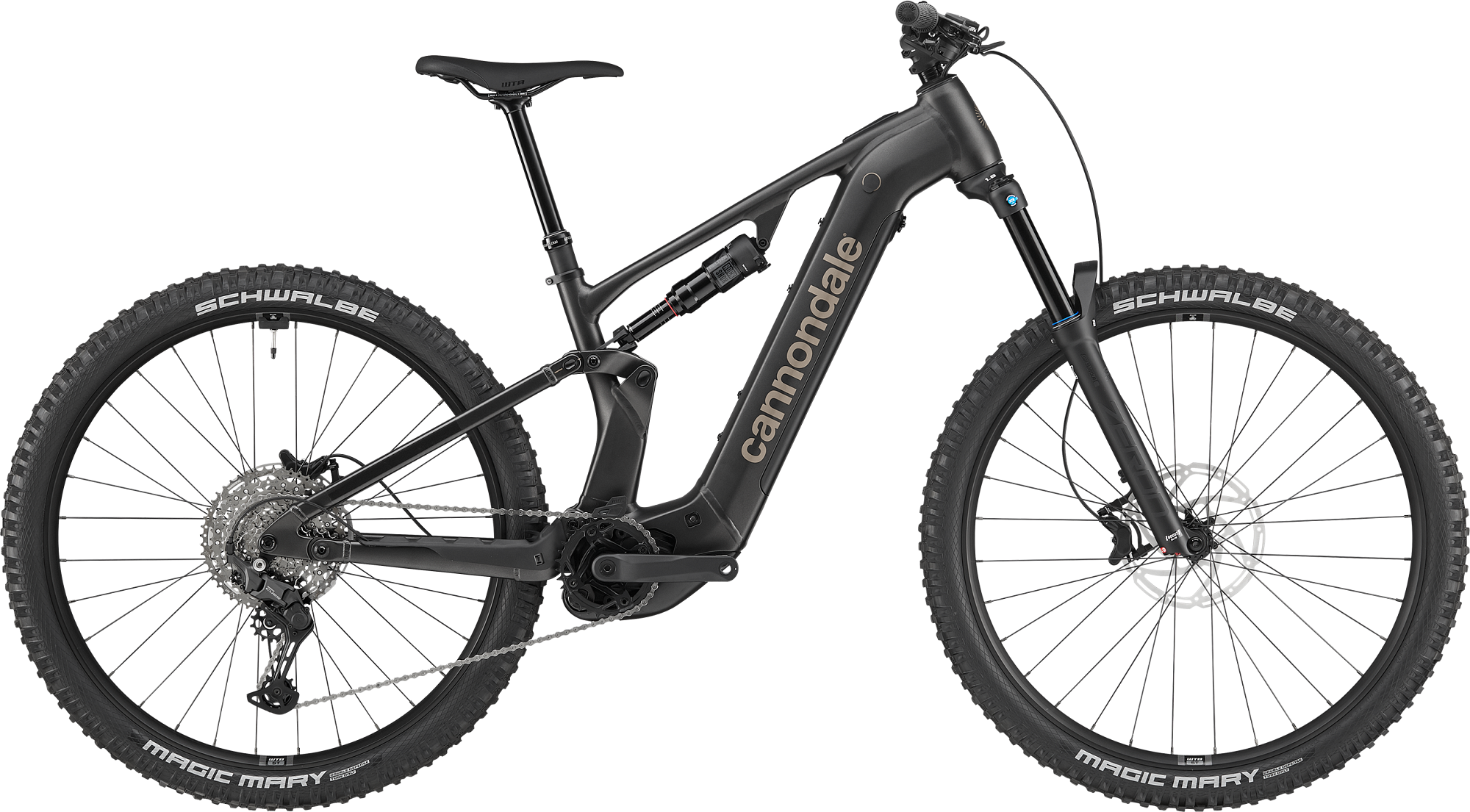

Model Description
Moterra 4 strips things down to the essentials—reliable, rugged, and ready for anything. A SmartForm C1 Alloy frame with a RockShox Deluxe Select shock and rugged Suntour Zeron 36X fork deliver a ride that is balanced, planted and predictable. Bosch’s most powerful CX motor and big 600Wh battery deliver smooth, sustained power, with more than enough range to keep things interesting. A Shimano CUES U6000 drivetrain and Tektro Gemini SL 4-piston brakes handle the stops and shifts, making this an always-game partner for off-road exploration and all-day excursions.
What it's for
Endless spins, uphill wins, and permanent grins on all kinds of trails, from the mild to the wild
Highlights
- A premium SmartForm C1 Alloy frame - Proportional Response size-specific suspension, tuned for specifically for the air shock and 29” wheels
- Climb-crushing strength and natural feeling power delivery from Bosch's most powerful motor, the Performance CX
- Interchangeable 600Wh battery provides an ideal balance of range and light weight
- Smooth-riding SR Suntour Zeron 36-X Boost 160mm fork, and RockShox Deluxe Select air shock
- Precise shifting from Shimano’s CUES U6000 LinkGlide 11-speed drivetrain
- Strong, controllable braking from Tektro Gemini SL 4-piston hydraulic disc brakes with 203mm rotors
More Juice, No Excuse
Alloy Done Right
Cannondale’s been bending aluminum into awesomeness for decades. Forged with a SmartForm alloy frame, Moterra 3 and 4 deliver a blend of trail-hungry toughness and lively handling. 150mm rear suspension, 160mm at the front, rolling on sturdy 29ers—it’s snappy in switchbacks, poised on sketchy descents, and alway game for roughin’ it.
Play With Power
Cranking out up to 100Nm of torque via Bosch’s Performance Line CX, this rig will make you grin on the climbs and laugh on the descents. Fueled by 800Wh or 600Wh PowerTube battery options, you’ve got enough juice to taunt gravity all day. Power delivery so smooth, immediate, and satisfying—you’ll swear it’s reading your intentions before you’ve even touched the pedals.
Features
That's Watts Up!
Bosch’s streamlined 600Wh battery trims weight while still providing ample range. Quick, efficient, and built for bursts of trail brilliance—just enough power, never too much bulk.
Big Wheels, Big Fun
29-inch wheels roll fast, grip harder, and float over obstacles that others dodge. Roots and rocks become ramps, trails become playgrounds. All thrills, zero frills.
Stealthy Support
Integrated stealth kickstand mount means extra convenience, minus clunky visuals. Need it? Bolt one on. Don’t? You’ll never know it’s there—clean, clever, Cannondale.
Armor Up
An integrated skid plate keeps your motor and battery safe from sneaky roots and angry rocks. Silent guardian, rugged protector, always battle-ready—because dirt happens.
Wait, There's More
Bosch's PowerMore 250 range extender is compact, lightweight, and takes up the same downtube space as an average water bottle— but carries 250Wh of extra juice. Available as an aftermarket upgrade, it gives you more time to roam, climb, and push further into your ride—because sometimes, a longer day on the trail beats any seat at the pub.
Specs
Details
-
Platform
-
Model NameMoterra 4
-
Model CodeC65234U
Frameset
-
FrameMoterra, SmartForm C1 Alloy, 29" wheels, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube, 40mm two-bolt kickstand compatible, integrated Moterra rear rack and fender mounts
-
ForkSR Suntour Zeron 36-X Boost, 160mmm, EQ Air, compression & rebound adjust, 15x110mm thru-axle, tapered steerer, 44mm offset
-
HeadsetAcros ICR, 1.5" to 1.8", sealed bearings
-
Rear ShockRockShox Deluxe Select, DebonAir+, adjustable rebound, 230x62.5mm
E-System
-
Drive UnitBosch Performance Line CX
-
BatteryBosch PowerTube, 600Wh
-
ChargerBosch 4A
-
DisplayBosch LED Remote
Drivetrain
-
Rear DerailleurShimano CUES U6000, LinkGlide
-
ShiftersShimano CUES U6000, 11-speed, LinkGlide
-
ChainShimano LG500, LinkGlide, 11-speed
-
CrankFSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
-
Rear CogsShimano CUES LG400, LinkGlide, 11-50, 11-speed
Brakes
-
BrakesTektro Gemini SL 4-piston hydraulic disc, 203mm rotors
-
Brake LeversTektro Gemini SL hydraulic disc
Wheels
-
RimsWTB ST i30 TCS, 30mm inner width, 32h, tubeless compatible
-
SpokesDT Swiss Champion 2.0
-
Tire Size2.4
-
Wheel Size29
-
Hubs(F) Shimano TC500, 15x110mm thru-axle / (R) Shimano TC500, 12x148mm thru-axle, centerlock
-
Tires(F) Schwalbe Magic Mary Performance, 29x2.4", Addix Foldable, TLR
-
Front Tire(F) Schwalbe Magic Mary Performance, 29x2.4", Addix Foldable, TLR
-
Rear Tire(F) Schwalbe Magic Mary Performance, 29x2.4", Addix Foldable, TLR
Components
-
HandlebarCannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm
-
StemCannondale 1, 6061 Alloy, 35.0, 40mm, 0°
-
GripsCannondale TaperRidge
-
SaddleWTB Silverado Medium
-
SeatpostCannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)
Extra
-
Extra 1Bosch PowerMore range extender compatible
Please note that, based on component availability and other factors, specifications are subject to change without notice.
