SuperSix EVO Neo | E-Road | Electric

SuperSix EVO Neo 3

New
+Compare
SuperSix EVO Neo 3
Find other local bike shops to check for availability

Platform: SuperSix EVO Neo

Fast, just got faster.

Hills flatten. Headwinds vanish. Speed prevails. This is everything you love about road riding - amplified.

Highlights

  • Light, powerful ebikemotion rear-hub drive system / Range: up to 100km/62mi
  • Lightweight low-drag BallisTec carbon frameset / Shimano 105 group
  • Cannondale RDe 1.0 wheelset / Vittoria Rubino Pro Bright Black tires

Where it thrives

The open road, up and down hills

What it's built for

Speed, efficiency, handling

Technology

Drivetrain

  • Bottom Bracket
    FSA T47 MegaEvo, threaded
  • Chain
    Shimano HG601, 11-speed
  • Crank
    Cannondale 1, T47, FSA rings, 50/34
  • Front Derailleur
    Shimano 105, braze-on
  • Pedals
    Not Included
  • Rear Cogs
    Shimano 105, 11-34, 11-speed
  • Rear Derailleur
    Shimano 105 GS
  • Shifters
    Shimano 105 hydro disc, 2x11

Frameset

  • Fork
    All-New, BallisTec Carbon, SAVE, 1-1/8" to 1-1/4" steerer, integrated crown race, 12x100mm Speed Release thru-axle, flat mount disc, internal routing, 55mm offset (S-M) 45mm offset (L)

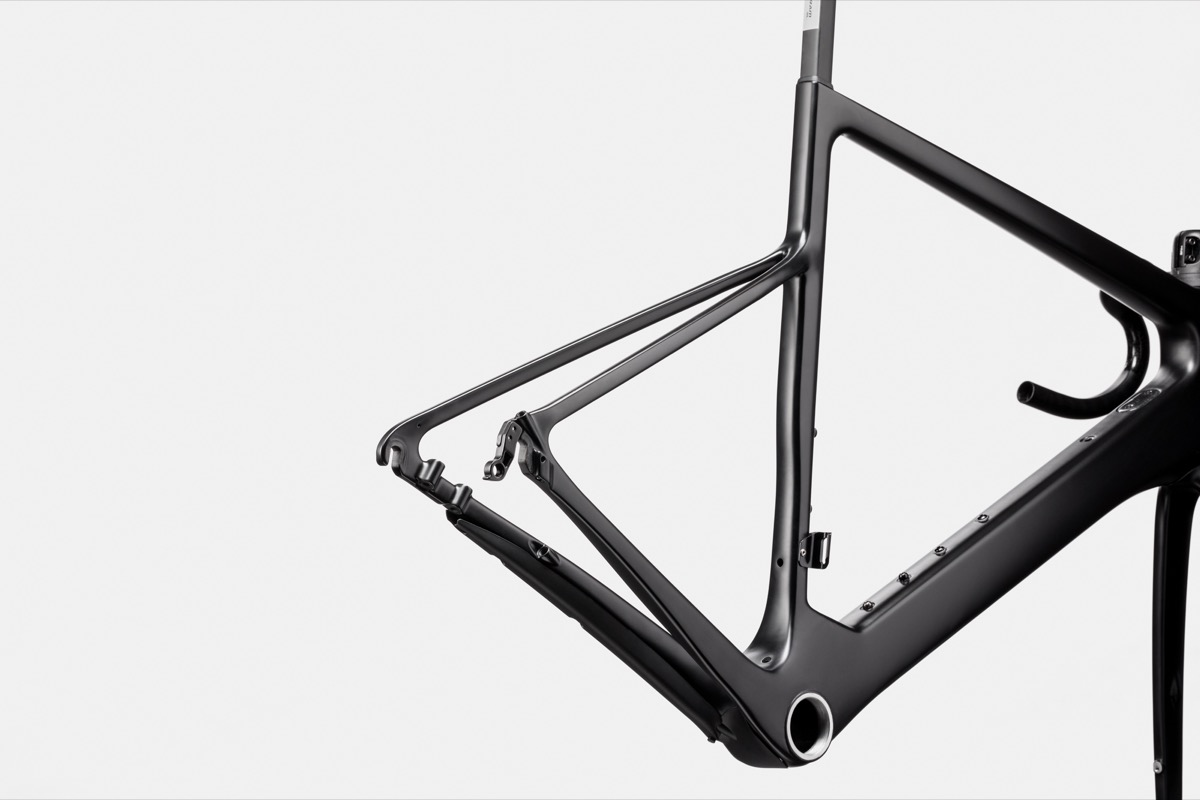

  • Frame
    All-New, BallisTec Carbon, internal downtube battery, integrated cable routing w/ Switchplate, dropout/axle spacing 135mm, SAVE, T47, flat mount disc, integrated seat binder
    • Internal downtube battery

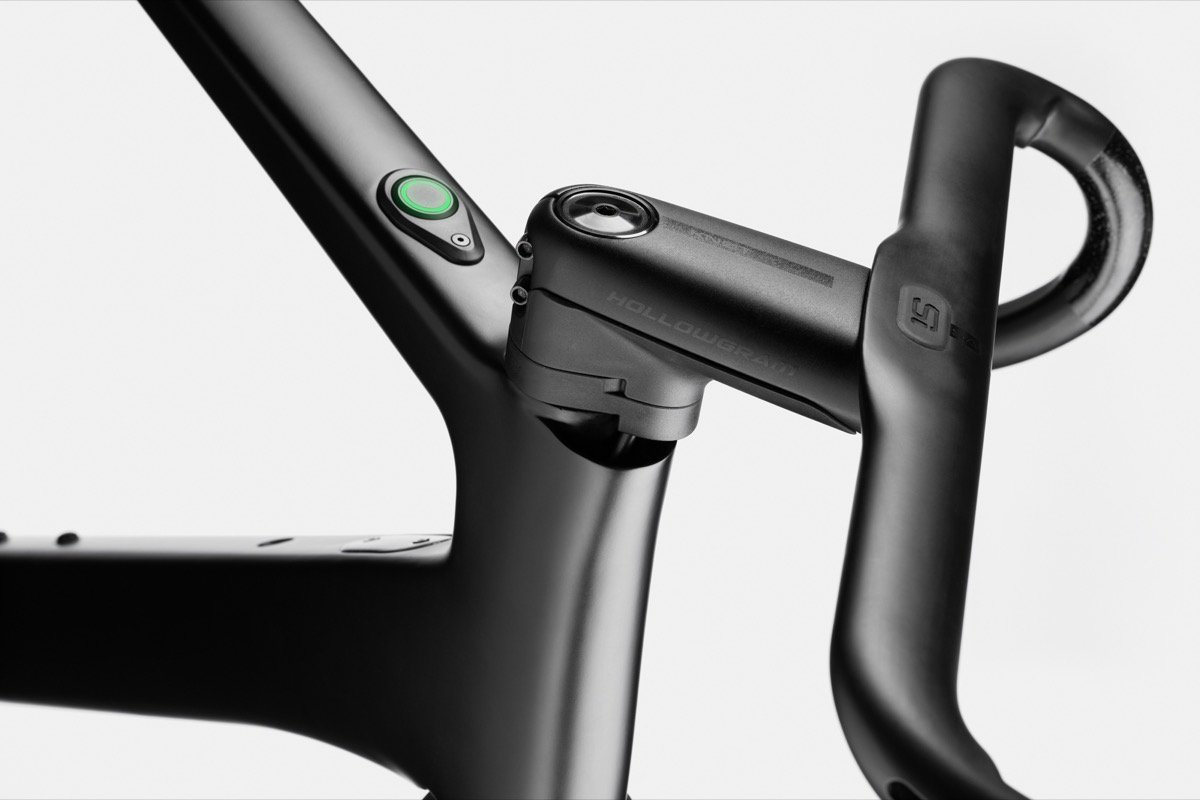

    • Integrated cable routing w/ Switchplate
    • Dropout/axle spacing 135mm
    • SAVE
    • T47
    • Flat mount disc
    • Integrated seat binder
  • Headset
    Integrated Sealed Bearing, Tapered

Wheels

  • Front Hub
    FSA Alloy, 12x100
  • Hubs
    (F) Formula RX-812, 12x100 disc / (R) ebikemotion X35 250W disc

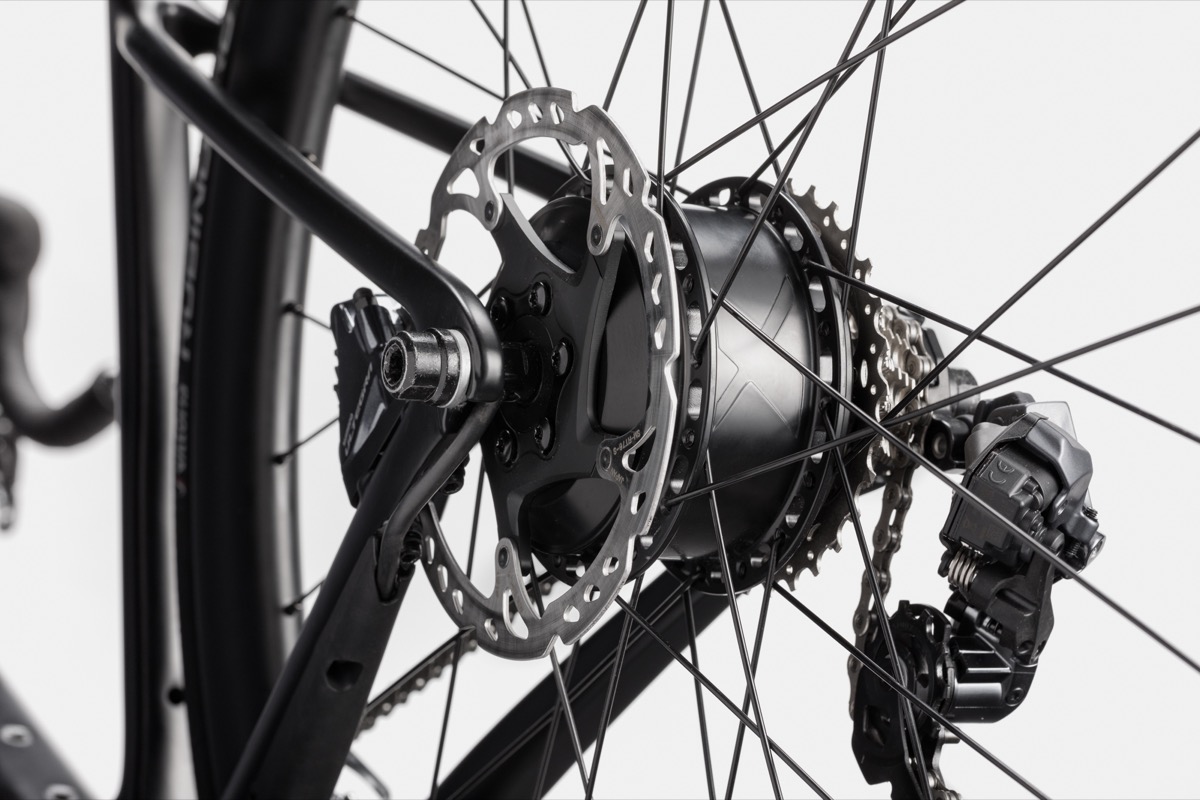

  • Rear Hub
    MAHLE ebikemotion X35 250W
  • Rims
    Cannondale RDe 1.0 , 28h front, 32h rear
  • Spokes
    Stainless steel, 14g (F) / 13g (R)
  • Tire Size
    28
  • Tires
    Vittoria Rubino Pro Bright Black, 700 x 28c
  • Wheel Size
    700c

Brakes

  • Brake Levers
    Shimano 105 hydro disc
  • Brakes
    Shimano 105 hydro disc, 160/160mm RT66 rotors

Components

  • Grips
    Cannondale Grip Bar Tape w/Gel, 3.5mm
  • Handlebar
    Cannondale 3, 6061 alloy, Compact
  • Saddle
    Prologo Dimension NDR, 143mm width, STN rails
  • Seatpost
    All-New HollowGram 27 KNØT, Alloy, 2 bolt clamp, 330mm
  • Stem
    Cannondale 3, 6061 alloy, 7-degree

E-System

  • E-System Battery
    MAHLE ebikemotion X35 250Wh
  • E-System Charger
    MAHLE ebikemotion X35
  • Drive Unit
    MAHLE ebikemotion X35 250W

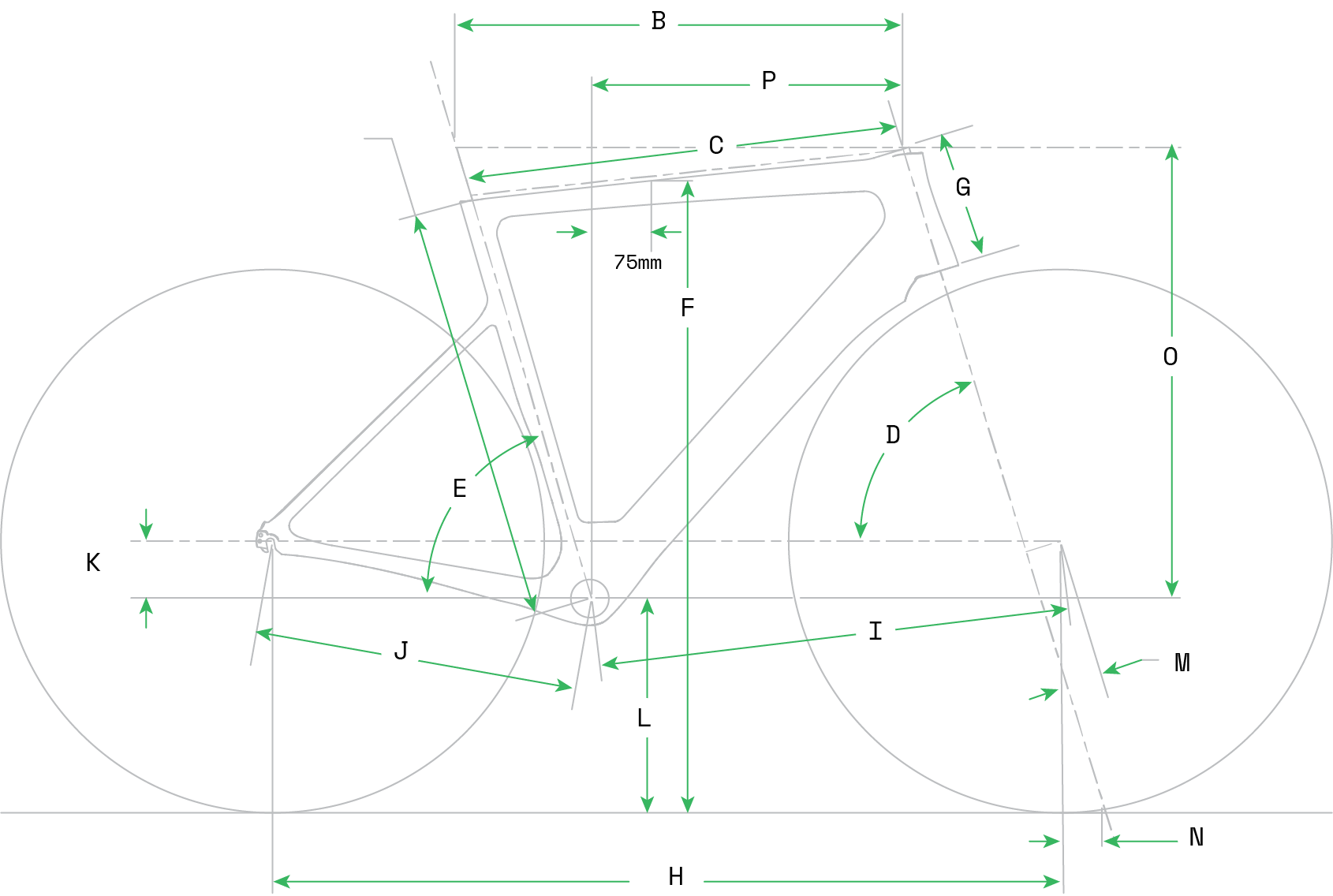

Measurements

  SM MD LG
A Seat Tube Length 47.7cm 18 51.5cm 20 53.6cm 21
B Top Tube Length 53.4cm 21 54.6cm 21 55.7cm 21
D Head Tube Angle 71.2° 71.2° 71.2° 71.2° 73.0° 73.0°
E1 Seat Tube Angle Effective 73.7° 73.7° 73.7° 73.7° 73.7° 73.7°
F Standover 75.8cm 29 78.8cm 31 80.8cm 31
H Wheelbase 100.6cm 39 101.8cm 40 100.2cm 39
I Front Center 59.8cm 23 61.1cm 24 59.4cm 23
J Chain Stay Length 41.8cm 16 41.8cm 16 41.8cm 16
K Bottom Bracket Drop 7.2cm 2 7.2cm 2 7.2cm 2
L Estimated BB Height 27.1cm 10 27.1cm 10 27.1cm 10
M Fork Rake 5.5cm 2 5.5cm 2 4.5cm 1
N Trail 5.8cm 2 5.8cm 2 5.8cm 2
O Stack 53.4cm 21 55.4cm 21 57.4cm 22
P Reach 37.8cm 14 38.4cm 15 38.9cm 15
