Cannondale: Synapse Neo SE | E-Road | Electric

Synapse Neo SE

+Compare
Synapse Neo SE
Find a bike shop
Find other local bike shops to check for availability

Platform: Synapse Neo

Keep firing.

A e-road bike, with the power, range and comfort to open the roads for everyone.

Highlights

  • Bosch Active Line Plus drive system w/ Cannondale road-specific software / Range: up to 150km (93mi)
  • 650c high volume tires / SRAM Apex 1 wide-range 11-speed drivetrain
  • Integrated connectivity with Cannondale App

Where it thrives

The open road, gravel roads, up and down hills

What it's built for

Endurance, efficiency, comfort

International Connectivity

  • Wheel Sensor
    Cannondale Wheel Sensor

Drivetrain

  • Chain
    SRAM PC-1110, 11-speed
  • Crank
    Bosch Gen3 w/ custom Ai offset & FSA rings, 44T
  • Pedals
    Not Included
  • Rear Cogs
    SRAM PG-1130, 11-42, 11-speed
  • Rear Derailleur
    SRAM Apex 1, Long cage
  • Shifters
    SRAM Apex hydro disc, 11-speed

Frameset

  • Fork
    BallisTec Carbon, 1-1/8" to 1.5" tapered steerer, 55mm offset, flat mount brake, 12x100 thru axle, fender mounts, hidden cable routing
  • Frame
    SmartForm C1 Alloy, removable downtube battery, SAVE, Ai, internal cable routing, flat mount brake, 142x12 thru-axle, Si kickstand mount, rack/fender mounts
    • Removable downtube battery
    • SAVE
    • Ai
    • Internal cable routing
    • Flat mount brake
    • 142x12 thru-axle
    • Si kickstand mount
    • Rack/fender mounts
  • Headset
    Integrated, 1-1/8 to 1.5", sealed angular contact bearings

Wheels

  • Front Hub
    Formula RX-512 12x100
  • Hubs
    (F) Formula RX-512 12x100 / (R) Formula DC-142 12x142
  • Rear Hub
    Formula DC-142 12x142
  • Rims
    WTB STi23 TCS 2.0, 28h, tubeless ready
  • Spokes
    DT Swiss Champion
  • Tire Size
    1.5
  • Tires
    WTB Byway TCS, 650b x 47mm, tubeless ready
  • Wheel Size
    650b

Brakes

  • Brake Levers
    SRAM Apex hydro disc
  • Brakes
    SRAM Apex hydro disc, 160/160mm Centerline rotors

Components

  • Grips
    Cannondale Grip Bar Tape w/Gel, 3.5mm
  • Handlebar
    Cannondale 3, 6061 alloy, Compact
  • Saddle
    Fabric Scoop Radius Sport, steel rails
  • Seatpost
    Cannondale 3, 6061 Alloy, 25.4, 350mm (S-M), 400mm (L-XL)
  • Stem
    Cannondale 3, 6061 alloy, 7-degree

E-System

  • E-System Battery
    Bosch PowerTube 500Wh
  • E-System Charger
    Bosch 4a
  • E-System Display
    Bosch Purion

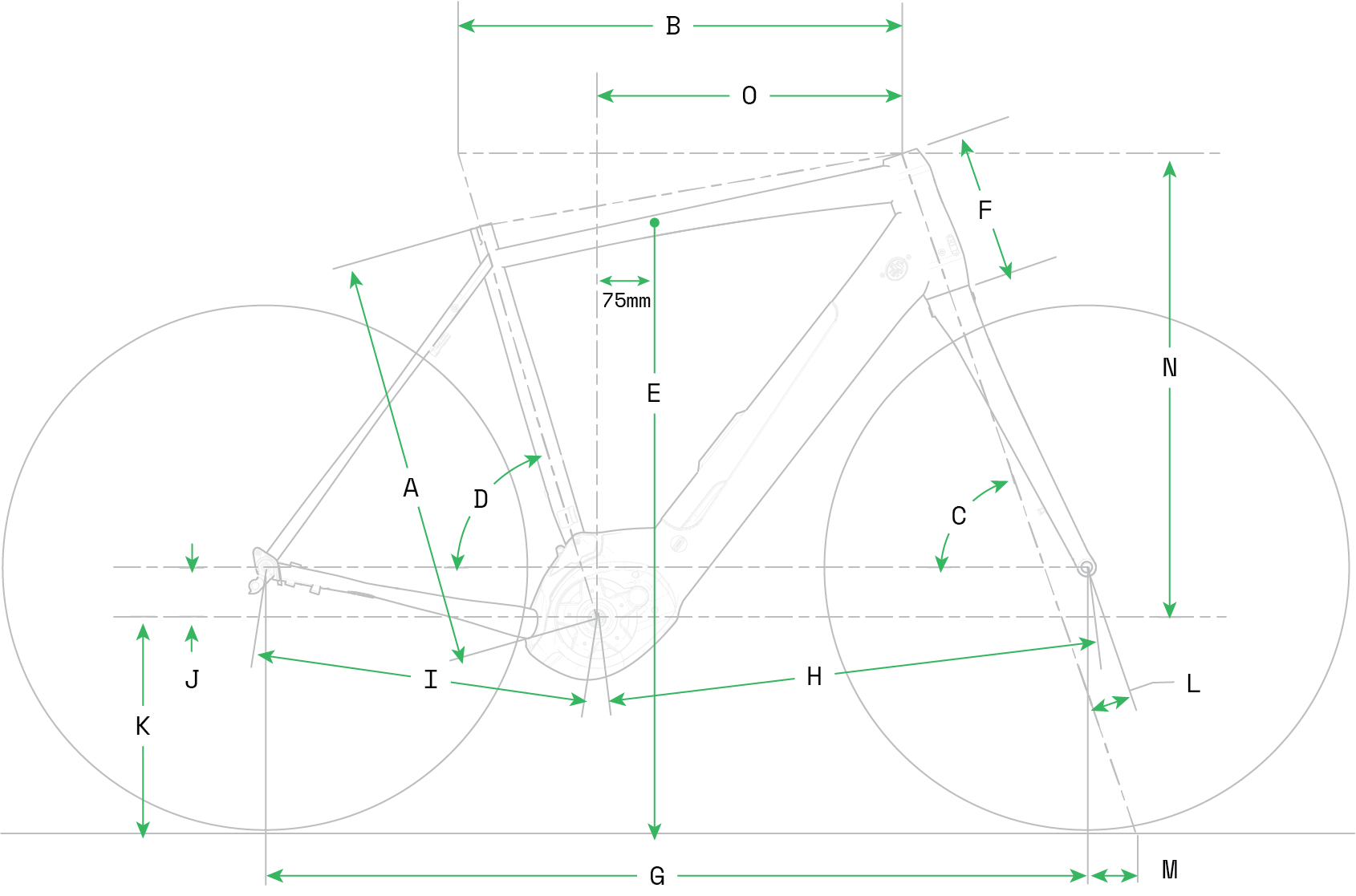

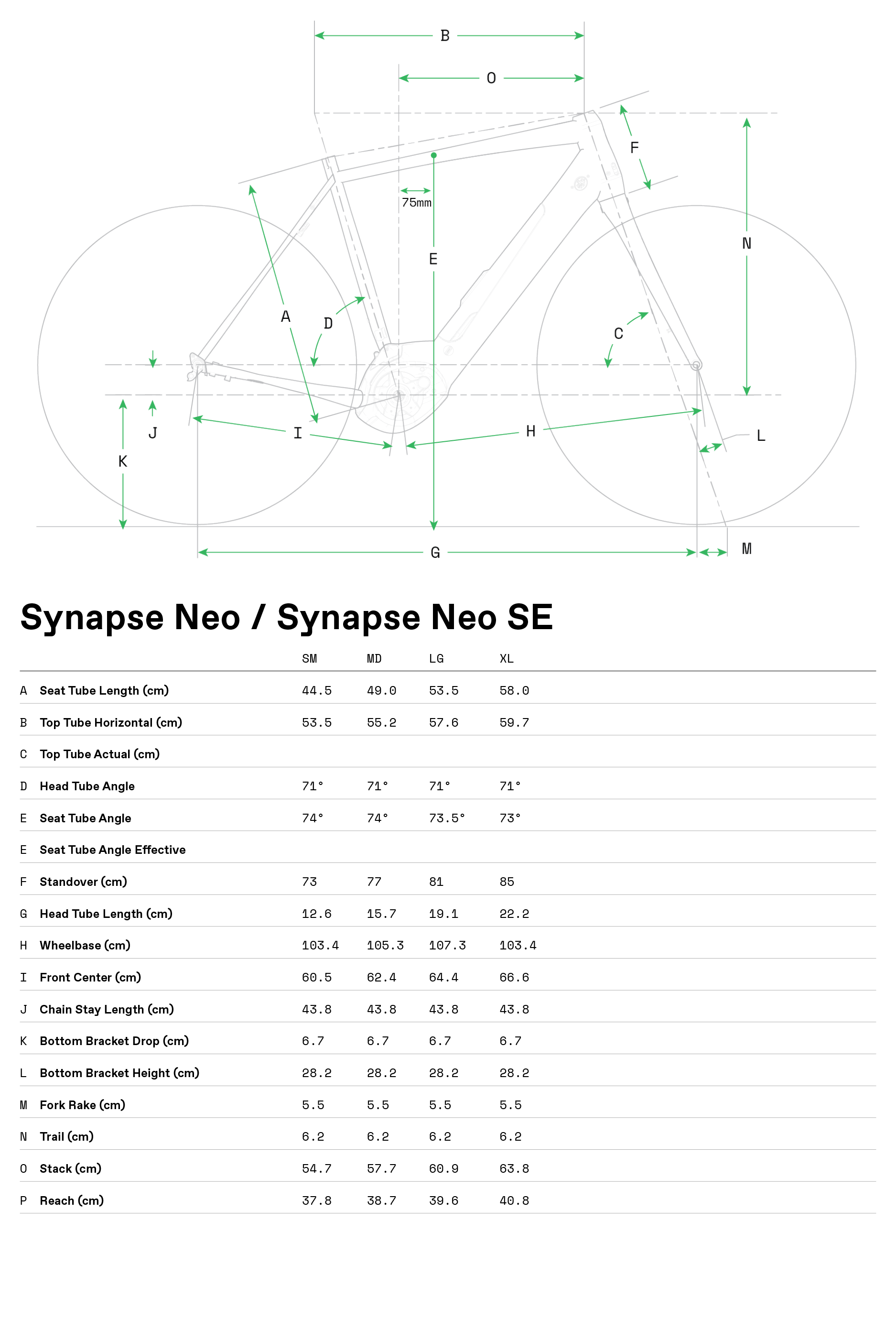

Measurements

  SM MD LG XL
A Seat Tube Length 44.5 113cm 49.0 124cm 53.5 135cm 58.0 147cm
B Top Tube Length 53.5 135cm 55.2 140cm 57.6 146cm 59.7 151cm
D Head Tube Angle 71° 71° 71° 71° 71° 71° 71° 71°
F Standover 73 185cm 77 195cm 81 205cm 85 215cm
G Head Tube Length 12.6 32cm 15.7 39cm 19.1 48cm 22.2 56cm
H Wheelbase 103.4 262cm 105.3 267cm 107.3 272cm 103.4 262cm
I Front Center 60.5 153cm 62.4 158cm 64.4 163cm 66.6 169cm
J Chain Stay Length 43.8 111cm 43.8 111cm 43.8 111cm 43.8 111cm
K Bottom Bracket Drop 6.7 17cm 6.7 17cm 6.7 17cm 6.7 17cm
L Estimated BB Height 28.2 71cm 28.2 71cm 28.2 71cm 28.2 71cm
M Fork Rake 5.5 13cm 5.5 13cm 5.5 13cm 5.5 13cm
N Trail 6.2 15cm 6.2 15cm 6.2 15cm 6.2 15cm
O Stack 54.7 138cm 57.7 146cm 60.9 154cm 63.8 162cm
P Reach 37.8 96cm 38.7 98cm 39.6 100cm 40.8 103cm
