- BallisTec carbon frame with Kingpin suspension / Lefty Oliver Carbon gravel fork, 30mm travel
- SRAM Force/X01 Eagle eTap AXS HRD 12-speed group / Integrated Cannondale App connectivity
- Bosch Performance Line Speed 250W drive-unit / 500Wh battery / Kiox color display / Range: up to 78 mi (125km)
Where it thrives
Gravel roads, Up and down hills, Out in the elements
What it's built for
Handling, Comfort, Traction
E-Bike + Gravel
We combined our finest carbon gravel bike chassis with the best motor system from Bosch to create a powerful, go-anywhere, do-anything adventure machine with unreal riding qualities and a range of up to 125 km.
An outstanding bike needs an outstanding chassis. So we paired our proven, super-light and compliant Kingpin rear suspension system with our cutting-edge 30mm travel Lefty Oliver fork for even better control and even more comfort, allowing you to ride faster and further than you ever thought possible.
Power and Range
The Performance Line CX drive unit paired with the long-lasting 500Wh integrated PowerTube battery is reliable, powerful and efficient. With 75Nm of torque and range up to 80mi / 128km your boundaries are nearly endless.
The ultimate built-for-gravel suspension fork. With 30mm of smooth, bump-taming suspension and an incredibly stiff, precise-handling structure, this lightweight fork lets you push it harder, and ride smoother than ever.
King of Comfort
The KingPin suspension system offers up to 30mm of bump-smoothing suspension, without the weight and complexity of a shock or linkages.
Bosch Kiox Display
The centrally mounted, hi-res color display and separate control unit provides easy viewing of all your data while keeping both hands securely on the bar. USB charge port and service reminders make Kiox a solid riding partner.

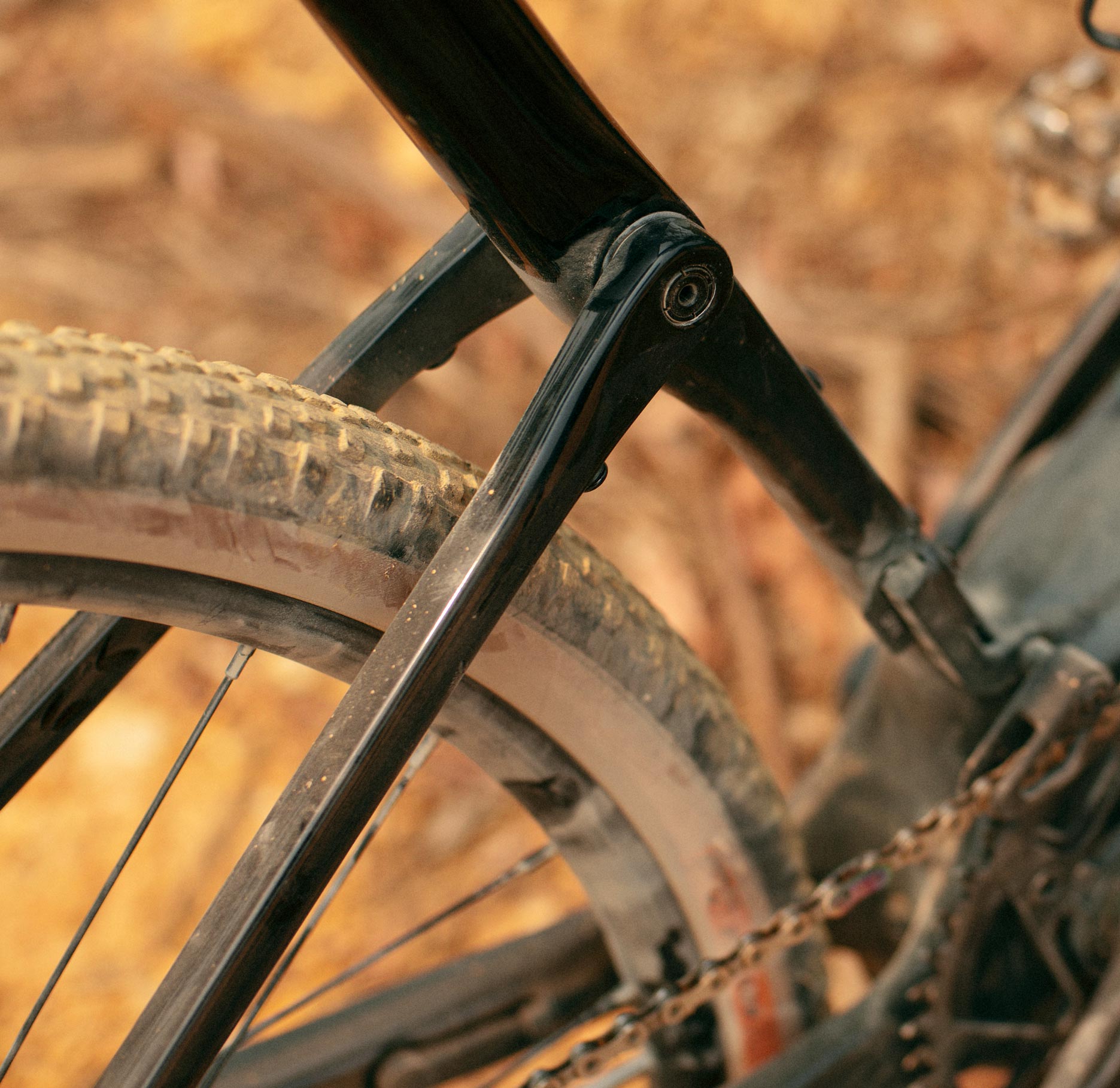

Thru-axle pivot locks the left and right seat-stays together, preventing independent rotation for a solid feel and instantaneous response.
Proportional Response Construction
Suspension and overall frame ride-feel is custom tuned by size, using different carbon layup and different tube dimensions, so each size is dialed for the rider. Just get on and go.
Dialed Endurance Fit
Offers a perfectly balanced riding position: upright enough for comfort over the long haul and control when tackling technical off-road terrain, yet still low and forward enough for speedy efficiency.

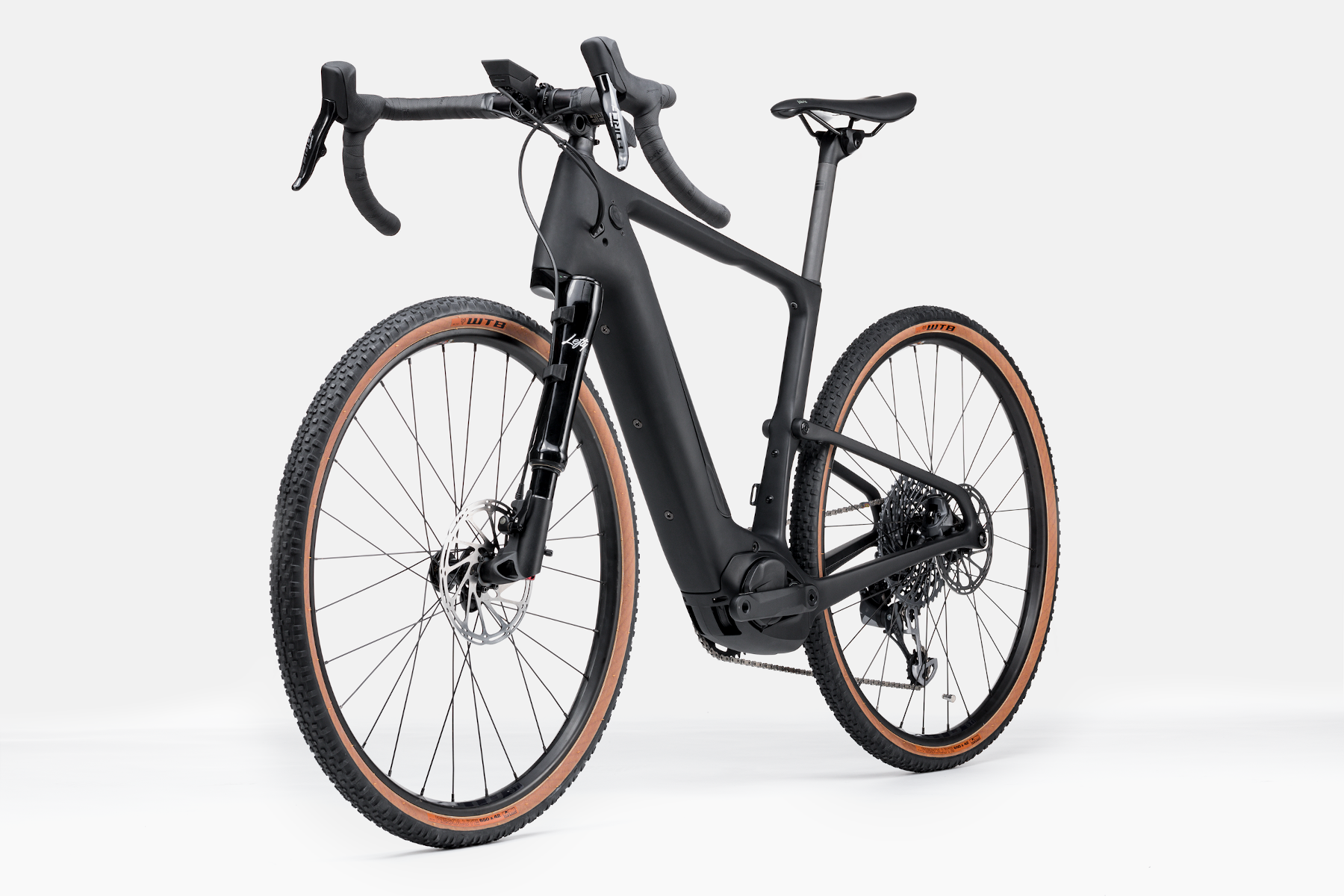

OutFront Steering Geometry
Keeps the steering light and agile, while positioning the wheel further in front of the rider for stability and confidence on rougher stuff. Plus it reduces the chance of toe overlap on smaller sizes.
An integrated wheel sensor delivers hyper accurate speed, route and distance info, registers your bike, reminds you of needed service and more, all through the free Cannondale App.
Fully fender ready. A removable fender bridge on the rear stays is there when you need it, gone when you don't.

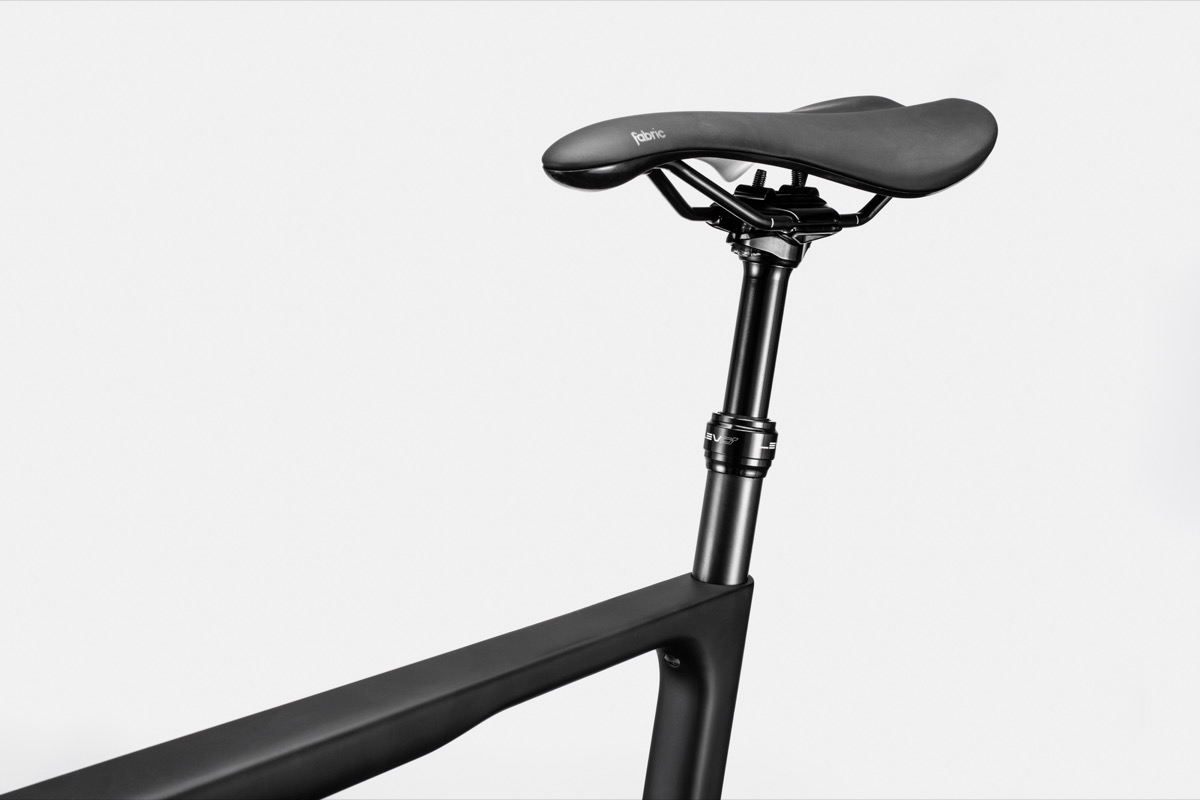

Built to accept an internally-routed 27.2 dropper seatpost, which shouldn’t really be a surprise on a bike that's this off-road capable.
Wheel SensorCannondale Wheel Sensor
ChainSRAM X01 Eagle, 12-speed
CrankPraxis Alloy eCrank for Bosch, SRAM Force X-SYNC Chainring, 46T
Rear CogsSRAM XG-1275, GX Eagle, 10-50, 12-speed
Rear DerailleurSRAM X01 Eagle eTap AXS
ShiftersSRAM Force eTap AXS HRD, 12-speed
ForkAll-New Lefty Oliver Carbon, 30mm travel, Chamber Damper w/ All-Over tune, ISO High-Ride air spring, tapered steerer, 650b, 55mm offset

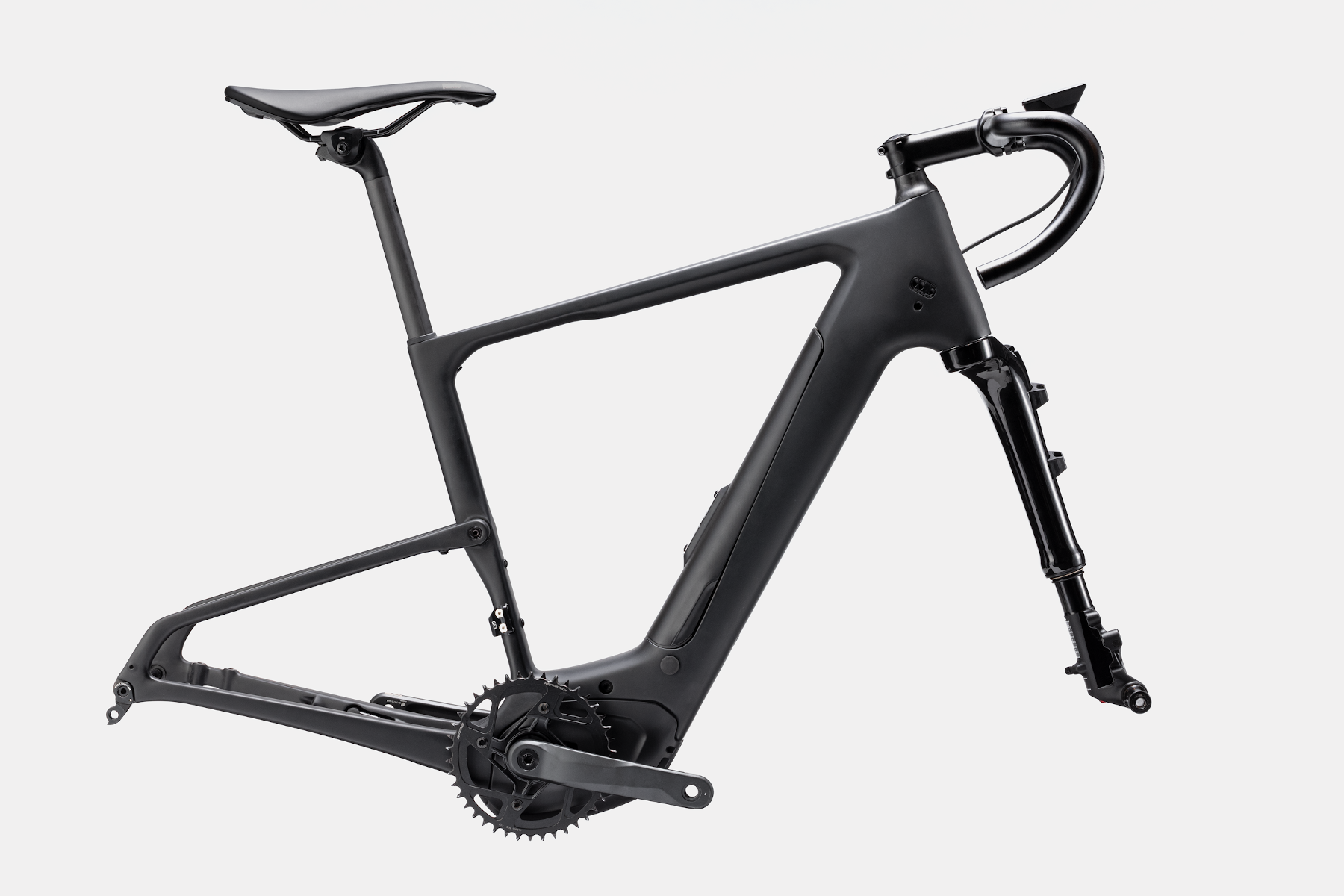

FrameBallisTec Carbon Frame, removable downtube battery, Kingpin suspension system, 12x148 thru-axle, dropper post compatible
HeadsetIntegrated, 1.5" lower to 1-1/8" upper w/ reducer, 25mm Carbon top cap
Front HubLefty 50
Rear HubFormula cartridge bearing, 12x148mm thru-axle
RimsWTB ST i25 TCS, 32h, tubeless ready
SpokesStainless Steel, 14g
TiresWTB Resolute, 650b x 42c, tubeless ready
Brake LeversSRAM Force AXS
BrakesSRAM Force AXS, 180/160mm Centerline rotors
GripsCannondale Bar Tape, 3.5mm
HandlebarCannondale 3, butted 6061 alloy, 16 deg flare drop
SaddleFabric Scoop Shallow Race, titanium rails
SeatpostPromax SP-9032, Carbon, 27.2
StemCannondale, 6061 Alloy, 31.8, 7°
E-System BatteryBosch PowerTube 500Wh
E-System ChargerBosch 4A
E-System DisplayBosch Kiox
Extra 1Removable fender bridge

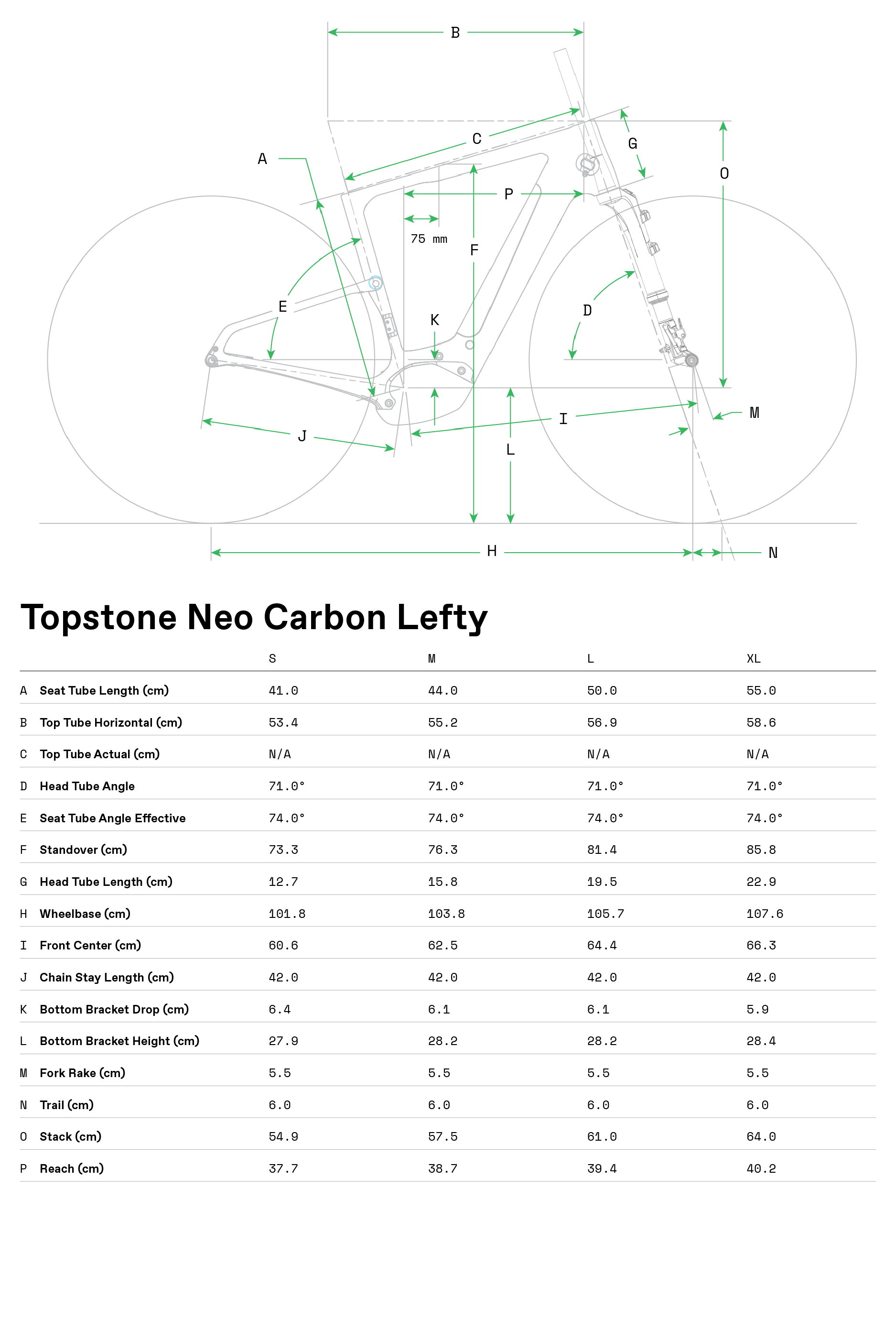

5'4" 162 5'9" 175
5'7" 170 6'1" 185
5'11" 180 6'4" 193
6'3" 190 6'8" 203
