Canvas Neo 1 | E-Urban Bikes | Cannondale

US/EN
New

Canvas Neo 1

+Compare
$4,200
Close

Sizing

Tell us how tall you are, we'll help you find the right size.

Long arms? Short Legs? Just not sure? Call us!

Close

Retailers

    Platform: Canvas Neo

    Traffic slayer.

    A stylish, rugged urban e-bike, built to turn rush hour into “what-a-rush!” hour.

    Highlights

    • Premium SmartForm C1 Alloy frame and carbon fiber fork, dual-battery-ready
    • Shimano Deore 10-speed drivetrain with hydraulic disc brakes
    • Bosch Performance Line Speed 250W drive-unit (28mph) / 500Wh battery / Range: up to 50mi

    Where it thrives

    In town, leisurely rides, on crowded streets

    What it's built for

    Speed, visibility, handling

    Technology

    Drivetrain

    • Chain
      Shimano HG54, 10-speed
    • Crank
      Bosch Gen4 w/ custom Ai offset, 46T
    • Rear Cogs
      Shimano HG500, 11-42, 10-speed
    • Rear Derailleur
      Shimano Deore GS
    • Shifters
      Shimano Deore, 10-speed

    Frameset

    • Fork
      BallisTec Carbon, 1-1/8" to 1.5" tapered steerer, OutFront 55mm offset, post mount disc, 15x110mm thru-axle, hidden cable routing

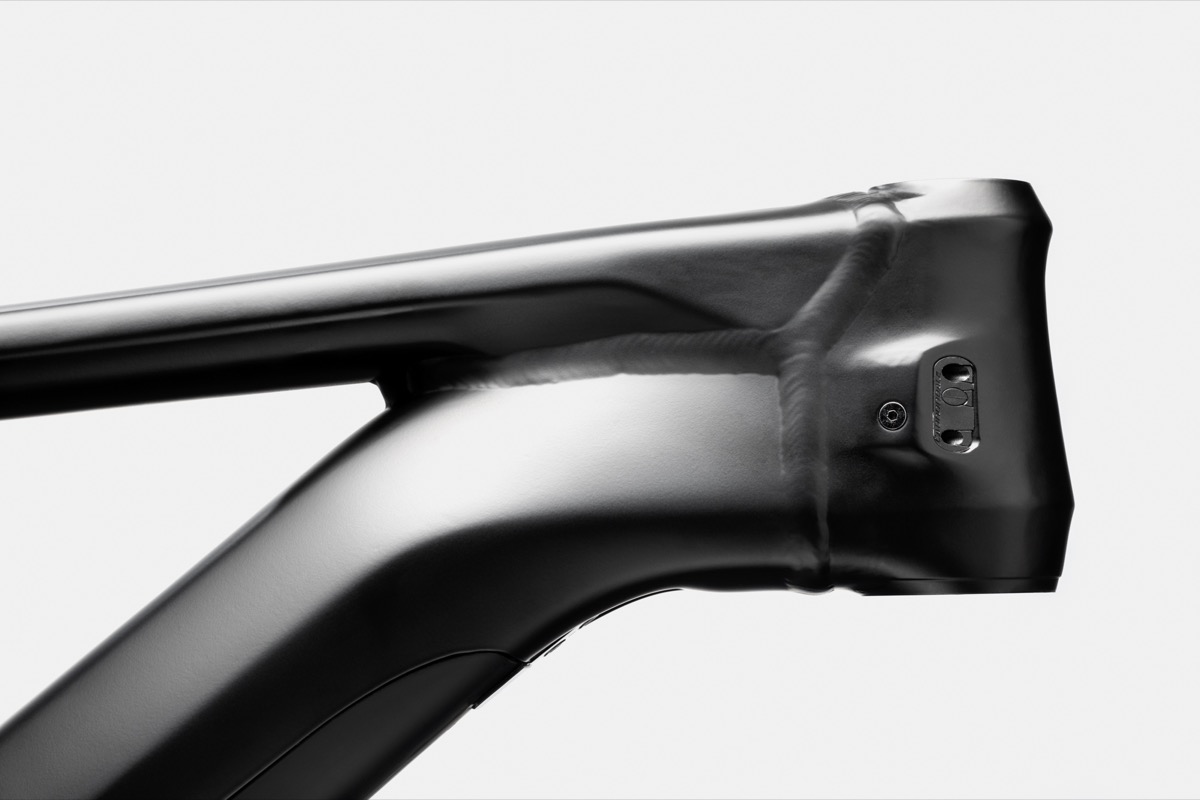

    • Frame
      SmartForm C1 Alloy, Dual Battery ready, removable downtube battery, SAVE, tapered headtube, internal cable routing, Ai offset drivetrain, 148x12mm thru-axle, post mount disc, integrated speed sensor, KickFlip hidden kickstand mount, motor protection, lock mount
      • Dual Battery ready
      • Removable downtube battery
      • SAVE
      • Tapered headtube
      • Internal cable routing
      • Ai offset drivetrain
      • 148x12mm thru-axle
      • Post mount disc
      • KickFlip hidden kickstand mount
    • Headset
      Integrated, 1-1/8 to 1.5", sealed angular contact bearings (Integrated steer stop size small only)

    Wheels

    • Front Hub
      Shimano MT400 15x110
    • Rear Hub
      Shimano MT400 12x148
    • Rims
      WTB STX i29 TCS, 32h, tubeless ready
    • Spokes
      DT Swiss Champion
    • Tire Size
      2.35
    • Tires
      Schwalbe G-One Speed Performance, 29 x 2.35", RaceGuard, tubeless ready
    • Wheel Size
      29

    Brakes

    • Brake Levers
      Shimano Deore M6000 hydro disc
    • Brakes
      Shimano Deore M6000 hydro disc, 203/180mm RT30 rotors

    Components

    • Grips
      Cannondale Locking Grips
    • Handlebar
      Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 740mm
    • Saddle
      Cannondale Ergo Urban
    • Seatpost
      6061 Alloy, 31.6 x 350mm
    • Stem
      Cannondale 3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 0-degree

    E-System

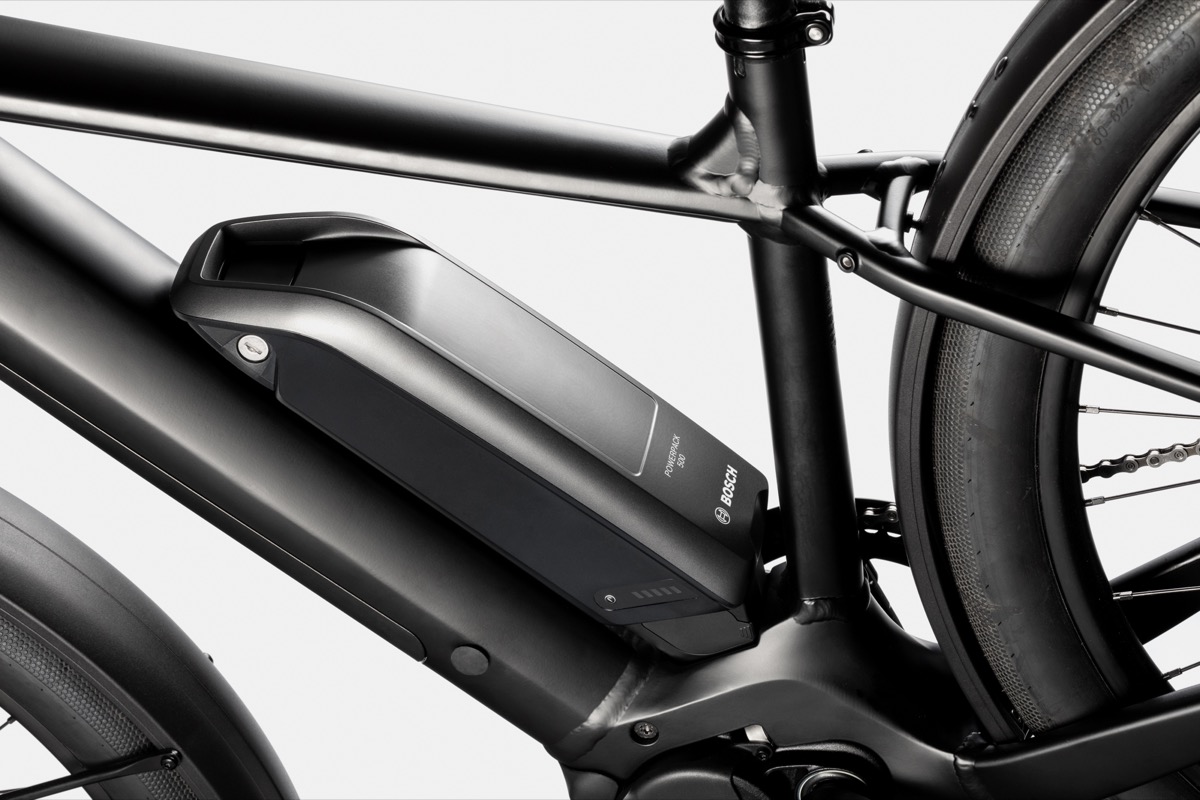

    • E-System Battery
      Bosch PowerTube 500Wh
    • E-System Charger
      Bosch 4a
    • E-System Display
      Bosch Purion

    Measurements

    • Size: SM
      5'4" 162
      5'8" 172
    • Size: MD
      5'7" 170
      6'0" 182
    • Size: LG
      6'0" 182
      6'3" 190
    • Size: XL
      6'4" 193
      6'8" 203
    Close

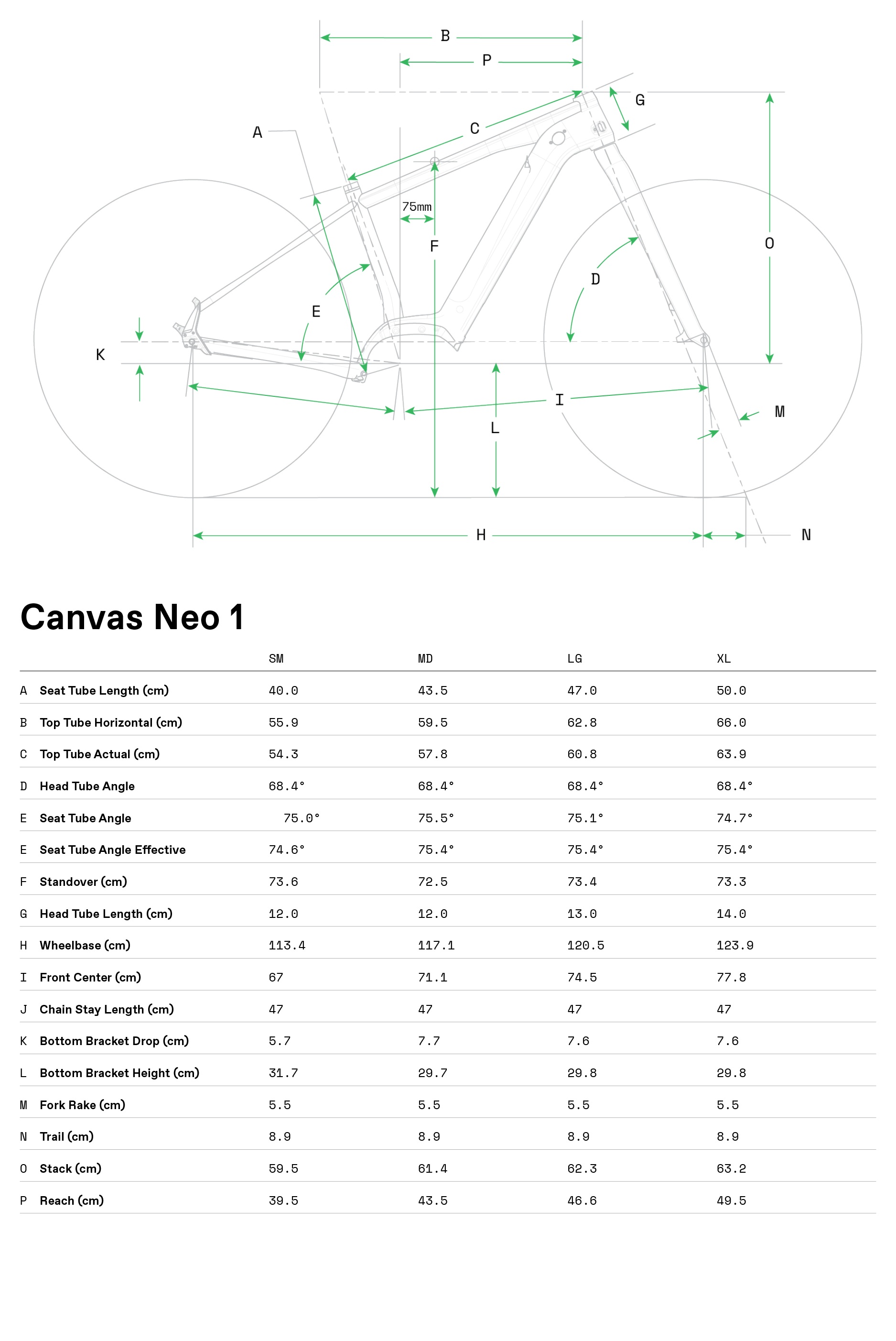

    Geometry
