Platform: Fat CAAD
Highlights
- SmartForm C1 Alloy frame w/ Fatty Fat rigid fork
- Sun Ringle Mulefüt 80 SL rims / Maxxis Minion 3.8" tires
- Shimano SLX 11-speed drivetrain / hydraulic disc brakes
Where it thrives
Out in the elements
What it's built for
Traction, durability
Fatty Fat Fork
Stiff and light SmartForm C1 Alloy construction, with an extra long 55mm fork offset for light, lively, precise steering.
BB30XL
Our Si Crank uses an oversized aluminum spindle to save weight and improve power transfer.
Ai Offset Chainring
Shifts the chainline outboard, allowing short chainstays for agility and traction, with clearance for full 4.8" tires, all while keeping the Q-factor narrow.
SAVE Micro-Suspension
Delivers a smoother, more controlled ride thanks to strategically enigeered flex zones built into the frame's rear triangle.
Drivetrain
-
Bottom BracketCannondale BB30XL
-
ChainKMC X11, 11-speed
-
CrankCannondale 1, BB30, Ai Offset SpideRing, X-Sync®, 30T
-
PedalsNot Included
-
Rear CogsSunrace, 11-46, 11-speed
-
Rear DerailleurShimano SLX GS
-
ShiftersShimano SLX, 11-speed
Frameset
-
ForkCannondale Fatty, Fat Rigid, 15x150mm, 1.5 tapered steerer, 55mm offset
-
FrameSmartForm C1 Alloy, BB30XL, SAVE, 1.5 Si head tube
- BB30XL
- SAVE
- 1.5 Si head tube
-
HeadsetTange Seiki, Integrated, 1-1/8"-1-1/2"
Wheels
-
Front Hub(F) Sun Ringle SRC 15x150
-
Front Tire(F) Maxxis Minion FBF, 27.5 x 3.8", EXO, tubeless ready
-
Rear Hub(R) Sun Ringle SRC 12x197
-
Rear Tire(R) Maxxis Minion FBR, 27.5 x 3.8", EXO, tubeless ready
-
RimsSun Ringle Mulefüt 80 SL, tubeless ready
-
SpokesStainless Steel, 14g
-
Tire Size3.8
-
Tires(F) Maxxis Minion FBF, 27.5 x 3.8", EXO, tubeless ready(R) Maxxis Minion FBR, 27.5 x 3.8", EXO, tubeless ready
-
Wheel Size27.5
Brakes
-
Brake LeversTektro M745 hydro discc
-
BrakesTektro 4-piston hydro disc, 180/160mm rotors
Components
-
GripsCannondale Locking Grips
-
HandlebarCannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
-
SaddleCannondale Stage 3
-
SeatpostCannondale 3, 6061 Alloy, 31.6 x 400mm
-
StemCannondale 3, 6061 Alloy, 31.8, 7°
Weight: 13.2 kg / 29.1 lbs - Bike and frame weights may vary in final production.

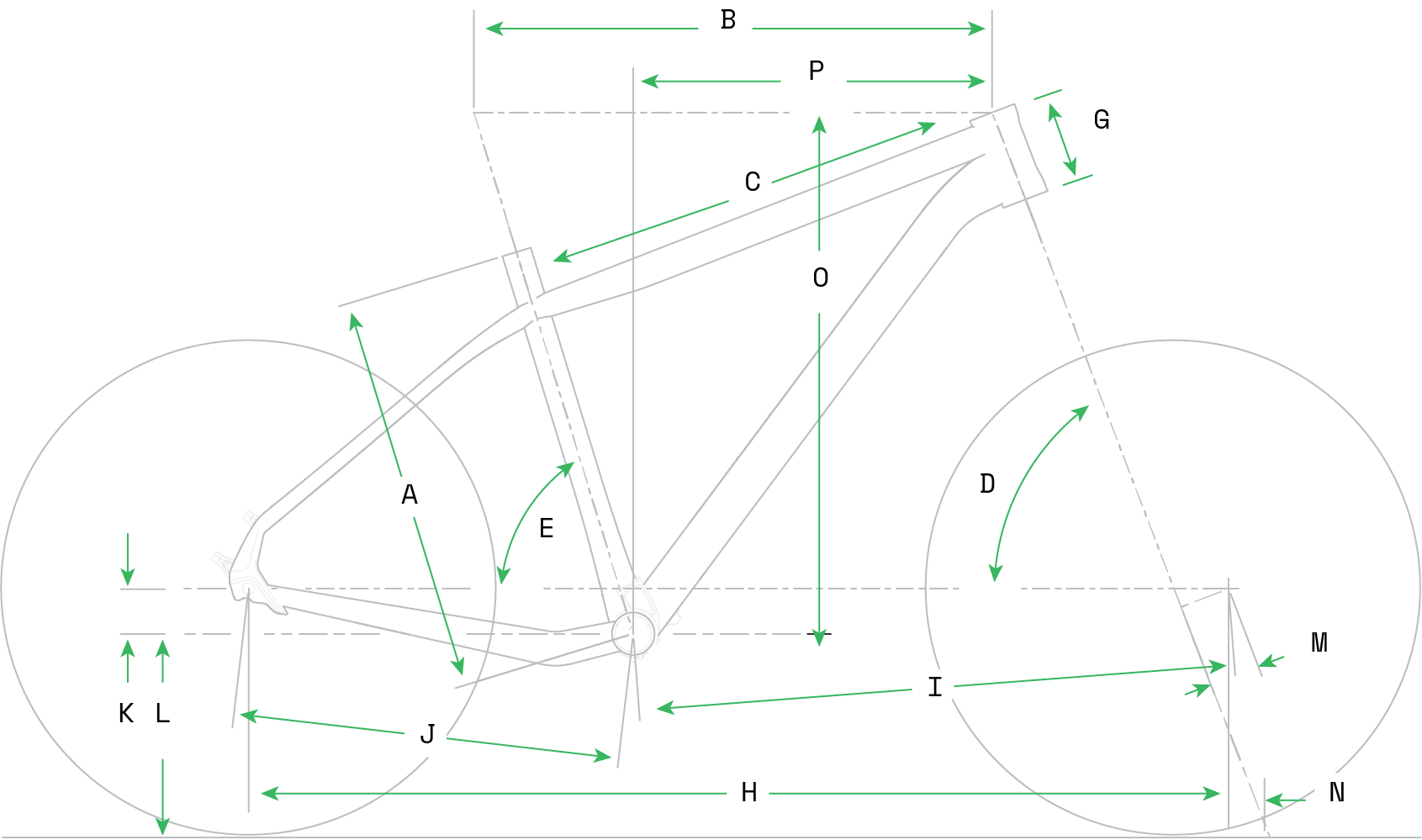

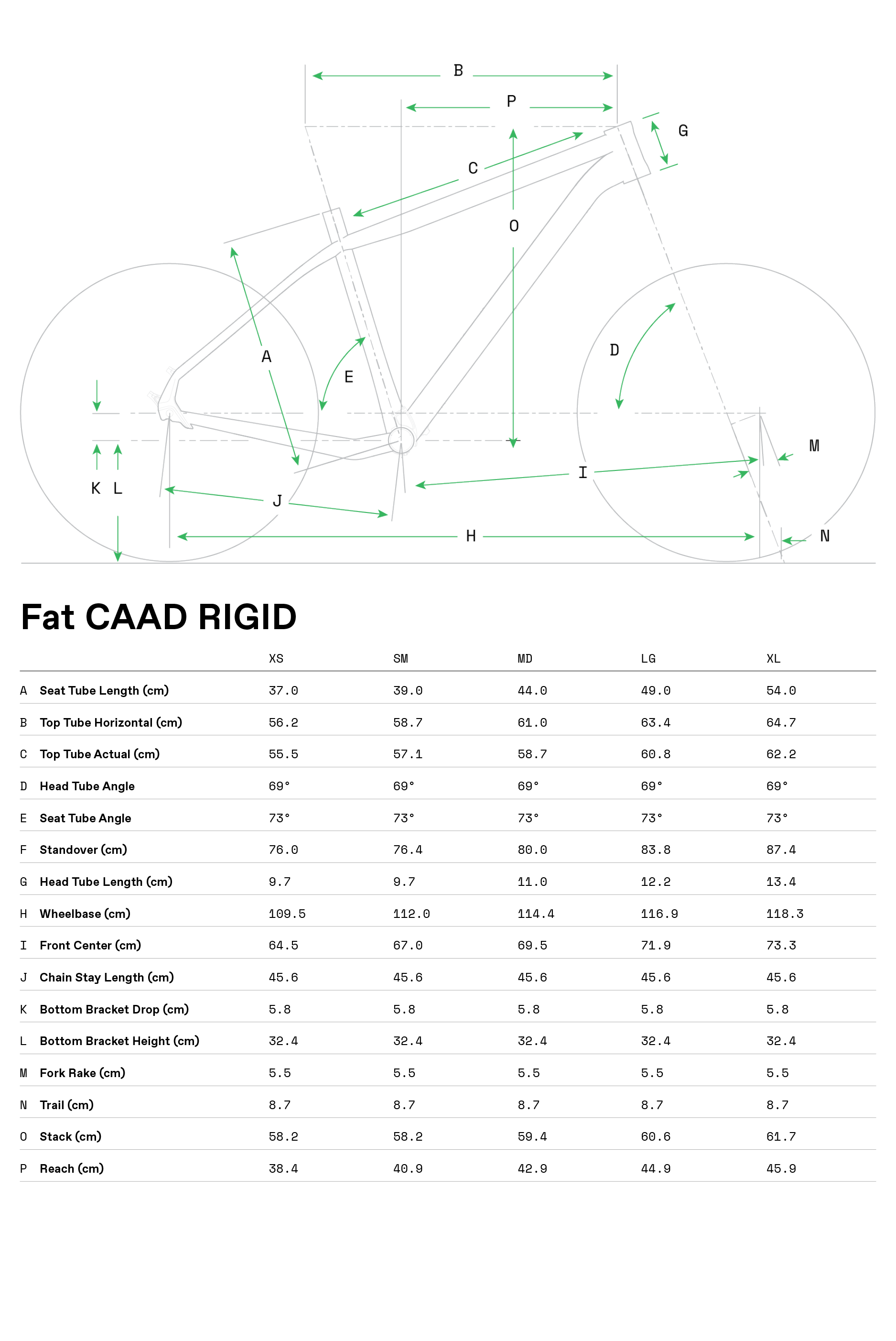

Measurements
| XS | SM | MD | LG | XL | |
|---|---|---|---|---|---|
| A Seat Tube Length | 37.0 93cm | 39.0 99cm | 44.0 111cm | 49.0 124cm | 54.0 137cm |
| B Top Tube Length | 56.2 142cm | 58.7 149cm | 61.0 154cm | 63.4 161cm | 64.7 164cm |
| C Top Tube Actual | 55.5 140cm | 57.1 145cm | 58.7 149cm | 60.8 154cm | 62.2 157cm |
| D Head Tube Angle | 69° 69° | 69° 69° | 69° 69° | 69° 69° | 69° 69° |
| E1 Seat Tube Angle Effective | 73° 73° | 73° 73° | 73° 73° | 73° 73° | 73° 73° |
| F Standover | 76.0 193cm | 76.4 194cm | 80.0 203cm | 83.8 212cm | 87.4 221cm |
| G Head Tube Length | 9.7 24cm | 9.7 24cm | 11.0 27cm | 12.2 30cm | 13.4 34cm |
| H Wheelbase | 109.5 278cm | 112.0 284cm | 114.4 290cm | 116.9 296cm | 118.3 300cm |
| I Front Center | 64.5 163cm | 67.0 170cm | 69.5 176cm | 71.9 182cm | 73.3 186cm |
| J Chain Stay Length | 45.6 115cm | 45.6 115cm | 45.6 115cm | 45.6 115cm | 45.6 115cm |
| K Bottom Bracket Drop | 5.8 14cm | 5.8 14cm | 5.8 14cm | 5.8 14cm | 5.8 14cm |
| L Estimated BB Height | 32.4 82cm | 32.4 82cm | 32.4 82cm | 32.4 82cm | 32.4 82cm |
| M Fork Rake | 5.5 13cm | 5.5 13cm | 5.5 13cm | 5.5 13cm | 5.5 13cm |
| N Trail | 8.7 22cm | 8.7 22cm | 8.7 22cm | 8.7 22cm | 8.7 22cm |
| O Stack | 58.2 147cm | 58.2 147cm | 59.4 150cm | 60.6 153cm | 61.7 156cm |
| P Reach | 38.4 97cm | 40.9 103cm | 42.9 108cm | 44.9 114cm | 45.9 116cm |
