Habit | Trail Bikes | Mountain

Habit 4

+Compare
Habit 4
Find other local bike shops to check for availability

Platform: Habit

Second nature.

A trail bike with its priorities straight: progressive design, playful agility and killer capability – all in the name of fun.

Highlights

  • SmartForm C1 Alloy frame
  • Fox Float Rhythm 34 140mm fork / Float Performance DPS EVOL shock
  • SRAM Guide T hydro disc brakes / DownLow dropper post

Where it thrives

Challenging trails, up and down hills

What it's built for

Traction, handling, durability

Flow seeker.

The head angle is slack, the stays are short and the seat angle is steep. It’s that long, low modern geometry that helps you wring a little more flow out of every kind of trail.

The right stuff

More Info

29” wheels with big, grippy tires. Properly wide bars and properly short stems. Powerful brakes and dropper posts. Straightforward parts for straightforward performance.

Easy to love

More Info

Designed to be a "daily ride", the Habit is built for easy service with proven, durable suspension pivots, easy internal cable routing and no oddball proprietary stuff.

Proportional Response suspension

Riders come in all sizes. Most suspension doesn't. Proportional Response is the only suspension design that tailors the actual suspension layout by size so that every rider gets optimal traction, suppleness and control.

IN THE AIR, ON THE GROUND, THROUGH THE TRAILS

Technology

Drivetrain

  • Bottom Bracket
    SRAM DUB BSA MTB83
  • Chain
    SRAM NX Eagle, 12-speed
  • Crank
    SRAM X1-1000 Eagle DUB, 30T, Ai offset
  • Pedals
    Not Included
  • Rear Cogs
    SRAM PG-1230, NX Eagle, 11-50, 12-speed
  • Rear Derailleur
    SRAM NX Eagle
  • Shifters
    SRAM NX Eagle, 12-speed

Frameset

  • Fork
    Fox Float Rhythm 34, 140mm, Grip Damper, Sweep-Adj, 15x110, tapered steerer, 51mm offset
  • Frame
    130mm travel, SmartForm C1 Alloy, Proportional Response Tuned, Ai offset drivetrain, ISCG05, BSA 83, Post mount brake, tapered headtube
    • 130mm travel
    • Proportional Response Tuned
    • Ai offset drivetrain
    • ISCG05
    • BSA 83
    • Post mount brake
    • Tapered headtube
  • Headset
    Integrated, 1-1/8 to 1.5", sealed angular contact bearings
  • Rear Shock
    Fox Float Performance DPS EVOL, 3-Pos adj.

Wheels

  • Front Hub
    (F) Formula 15x110
  • Front Tire
    (F) Maxxis Minion DHF 29 x 2.5" WT, Dual compound, EXO puncture protection, tubeless ready
  • Rear Hub
    (R) Formula 12x148 w/ HG driver 12x148
  • Rear Tire
    (R) Maxxis High Roller II 29 x 2.3", Dual compound, EXO puncture protection, tubeless ready
  • Rims
    WTB ST i25 TCS 2.0, 32h, tubeless ready
  • Spokes
    Stainless steel, 14g
  • Tire Size
    (F) 2.5 (R) 2.3
  • Tires
    (F) Maxxis Minion DHF 29 x 2.5" WT, Dual compound, EXO puncture protection, tubeless ready(R) Maxxis High Roller II 29 x 2.3", Dual compound, EXO puncture protection, tubeless ready
  • Wheel Size
    29

Brakes

  • Brake Levers
    SRAM Guide T hydro disc
  • Brakes
    SRAM Guide T hydro disc, 180/180mm Centerline rotors

Components

  • Grips
    Fabric Funguy Locking Grips
  • Handlebar
    Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
  • Saddle
    Fabric Scoop Shallow Sport, steel rails
  • Seatpost
    Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M-XL)
  • Stem
    Cannondale 3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 0°

Weight: 15.1 kg / 33.3 lbs - Bike and frame weights may vary in final production.

Measurements

  • Size: LG
    5'8" 172
    6'0" 182
  • Size: MD
    5'6" 167
    5'9" 175
  • Size: SM
    5'2" 157
    5'5" 165
  • Size: XL
    6'1" 185
    6'5" 195

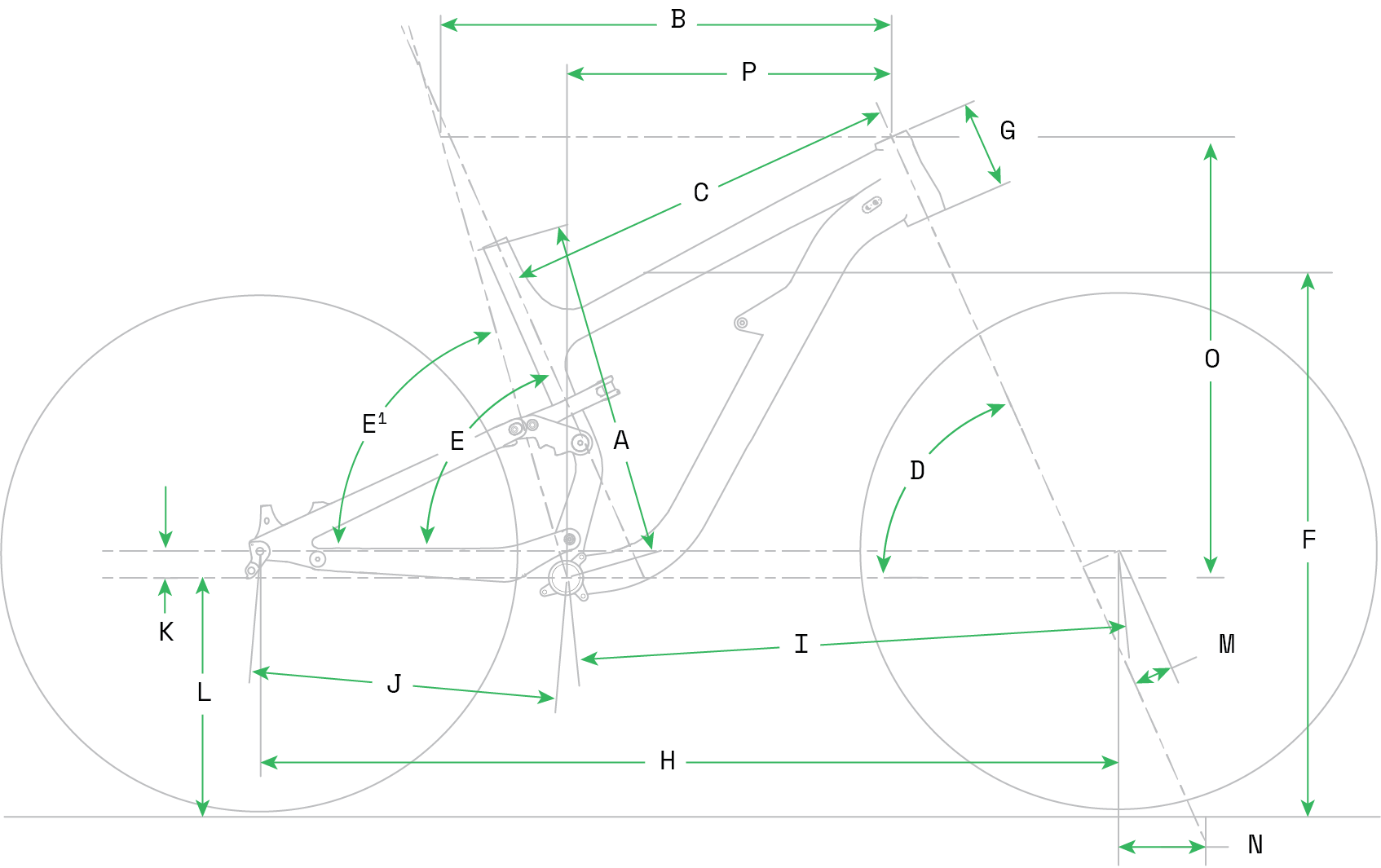

  XS SM MD LG XL
A Seat Tube Length 38cm 14 40cm 15 44cm 17 48cm 18 52cm 20
B Top Tube Length 53.8cm 21 57.3cm 22 60.6cm 23 63.9cm 25 67.1cm 26
C Top Tube Actual 47.6cm 18 51cm 20 54.3cm 21 57.9cm 22 61.7cm 24
D Head Tube Angle 66.0° 66.0° 66.0° 66.0° 66.0° 66.0° 66.0° 66.0° 66.0° 66.0°
E1 Seat Tube Angle Effective 74.5° 74.5° 74.5° 74.5° 74.5° 74.5° 74.5° 74.5° 74.5° 74.5°
F Standover 70cm 27 72cm 28 75cm 29 77cm 30 78cm 30
G Head Tube Length 9.5cm 3 10.5cm 4 11.5cm 4 12.5cm 4 13.5cm 5
H Wheelbase 110.3cm 43 114.2cm 44 117.6cm 46 121cm 47 124.4cm 48
I Front Center 67cm 26 71cm 27 74.3cm 29 77.8cm 30 81.1cm 31
J Chain Stay Length 43.5cm 17 43.5cm 17 43.5cm 17 43.5cm 17 43.5cm 17
K Bottom Bracket Drop 2.8cm 1 3.8cm 1 3.8cm 1 3.8cm 1 3.8cm 1
L Estimated BB Height 33.1cm 13 33.9cm 13 33.9cm 13 33.9cm 13 33.9cm 13
M Fork Rake 4.4cm 1 5.1cm 2 5.1cm 2 5.1cm 2 5.1cm 2
N Trail 11.2cm 4 11.2cm 4 11.2cm 4 11.2cm 4 11.2cm 4
O Stack 60cm 23 60.7cm 23 61.6cm 24 62.5cm 24 63.4cm 24
P Reach 36.6cm 14 40cm 15 43cm 16 46cm 18 49cm 19
