Cannondale: Habit | Trail Bikes | Mountain

Habit 5

+Compare
Habit 5
Find a bike shop
Find other local bike shops to check for availability

Platform: Habit

Second nature.

A trail bike with its priorities straight: progressive design, playful agility and killer capability – all in the name of fun.

Highlights

  • SmartForm C1 Alloy frame
  • RockShox 35 RL Gold 140mm fork / Fox Float Performance DPS EVOL rear shock
  • SRAM SX Eagle 12-speed drivetrain / dropper post

Where it thrives

Challenging trails, up and down hills

What it's built for

Traction, handling, durability

Flow seeker.

The head angle is slack, the stays are short and the seat angle is steep. It’s that long, low modern geometry that helps you wring a little more flow out of every kind of trail.

The right stuff

More Info

29” wheels with big, grippy tires. Properly wide bars and properly short stems. Powerful brakes and dropper posts. Straightforward parts for straightforward performance.

Easy to love

More Info

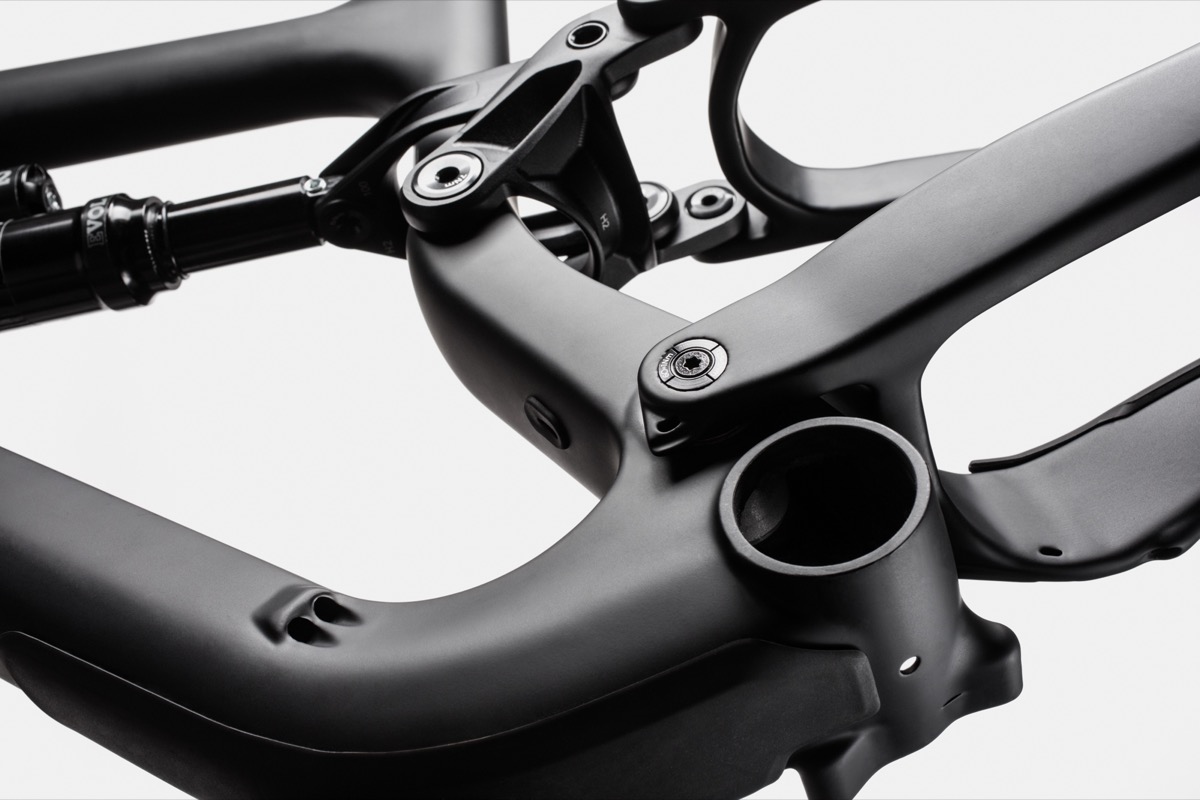

Designed to be a "daily ride", the Habit is built for easy service with proven, durable suspension pivots, easy internal cable routing and no oddball proprietary stuff.

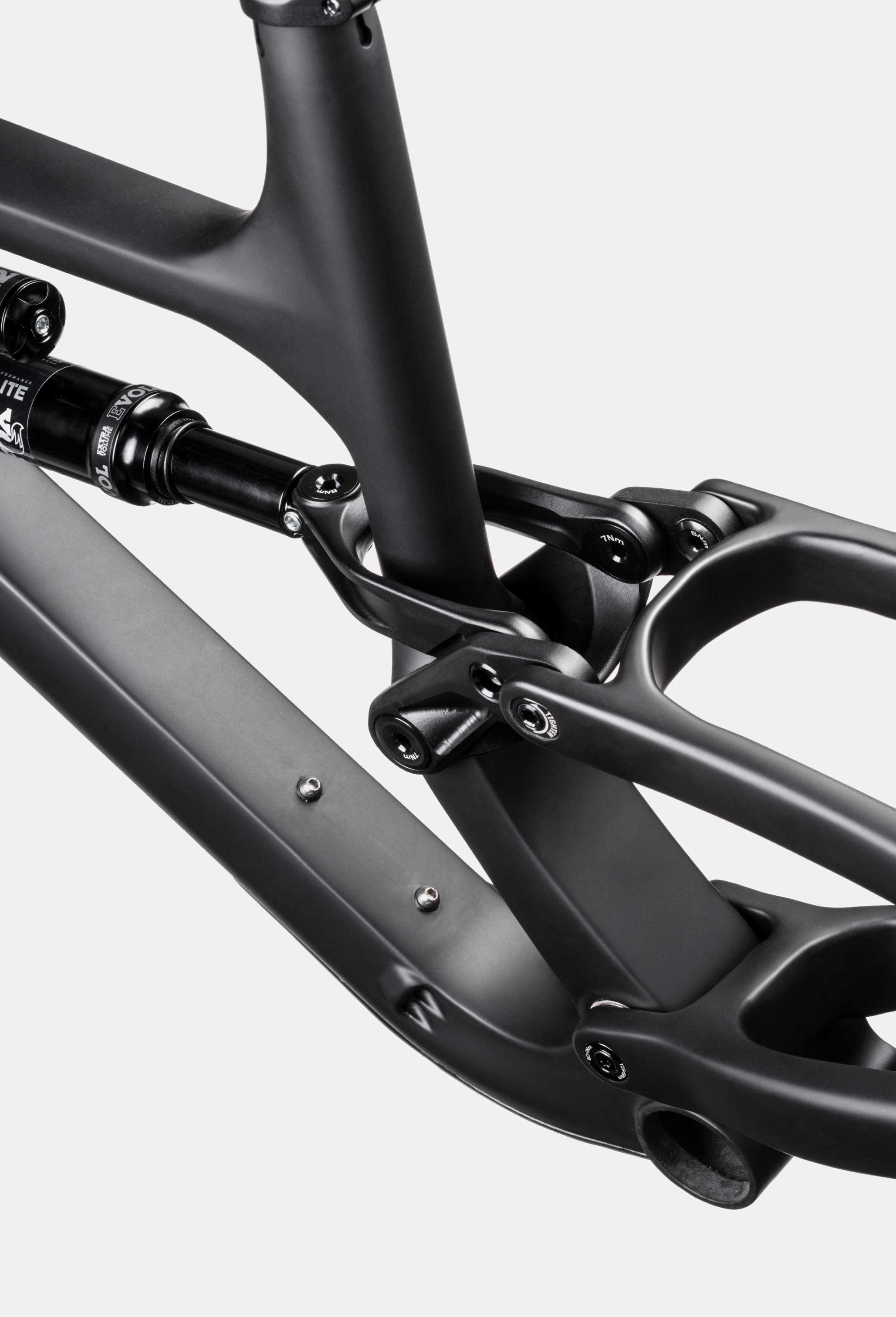

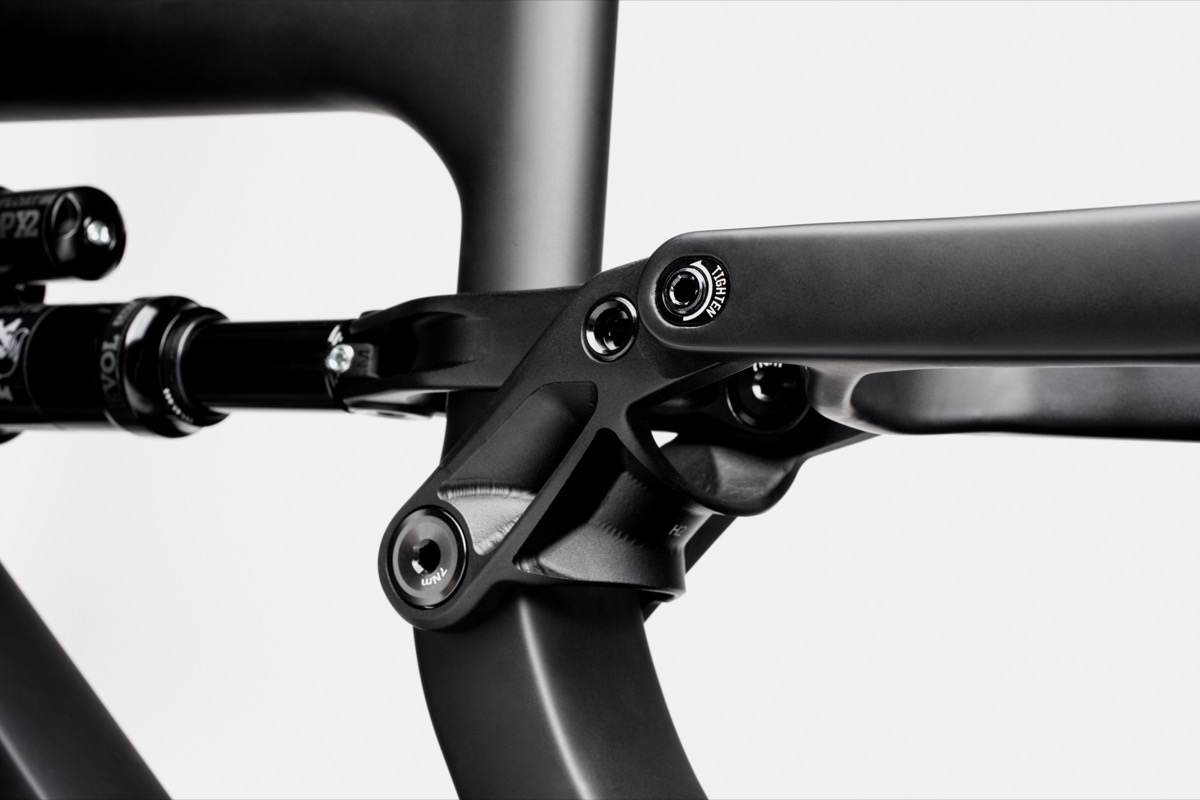

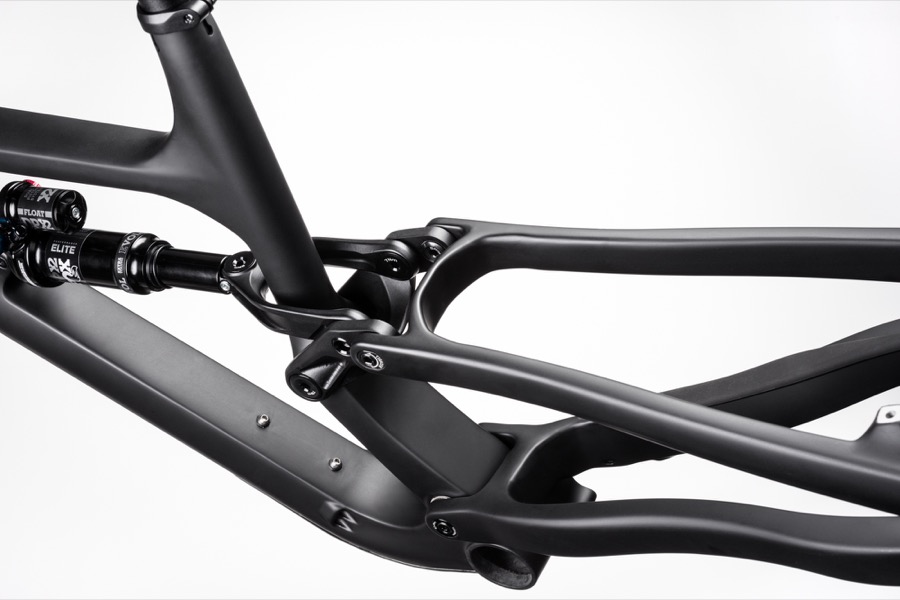

Proportional Response suspension

Riders come in all sizes. Most suspension doesn't. Proportional Response is the only suspension design that tailors the actual suspension layout by size so that every rider gets optimal traction, suppleness and control.

IN THE AIR, ON THE GROUND, THROUGH THE TRAILS

Technology

Drivetrain

  • Bottom Bracket
    SRAM DUB BSA MTB83
  • Chain
    SRAM SX Eagle, 12-speed
  • Crank
    SRAM X1-1000 Eagle DUB, 30T, Ai offset
  • Pedals
    Not Included
  • Rear Cogs
    SRAM PG-1210, SX Eagle, 11-50, 12-speed
  • Rear Derailleur
    SRAM SX Eagle
  • Shifters
    SRAM SX Eagle, 12-speed

Frameset

  • Fork
    RockShox 35 Gold RL, 140mm, DebonAir, 51mm offset
  • Frame
    130mm travel, SmartForm C1 Alloy, Proportional Response Tuned, Ai offset drivetrain, ISCG05, BSA 83, Post mount brake, tapered headtube
    • 130mm travel
    • Proportional Response Tuned
    • Ai offset drivetrain
    • ISCG05
    • BSA 83
    • Post mount brake
    • Tapered headtube
  • Headset
    Integrated, 1-1/8 to 1.5", sealed angular contact bearings
  • Rear Shock
    Fox Float Performance DPS EVOL, 3-Pos adj.

Wheels

  • Front Hub
    (F) Shimano MT400 15x110
  • Front Tire
    (F) Maxxis Minion DHF 29 x 2.5" WT, Dual compound, EXO puncture protection, tubeless ready
  • Rear Hub
    (R) Shimano MT400 12x148
  • Rear Tire
    (R) Maxxis High Roller II 29 x 2.3", Dual compound, EXO puncture protection, tubeless ready
  • Rims
    WTB STX i23 TCS, 32h, tubeless ready
  • Spokes
    Stainless Steel, 14g (Ai Offset Dish - rear)
  • Tire Size
    (F) 2.5 (R) 2.3
  • Tires
    (F) Maxxis Minion DHF 29 x 2.5" WT, Dual compound, EXO puncture protection, tubeless ready(R) Maxxis High Roller II 29 x 2.3", Dual compound, EXO puncture protection, tubeless ready
  • Wheel Size
    29

Brakes

  • Brake Levers
    Shimano MT200 hydro disc
  • Brakes
    Shimano MT200 hydro disc, 180/180mm RT30 rotors

Components

  • Grips
    Fabric Funguy Locking Grips
  • Handlebar
    Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
  • Saddle
    Cannondale Stage 3
  • Seatpost
    TranzX dropper, internal routing, 31.6, 100mm (S), 125mm (M-XL)
  • Stem
    Cannondale 3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 0°

Weight: 15.6 kg / 34.4 lbs - Bike and frame weights may vary in final production.

Measurements

  • Size: SM
    5'2" 157
    5'5" 165
  • Size: MD
    5'6" 167
    5'9" 175
  • Size: LG
    5'8" 172
    6'0" 182
  • Size: XL
    6'1" 185
    6'5" 195
  XS SM MD LG XL
A Seat Tube Length 38 96cm 40 101cm 44 111cm 48 121cm 52 132cm
B Top Tube Length 53.8 136cm 57.3 145cm 60.6 153cm 63.9 162cm 67.1 170cm
C Top Tube Actual 47.6 120cm 51.0 129cm 54.3 137cm 57.9 147cm 61.7 156cm
D Head Tube Angle 66.0° 66.0° 66.0° 66.0° 66.0° 66.0° 66.0° 66.0° 66.0° 66.0°
E1 Seat Tube Angle Effective 74.5° 74.5° 74.5° 74.5° 74.5° 74.5° 74.5° 74.5° 74.5° 74.5°
F Standover 70 177cm 72 182cm 75 190cm 77 195cm 78 198cm
G Head Tube Length 9.5 24cm 10.5 26cm 11.5 29cm 12.5 31cm 13.5 34cm
H Wheelbase 110.3 280cm 114.2 290cm 117.6 298cm 121 307cm 124.4 315cm
I Front Center 67.0 170cm 71.0 180cm 74.3 188cm 77.8 197cm 81.1 205cm
J Chain Stay Length 43.5 110cm 43.5 110cm 43.5 110cm 43.5 110cm 43.5 110cm
K Bottom Bracket Drop 2.8 7cm 3.8 9cm 3.8 9cm 3.8 9cm 3.8 9cm
L Estimated BB Height 33.1 84cm 33.9 86cm 33.9 86cm 33.9 86cm 33.9 86cm
M Fork Rake 4.4 11cm 5.1 12cm 5.1 12cm 5.1 12cm 5.1 12cm
N Trail 11.2 28cm 11.2 28cm 11.2 28cm 11.2 28cm 11.2 28cm
O Stack 60 152cm 60.7 154cm 61.6 156cm 62.5 158cm 63.4 161cm
P Reach 36.6 92cm 40.0 101cm 43.0 109cm 46.0 116cm 49.0 124cm
