Cannondale: SuperX | Cyclocross | Road

SuperX GRX

+Compare
SuperX GRX
Find a bike shop
Find other local bike shops to check for availability

Platform: SuperX

‘Cross boss.

Incredibly confident handling, unmatched traction, and huge mud & tire clearance make this ultra-light machine the ultimate 'cross racing rig.

Highlights

  • Light, durable BallisTec Carbon frameset
  • Shimano GRX 11-speed gravel group / HollowGram crank
  • Shimano GRX hydraulic disc brakes

Where it thrives

In competition, gravel roads, out in the elements

What it's built for

Traction, handling, speed

Drivetrain

  • Bottom Bracket
    Cannondale Alloy PressFit30
  • Chain
    Shimano HG601, 11-speed
  • Crank
    Cannondale 1, BB30a w/ FSA ring, 40T
  • Pedals
    Not Included
  • Rear Cogs
    Shimano 105, 11-34, 11-speed
  • Rear Derailleur
    Shimano Ultegra RX
  • Shifters
    Shimano GRX RX600 hydro disc

Frameset

  • Fork
    BallisTec Carbon, 1-1/8" to 1.5" steerer, internal cable routing, 12x100mm thru-axle, 55mm OutFront offset
  • Frame
    BallisTec Carbon, SAVE, BB30-83 Ai, internal cable routing, flat mount disc, 12x142 thru-axle
    • SAVE
    • BB30-83 Ai
    • Internal cable routing
    • Flat mount disc
    • 12x142 thru-axle
  • Headset
    SuperX, 1.5" lower to 1-1/8" upper w/ reducer, 25mm Alloy top cap

Wheels

  • Front Hub
    Formula RX-512 12x100
  • Hubs
    (F) Formula RX-512 12x100 / (R) Formula RX-142 12x142
  • Rear Hub
    Formula RX-142 12x142
  • Rims
    CX 1.0 TR, 28h front, 28h rear
  • Spokes
    Stainless steel, 14g
  • Tire Size
    33
  • Tires
    Vittoria Terreno Mix TNT, 700 x 33c, tubeless ready
  • Wheel Size
    700c

Brakes

  • Brake Levers
    Shimano 105
  • Brakes
    Shimano hydro disc, 160/160mm RT56 rotors

Components

  • Grips
    Cannondale Grip Bar Tape w/Gel, 3.5mm
  • Handlebar
    Cannondale 3, 6061 alloy, Compact
  • Saddle
    Fabric Scoop Shallow Sport, steel rails
  • Seatpost
    Cannondale 3, 6061 Alloy, 25.4 x 350mm (46-56), 400mm (58-61)
  • Stem
    Cannondale 3, 6061 alloy, 7-degree

Weight: 9.0 kg / 19.8 lbs - Bike and frame weights may vary in final production.

Measurements

  • Size: 46
    5'0" 152
    5'4" 162
  • Size: 51
    5'3" 160
    5'7" 170
  • Size: 54
    5'5" 165
    5'9" 175
  • Size: 56
    5'8" 172
    6'0" 182
  • Size: 58
    5'10" 177
    6'2" 187
  • Size: 61
    6'0" 182
    6'4" 193

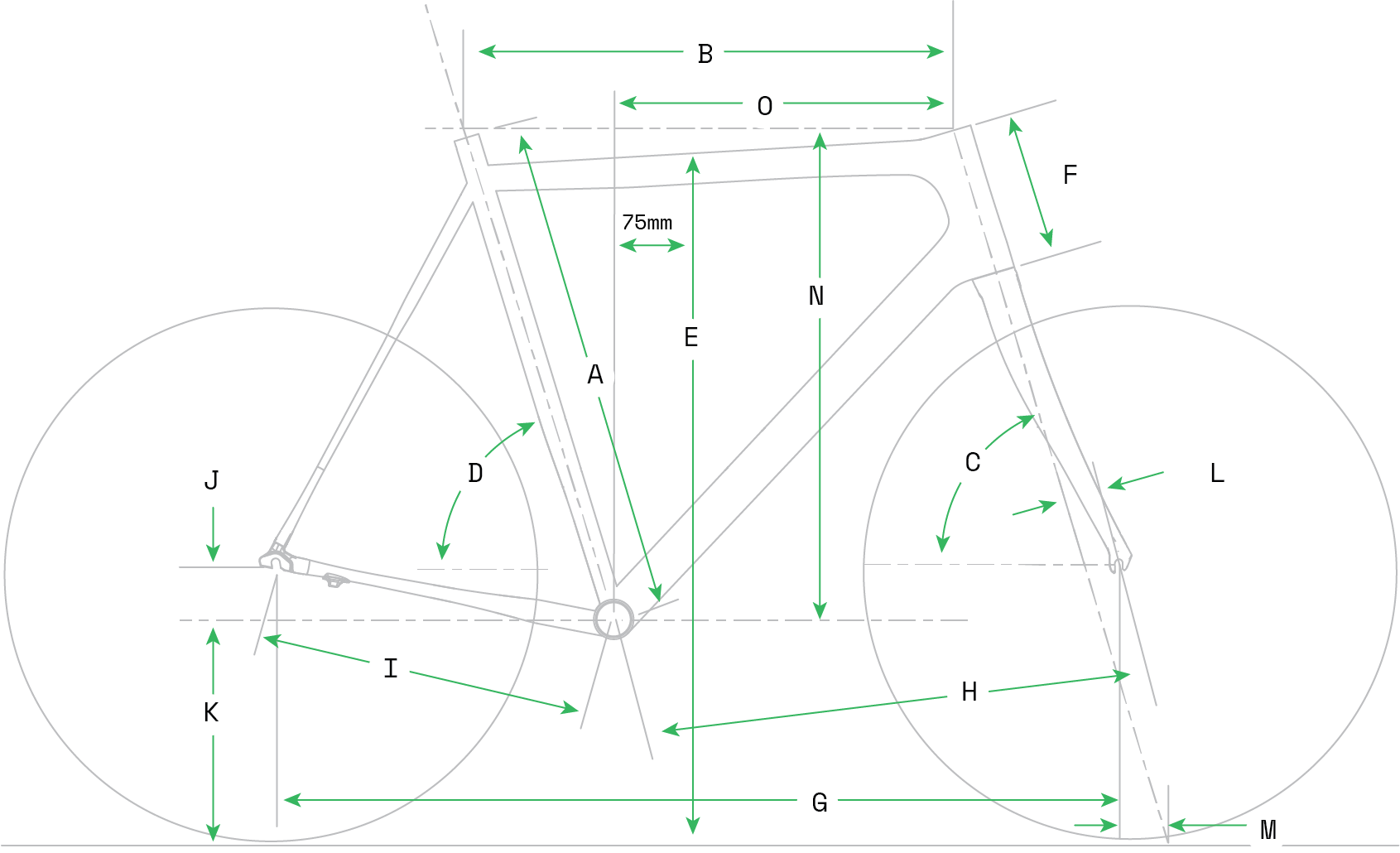

  46 51 54 56 58 61
A Seat Tube Length 44.9 114cm 48.8 123cm 52.4 133cm 54.6 138cm 56.6 143cm 58.9 149cm
B Top Tube Length 50.7 128cm 52.4 133cm 53.7 136cm 55.5 140cm 56.8 144cm 58.6 148cm
D Head Tube Angle 70.0° 70.0° 71.0° 71.0° 71.0° 71.0° 71.0° 71.0° 71.0° 71.0° 71.0° 71.0°
F Standover 74.3 188cm 77.3 196cm 80.2 203cm 82.2 208cm 84.3 214cm 86.3 219cm
G Head Tube Length 9.3 23cm 11 27cm 13.2 33cm 15.3 38cm 17.5 44cm 19.6 49cm
H Wheelbase 100.2 254cm 100.5 255cm 102 259cm 103.4 262cm 104.8 266cm 106.1 269cm
I Front Center 59 149cm 59.3 150cm 60.7 154cm 62.1 157cm 63.5 161cm 64.8 164cm
J Chain Stay Length 42.2 107cm 42.2 107cm 42.2 107cm 42.2 107cm 42.2 107cm 42.2 107cm
K Bottom Bracket Drop 7 17cm 7 17cm 6.9 17cm 6.9 17cm 6.8 17cm 6.8 17cm
L Estimated BB Height 28 71cm 28 71cm 28.1 71cm 28.1 71cm 28.2 71cm 28.2 71cm
M Fork Rake 5.5 13cm 5.5 13cm 5.5 13cm 5.5 13cm 5.5 13cm 5.5 13cm
N Trail 6.9 17cm 6.2 15cm 6.2 15cm 6.2 15cm 6.2 15cm 6.2 15cm
O Stack 51.5 130cm 53.5 135cm 55.5 140cm 57.5 146cm 59.5 151cm 61.5 156cm
P Reach 36.5 92cm 37.1 94cm 37.8 96cm 38.5 97cm 39.2 99cm 39.8 101cm
