Platform: SuperX
Highlights
- Light, durable BallisTec Carbon frameset
- SRAM Force 1, 11-speed hydro disc group / HollowGram crank
- Cannondale 2 alloy handlebar and carbon seatpost
Where it thrives
In competition, gravel roads, out in the elements
What it's built for
Traction, handling, speed
Massive Clearance
The clearance offered by the Ai rear end means you can pit less than the other guys in muddy conditions, or run up to 40mm tires for adventure and gravel riding.
Ultra Light & Stiff
BallisTec Carbon Construction, a massive headtube and Ai even-dish rear wheels deliver chart topping stiffness and incredibly light weight. Wicked to sprint, easy to shoulder.
Thru-axles
142x12mm rear and 100x12mm front thru-axles keep everything stiff and solid under hard braking.
Derailleur Ready
A bolt-on mount makes adding a front derailleur easy if you want to run a dual chainring crankset.
Drivetrain
-
Bottom BracketCannondale Alloy PressFit30
-
ChainSRAM PC-1130, 11-speed
-
CrankHollowGram, BB30a w/ OPI SpideRing, 40T
-
PedalsNot Included
-
Rear CogsSRAM PG-1130, 11-36, 11-speed
-
Rear DerailleurSRAM Force 1, Long Cage
-
ShiftersSRAM Force 1, 11-speed
Frameset
-
ForkBallisTec Carbon, 1-1/8" to 1.5" steerer, internal cable routing, 12x100mm thru-axle, 55mm OutFront offset
-
FrameBallisTec Carbon, SAVE, BB30-83 Ai, internal cable routing, flat mount disc, 12x142 thru-axle
- SAVE
- BB30-83 Ai
- Internal cable routing
- Flat mount disc
- 12x142 thru-axle
-
HeadsetSuperX, 1.5" lower to 1-1/8" upper w/ reducer, 25mm Alloy top cap
Wheels
-
Front HubFormula CL-712, 12x100 centerlock
-
Hubs(F) Formula CL-712 , 12x100 centerlock/ (R) RXC-142S, 12x142 centerlock
-
Rear HubRXC-142S, 12x142 centerlock
-
RimsCX 1.0 TR, 28h front, 28h rear
-
SpokesStainless steel, 14g
-
Tire Size33
-
TiresVittoria Terreno Mix TNT, 700 x 33c, tubeless ready
-
Wheel Size700c
Brakes
-
Brake LeversSRAM Force
-
BrakesSRAM Force 1 HRD, 160/160mm Centerlock rotors
Components
-
GripsCannondale Grip Bar Tape w/Gel, 3.5mm
-
HandlebarCannondale 2, 7050 Alloy, Compact
-
SaddleFabric Scoop Flat Elite, cro-mo rails
-
SeatpostCannondale 2, UD Carbon, 25.4 x 350mm
-
StemCannondale 2, 6061 Alloy, 31.8, 7°
Weight: 8.2 kg / 18.0 lbs - Bike and frame weights may vary in final production.

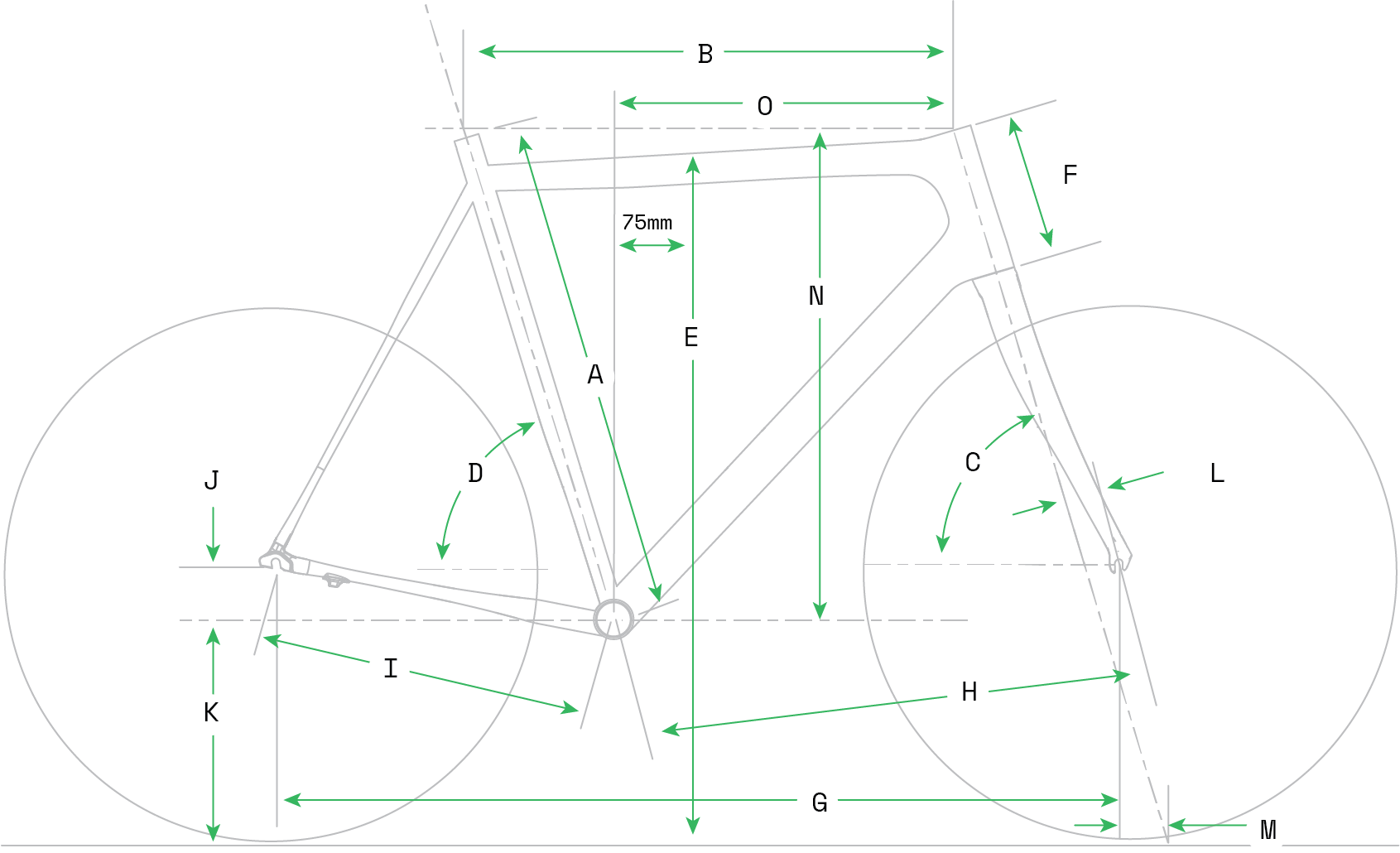

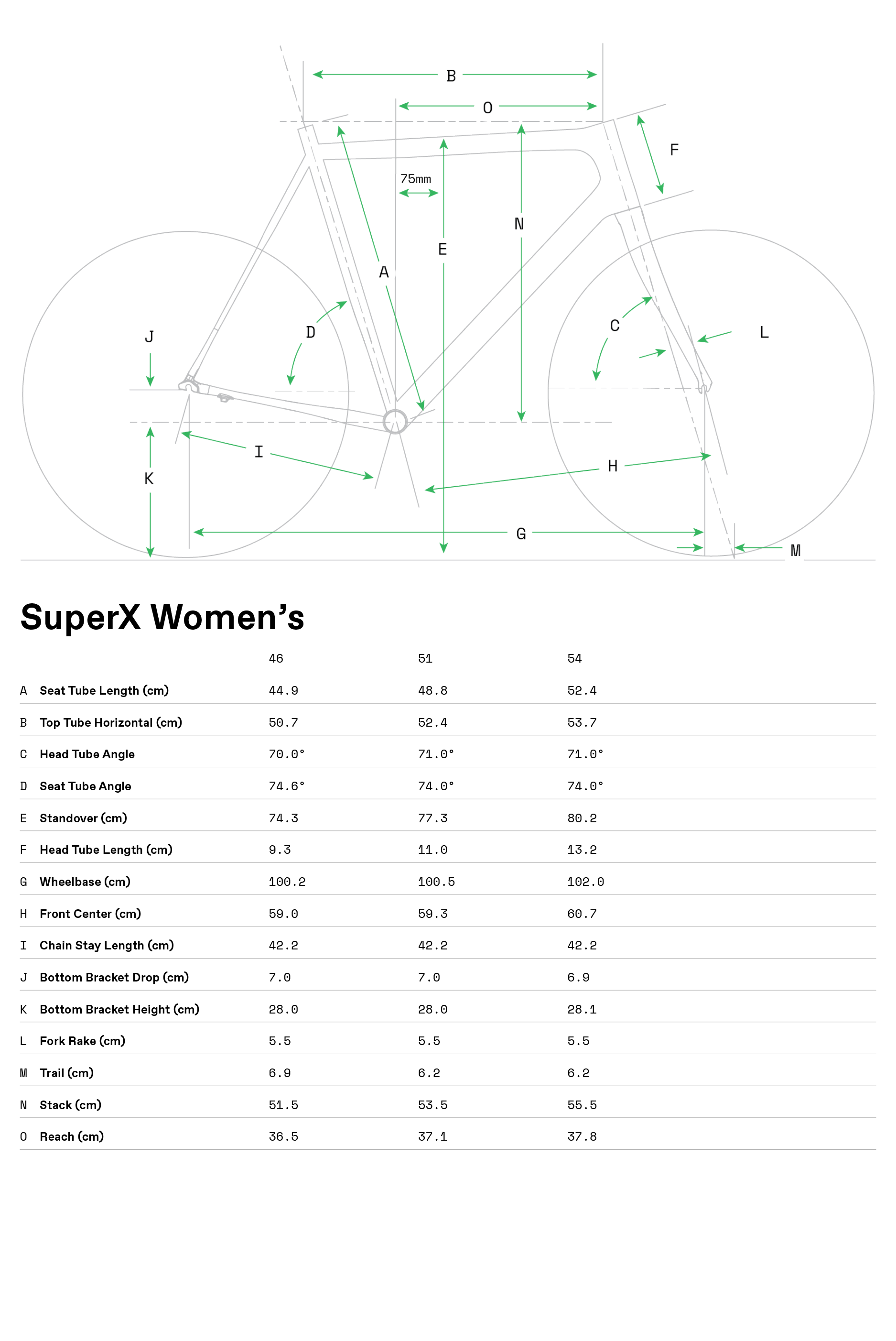

Measurements
- Size: 46
- Size: 51
- Size: 54
| 46 | 51 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| A Seat Tube Length | 44.9 114cm | 48.8 123cm | 52.4 133cm | 54.6 138cm | 56.6 143cm | 58.9 149cm |
| B Top Tube Length | 50.7 128cm | 52.4 133cm | 53.7 136cm | 55.5 140cm | 56.8 144cm | 58.6 148cm |
| D Head Tube Angle | 70.0° 70.0° | 71.0° 71.0° | 71.0° 71.0° | 71.0° 71.0° | 71.0° 71.0° | 71.0° 71.0° |
| F Standover | 74.3 188cm | 77.3 196cm | 80.2 203cm | 82.2 208cm | 84.3 214cm | 86.3 219cm |
| G Head Tube Length | 9.3 23cm | 11 27cm | 13.2 33cm | 15.3 38cm | 17.5 44cm | 19.6 49cm |
| H Wheelbase | 100.2 254cm | 100.5 255cm | 102 259cm | 103.4 262cm | 104.8 266cm | 106.1 269cm |
| I Front Center | 59 149cm | 59.3 150cm | 60.7 154cm | 62.1 157cm | 63.5 161cm | 64.8 164cm |
| J Chain Stay Length | 42.2 107cm | 42.2 107cm | 42.2 107cm | 42.2 107cm | 42.2 107cm | 42.2 107cm |
| K Bottom Bracket Drop | 7 17cm | 7 17cm | 6.9 17cm | 6.9 17cm | 6.8 17cm | 6.8 17cm |
| L Estimated BB Height | 28 71cm | 28 71cm | 28.1 71cm | 28.1 71cm | 28.2 71cm | 28.2 71cm |
| M Fork Rake | 5.5 13cm | 5.5 13cm | 5.5 13cm | 5.5 13cm | 5.5 13cm | 5.5 13cm |
| N Trail | 6.9 17cm | 6.2 15cm | 6.2 15cm | 6.2 15cm | 6.2 15cm | 6.2 15cm |
| O Stack | 51.5 130cm | 53.5 135cm | 55.5 140cm | 57.5 146cm | 59.5 151cm | 61.5 156cm |
| P Reach | 36.5 92cm | 37.1 94cm | 37.8 96cm | 38.5 97cm | 39.2 99cm | 39.8 101cm |
