Topstone Carbon Force eTap AXS

+Compare
Topstone Carbon Force eTap AXS
Find a bike shop
Find other local bike shops to check for availability

Platform: Topstone Carbon

More give. More go.

An unprecedented gravel bike with real suspension. It's the most off-road capable and on-road comfortable road bike ever made.

Highlights

  • BallisTec carbon frameset with Kingpin suspension
  • SRAM Force eTap AXS 12-speed electronic group / Integrated Cannondale App connectivity
  • HollowGram SAVE Systembar handlebar / HollowGram 22 Carbon wheelset

Where it thrives

Gravel roads, out in the elements, low-impact trails

What it's built for

Traction, handling, comfort

More Give. More Go.

Featuring Kingpin, a revolutionary, super-light suspension that lets you ride harder on dirt and more smoothly on pavement. Better control. Better traction. Better comfort. Nothing sacrificed.

It’s easier to go harder

More Info

Refined geometry and rider position deliver an experience that’s stable, composed and comfortable without losing that spark. Go further, ride longer, charge harder.

Load and go

More Info

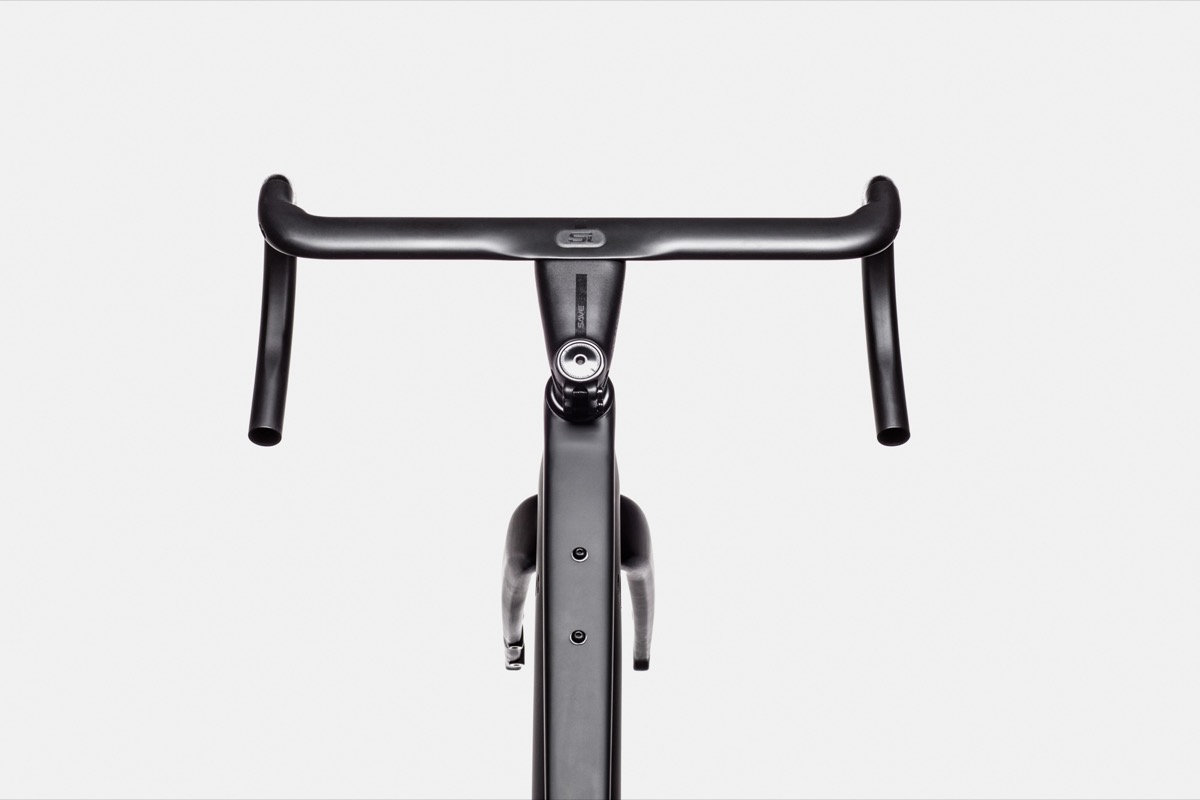

Plenty of places to store gear and water, with a multi-position mount on the downtube, and more on the top tube, seat tube, and under the down tube. There's even mounts on the forks.

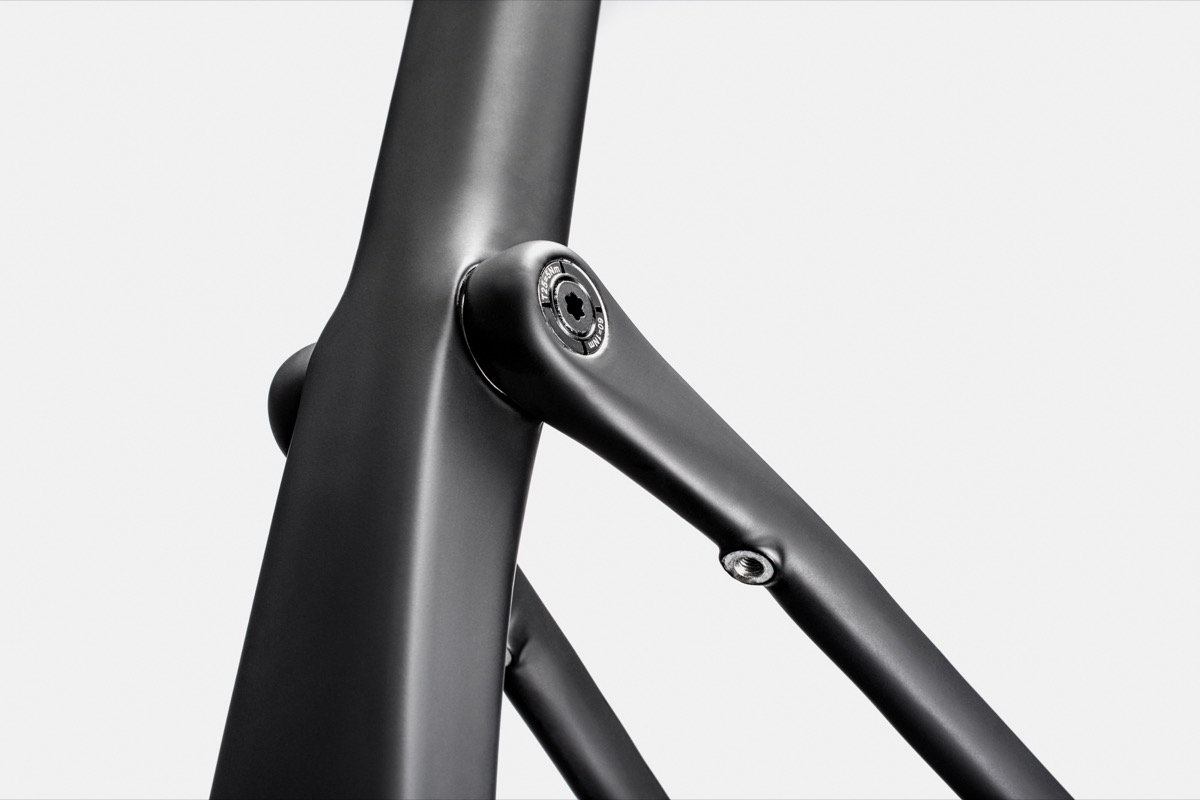

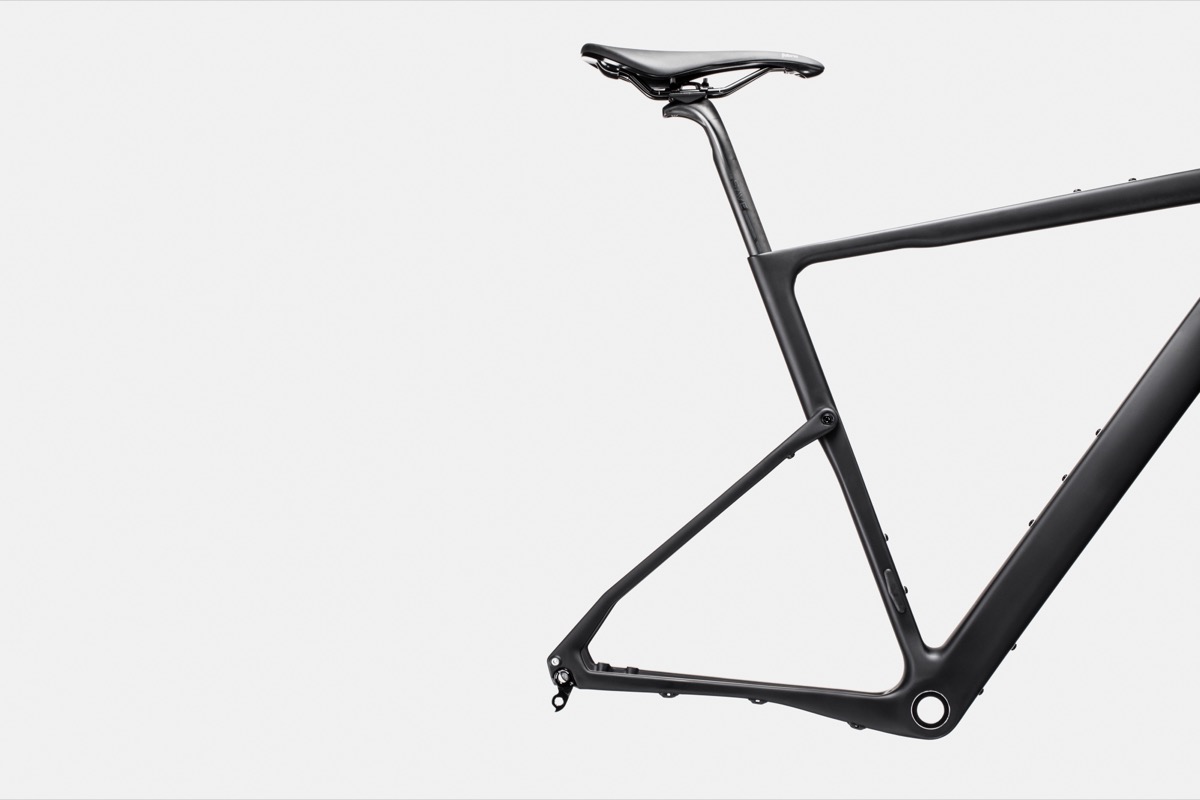

SUPER LIGHTWEIGHT KINGPIN SUSPENSION

See the Collection

International Connectivity

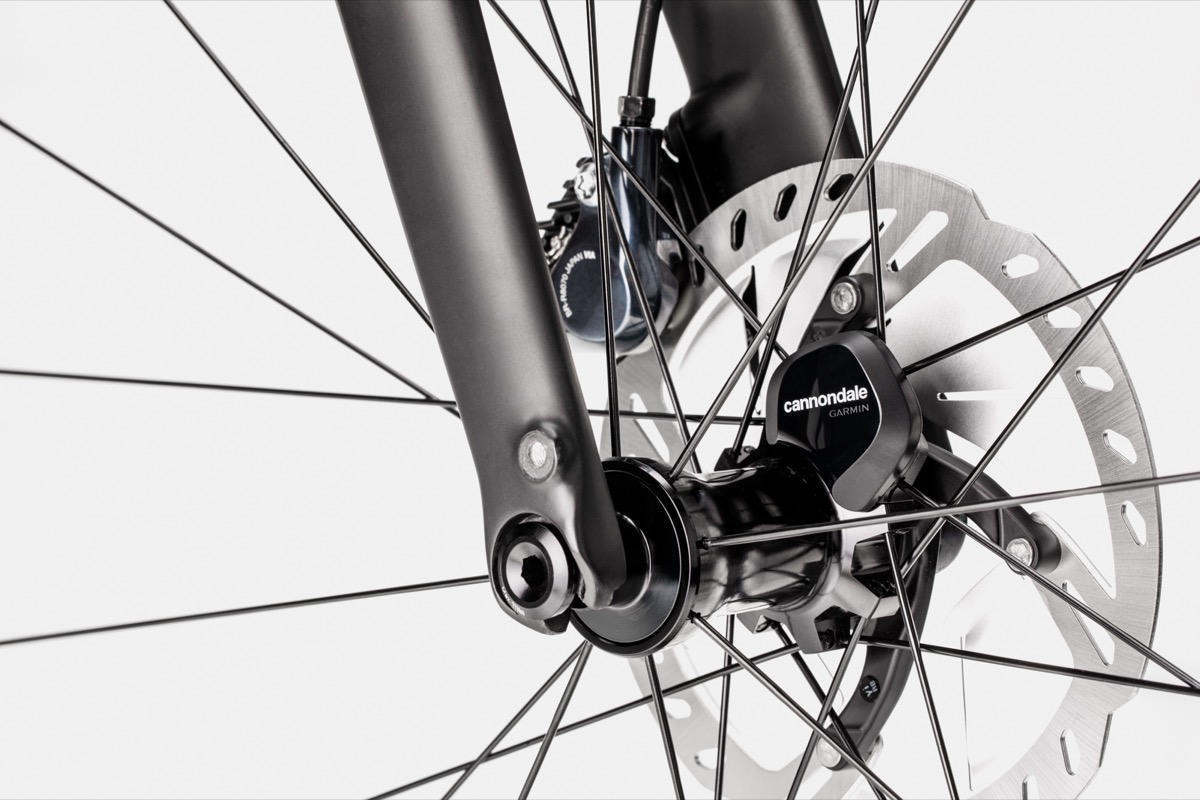

  • Wheel Sensor
    Cannondale Wheel Sensor

Drivetrain

  • Bottom Bracket
    Cannondale Alloy BB30
  • Chain
    SRAM Force eTap AXS, 12-speed
  • Crank
    SRAM Force eTap AXS, 46/33
  • Front Derailleur
    SRAM Force eTap AXS, braze-on
  • Pedals
    Not Included
  • Rear Cogs
    SRAM XG-1270, 10-33, 12-speed
  • Rear Derailleur
    SRAM Force eTap AXS
  • Shifters
    SRAM Force eTap AXS HRD, 2x12

Frameset

  • Fork
    All-New, BallisTec Carbon, 55mm OutFront offset, SAVE, 1-1/8" to 1.5" steerer, integrated crown race, Directline internal routing, 12x100mm Speed Release thru-axle, flat mount disc, gear/rack/fender mounts

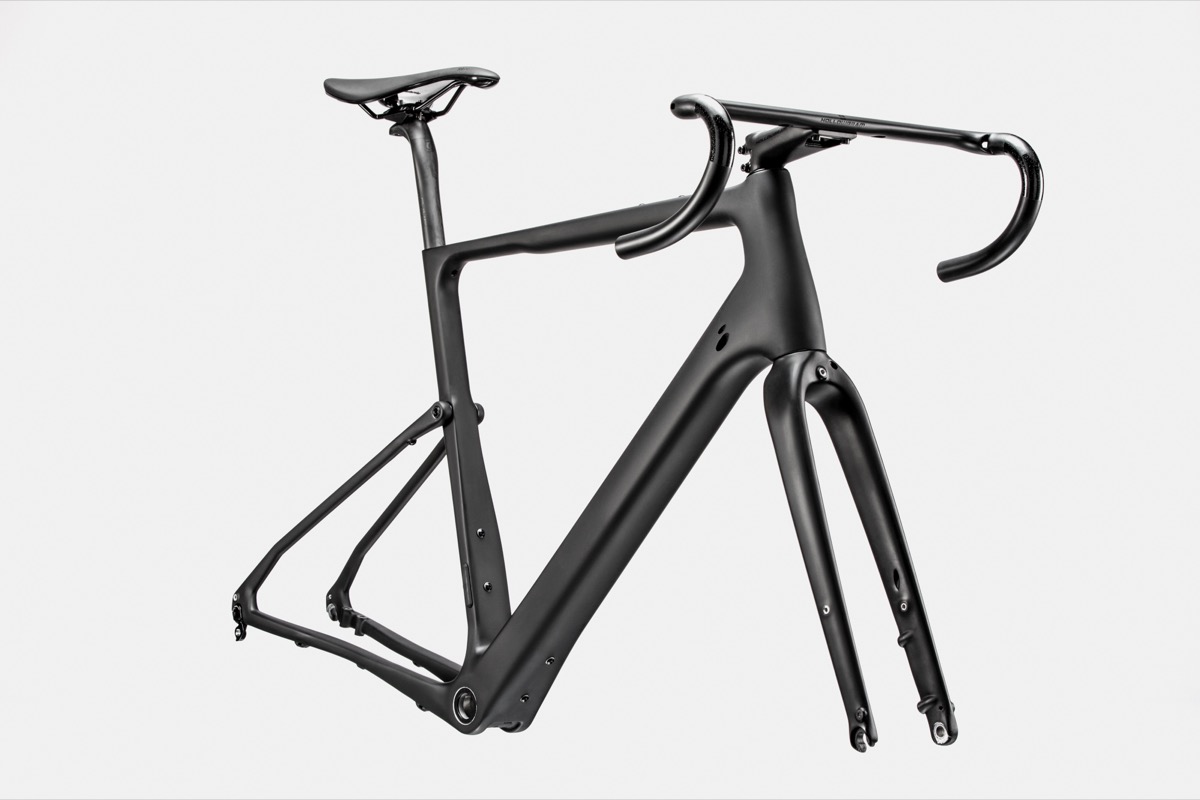

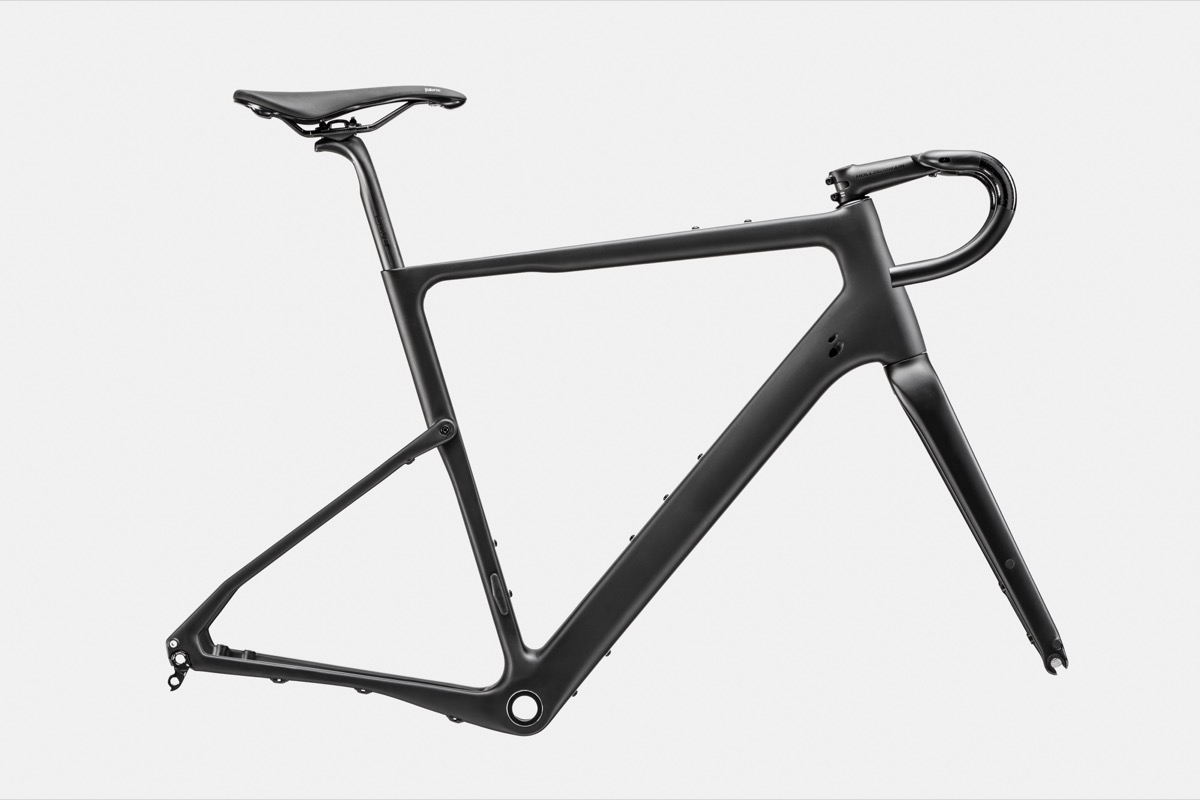

  • Frame
    All-New, BallisTec Carbon, Kingpin suspension system, Proportional Response size-specific construction, Directline internal cable routing, BB30-83 Ai, 142x12 Speed Release thru-axle, flat-mount disc, removable fender bridge, multiple gear/bottle mounts, dropper post compatible
    • Kingpin suspension system
    • Proportional Response size-specific construction

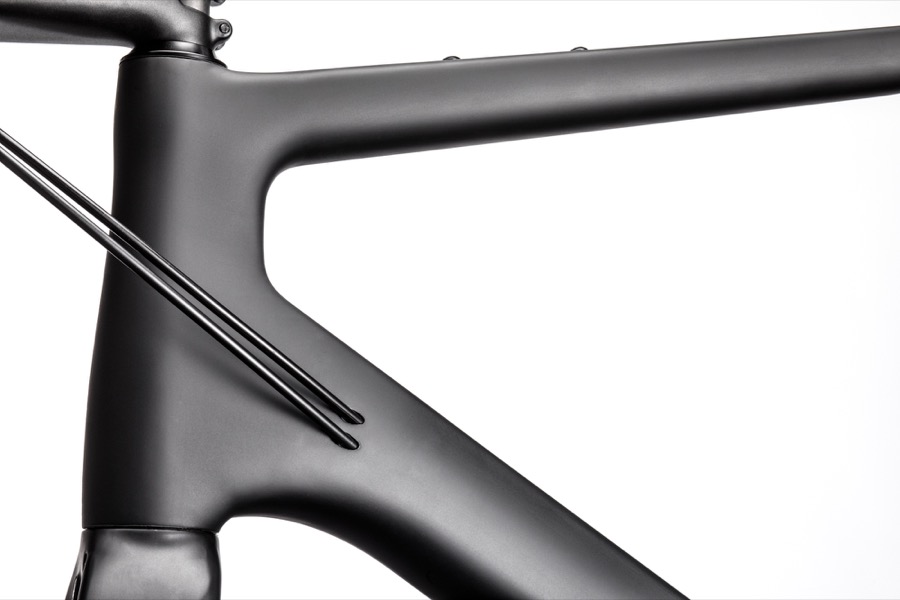

    • Directline internal cable routing
    • BB30-83 Ai

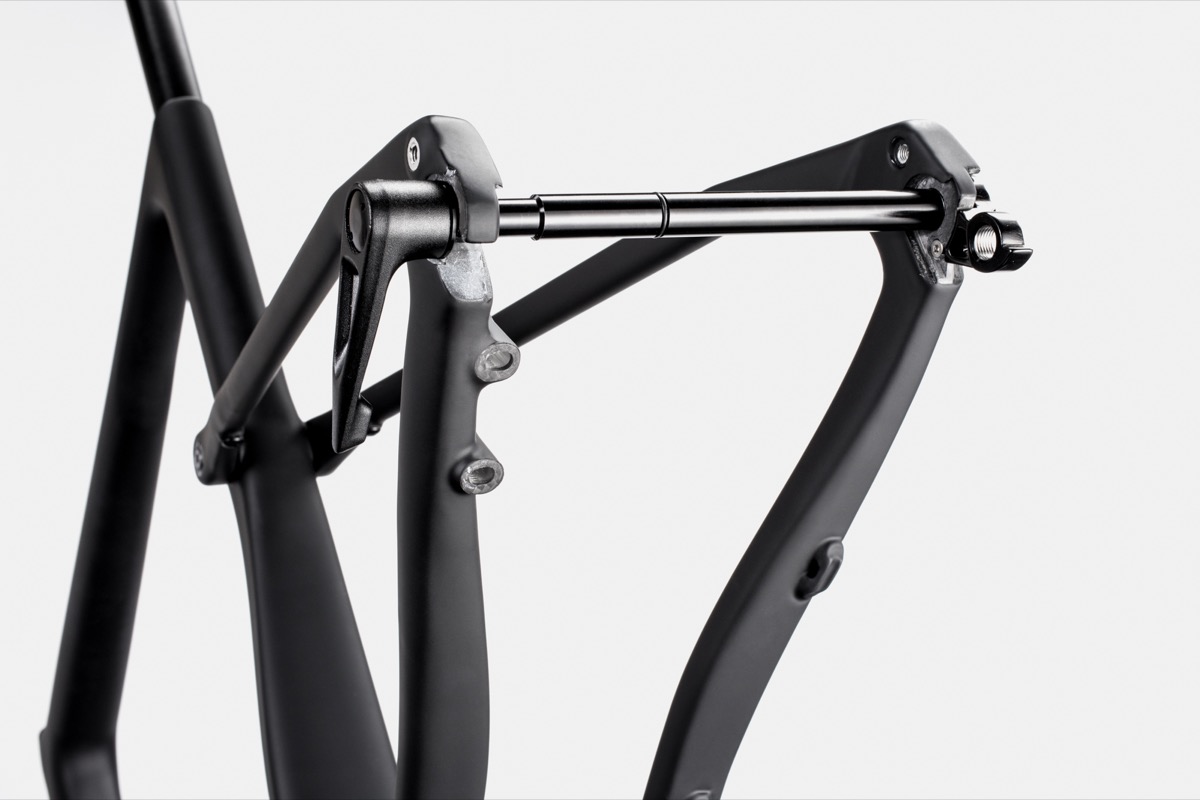

    • 142x12 Speed Release thru-axle
    • Flat-mount disc

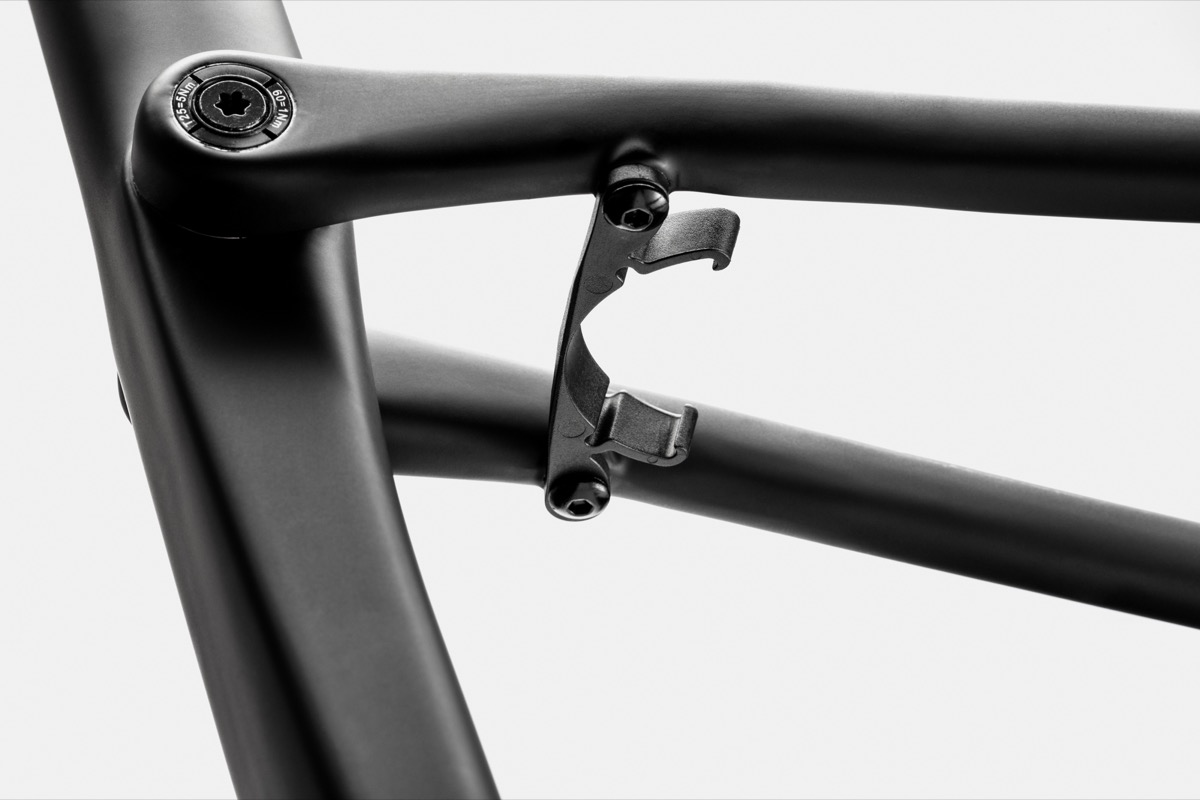

    • Removable fender bridge
    • Multiple gear/bottle mounts

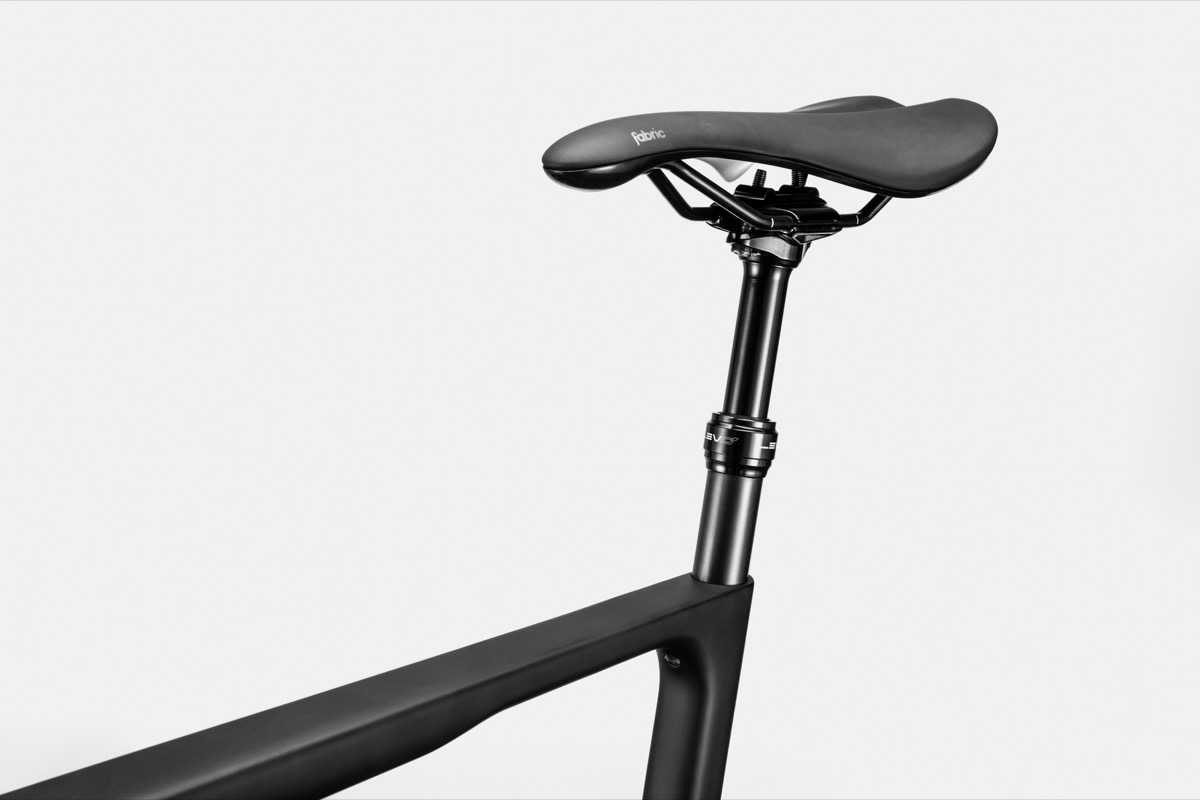

    • Dropper post compatible
  • Headset
    Integrated, 1.5" lower to 1-1/8" upper w/ reducer, 25mm Alloy top cap

Wheels

  • Front Hub
    HollowGram Sealed Bearing, straight pull, 12x100
  • Hubs
    (F) HollowGram Sealed Bearing, straight pull, 12x100 / (R) HollowGram 142x12, Centerlock
  • Rear Hub
    HollowGram 142x12
  • Rims

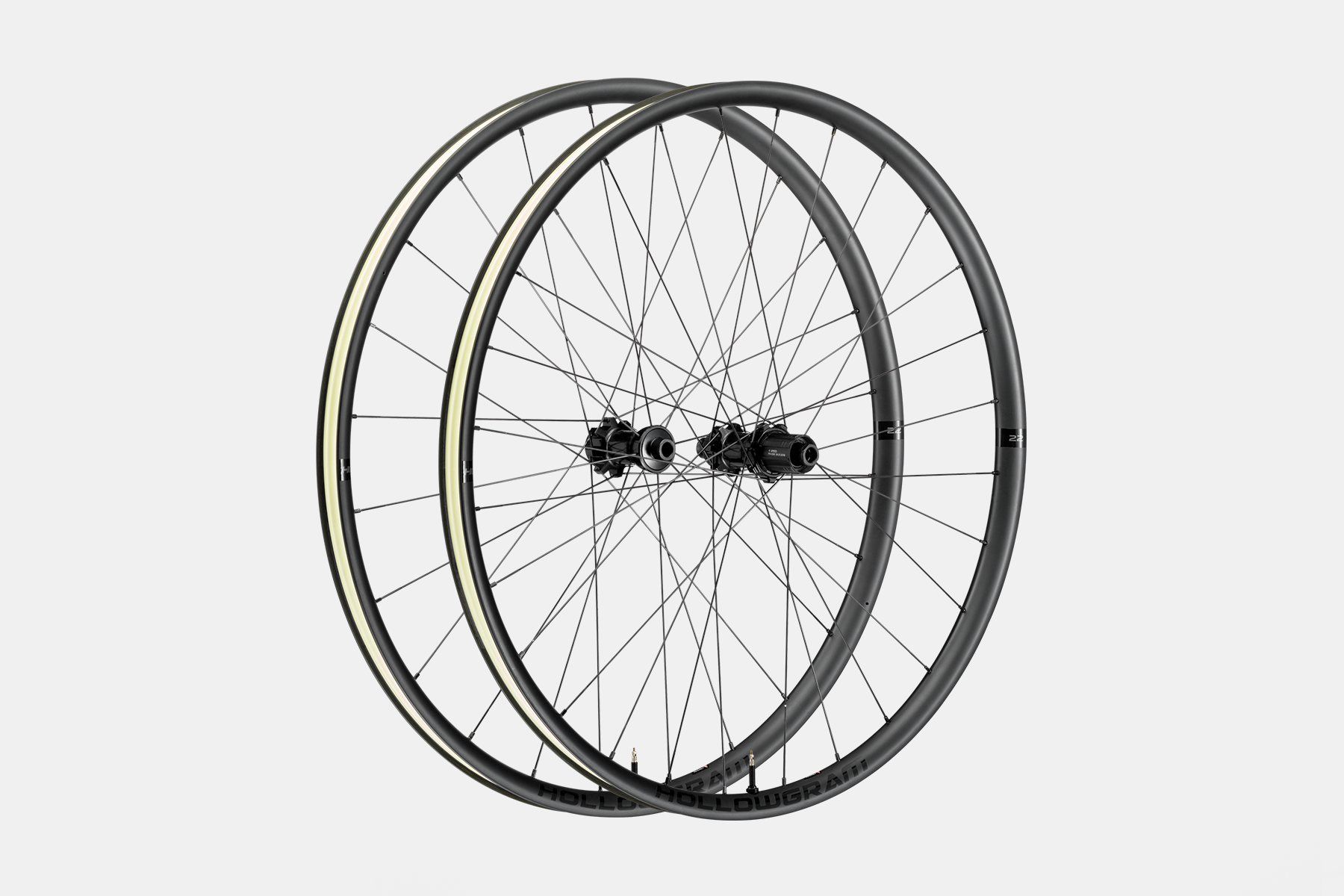

    HollowGram 22 Carbon, 22mm deep, 25mm ID, tubeless ready
  • Spokes
    HollowGram, double-butted straight pull (Ai Offset Dish - rear)
  • Tire Size
    37
  • Tires
    WTB Riddler TCS Light, 700 x 37c, tubeless ready
  • Wheel Size
    700c

Brakes

  • Brake Levers
    SRAM Force eTap AXS
  • Brakes
    SRAM Force eTap AXS, 160/160mm Centerline, Centerlock rotors

Components

  • Grips
    Cannondale Grip Bar Tape w/Gel, 3.5mm
  • Handlebar
    HollowGram SAVE Carbon, 400mm (S), 420mm (M-L)
  • Saddle
    Fabric Scoop Shallow Race, titanium rails
  • Seatpost
    SAVE Carbon, 27.2 x 350mm (XS-L), 400mm (XL)
  • Stem
    All-New HollowGram SAVE, alloy, -6°

Weight: 8.7 kg / 19.3 lbs - Bike and frame weights may vary in final production.

Measurements

  • Size: XS
    5'0" 152
    5'5" 165
  • Size: SM
    5'4" 162
    5'9" 175
  • Size: MD
    5'7" 170
    6'1" 185
  • Size: LG
    5'11" 180
    6'4" 193
  • Size: XL
    6'3" 190
    6'8" 203

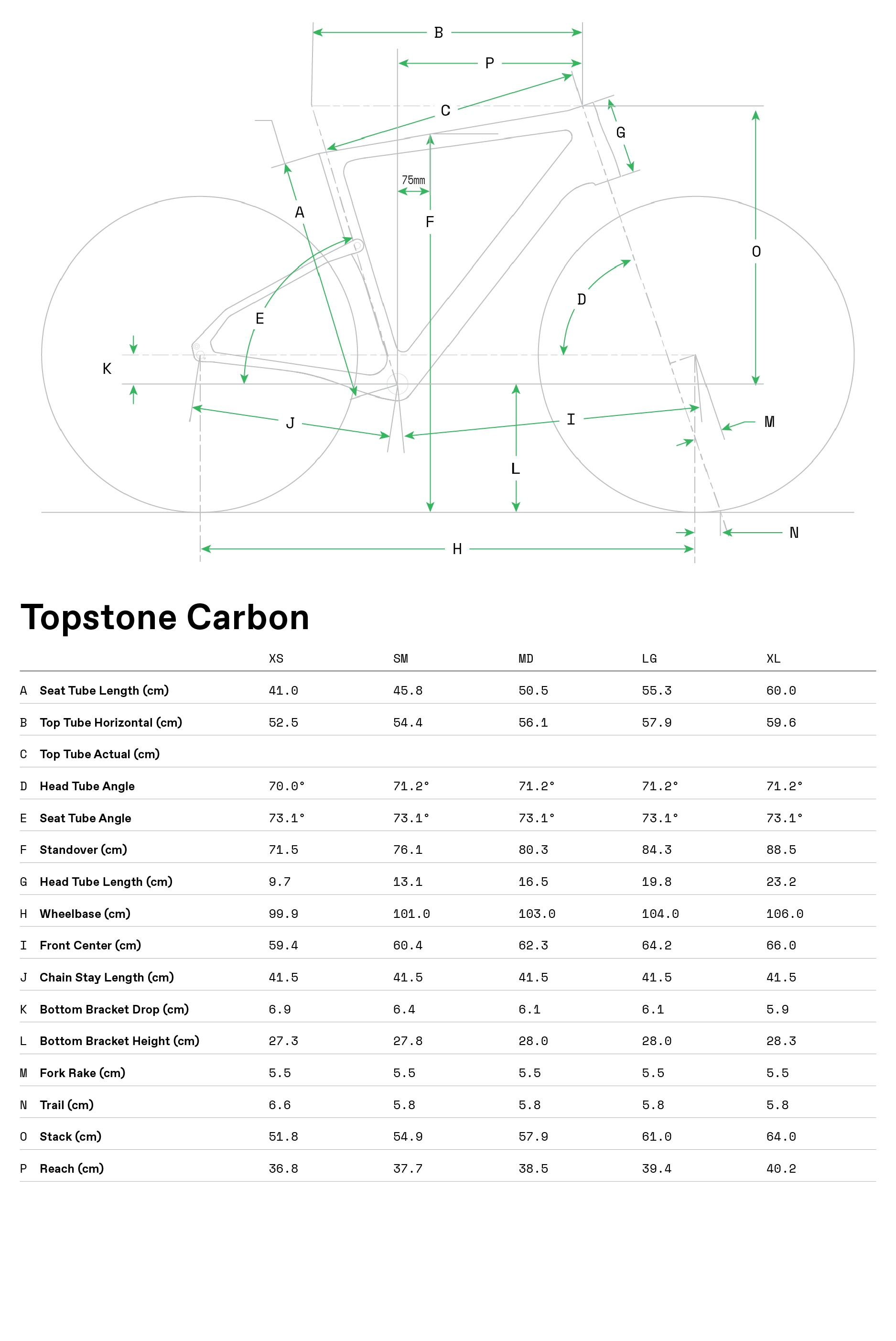

  XS SM MD LG XL
A Seat Tube Length 41.0 104cm 45.8 116cm 50.5 128cm 55.3 140cm 60.0 152cm
B Top Tube Length 52.5 133cm 54.4 138cm 56.1 142cm 57.9 147cm 59.6 151cm
D Head Tube Angle 70.0° 70.0° 71.2° 71.2° 71.2° 71.2° 71.2° 71.2° 71.2° 71.2°
F Standover 71.5 181cm 76.1 193cm 80.3 203cm 84.3 214cm 88.5 224cm
G Head Tube Length 9.7 24cm 13.1 33cm 16.5 41cm 19.8 50cm 23.2 58cm
H Wheelbase 99.9 253cm 101.0 256cm 103.0 261cm 104.0 264cm 106.0 269cm
I Front Center 59.4 150cm 60.4 153cm 62.3 158cm 64.2 163cm 66.0 167cm
J Chain Stay Length 41.5 105cm 41.5 105cm 41.5 105cm 41.5 105cm 41.5 105cm
K Bottom Bracket Drop 6.9 17cm 6.4 16cm 6.1 15cm 6.1 15cm 5.9 14cm
L Estimated BB Height 27.3 69cm 27.8 70cm 28.0 71cm 28.0 71cm 28.3 71cm
M Fork Rake 5.5 13cm 5.5 13cm 5.5 13cm 5.5 13cm 5.5 13cm
N Trail 6.6 16cm 5.8 14cm 5.8 14cm 5.8 14cm 5.8 14cm
O Stack 51.8 131cm 54.9 139cm 57.9 147cm 61.0 154cm 64.0 162cm
P Reach 36.8 93cm 37.7 95cm 38.5 97cm 39.4 100cm 40.2 102cm

Technology

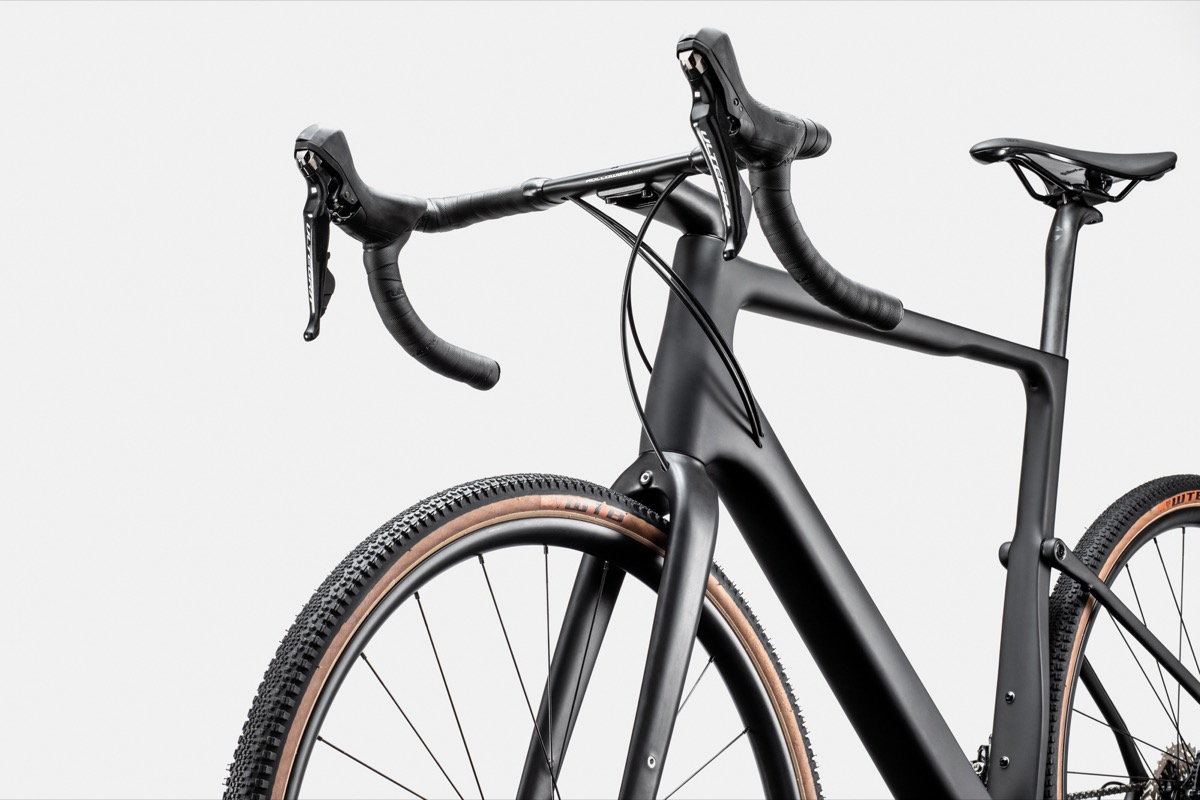

Big tire clearance
Comes with big 700x37c tires for grip and comfort, but has room for up to 40mm tires with tons of clearance. You can even put on 650 wheels with 48mm tires if small and fat is your thing.
