- Lightweight low-drag BallisTec carbon frameset
- Integrated Cannondale App connectivity / HollowGram crank w/ power meter
- HollowGram 45 SL KNØT carbon wheels / SAVE SystemBar
Where it thrives
In competition, the open road, up and down hills
What it's built for
Speed, agility, handling
30 watts. That's how much power the drag-reducing tube shapes and integrated design of the new SuperSix EVO saves over the prior version at 30 mph (48.3 km/h).
Feel the light
The lightest disc brake road frameset we've ever made. The new SuperSix EVO is ready to throw down when the grade goes up.
Swift & sure
Racy geometry and stiffness for explosive speed. Better micro-suspension and big tire clearance for surprising smoothness. It all adds up to precise handling and a ride-feel that’s out of sight.
The frame features highly truncated airfoil tube shapes that offer the same weight, and equal or better stiffness than round tubes, but reduce drag by up to 30%.
Hidden Cable Routing
Unique design routes brake lines through an opening in the front of the headtube for minimal drag and headache-free serviceability.
SuperSix EVO has always been known for its elegantly smooth ride quality, and the new one is even smoother. The new SAVE rear stays, integrated binder and 27 KNØT seat post increase compliance by 18%.
The new frame design has clearance for some seriously big rubber. 30mm tires fit with ease, for new levels of comfort and capability on any kind of road.

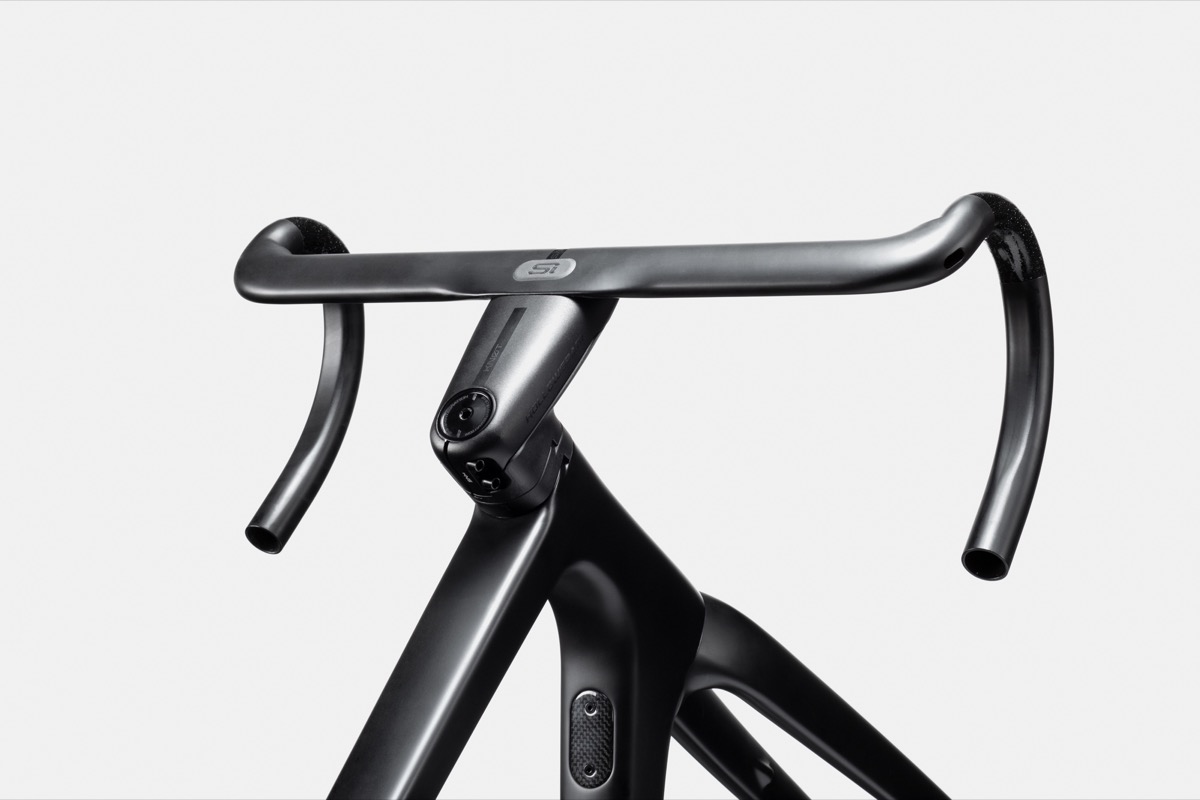

HollowGram KNØT SystemStem + SAVE SystemBar
Svelte stem and bar profile reduces drag and absorbs shock for added speed and comfort. Two-piece design allows interchangeability and 8° of pitch adjustment to perfectly fine-tune rider position.“
HollowGram 45 KNØT Wheels
An evolution of our wide, ultra-fast, low-drag rim profile with a light, versatile 45mm depth. Maintains high aerodynamic efficiency even with big tires.
An integrated wheel sensor delivers hyper accurate speed, route and distance info, registers your bike, reminds you of needed service and more, all through the free Cannondale App.

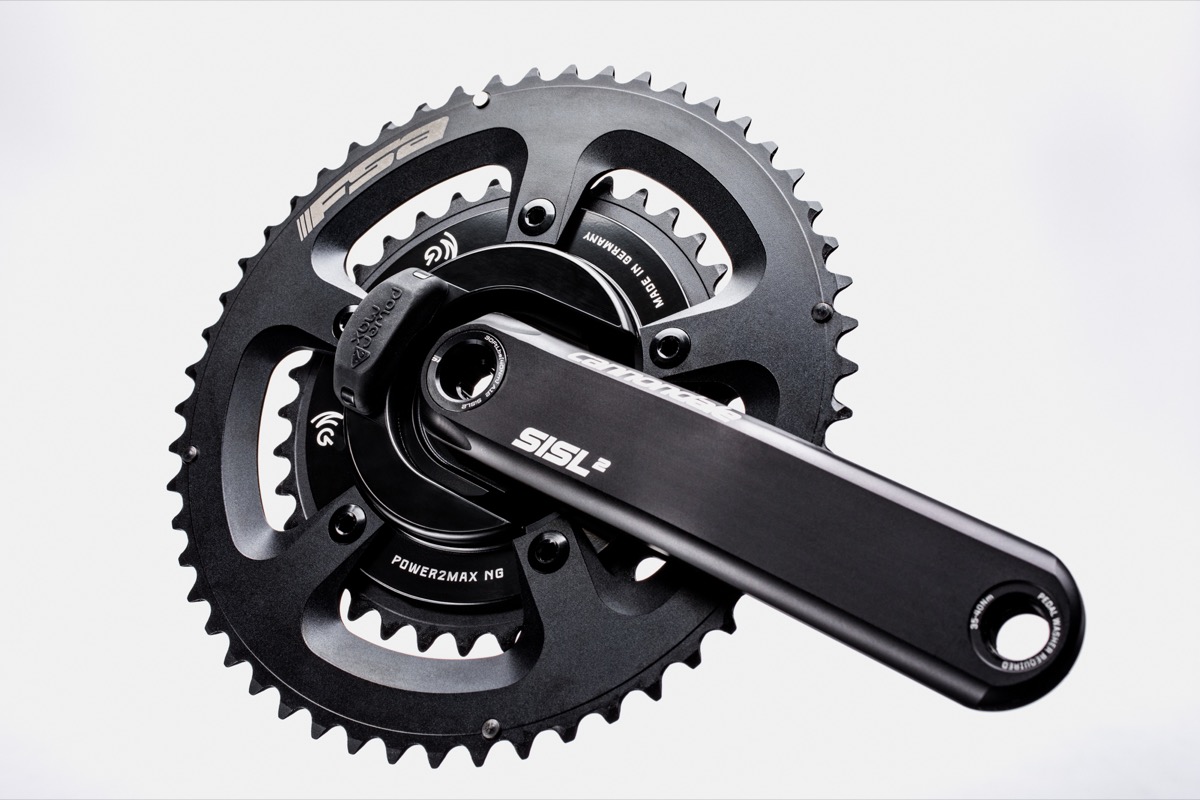

Power2Max Power Meter
Light, accurate and reliable Power2Max spider-based power meters are included on most models. Turn it on with a one-time activation fee and start getting faster. It's power made easy.
Speed Release Equipped
The Speed Release thru-axles allow faster, easier wheel changes and are compatible with most standard thru-axle wheelsets.
Cannondale's proprietary high-strength, high-stiffness carbon construction. An advanced matrix of intermediate modulus fibers creates a frame that's light, durable and lively.
Wheel SensorCannondale Wheel Sensor
Bottom BracketCannondale Alloy PressFit30
ChainShimano HG701, 11-speed
CrankHollowGram w/ pre-installed power2max NG Eco Power Meter (not activated), BB30a, FSA rings, 52/36
Front DerailleurShimano Ultegra Di2, braze-on
Rear CogsShimano 105, 11-32, 11-speed
Rear DerailleurShimano Ultegra Di2 GS
ShiftersShimano Ultegra Di2 hydro disc, 2x11
ForkAll-New BallisTec Carbon, SAVE, 1-1/8" to 1-1/4" steerer, integrated crown race, 12x100mm Speed Release thru-axle, flat mount disc, internal routing, 55mm offset
FrameAll-New, BallisTec Carbon, integrated cable routing w/ Switchplate, 142x12 Speed Release thru-axle, SAVE, PF30a, flat mount disc, integrated seat binder
- Integrated cable routing w/ Switchplate
- 142x12 Speed Release thru-axle
- Flat mount disc
- Integrated seat binder
HeadsetSuperSix, 1-1/4" lower bearing, 25mm top cap
Front HubHollowGram KNØT, sealed bearing 12x100 centerlock
Hubs(F) HollowGram KNØT, sealed bearing 12x100 centerlock / (R) HollowGram KNØT, 12x142 centerlock w/ DT Swiss internals
Rear HubHollowGram KNØT, 12x142 centerlock w/ DT Swiss internals
RimsHollowGram 45 SL KNØT, Carbon, 20h front, 24h rear, 45mm deep, 21mm ID, tubeless ready
SpokesDT Swiss Aerolite
TiresVittoria Corsa, 700 x 25c
Brake LeversShimano Ultegra Di2 hydro disc
BrakesShimano Ultegra Di2 hydro disc, 160/140mm RT70 rotors
GripsPrologo One Touch
HandlebarHollowGram SystemBar SAVE, Carbon, 8 deg. pitch adjust
SaddlePrologo Dimension Space, Tirox rails
SeatpostAll-New HollowGram 27 SL KNØT, carbon, 2 bolt clamp, 330mm
StemAll-New HollowGram KNØT, alloy w/ cable cover, -6°
Weight: 7.7 kg / 17.0 lbs - Bike and frame weights may vary in final production.
5'2" 157 5'5" 165
5'3" 160 5'7" 170
5'5" 165 5'9" 175
5'7" 170 5'11" 180
|A Seat Tube Length||40cm 15||43.8cm 17||47.7cm 18||51.5cm 20||53.6cm 21||55.8cm 21||57.9cm 22||60cm 23|
|B Top Tube Length||51.2cm 20||52cm 20||52.8cm 20||54.6cm 21||56.2cm 22||57.8cm 22||59.4cm 23||61.1cm 24|
|C Top Tube Actual||0cm 0||0cm 0||0cm 0||0cm 0||0cm 0||0cm 0||0cm 0||0cm 0|
|D Head Tube Angle||70.9° 70.9°||71.2° 71.2°||71.2° 71.2°||71.2° 71.2°||73.0° 73.0°||73.0° 73.0°||73.0° 73.0°||73.0° 73.0°|
|E1 Seat Tube Angle Effective||74.3° 74.3°||74.3° 74.3°||74.3° 74.3°||73.7° 73.7°||73.3° 73.3°||72.9° 72.9°||72.5° 72.5°||72.1° 72.1°|
|G Head Tube Length||9.9cm 3||11.4cm 4||13cm 5||15.3cm 6||16.4cm 6||18.8cm 7||20.9cm 8||23cm 9|
|H Wheelbase||97.9cm 38||98.5cm 38||99.4cm 39||100cm 39||99.2cm 39||100.5cm 39||101.6cm 40||102.8cm 40|
|I Front Center||58.2cm 22||58.8cm 23||59.7cm 23||61.1cm 24||59.5cm 23||60.7cm 23||61.8cm 24||63cm 24|
|J Chain Stay Length||40.8cm 16||40.8cm 16||40.8cm 16||40.8cm 16||40.8cm 16||40.8cm 16||40.8cm 16||40.8cm 16|
|K Bottom Bracket Drop||7.4cm 2||7.4cm 2||7.4cm 2||7.2cm 2||7.2cm 2||6.9cm 2||6.9cm 2||6.9cm 2|
|L Estimated BB Height||26.8cm 10||26.8cm 10||26.8cm 10||27.1cm 10||27.1cm 10||27.3cm 10||27.3cm 10||27.3cm 10|
|M Fork Rake||5.5cm 2||5.5cm 2||5.5cm 2||5.5cm 2||4.5cm 1||4.5cm 1||4.5cm 1||4.5cm 1|
|N Trail||6cm 2||5.8cm 2||5.8cm 2||5.8cm 2||5.8cm 2||5.8cm 2||5.8cm 2||5.8cm 2|
|O Stack||50.4cm 19||51.9cm 20||53.4cm 21||55.4cm 21||57.4cm 22||59.4cm 23||61.4cm 24||63.4cm 24|
|P Reach||37cm 14||37.4cm 14||37.8cm 14||38.4cm 15||39cm 15||39.5cm 15||40cm 15||40.6cm 15|
