- Ultra low drag Hi-MOD BallisTec carbon frameset
- Dura-Ace Di2 hydro disc group / HollowGram SiSL2 crank w/ power meter
- HollowGram 64 SL KNØT carbon wheelset / KNØT SystemBar
Where it thrives
In competition, the open road, up and down hills
What it's built for
Speed, efficiency, agility
SystemSix outstrips opponents, and not just where you’d expect. It sprints, descends and even climbs most hills faster, conserving watts off the front, in the draft, and in the laughing group.
Wheel SensorCannondale Wheel Sensor
Bottom BracketCannondale Alloy PressFit30
ChainShimano Dura-Ace, 11-speed
CrankHollowGram SiSL2 w/ pre-installed power2max NG Eco Power Meter (not activated), BB30a, Vision rings, 52/36
Front DerailleurShimano Dura-Ace Di2, braze-on
Rear CogsShimano Dura-Ace, 11-30, 11-speed
Rear DerailleurShimano Dura-Ace Di2
ShiftersShimano Dura-Ace Di2 hydro disc, 2x11
ForkBallisTec Hi-MOD Carbon, 1-1/8" - 1-1/4" steerer, 12x100mm Speed Release thru-axle, flat mount disc, 55mm offset (47-51cm) 45mm offset (54-62cm)
FrameBallisTec Hi-MOD Carbon, integrated cable routing w/ Switchplate, SAVE, PF30a, flat mount disc, 142x12 Speed Release thru-axle
- Integrated cable routing w/ Switchplate
- Flat mount disc
- 142x12 Speed Release thru-axle
HeadsetTapered, 1-1/8” upper, 1-1/4” lower bearing
Front HubHollowGram KNØT, sealed bearing 12x100 centerlock
Hubs(F) HollowGram KNØT, sealed bearing 12x100 centerlock / (R) HollowGram KNØT, 12x142 centerlock w/ DT Swiss internals
Rear HubHollowGram KNØT, 12x142 centerlock w/ DT Swiss internals
RimsHollowGram 64 SL KNØT, Carbon, 20h front, 24h rear, 64mm deep, 21mm ID, tubeless ready
SpokesDT Swiss Aerolite, straight pull
Tire Size23 (26mm)
TiresVittoria Rubino Pro Speed, 700 x 26mm (23c)
Brake LeversShimano Dura-Ace Di2 hydro disc
BrakesShimano Dura Ace Di2 hydro disc, 160/140mm RT900 rotors
GripsCannondale Grip Bar Tape w/Gel, 3.5mm
HandlebarHollowGram SystemBar KNØT, alloy w/ cable cover
SaddlePrologo Dimension Nack NDR, 143mm width, carbon rails
SeatpostHollowGram 60 KNØT Carbon, 330mm
StemHollowGram Stem KNØT, alloy w/ cable cover, -17°
Weight: 7.6 kg / 16.8 lbs - Bike and frame weights may vary in final production.
5'3" 160 5'7" 170
5'5" 165 5'9" 175
5'7" 170 5'11" 180
5'10" 177 6'2" 187
6'0" 182 6'4" 193
6'2" 187 6'6" 198
6'5" 195 6'9" 205

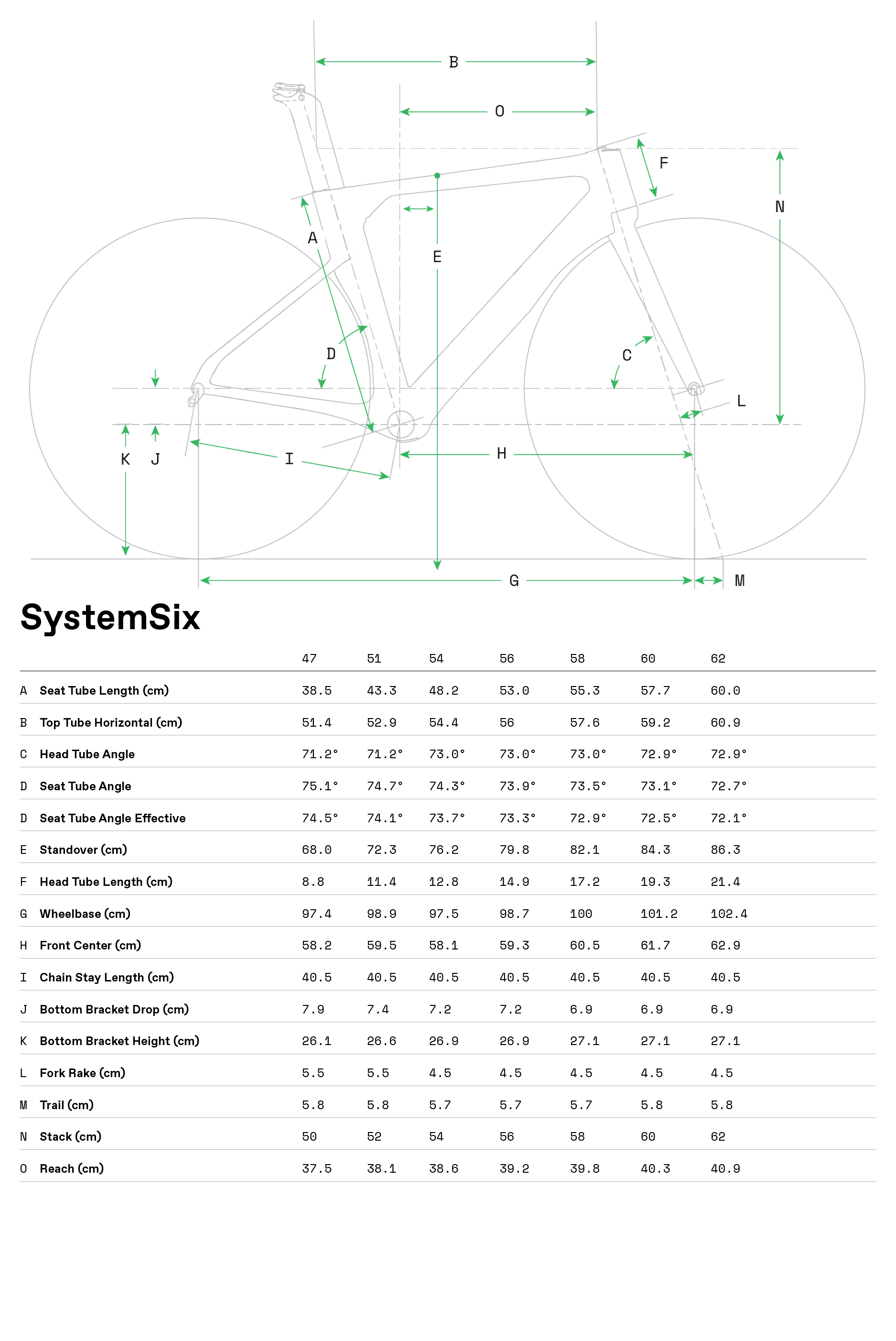

|A Seat Tube Length||38.5cm 15||43.3cm 17||48.2cm 18||53cm 20||55.3cm 21||57.7cm 22||60cm 23|
|B Top Tube Length||51.4cm 20||52.9cm 20||54.4cm 21||56cm 22||57.6cm 22||59.2cm 23||60.9cm 23|
|D Head Tube Angle||71.2° 71.2°||71.2° 71.2°||73.0° 73.0°||73.0° 73.0°||73.0° 73.0°||72.9° 72.9°||72.9° 72.9°|
|E1 Seat Tube Angle Effective||74.5° 74.5°||74.1° 74.1°||73.7° 73.7°||73.3° 73.3°||72.9° 72.9°||72.5° 72.5°||72.1° 72.1°|
|F Standover||68cm 26||72.3cm 28||76.2cm 30||79.8cm 31||82.1cm 32||84.3cm 33||86.3cm 33|
|G Head Tube Length||8.8cm 3||11.4cm 4||12.8cm 5||14.9cm 5||17.2cm 6||19.3cm 7||21.4cm 8|
|H Wheelbase||97.4cm 38||98.9cm 38||97.5cm 38||98.7cm 38||100cm 39||101.2cm 39||102.4cm 40|
|I Front Center||58.2cm 22||59.5cm 23||58.1cm 22||59.3cm 23||60.5cm 23||61.7cm 24||62.9cm 24|
|J Chain Stay Length||40.5cm 15||40.5cm 15||40.5cm 15||40.5cm 15||40.5cm 15||40.5cm 15||40.5cm 15|
|K Bottom Bracket Drop||7.9cm 3||7.4cm 2||7.2cm 2||7.2cm 2||6.9cm 2||6.9cm 2||6.9cm 2|
|L Estimated BB Height||26.1cm 10||26.6cm 10||26.9cm 10||26.9cm 10||27.1cm 10||27.1cm 10||27.1cm 10|
|M Fork Rake||5.5cm 2||5.5cm 2||4.5cm 1||4.5cm 1||4.5cm 1||4.5cm 1||4.5cm 1|
|N Trail||5.8cm 2||5.8cm 2||5.7cm 2||5.7cm 2||5.7cm 2||5.8cm 2||5.8cm 2|
|O Stack||50cm 19||52cm 20||54cm 21||56cm 22||58cm 22||60cm 23||62cm 24|
|P Reach||37.5cm 14||38.1cm 15||38.6cm 15||39.2cm 15||39.8cm 15||40.3cm 15||40.9cm 16|

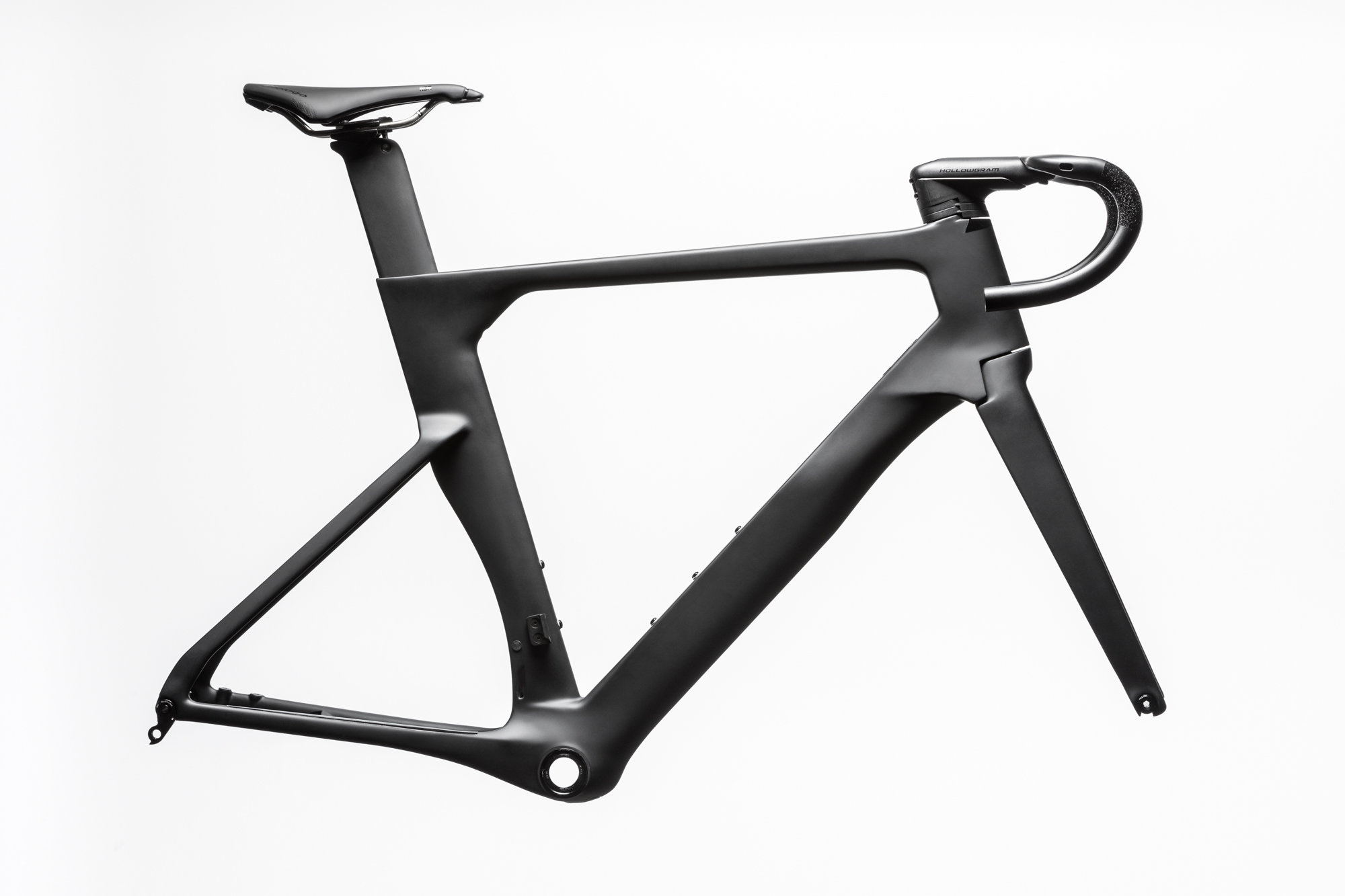

Speed of Six
SystemSix is based on a six-part system - frame, fork, seatpost, bar, stem and wheels - designed together holistically to minimize drag, enhance comfort and optimize stiffness for maximum speed.
Cannondale KNØT SystemBar
Provides the low drag and sleek look of a one-piece system, with the fit and Interchangeability benefits of a two-piece bar and stem.

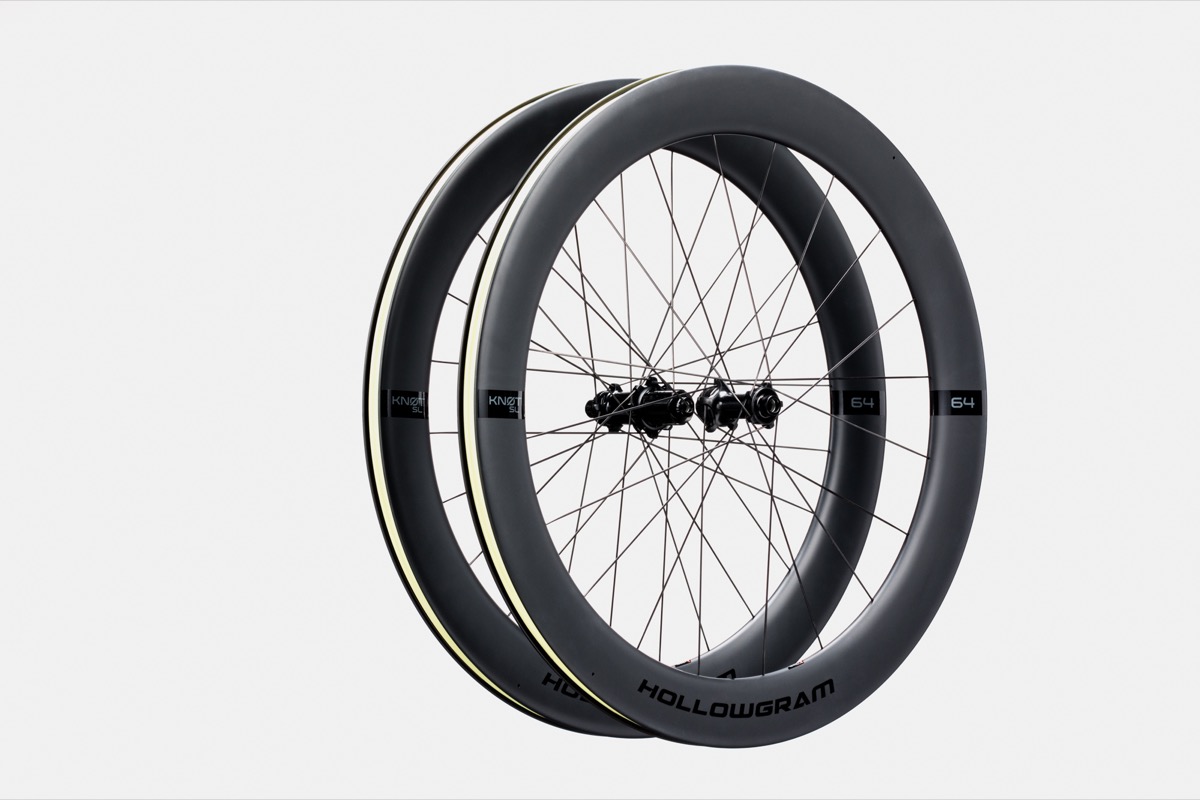

HollowGram 64 KNØT Wheels
One of the fastest wheelsets ever created. Ultra-wide, disc-only design offers incredibly low drag at a wide range of yaw angles, even with larger volume tires.

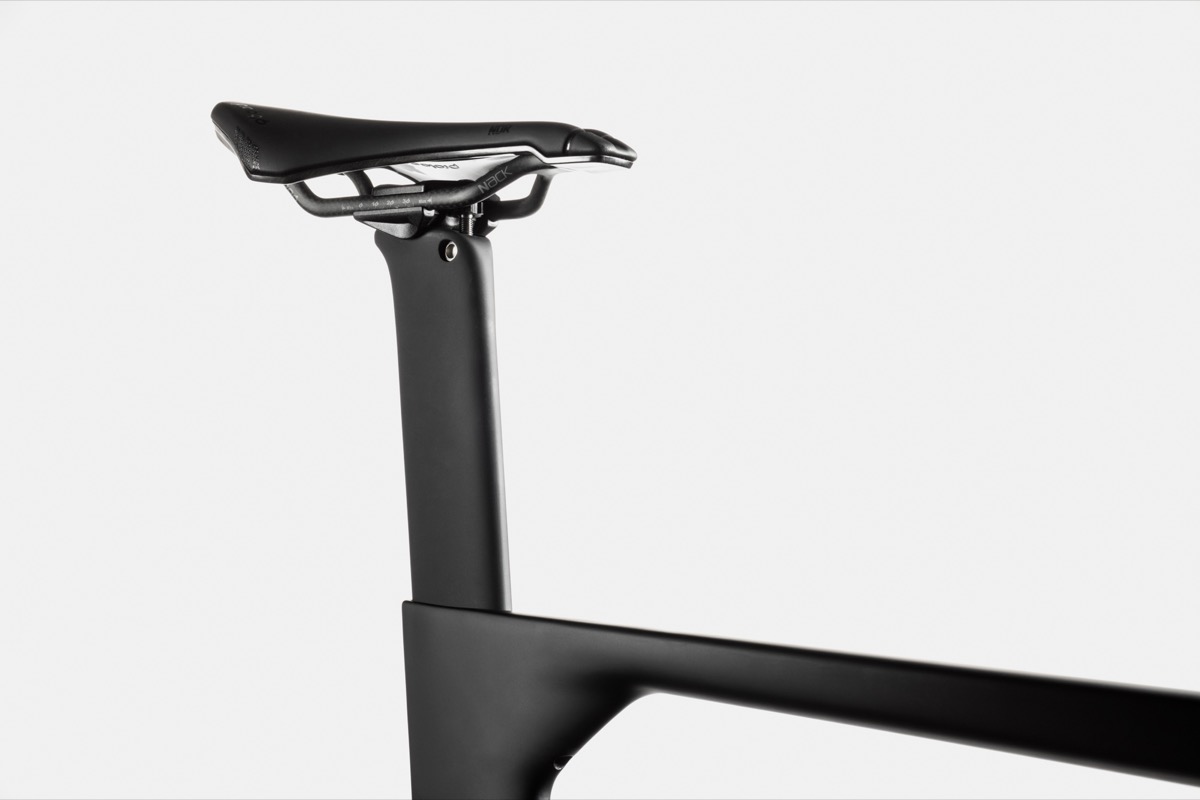

HollowGram 60 KNØT Seatpost
An vital part of the system, the KNØT seatpost is designed specifically to reduce drag in the high speed airflow that is accelerated between the rider’s legs.

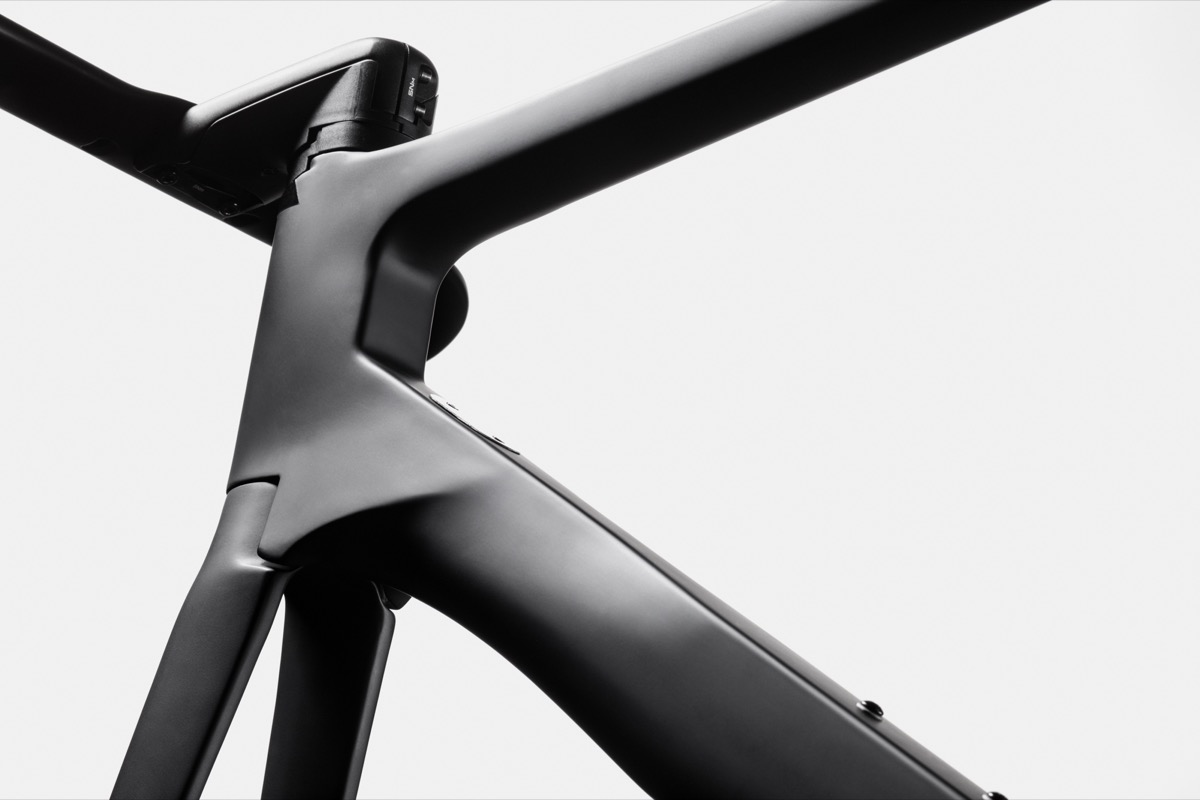

Every section of the frame, fork and seatpost features it own customized truncated airfoil shape, designed to reduce drag across the effective yaw range.

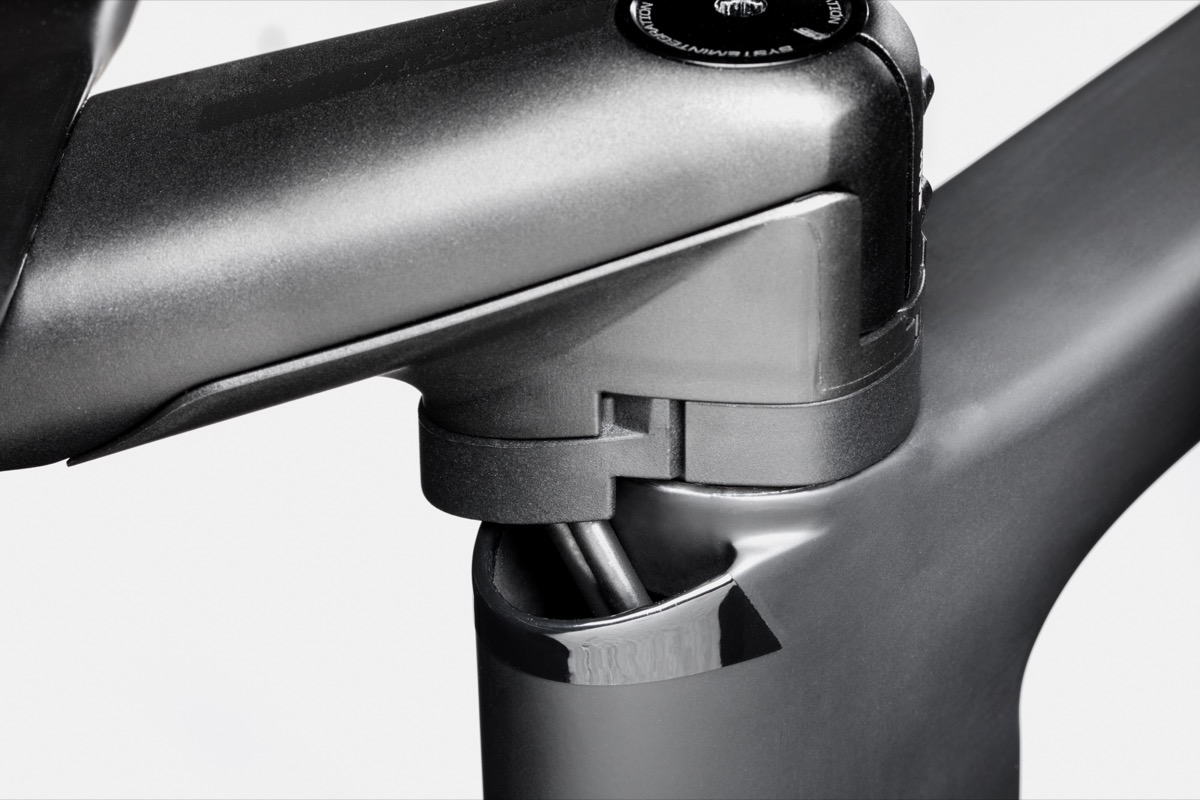

Hidden Cable Routing
Unique design routes brake lines and Di2 cables through an opening in the front of the headtube for minimal drag and headache-free serviceability.

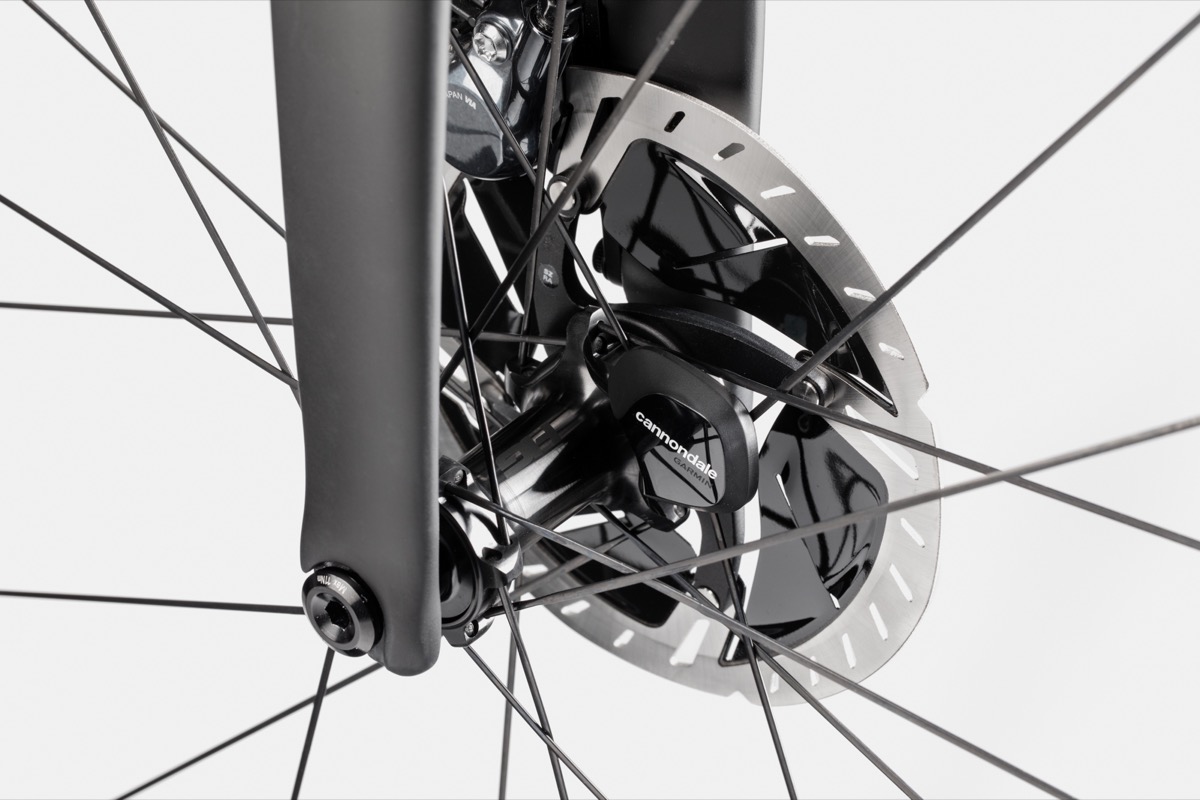

An integrated wheel sensor delivers hyper accurate speed, route and distance info, registers your bike, reminds you of needed service and more, all through the free Cannondale App.

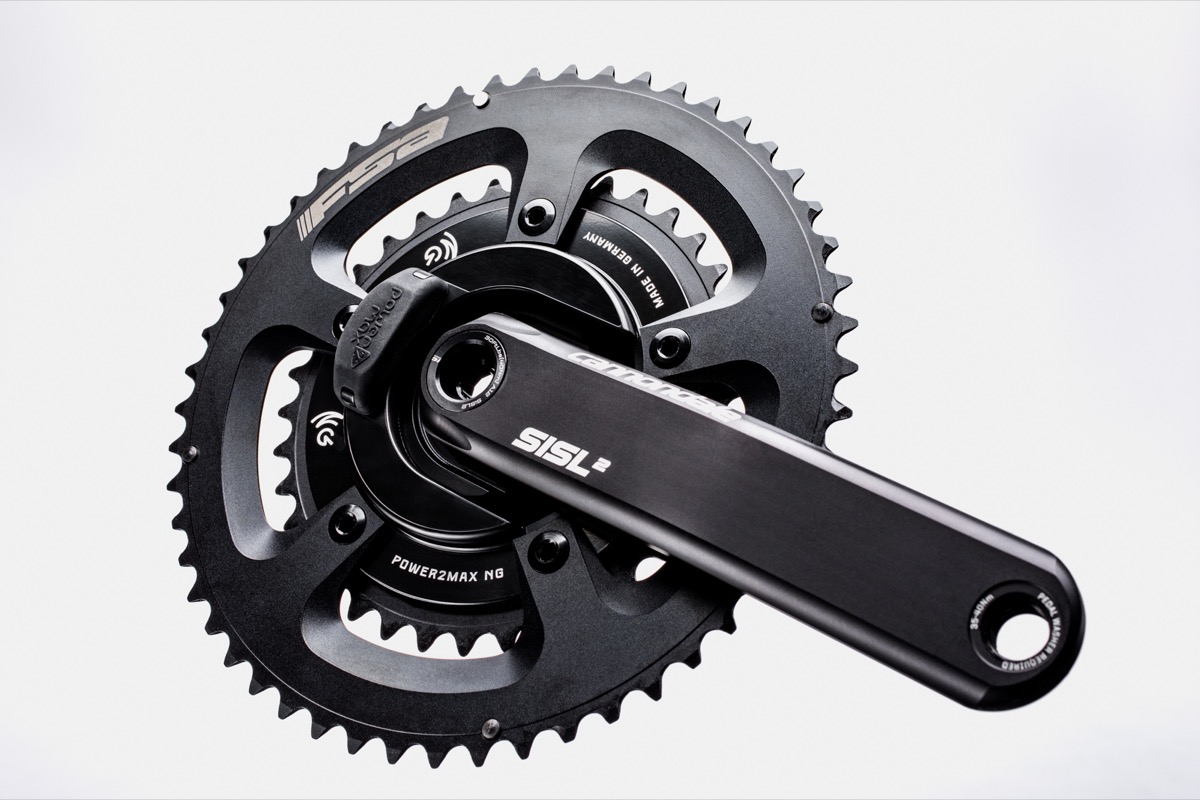

Power2Max Power Meter
Light, accurate and reliable Power2Max spider-based power meters are included on most models. Turn it on with a one-time activation fee and start getting faster. It's power made easy.

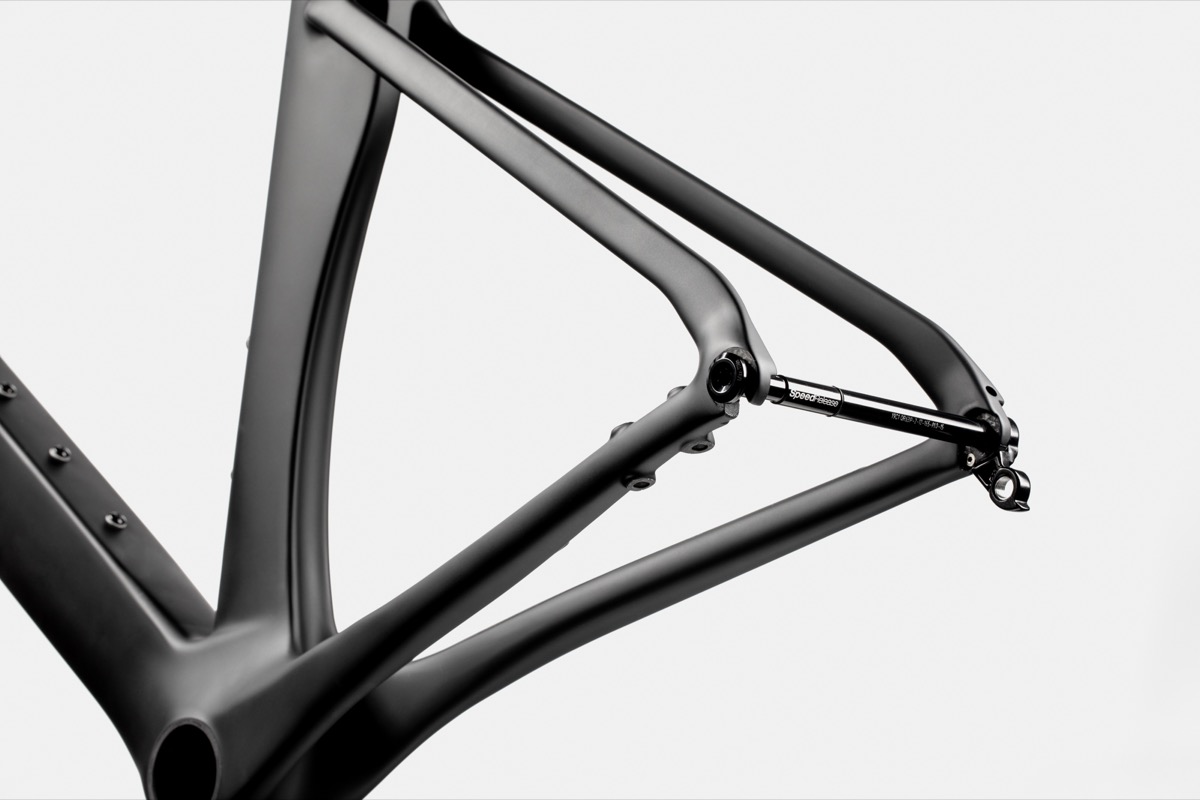

Speed Release Equipped
The Speed Release thru-axles allow faster, easier wheel changes and are compatible with most standard thru-axle wheelsets.
BallisTec Hi-MOD Carbon
Cannondale's premium high-strength, high-stiffness carbon construction. A sophisticated blend of high-strength and high-stiffness fibers yields a frame that’s extremely light, lively and durable.
